AE100-AEMNK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )4AFE,5AFE

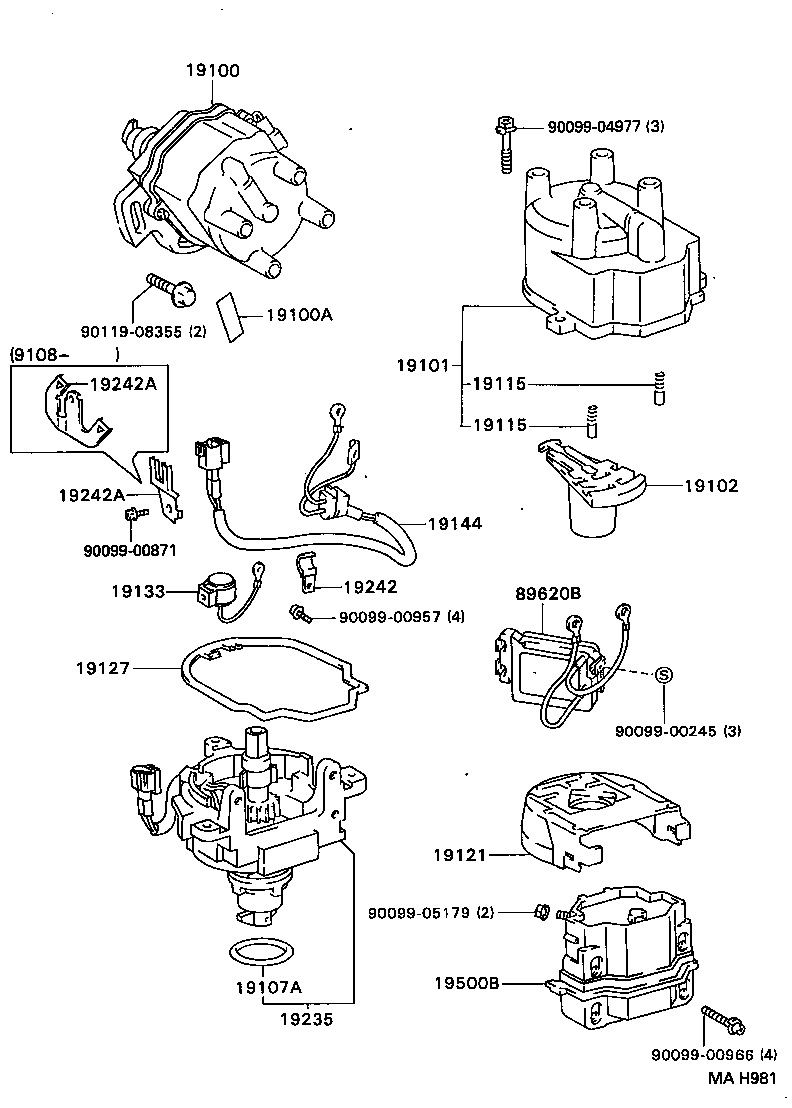

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19115 19121 19127 19133 19144 19235 19242 19242A 19242A 19500B 89620B 9009900245 9009900871 9009900957 9009900966 9009904977 9009905179 9011908355
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19020-15180

5AFE..AE100

 1
19100A - TAPE, SEALING
90919-24004

4A#,5AFE..AE10#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11060

4AFE,5AFE..AE10#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031

4AFE,5AFE..AE10#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14127

4A#,5AFE..AE10#..BZT,DX,G,LT,LX,SEG,SEL,SJ,XE

 1
90099-14091

4A#,5AFE..AE10#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

4AFE,5AFE..AE10#

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

4AFE,5AFE..AE10#

 2
19121 - COVER, DUST PROOF
19121-11080

4AFE,5AFE..AE10#

 1
19127 - PACKING, DUST PROOF
19127-15120

4AFE,5AFE..AE10#

 1
19133 - CONDENSER, DISTRIBUTOR
19133-16240

4AFE,5AFE..AE10#

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-16250

4AFE,5AFE..AE10#

 1
19144-16020

4AFE,5AFE..AE10#

 1
19235 - HOUSING, DISTRIBUTOR
19235-16240

5AFE..AE100

 1
19242 - CLAMP, CORD
19242-11190

4AFE,5AFE..AE10#

 1
19242A - CLAMP, CORD, NO.2
19242-16250

4AFE,5AFE..AE10#

 1
19242-15180

4AFE,5AFE..AE10#

 1
19242A - CLAMP, CORD, NO.2
19242-16250

4AFE,5AFE..AE10#

 1
19242-15180

4AFE,5AFE..AE10#

 1
19500B - COIL ASSY, IGNITION
90919-02164

4AFE,5AFE..AE10#

 1
89620B - IGNITER ASSY
89620-12440

AE10#..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
Common parts
90099-00245
90099-00871
90099-00957
90099-00966
90099-04977
90099-05179
90119-08355
