AE100-AEMEK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

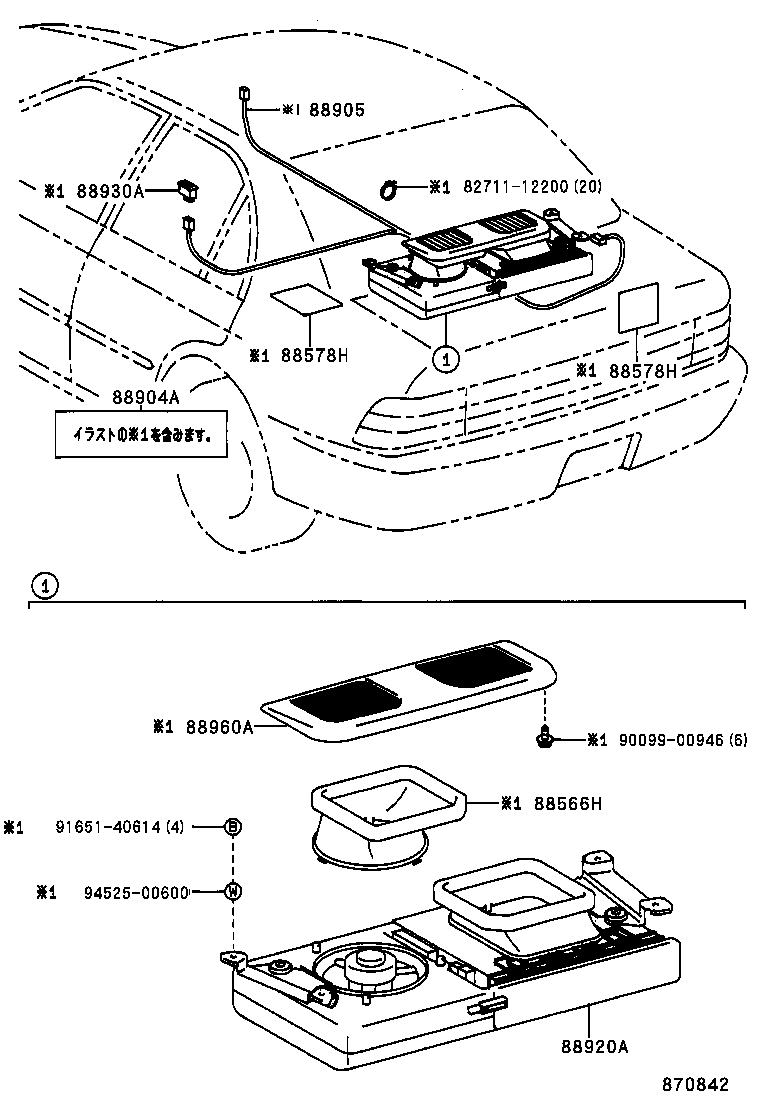

ILLUST NO. 1 OF 2(9106- )4DS

Click highlighted areas on diagram

diagram 8271112200 88566H 88578H 88578H 88904A 88905 88920A 88930A 88960A 9009900946 9165140614 9452500600
Part # Description Qty Price
88566H - DUCT, AIR, NO.1
88566-12030

AE10#,CE100,104,EE101..4DS

 1
88578H - PACKING, AIR PURIFIER, NO.2
88578-12170

AE10#,CE100,104,EE101..4DS

 3
88578-89105

AE10#,CE100,EE101

 3
88578H - PACKING, AIR PURIFIER, NO.2
88578-12170

AE10#,CE100,104,EE101..4DS

 3
88578-89105

AE10#,CE100,EE101

 3
88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE
88904-12020J0

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ,DARK BLUE,TRIM8#

 1
88904-12010J0

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ,DARK BLUE,TRIM8#

 1
88904-12010K0

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ,TAUPE,TRIM9#

 1
88904-12020K0

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ,TAUPE,TRIM9#

 1
88904-12010B0

AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)

ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ,SHADOW GRAY,TRIM1#

 1
88904-12020B0

AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)

ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ,SHADOW GRAY,TRIM1#

 1
88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1
88905-12010

AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)

ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ

 1
88905-12020

AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)

ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ

 1
88920A - PURIFIER ASSY, AIR
88920-12140

AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)

ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ

 1
88920-12030

AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)

ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ

 1
88930A - SWITCH ASSY, AIR PURIFIER
88930-12010

AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)

ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ

 1
88930-12020

AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)

ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ

 1
88960A - GRILLE ASSY, AIR PURIFIER
88960-12010B0

AE10#,CE100,104,EE101..4DS

SHADOW GRAY,TRIM1#

 1
88960-12010J0

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

DARK BLUE,TRIM8#

 1
88960-12010K0

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

TAUPE,TRIM9#

 1
Common parts
82711-12200
90099-00946
91651-40614
94525-00600

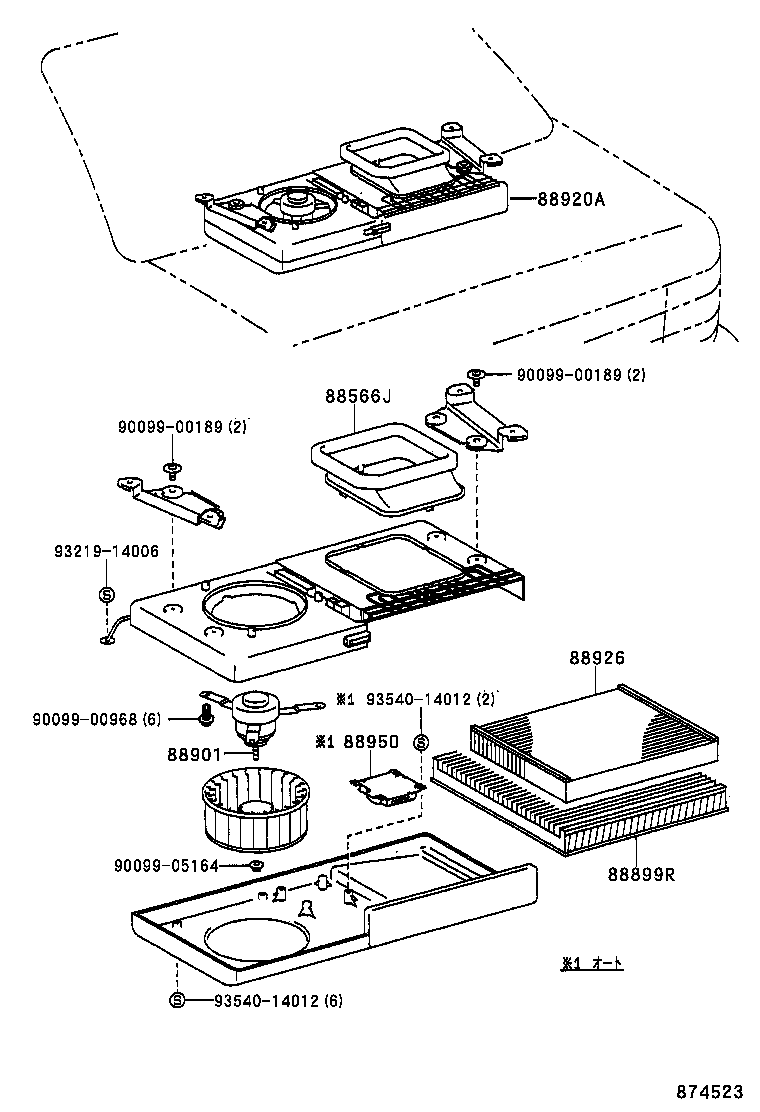

ILLUST NO. 2 OF 2(9106- )4DS

Click highlighted areas on diagram

diagram 88566J 88899R 88901 88920A 88926 88950 9009900189 9009900189 9009900968 9009905164 9321914006 9354014012 9354014012
Part # Description Qty Price
88566J - DUCT, AIR, NO.2
88566-12040

AE10#,CE100,104,EE101..4DS

 1
88899R - FRAME, AIR PURIFIER
88899-12080

AE10#,CE100,104,EE101..4DS

 1
88901 - MOTOR SUB-ASSY, AIR PURIFIER
88901-12010

AE10#,CE100,104,EE101..4DS

 1
88920A - PURIFIER ASSY, AIR
88920-12140

AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)

ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲﾔ

 1
88920-12030

AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)

ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲﾔ

 1
88926 - FILTER, AIR PURIFIER
88926-12020

AE10#,CE100,104,EE101..4DS

 1
88950 - AMPLIFIER ASSY, AIR PURIFIER
88950-12010

AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)

 1
Common parts
90099-00189
90099-00968
90099-05164
93219-14006
93540-14012
