AE100-AEMEK (1991)
Toyota Corolla

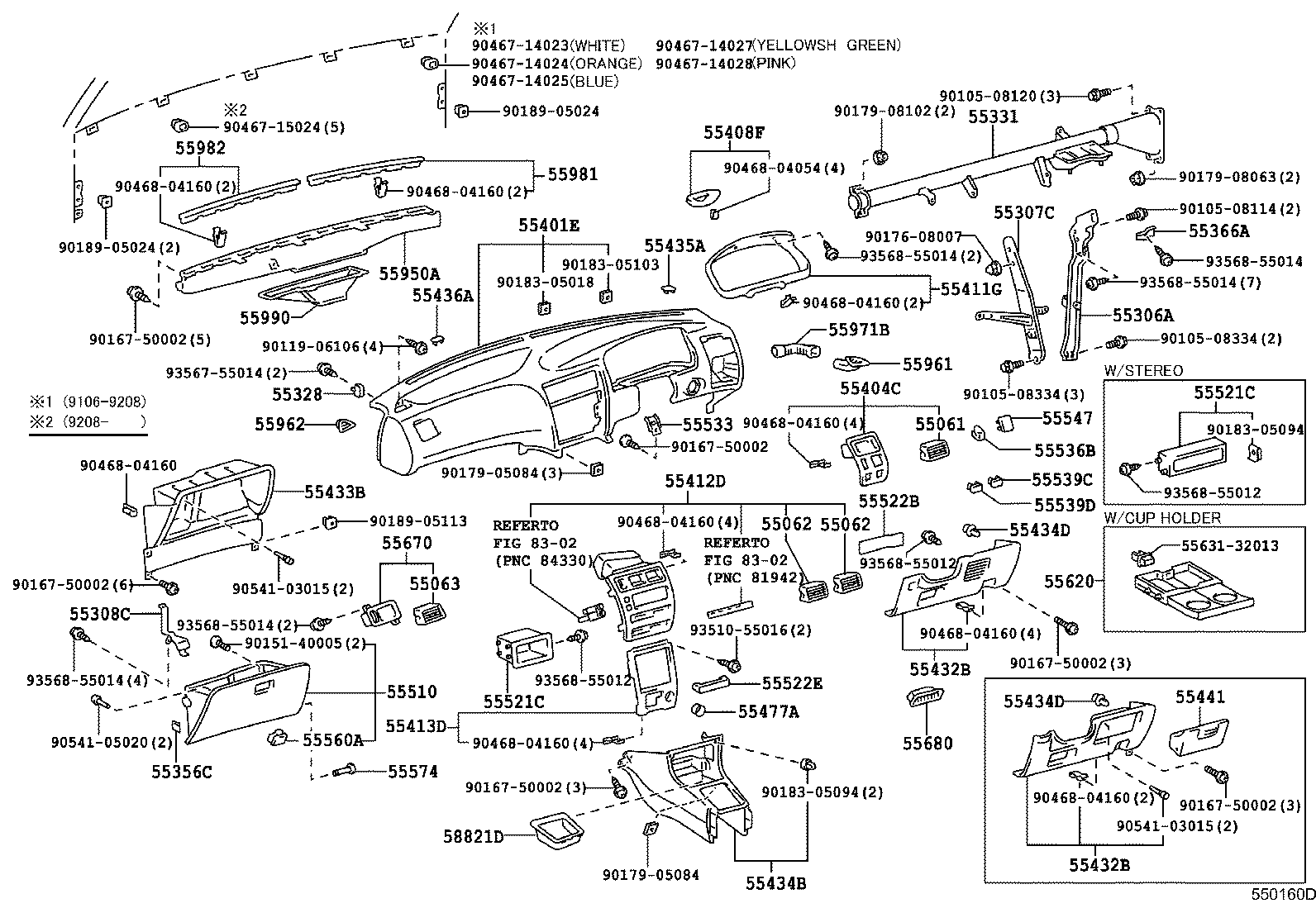

ILLUST NO. 1 OF 2(9106- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-12150 |
AE10#,CE10#,EE10# |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-12060 |
AE10#,CE10#,EE10# |
2 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-12060 |
AE10#,CE10#,EE10# |
2 | ||
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55063-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55063-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55063-12050B0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12200 |
AE10#,CE10#,EE10# |
1 | ||
| 55306-12150 |
AE10#,CE10#,EE10# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12200 |
AE10#,CE10#,EE10# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12180 |
AE10#,CE10#,EE10# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-12060 |
AE10#,CE10#,EE10# |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12240 |
AE10#,CE10#,EE10# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-12060 |
AE10#,CE10#,EE10# |
4 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-12040 |
AE10#,CE10#,EE10# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-12300K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55401-12370B0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55401-12300W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55401-12300P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55401-12370K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55401-12460K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-12570 |
AE10#,CE10#,EE10# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-12870 |
AE10#,CE10#,EE10# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12480 |
EE101;AE100,104,CE10#,EE106,107,108..DX,GL,L,LT,LX |
1 | ||
| 55405-12700 |
EE101;AE100,104,CE10#,EE106,107,108..DX,GL,L,LT,LX |
1 | ||
| 55405-12500 |
AE10#,CE100,104..G,GT,SEG,SEL |
1 | ||
| 55405-12480 |
AE100,104,CE100,104..SEL,XE ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55405-12480 |
AE100,104,CE10#,EE10#..DX,GL,L,LT,LX,XE |
1 | ||
| 55405-12700 |
AE100,104,CE100,104..SEL,XE ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-12420 |
AE10#,CE10#,EE10# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-12310K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55432-12310J0 |
AE10#,CE100,104,EE101..SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55432-12310B0 |
AE100,101,104,CE100,104,EE101..BZT,G,GT,LT,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 55432-12320P0 |
AE100,104,109,CE100,102,104,105,106,107,108,109,EE10#..CTD,DX,DXJ,GL,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-12310K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55432-12310J0 |
AE10#,CE100,104,EE101..SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55432-12310B0 |
AE100,101,104,CE100,104,EE101..BZT,G,GT,LT,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 55432-12320P0 |
AE100,104,109,CE100,102,104,105,106,107,108,109,EE10#..CTD,DX,DXJ,GL,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-12090K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55433-12090B0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55433-12090J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-12100W3 |
AE100,101,CE100,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55434-12101K0 |
AE100,101,CE100,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55434-12100P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55434-12100K0 |
AE100,101,CE100,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-07073C0 |
AE10#,CE100,106,108,109,EE10#..BZT,CTD,DX,DXJ,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 90467-07073C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,8#,9# |
1 | ||
| 90467-07073C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
1 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-07073C0 |
AE10#,CE100,106,108,109,EE10#..BZT,CTD,DX,DXJ,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 90467-07073C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,8#,9# |
1 | ||
| 90467-07073C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-12010W3 |
AE100,104,CE100,104,EE101..LX,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55435-12010P0 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,GT,L,LT,LX,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 55435-12010K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55435-12010K0 |
AE100,104,CE100,104,EE101..LX,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55435-12010C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
1 | ||
| 55435-12010P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55435-12010C0 |
AE10#,CE100,101,102,105,106,107,108,109,EE10#..BZT,CTD,DX,DXJ,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-12020W3 |
AE100,104,CE100,104,EE101..LX,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55436-12020P0 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 55436-12020P0 |
AE10#,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 55436-12020C0 |
AE100,104,CE100,104,EE101..LX,SEL,XE BLACK,TRIM1#,9# |
1 | ||
| 55436-12020K0 |
AE100,104,CE100,104,EE101..LX,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55436-12020C0 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,GL,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-12030J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55440-12030B0 |
AE10#,CE100,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 55440-12030J0 |
AE10#,CE100,104,EE101..SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55440-12030B0 |
AE10#;CE100..5F..(DX,LX);CE100,104,EE101..SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 55440-12030K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55440-12030K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12310J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55550-12310K1 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55550-12310B0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55550-12310K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16040 |
EE103..GL;EE102..4F..02S;AE10#,CE10#,EE101,104,106,107,108;EE102,103..(3FC,4F)..(DX,DXJ)..05S 2DINﾎﾞｯｸｽ |
1 | ||
| 55521-12140 |
AE10#,CE100,104..G,GT,LT,SEG,SEL,SJ 1DINｶﾊﾞｰ |
1 | ||
| 55521-12140 |
AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,SJ,XE 1DINｶﾊﾞｰ |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16040 |
EE103..GL;EE102..4F..02S;AE10#,CE10#,EE101,104,106,107,108;EE102,103..(3FC,4F)..(DX,DXJ)..05S 2DINﾎﾞｯｸｽ |
1 | ||
| 55521-12140 |
AE10#,CE100,104..G,GT,LT,SEG,SEL,SJ 1DINｶﾊﾞｰ |
1 | ||
| 55521-12140 |
AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,SJ,XE 1DINｶﾊﾞｰ |
1 | ||
| 55522E - COVER, CUP HOLDER OPENING | ||||
| 55522-12110 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX,SJ,XE |
1 | ||
| 55522-12110 |
AE10#,CE100,102,104,105,106,107,108,109,EE10#..CTD,DX,DXJ,GL,L,LX,SJ |
1 | ||
| 55536B - COVER, LIGHT CONTROL SWITCH HOLE | ||||
| 55536-12010 |
AE10#,CE10#,EE10# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-12110 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,GT,L,LT,LX,SEL,SJ,XE |
1 | ||
| 55539-12110 |
AE10#,CE10#,EE10# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-12110 |
AE104..5F;AE100,101,CE10#,EE10# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1208002 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55560-1208004 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55560-1208003 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AE10#,CE10#,EE10# |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-12020 |
AE10#,CE10#,EE103,104,107,108..G,GL,GT,L,LT,SEG,SEL |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-12150P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55670-12150K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55670-12150W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-12050K0 |
AE10#,CE100,104..SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55680-12050K0 |
AE10#,CE100,104..SEG,SEL TAUPE,TRIM9# |
1 | ||
| 55680-12050P0 |
AE10#,CE100,104..G,GT,SEG,SEL SHADOW GRAY,TRIM1# |
1 | ||
| 55680-12050W3 |
AE10#,CE100,104..SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55680-12050W3 |
AE10#,CE100,104..SEG,SEL DARK BLUE,TRIM8# |
1 | ||
| 55680-12050P0 |
AE10#,CE100,104..G,GT,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 55680-12050 |
AE10#,CE100,104..G,GT,SEG,SEL,SJ,XE |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12170 |
AE10#,CE10#,EE10# |
1 | ||
| 55950-12140 |
AE10#,CE10#,EE10# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-12180P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55961-12180K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55961-12180W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-12160W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 55962-12160K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 55962-12160P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-12110 |
AE10#,CE10#,EE10# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-12050 |
AE10#,CE10#,EE10# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-12050 |
AE10#,CE10#,EE10# |
1 | ||
| 55990 - NOZZLE ASSY, CENTER DEFROSTER | ||||
| 55990-12010 |
AE10#,CE10#,EE10# |
1 | ||
| 58821D - PANEL, CONSOLE, UPPER FRONT | ||||
| 58821-12050W3 |
AE100,101,CE100,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 58821-12050K0 |
AE100,101,CE100,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 58821-12050P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 55631-32013 | ||||
| 90105-08114 | ||||
| 90105-08120 | ||||
| 90105-08334 | ||||
| 90119-06106 | ||||
| 90151-40005 | ||||
| 90167-50002 | ||||
| 90176-08007 | ||||
| 90179-05084 | ||||
| 90179-08063 | ||||
| 90179-08102 | ||||
| 90183-05018 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-05024 | ||||
| 90189-05113 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 90467-15024 | ||||
| 90468-04054 | ||||
| 90468-04160 | ||||
| 90541-03015 | ||||
| 90541-05020 | ||||
| 93510-55016 | ||||
| 93567-55014 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
