AE100-AEMDK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )AE100,101,EE10#..MTM

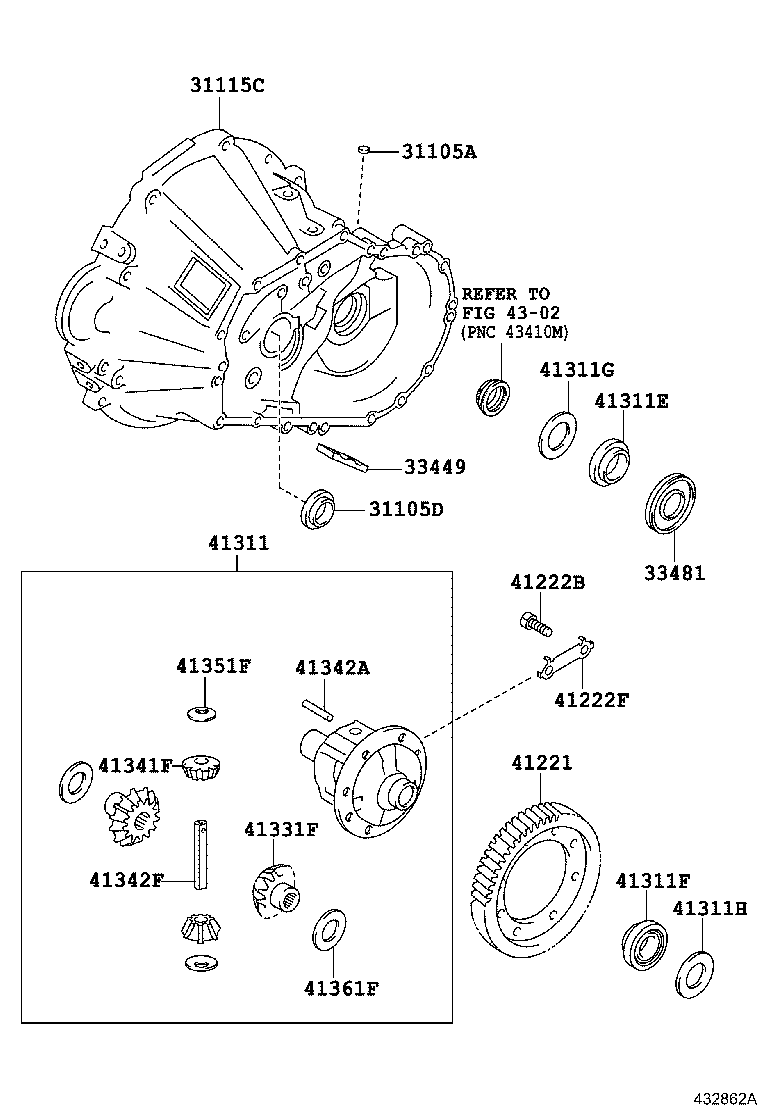

Click highlighted areas on diagram

C40,C50,C52,C56,C160

diagram 31105A 31105D 31115C 33449 33481 41221 41222B 41222F 41311 41311E 41311F 41311G 41311H 41331F 41341F 41342A 41342F 41351F 41361F 4302
Part # Description Qty Price
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

AE100,101,EE10#..MTM

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25016

AE100,101,EE10#..MTM..(CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE)

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-12040

AE100,101..5F

 1
33449 - MAGNET, TRANSMISSION
33449-12020

AE100,101,EE10#..MTM

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-12040

AE100,101,EE10#..MTM

歯数=35,ﾏｰｸ 35X29−31

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12330

AE100..5F..(LX,SEL)

HONG KONG SPEC

 1
41221-12310

AE100..5F;EE103..3FC;EE101,104..3FC,4F

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11353

AE100,101,EE10#;CE100,106,108..4FC

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-12040

AE100,101,EE10#..MTM

 4
41311 - CASE, FRONT DIFFERENTIAL
41301-12040

AE100,101,EE10#..MTM

 1
41301-12041

AE100,101,EE10#..MTM

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-38004

AE100,101,EE10#..MTM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

AE100,101,EE10#..4F,4FC,5F

 1
90368-38010

AE101..MTM;AE100,EE10#..4F,4FC,5F

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90201-41045

AE100,101,EE10#..MTM

厚さ=2.10

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-41046

AE100,101,EE10#..MTM

厚さ=2.10,ﾏｰｸ A

 1
90201-41050

AE100,101,EE10#..MTM

厚さ=2.30,ﾏｰｸ E

 1
90201-41047

AE100,101,EE10#..MTM

厚さ=2.15,ﾏｰｸ B

 1
90201-41051

AE100,101,EE10#..MTM

厚さ=2.35,ﾏｰｸ F

 1
90201-41049

AE100,101,EE10#..MTM

厚さ=2.25,ﾏｰｸ D

 1
90201-41060

AE100,101,EE10#..MTM

厚さ=2.80,ﾏｰｸ Q

 1
90201-41048

AE100,101,EE10#..MTM

厚さ=2.20,ﾏｰｸ C

 1
90201-41052

AE100,101,EE10#..MTM

厚さ=2.40,ﾏｰｸ G

 1
90201-41054

AE100,101,EE10#..MTM

厚さ=2.50,ﾏｰｸ J

 1
90201-41062

AE100,101,EE10#..MTM

厚さ=2.90,ﾏｰｸ S

 1
90201-41053

AE100,101,EE10#..MTM

厚さ=2.45,ﾏｰｸ H

 1
90201-41064

AE100,101,EE10#..MTM

厚さ=3.00,ﾏｰｸ U

 1
90201-41061

AE100,101,EE10#..MTM

厚さ=2.85,ﾏｰｸ R

 1
90201-41056

AE100,101,EE10#..MTM

厚さ=2.60,ﾏｰｸ L

 1
90201-41058

AE100,101,EE10#..MTM

厚さ=2.70,ﾏｰｸ N

 1
90201-41059

AE100,101,EE10#..MTM

厚さ=2.75,ﾏｰｸ P

 1
90201-41055

AE100,101,EE10#..MTM

厚さ=2.55,ﾏｰｸ K

 1
90201-41057

AE100,101,EE10#..MTM

厚さ=2.65,ﾏｰｸ M

 1
90201-41063

AE100,101,EE10#..MTM

厚さ=2.95,ﾏｰｸ T

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

AE100,101,EE10#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

AE100,101,EE10#

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AE100,101,CE100,101,102,106,107,108,EE10#

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12020

AE10#,EE101

 1
41342-12140

AE100,101,EE10#

 1
41342-12140

AE101..MTM;AE100,EE10#

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

AE100,101,EE10#

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020

EE10#;AE100,101,CE100,106,108..MTM

厚さ=1.00,ﾏｰｸ 02

 2
41361-22160

EE10#;AE100,101,CE100,106,108..MTM

厚さ=1.15,ﾏｰｸ 16

 2
41361-22040

EE10#;AE100,101,CE100,106,108..MTM

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

EE10#;AE100,101,CE100,106,108..MTM

厚さ=0.95,ﾏｰｸ 14

 2
41361-22030

EE10#;AE100,101,CE100,106,108..MTM

厚さ=1.10,ﾏｰｸ 03

 2
41361-22150

EE10#;AE100,101,CE100,106,108..MTM

厚さ=1.05,ﾏｰｸ 15

 2
Linked diagrams
4302
