AE100-AEMBK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008

(9106-9505)AE100,104,CE100,104,EE101..DX,LX,XE

Click highlighted areas on diagram

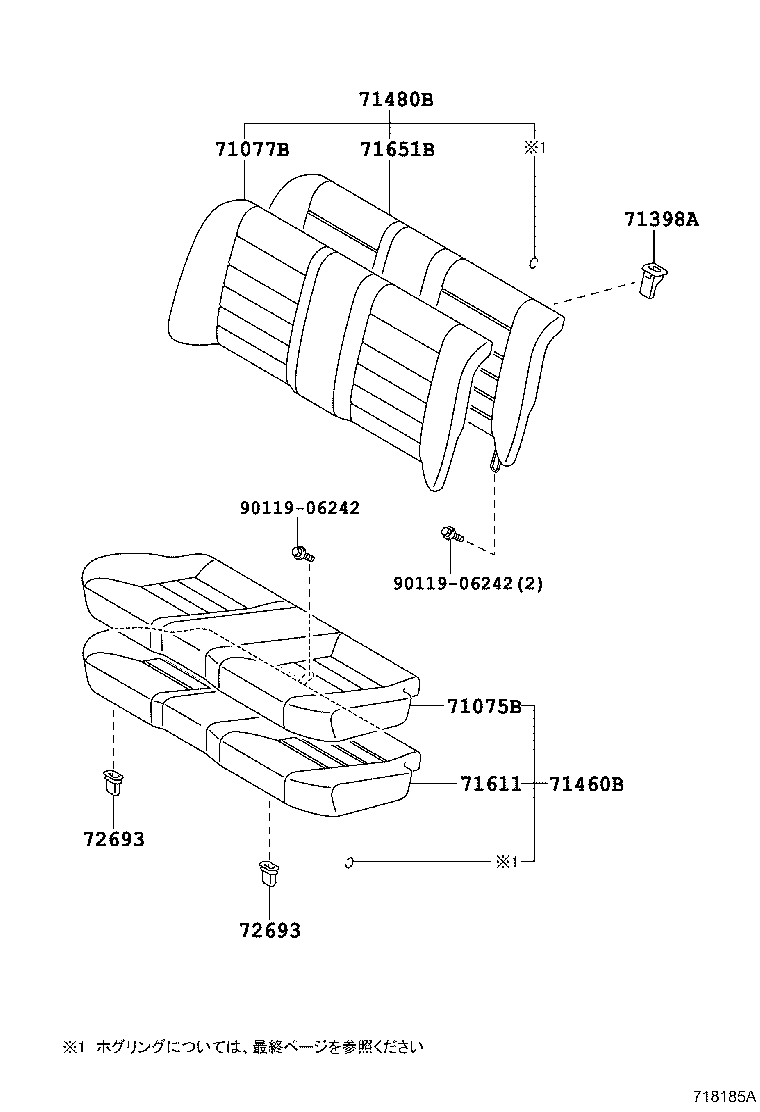

diagram 71075B 71077B 71398A 71460B 71480B 71611 71651B 72693 72693 9011906242 9011906242
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1E870B0

AE100,CE100,EE101..DX

SHADOW GRAY,TRIM1#

 1
71075-1E871B0

AE100,CE100,EE101..DX

SHADOW GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1K650B0

AE100,CE100,EE101..DX

SHADOW GRAY,TRIM1#

 1
71398A - HOLDER, REAR SEAT BACK
71398-12030

AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE

 3
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1E860B0

AE100,CE100,EE101..DX

***,SHADOW GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1K660B0

AE100,CE100,EE101..DX

***,SHADOW GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71503-12060

AE100,104,CE100,104,EE101..DX,LX

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-12100

AE100,104,CE100,104,EE101..DX,LX,XE

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

AE10#,CE100,104,EE101..4DS

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

AE10#,CE100,104,EE101..4DS

 2
Common parts
90119-06242
