AE100-AEMBK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

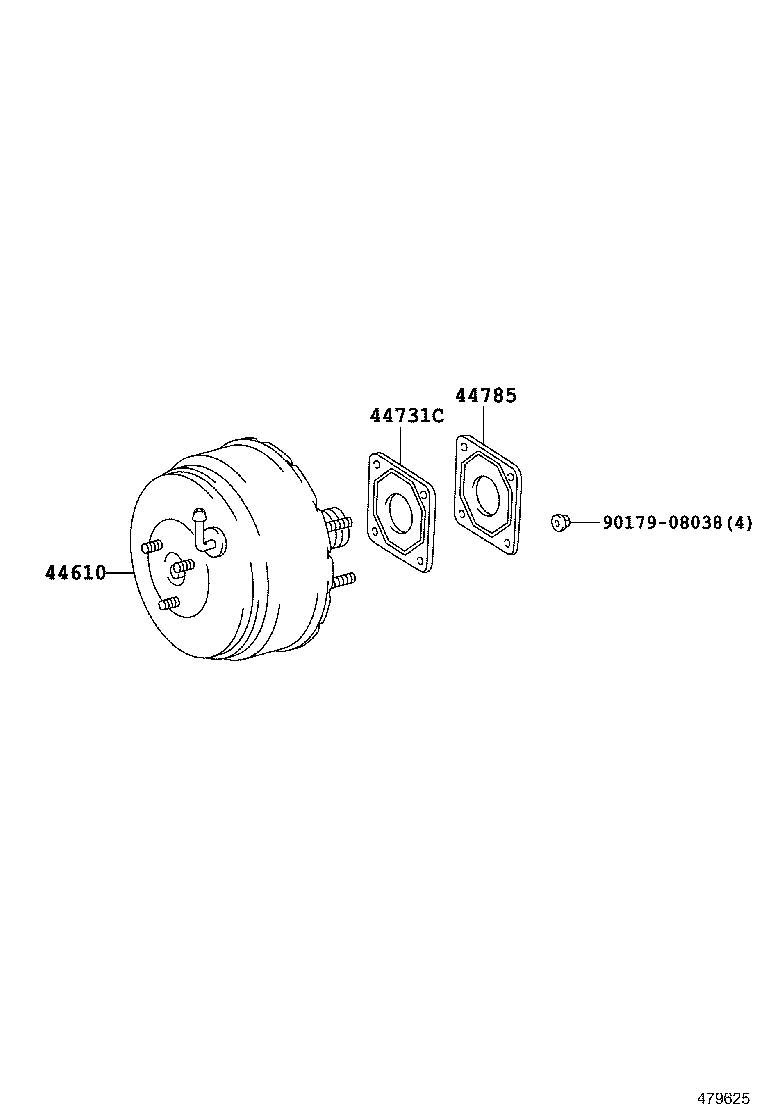

ILLUST NO. 1 OF 2(9106-9505) ; (9505-9508)CE10#,EE10# ; (9508-)CE10#

Click highlighted areas on diagram

diagram 44610 44731C 44785 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-1A310

AE100,EE10#

 1
44610-1A260

AE100,CE100,EE101

ｱﾘ(ABS)

 1
44610-1A400

AE100,CE100,EE101

ｱﾘ(ABS)

 1
44610-1A860

AE100,EE101,104

AISIN

 1
44610-1A870

AE100,EE101

JKC

 1
44731C - BRACKET, BRAKE BOOSTER
44731-12050

AE101..3DS..GT;AE100,101,CE100,106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE

 1
44731-12050

AE100,101,EE101,104..DX,G,L,LT,LX,SEG,SEL,SJ,XE

 2
44785 - GASKET, BRAKE BOOSTER
44785-12010

AE10#,CE10#,EE10#

 1
44785-20020

AE10#,CE10#,EE10#

 1
Common parts
90179-08038

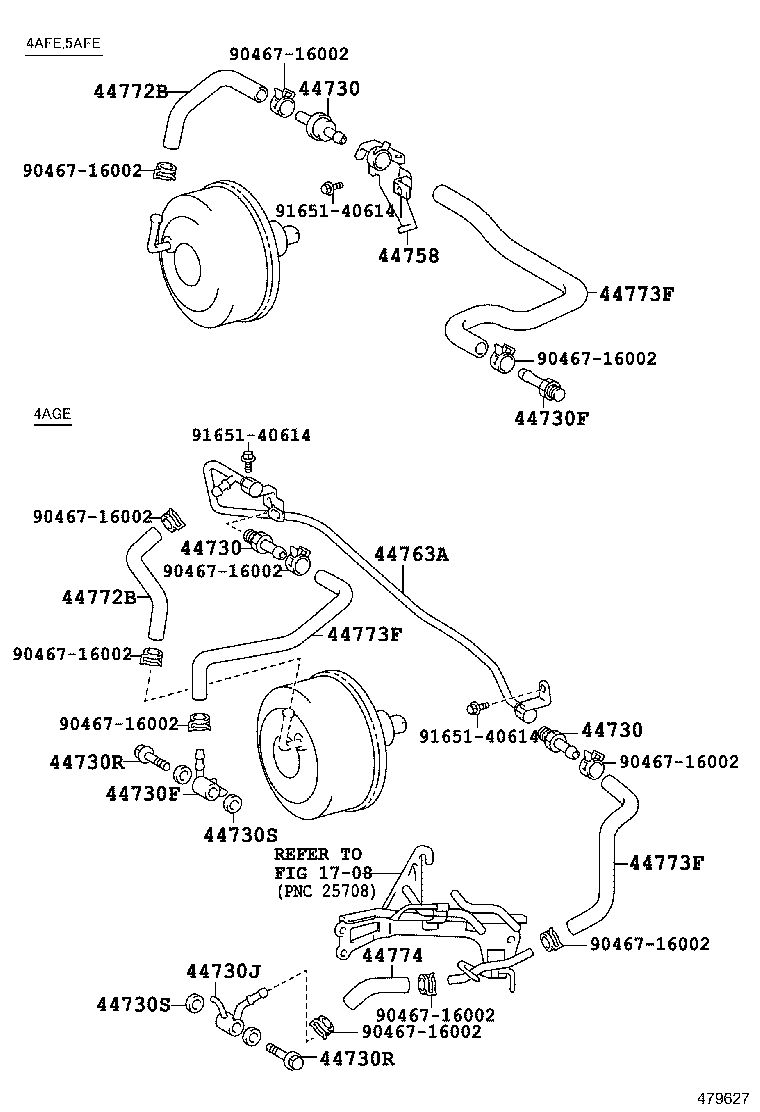

ILLUST NO. 2 OF 2(9106-9505)AE10#

Click highlighted areas on diagram

diagram 1708 44730 44730 44730 44730F 44730F 44730J 44730R 44730R 44730S 44730S 44758 44763A 44772B 44772B 44773F 44773F 44773F 44774 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9165140614 9165140614 9165140614
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AE10#,EE101,102,103,104..DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AE10#,EE101,102,103,104..DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AE10#,EE101,102,103,104..DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

AE10#..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

AE10#..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-12290

AE10#,EE101,102,103,104..DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12430

AE100,101,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

ｱﾘ(ABS)

 1
44772-12420

AE100,101,EE101,102,103,104..DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12430

AE100,101,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

ｱﾘ(ABS)

 1
44772-12420

AE100,101,EE101,102,103,104..DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12470

AE10#..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12470

AE10#..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12470

AE10#..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
Common parts
90467-16002
91651-40614
Linked diagrams
1708
