AE100-AEHNK (1991)

Toyota Corolla

Production Jun 1991 - May 1993
Engine 5AFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)4DS

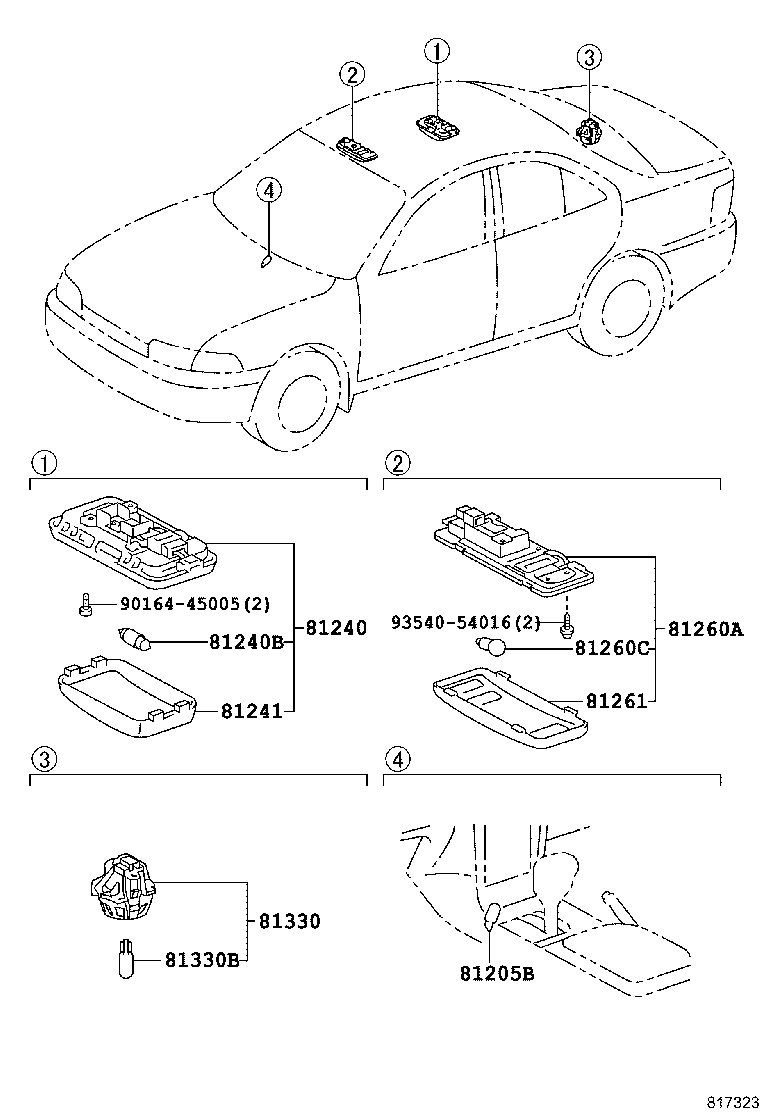

Click highlighted areas on diagram

diagram 81205B 81240 81240B 81241 81260A 81260C 81261 81330 81330B 9016445005 9354054016
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018

AE10#,CE10#,EE10#

12V 1.2W ｿｹｯﾄ無し

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12040B0

AE10#,CE100,104,EE101

LIGHT GRAY,TRIM1#

 1
81240-12040K0

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

LIGHT TAUP,TRIM9#

 1
81240-12040J0

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

LIGHT BLUE,TRIM8#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AE10#,CE10#,EE10#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AE10#,CE10#,EE10#

 1
81260A - LAMP ASSY, MAP
81260-20160K1

AE10#,CE100,104..SEG,SEL,XE

LIGHT TAUPE,TRIM9#

 1
81260-20160S3

AE10#,CE100,104..GT,SEG,SEL,SJ,XE

SHADOW GRAY,TRIM1#

 1
81260-20160W5

AE10#,CE100,104..SEG,SEL,XE

LIGHT BLUE,TRIM8#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AE10#,CE100,104..GT,SEG,SEL,SJ,XE

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-20160J0

AE10#,CE100,104..SEG,SEL,XE

LIGHT BLUE,TRIM8#

 1
81261-2016003

AE10#,CE100,104..GT,SEG,SEL,SJ,XE

SHADOW GRAY,TRIM1#

 1
81261-20160K0

AE10#,CE100,104..SEG,SEL,XE

LIGHT TAUPE,TRIM9#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020

AE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

AE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)

12V 3.8W

 1
Common parts
90164-45005
93540-54016
