AE100-AEHBK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )4DS

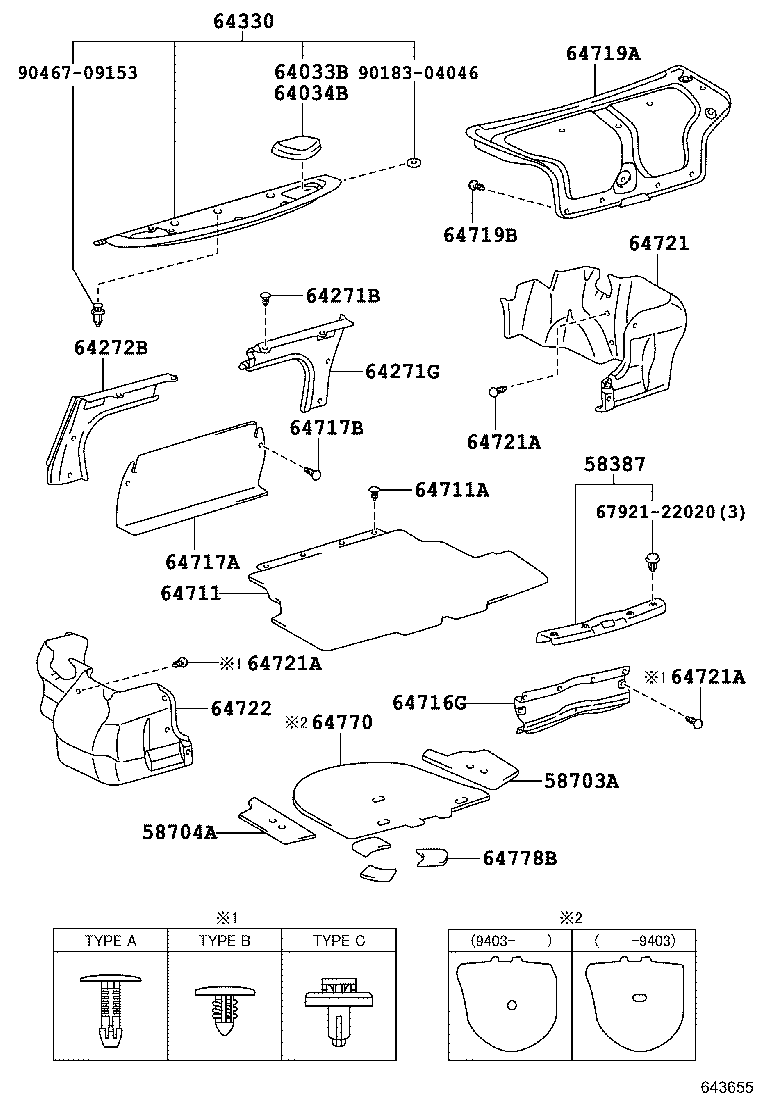

Click highlighted areas on diagram

diagram 58387 58703A 58704A 64033B 64034B 64271B 64271G 64272B 64330 64711 64711A 64716G 64717A 64717B 64719A 64719B 64721 64721A 64721A 64721A 64722 64770 64778B 6792122020 9018304046 9046709153
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-1201022

AE100,101,CE100,EE101..4DS..(DX,GT)

BLACK,TRIM1#

 1
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-12030

AE10#,CE100,104,EE101..4DS

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-12030

AE10#,CE100,104,EE101..4DS

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-1A430P0

AE10#,CE100,104,EE101..4DS..(DX,GT,LX,SEL,XE)

SHADOW GRAY,TRIM1#

 1
64330-1A500P0

AE10#,CE100,104,EE101..4DS..(DX,GT,LX,SEL,XE)

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ),SHADOW GRAY,TRIM1#

 1
64330-1A430P0

AE10#,CE100,104,EE101..4DS..(DX,GT,LX,SEL)

SHADOW GRAY,TRIM1#

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-1225022

AE100,CE100,EE101..DX

BLACK,TRIM1#

 1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-12050C0

AE100,CE100,EE101..DX

BLACK,TRIM1#

 1
64717-12060C0

AE100,CE100,EE101..DX

BLACK,TRIM1#

 1
64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-05027

AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE

 2
90467-0502722

AE100,CE100,EE101..DX

BLACK,TRIM1#

 2
90467-0509622

AE100,CE100,EE101..DX

BLACK,TRIM1#

 2
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-12010C0

AE100,101,CE100,EE101..4DS..(DX,GT)

BLACK,TRIM1#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-0707211

AE100,CE100,EE101..DX

BLACK,TRIM1#&040 ,183 ,3K4 ,6M3

 16
90467-07146

AE10#,CE100,104,EE101..4DS

 16
90467-07138

AE10#,CE100,104,EE101..4DS

 10
90467-07138

AE10#,CE100,104,EE101..4DS

 16
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-12110C0

AE100,101,CE100,EE101..4DS..(DX,GT)

BLACK,TRIM1#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-06146

AE10#,CE100,104,EE101..4DS

ﾀｲﾌﾟ B

 4
90467-05105C0

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ C

 9
90467-0509601

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ A

 4
90467-05105C0

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ C

 9
90467-05105C0

AE100,101,CE100,EE101..4DS..(DX,GT)

BLACK,TRIM1#,ﾀｲﾌﾟ C

 5
90467-0509622

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ A

 4
90467-0509622

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ A

 6
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-06146

AE10#,CE100,104,EE101..4DS

ﾀｲﾌﾟ B

 4
90467-05105C0

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ C

 9
90467-0509601

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ A

 4
90467-05105C0

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ C

 9
90467-05105C0

AE100,101,CE100,EE101..4DS..(DX,GT)

BLACK,TRIM1#,ﾀｲﾌﾟ C

 5
90467-0509622

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ A

 4
90467-0509622

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ A

 6
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-06146

AE10#,CE100,104,EE101..4DS

ﾀｲﾌﾟ B

 4
90467-05105C0

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ C

 9
90467-0509601

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ A

 4
90467-05105C0

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ C

 9
90467-05105C0

AE100,101,CE100,EE101..4DS..(DX,GT)

BLACK,TRIM1#,ﾀｲﾌﾟ C

 5
90467-0509622

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ A

 4
90467-0509622

AE100,CE100,EE101..DX

BLACK,TRIM1#,ﾀｲﾌﾟ A

 6
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-12150C0

AE100,101,CE100,EE101..4DS..(DX,GT)

BLACK,TRIM1#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-12161

AE10#,CE100,104,EE101..4DS

 1
64770-12170

AE10#,CE100,104,EE101..4DS

ｽﾍﾟｱﾀｲﾔ=ﾋﾖｳｼﾞﾕﾝｻｲｽﾞ

 1
64770-12160

AE10#,CE100,104,EE101..4DS

 1
64770-12171

AE10#,CE100,104,EE101..4DS

ｽﾍﾟｱﾀｲﾔ=ﾋﾖｳｼﾞﾕﾝｻｲｽﾞ

 1
64778B - PROTECTOR, SPARE WHEEL
64778-12030

AE10#,CE100,104,EE101..4DS

 3
Common parts
67921-22020
90183-04046
90467-09153
