AE100-AEHBK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 5AFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)5AFE..3FC

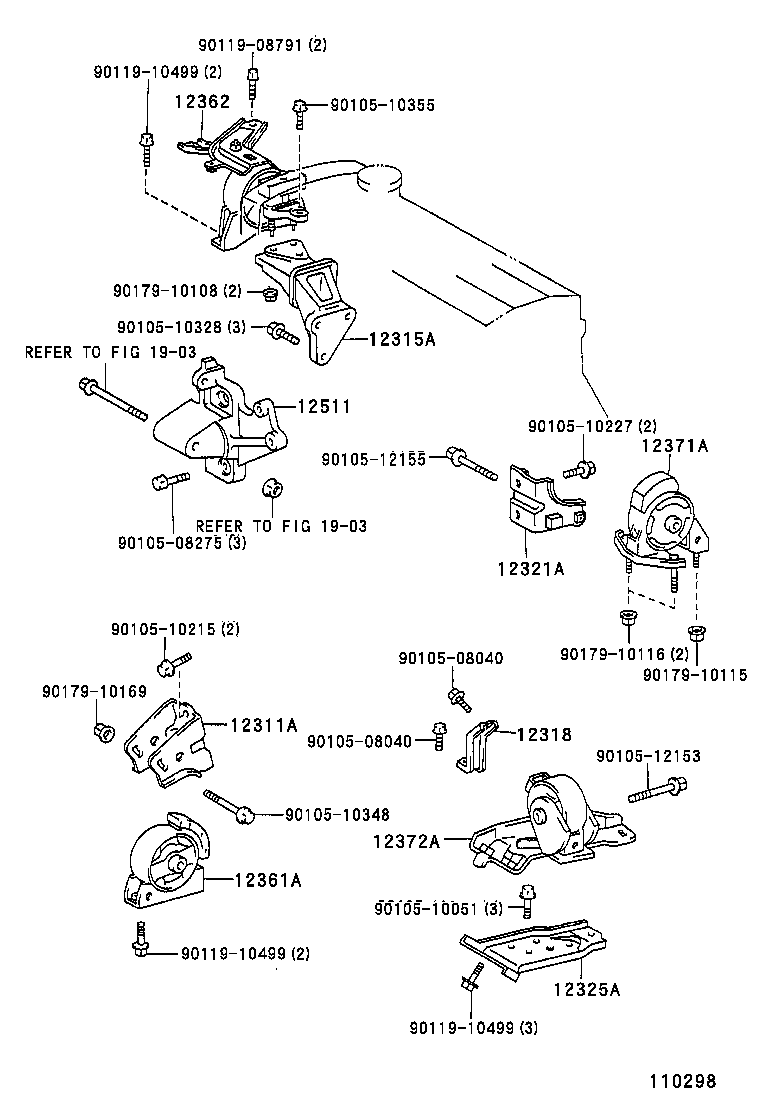

Click highlighted areas on diagram

diagram 12311A 12315A 12318 12321A 12325A 12361A 12362 12371A 12372A 12511 1903 1903 9010508040 9010508040 9010508275 9010510051 9010510215 9010510227 9010510328 9010510348 9010510355 9010512153 9010512155 9011908791 9011910499 9011910499 9011910499 9017910108 9017910115 9017910116 9017910169
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15130

4AFE,5AFE..AE100,101

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15080

4AFE,5AFE..AE100,101

 1
12315-15081

4AFE,5AFE..AE100,101

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-15060

5AFE..AE100..3FC

 1
12318-15030

5AFE..AE100..3FC

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15130

5AFE..AE100..3FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-11130

5AFE..AE100..3FC

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-11170

4A#,5AFE..AE10#..ATM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-15020

4AFE,5AFE..AE100,101

 1
12305-15020

5AFE..AE100

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64210

4A#,5AFE..AE100,101..ATM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15160

4AFE,5AFE..AE100,101..3FC,5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15050

4AFE,5AFE..AE10#

 1
Common parts
90105-08040
90105-08275
90105-10051
90105-10215
90105-10227
90105-10328
90105-10348
90105-10355
90105-12153
90105-12155
90119-08791
90119-10499
90179-10108
90179-10115
90179-10116
90179-10169
Linked diagrams
1903
