Toyota Corolla/fielder ZZE123 FUEL INJECTION SYSTEM

ZZE123G-AWFQF (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 2ZZGE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

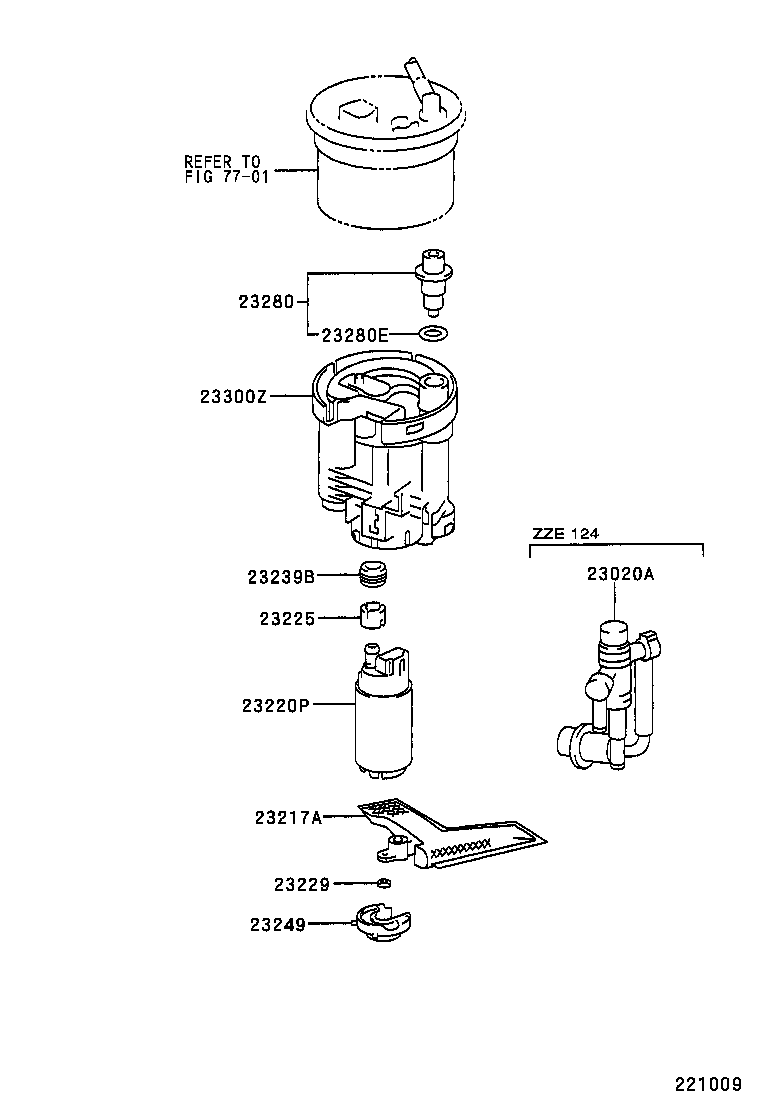

ILLUST NO. 2 OF 2(0008- )1ZZFE,2ZZGE

Click highlighted areas on diagram

Part #	Description	Period	Qty
23217A - FILTER, FUEL PUMP
23217-23010	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23217-23010	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
23217-23010	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
23220P - PUMP ASSY, FUEL
23221-28030	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23221-28030	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
23221-28030	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
23225 - SPACER, FUEL PUMP
23225-21010	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
23225-21010	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
23225-21010	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23229-16010	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
23229-16010	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
23239B - SEAL, FUEL PUMP FILTER
23239-21010	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
23239-21010	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23239-21010	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-46180	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23249-46180	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
23249-46180	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-20060	1ZZFE,2ZZGE..ZZE122,123	06/2004 - 09/2006	1
23280-22010	1ZZFE,2ZZGE..ZZE122,123	08/2000 - 09/2002	1
23280-22010	1ZZFE,2ZZGE..ZZE122,123	09/2002 - 04/2004	1
23280-22010	1ZZFE,2ZZGE..ZZE122,123	04/2004 - 05/2004	1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07020	1ZZFE,2ZZGE..ZZE122,123	08/2000 - 09/2002	1
90301-07020	1ZZFE,2ZZGE..ZZE122,123	09/2002 - 04/2004	1
90301-07020	1ZZFE,2ZZGE..ZZE122,123	04/2004 - 09/2006	1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-21010	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23300-21010	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
23300-21010	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
Linked diagrams
7701

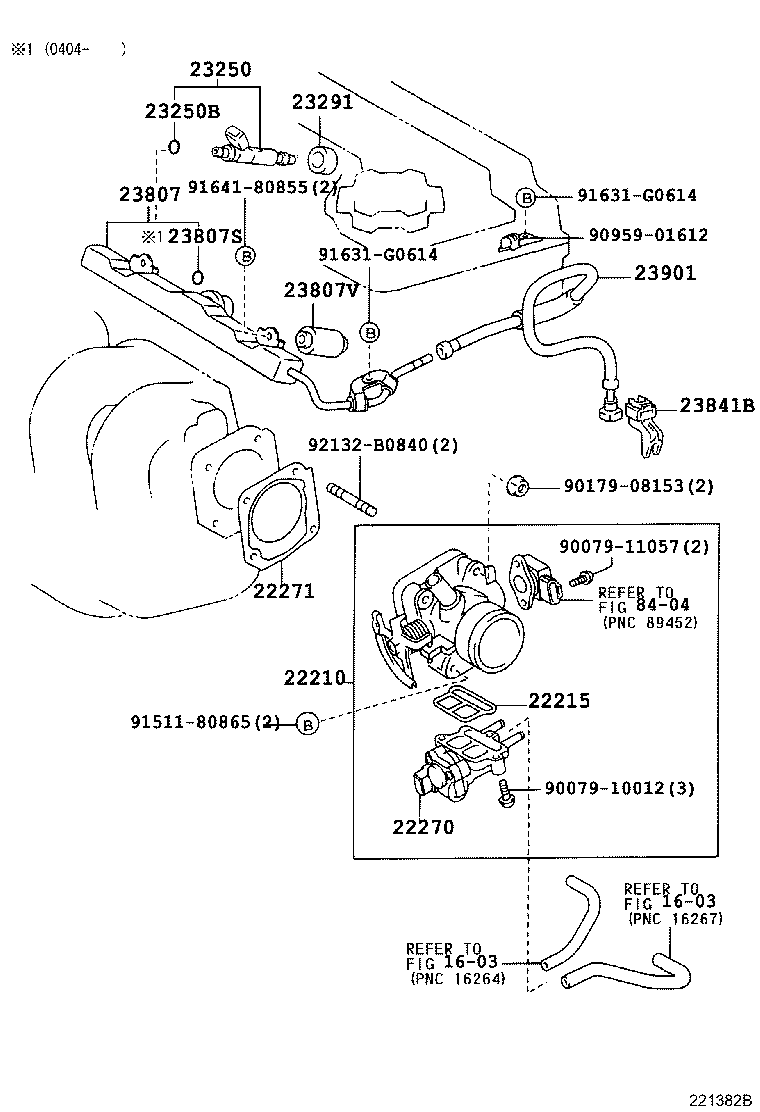

ILLUST NO. 1 OF 2(0008- )2ZZGE

Click highlighted areas on diagram

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-22110	2ZZGE..ZZE123	08/2000 - 09/2002	1
22210-22110	2ZZGE..ZZE123	04/2004 - 09/2006	1
22210-22110	2ZZGE..ZZE123	09/2002 - 04/2004	1
22215 - GASKET, THROTTLE BODY COVER
22215-7A680	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
22215-7A680	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
22215-7A680	2ZZGE..ZZE123	08/2000 - 09/2002	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-22020	2ZZGE..ZZE123	09/2002 - 03/2003	1
22270-22021	2ZZGE..ZZE123	03/2003 - 04/2004	1
22270-22021	2ZZGE..ZZE123	04/2004 - 09/2006	1
22270-22021	2ZZGE..ZZE123	08/2000 - 09/2002	1
22271 - GASKET, THROTTLE BODY
22271-88600	2ZZGE..ZZE123	08/2000 - 09/2002	1
22271-88600	2ZZGE..ZZE123	09/2002 - 04/2004	1
22271-88600	2ZZGE..ZZE123	04/2004 - 09/2006	1
23250 - INJECTOR ASSY, FUEL
23209-2206001	2ZZGE..ZZE123 MARK WHITE	09/2002 - 04/2004	4
23209-2206002	2ZZGE..ZZE123 MARK BLUE	08/2000 - 09/2002	4
23209-2206001	2ZZGE..ZZE123 MARK WHITE	04/2004 - 09/2006	4
23209-2206002	2ZZGE..ZZE123 MARK BLUE	09/2002 - 04/2004	4
23209-2206001	2ZZGE..ZZE123 MARK WHITE	08/2000 - 09/2002	4
23209-2206002	2ZZGE..ZZE123 MARK BLUE	04/2004 - 09/2006	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	4
90301-07037	1ZZFE,2ZZGE..ZZE12#	07/2006 - 09/2006	4
90301-07024	1ZZFE,2ZZGE..ZZE12#	04/2004 - 07/2006	4
90301-07024	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	4
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010	2ZZGE..ZZE123	08/2000 - 09/2002	4
23291-41010	2ZZGE..ZZE123	04/2004 - 09/2006	4
23291-41010	2ZZGE..ZZE123	09/2002 - 04/2004	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-88600	2ZZGE..ZZE123	08/2000 - 09/2002	1
23807-88600	2ZZGE..ZZE123	09/2002 - 04/2004	1
23807-88600	2ZZGE..ZZE123	04/2004 - 09/2006	1
23807S - RING, O(FOR FUEL DELIVARY PIPE)
90301-07024	2ZZGE..ZZE123	04/2004 - 08/2006	1
90301-07037	2ZZGE..ZZE123	08/2006 - 09/2006	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08059	2ZZGE..ZZE123	09/2002 - 04/2004	2
90561-08059	2ZZGE..ZZE123	04/2004 - 09/2006	2
90561-08059	2ZZGE..ZZE123	08/2000 - 09/2002	2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
23841-28010	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23841-28010	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
23901 - TUBE SUB-ASSY, FUEL
23271-88601	2ZZGE..ZZE123	08/2000 - 09/2002	1
23271-88601	2ZZGE..ZZE123	09/2002 - 04/2004	1
23271-88601	2ZZGE..ZZE123	04/2004 - 09/2006	1
Common parts
90079-10012
90079-11057
90179-08153
90959-01612
91511-80865
91631-G0614
91641-80855
92132-B0840
Linked diagrams
1603
8404
