Toyota Corolla/fielder ZZE122 REAR MOULDING

ZZE122G-AWPEK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0008-0209)

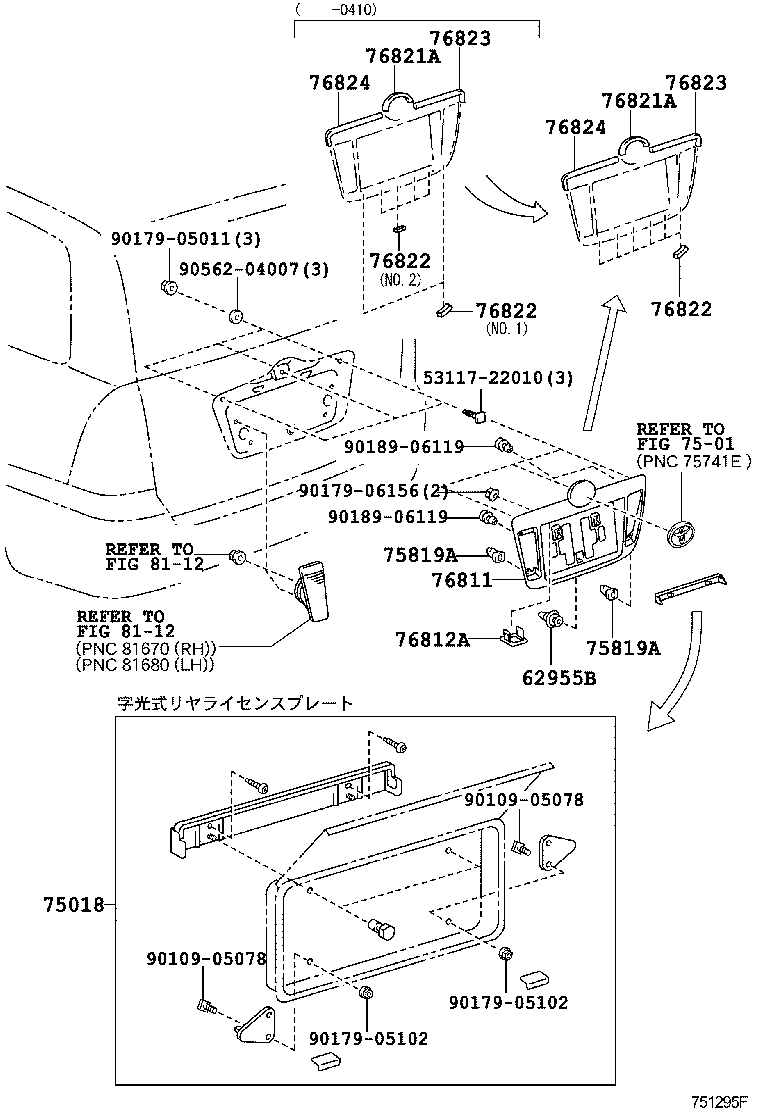

Click highlighted areas on diagram

Part #	Description	Period	Qty
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-48020	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
75010-44010	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
75010-48020	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12860	CE121,NZE121,124,ZZE122,124..G,LXL	09/2002 - 04/2004	1
75571-12860	CE121,NZE121,124,ZZE122,124..G,LXL ﾌﾞﾗｲﾄ	08/2000 - 09/2002	1
75571-12860	NZE121,124,ZZE122,124..G,LXL	04/2004 - 09/2006	1
75819A - CLIP, BACK DOOR MOULDING
90467-12079	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	2
75819-12040	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	2
90467-10077	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	2
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-13150D1	CE121,NZE121,124,ZZE12#..WG BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76811-13150C0	CE121,NZE121,124,ZZE12#..WG BLACK MC.,209	09/2002 - 04/2004	1
76811-13050C0	CE121,NZE121,124,ZZE12#..WG BLACK ME,205	08/2000 - 10/2001	1
76811-13050B1	CE121,NZE121,124,ZZE12#..WG SILVER ME.,199	08/2000 - 09/2002	1
76811-13150A0	CE121,NZE121,124,ZZE12#..WG SUPER WHITE 2,040	09/2002 - 04/2004	1
76811-13150D0	CE121,NZE121,124,ZZE12#..WG SUPER RED II,3E5	09/2002 - 04/2004	1
76811-13050D0	ZZE12#..WG SUPER RED11,3E5	08/2000 - 09/2002	1
76811-13150K0	CE121,NZE121,124,ZZE12#..WG DARK PURPLE MC.,946	09/2002 - 04/2004	1
76811-13050C1	CE121,NZE121,124,ZZE12#..WG BLACK MC.,209	10/2001 - 09/2002	1
76811-13150B1	CE121,NZE121,124,ZZE12#..WG SILVER M.M.,1E7	09/2002 - 04/2004	1
76811-13050J0	CE121,NZE121,124,ZZE12#..WG DK.BLUE M.M,8P4	08/2000 - 09/2002	1
76811-13130A0	NZE121,124,ZZE12#..WG SUPER WHITE 2,040	04/2004 - 09/2006	1
76811-13050A0	CE121,NZE121,124,ZZE12#..WG SUPER WHITE2,040	08/2000 - 09/2002	1
76811-13050H0	CE121,NZE121,124,ZZE12#..WG TURQUOISE M. M.,769	08/2000 - 09/2002	1
76811-13130J0	NZE121,124,ZZE12#..WG DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76811-13130A1	NZE121,124,ZZE122,124..WG HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (M),40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (V),WHITE PEARL CS.,073	12/2005 - 09/2006	1
76811-13130D0	NZE121,124,ZZE12#..WG SUPER RED II,3E5	04/2004 - 09/2006	1
76811-13130C0	NZE121,124,ZZE12#..WG BLACK MC.,209	04/2004 - 09/2006	1
76811-13130B1	NZE121,124,ZZE12#..WG SILVER M.M.,1E7	04/2004 - 09/2006	1
76811-13130B0	NZE121,124,ZZE12#..WG SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76811-13130J1	NZE121,124,ZZE12#..WG LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76811B - GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76811-12700A0	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),SUPER WHITE 2,040	09/2002 - 04/2004	1
76811-12700B0	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76811-12700B1	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),SILVER M.M.,1E7	09/2002 - 04/2004	1
76811-12700C0	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),BLACK MC.,209	09/2002 - 04/2004	1
76811-12700D1	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76811-12700G0	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),DK.GREEN MC.P.I.O.,6N9	09/2002 - 04/2004	1
76811-12700A1	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),WHITE PEARL CS.,065	09/2002 - 04/2004	1
76811-12730C0	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),BLACK MC.,209	09/2002 - 04/2004	1
76811-12730A1	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),WHITE PEARL CS.,065	09/2002 - 04/2004	1
76811-12730B1	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),SILVER M.M.,1E7	09/2002 - 04/2004	1
76811-12730A0	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),SUPER WHITE 2,040	09/2002 - 04/2004	1
76811-12730B0	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76811-12730D0	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76811-12730G0	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),DK.GREEN MC.P.I.O.,6N9	09/2002 - 04/2004	1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-13030	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
76821-13060	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76821-13070	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-13030	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
76821-13060	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76821-13070	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76826 - RETAINER, BACK DOOR GARNISH, NO.1
76826-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
Common parts
90108-05002
90109-06361
90116-05036
90179-05011
90179-06156
90179-06159
90430-05003
90562-04007
Linked diagrams
7501

(0209-0404)

Click highlighted areas on diagram

Part #	Description	Period	Qty
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-48020	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
75010-44010	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
75010-48020	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12860	CE121,NZE121,124,ZZE122,124..G,LXL	09/2002 - 04/2004	1
75571-12860	CE121,NZE121,124,ZZE122,124..G,LXL ﾌﾞﾗｲﾄ	08/2000 - 09/2002	1
75571-12860	NZE121,124,ZZE122,124..G,LXL	04/2004 - 09/2006	1
75819A - CLIP, BACK DOOR MOULDING
90467-12079	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	2
75819-12040	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	2
90467-10077	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	2
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-13150D1	CE121,NZE121,124,ZZE12#..WG BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76811-13150C0	CE121,NZE121,124,ZZE12#..WG BLACK MC.,209	09/2002 - 04/2004	1
76811-13050C0	CE121,NZE121,124,ZZE12#..WG BLACK ME,205	08/2000 - 10/2001	1
76811-13050B1	CE121,NZE121,124,ZZE12#..WG SILVER ME.,199	08/2000 - 09/2002	1
76811-13150A0	CE121,NZE121,124,ZZE12#..WG SUPER WHITE 2,040	09/2002 - 04/2004	1
76811-13150D0	CE121,NZE121,124,ZZE12#..WG SUPER RED II,3E5	09/2002 - 04/2004	1
76811-13050D0	ZZE12#..WG SUPER RED11,3E5	08/2000 - 09/2002	1
76811-13150K0	CE121,NZE121,124,ZZE12#..WG DARK PURPLE MC.,946	09/2002 - 04/2004	1
76811-13050C1	CE121,NZE121,124,ZZE12#..WG BLACK MC.,209	10/2001 - 09/2002	1
76811-13150B1	CE121,NZE121,124,ZZE12#..WG SILVER M.M.,1E7	09/2002 - 04/2004	1
76811-13050J0	CE121,NZE121,124,ZZE12#..WG DK.BLUE M.M,8P4	08/2000 - 09/2002	1
76811-13130A0	NZE121,124,ZZE12#..WG SUPER WHITE 2,040	04/2004 - 09/2006	1
76811-13050A0	CE121,NZE121,124,ZZE12#..WG SUPER WHITE2,040	08/2000 - 09/2002	1
76811-13050H0	CE121,NZE121,124,ZZE12#..WG TURQUOISE M. M.,769	08/2000 - 09/2002	1
76811-13130J0	NZE121,124,ZZE12#..WG DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76811-13130A1	NZE121,124,ZZE122,124..WG HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (M),40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (V),WHITE PEARL CS.,073	12/2005 - 09/2006	1
76811-13130D0	NZE121,124,ZZE12#..WG SUPER RED II,3E5	04/2004 - 09/2006	1
76811-13130C0	NZE121,124,ZZE12#..WG BLACK MC.,209	04/2004 - 09/2006	1
76811-13130B1	NZE121,124,ZZE12#..WG SILVER M.M.,1E7	04/2004 - 09/2006	1
76811-13130B0	NZE121,124,ZZE12#..WG SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76811-13130J1	NZE121,124,ZZE12#..WG LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76811B - GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76811-12700A0	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),SUPER WHITE 2,040	09/2002 - 04/2004	1
76811-12700B0	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76811-12700B1	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),SILVER M.M.,1E7	09/2002 - 04/2004	1
76811-12700C0	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),BLACK MC.,209	09/2002 - 04/2004	1
76811-12700D1	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76811-12700G0	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),DK.GREEN MC.P.I.O.,6N9	09/2002 - 04/2004	1
76811-12700A1	CE121,NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾒﾂｷﾓ-ﾙ),WHITE PEARL CS.,065	09/2002 - 04/2004	1
76811-12730C0	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),BLACK MC.,209	09/2002 - 04/2004	1
76811-12730A1	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),WHITE PEARL CS.,065	09/2002 - 04/2004	1
76811-12730B1	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),SILVER M.M.,1E7	09/2002 - 04/2004	1
76811-12730A0	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),SUPER WHITE 2,040	09/2002 - 04/2004	1
76811-12730B0	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76811-12730D0	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76811-12730G0	NZE121,124,ZZE122,124..G,LXL ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),DK.GREEN MC.P.I.O.,6N9	09/2002 - 04/2004	1
76812A - GARNISH, BACK DOOR, OUTSIDE NO.2
76812-13010	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76812-13030C0	NZE121,124,ZZE12#..WG BLACK MC.,209	04/2004 - 09/2006	1
76812-13030B1	NZE121,124,ZZE12#..WG SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76812-13030B0	NZE121,124,ZZE12#..WG SILVER M.M.,1E7	04/2004 - 09/2006	1
76812-13030A1	NZE121,124,ZZE122,124..WG HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (M),40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (V),WHITE PEARL CS.,073	12/2005 - 09/2006	1
76812-13030J1	NZE121,124,ZZE12#..WG DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76812-13030A0	NZE121,124,ZZE12#..WG SUPER WHITE 2,040	04/2004 - 09/2006	1
76812-13030J2	NZE121,124,ZZE12#..WG LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76812-13030D0	NZE121,124,ZZE12#..WG SUPER RED II,3E5	04/2004 - 09/2006	1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-13030	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
76821-13060	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76821-13070	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-13030	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
76821-13060	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76821-13070	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76823-13010	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76823-13010	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76824-13030	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76824-13030	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76826 - RETAINER, BACK DOOR GARNISH, NO.1
76826-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
76826 - RETAINER, BACK DOOR GARNISH, NO.1
76826-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
Common parts
90108-05002
90109-06361
90179-05011
90179-06156
90562-04007
Linked diagrams
7501

(0404- )WG

Click highlighted areas on diagram

Part #	Description	Period	Qty
62955B - RETAINER, BACK DOOR GARNISH
62955-20040	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-48020	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
75010-44010	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
75010-48020	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
75819A - CLIP, BACK DOOR MOULDING
90467-12079	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	2
75819-12040	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	2
90467-10077	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	2
75819A - CLIP, BACK DOOR MOULDING
90467-12079	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	2
75819-12040	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	2
90467-10077	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	2
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-13150D1	CE121,NZE121,124,ZZE12#..WG BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76811-13150C0	CE121,NZE121,124,ZZE12#..WG BLACK MC.,209	09/2002 - 04/2004	1
76811-13050C0	CE121,NZE121,124,ZZE12#..WG BLACK ME,205	08/2000 - 10/2001	1
76811-13050B1	CE121,NZE121,124,ZZE12#..WG SILVER ME.,199	08/2000 - 09/2002	1
76811-13150A0	CE121,NZE121,124,ZZE12#..WG SUPER WHITE 2,040	09/2002 - 04/2004	1
76811-13150D0	CE121,NZE121,124,ZZE12#..WG SUPER RED II,3E5	09/2002 - 04/2004	1
76811-13050D0	ZZE12#..WG SUPER RED11,3E5	08/2000 - 09/2002	1
76811-13150K0	CE121,NZE121,124,ZZE12#..WG DARK PURPLE MC.,946	09/2002 - 04/2004	1
76811-13050C1	CE121,NZE121,124,ZZE12#..WG BLACK MC.,209	10/2001 - 09/2002	1
76811-13150B1	CE121,NZE121,124,ZZE12#..WG SILVER M.M.,1E7	09/2002 - 04/2004	1
76811-13050J0	CE121,NZE121,124,ZZE12#..WG DK.BLUE M.M,8P4	08/2000 - 09/2002	1
76811-13130A0	NZE121,124,ZZE12#..WG SUPER WHITE 2,040	04/2004 - 09/2006	1
76811-13050A0	CE121,NZE121,124,ZZE12#..WG SUPER WHITE2,040	08/2000 - 09/2002	1
76811-13050H0	CE121,NZE121,124,ZZE12#..WG TURQUOISE M. M.,769	08/2000 - 09/2002	1
76811-13130J0	NZE121,124,ZZE12#..WG DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76811-13130A1	NZE121,124,ZZE122,124..WG HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (M),40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (V),WHITE PEARL CS.,073	12/2005 - 09/2006	1
76811-13130D0	NZE121,124,ZZE12#..WG SUPER RED II,3E5	04/2004 - 09/2006	1
76811-13130C0	NZE121,124,ZZE12#..WG BLACK MC.,209	04/2004 - 09/2006	1
76811-13130B1	NZE121,124,ZZE12#..WG SILVER M.M.,1E7	04/2004 - 09/2006	1
76811-13130B0	NZE121,124,ZZE12#..WG SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76811-13130J1	NZE121,124,ZZE12#..WG LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76812A - GARNISH, BACK DOOR, OUTSIDE NO.2
76812-13010	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76812-13030C0	NZE121,124,ZZE12#..WG BLACK MC.,209	04/2004 - 09/2006	1
76812-13030B1	NZE121,124,ZZE12#..WG SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76812-13030B0	NZE121,124,ZZE12#..WG SILVER M.M.,1E7	04/2004 - 09/2006	1
76812-13030A1	NZE121,124,ZZE122,124..WG HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (M),40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (V),WHITE PEARL CS.,073	12/2005 - 09/2006	1
76812-13030J1	NZE121,124,ZZE12#..WG DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76812-13030A0	NZE121,124,ZZE12#..WG SUPER WHITE 2,040	04/2004 - 09/2006	1
76812-13030J2	NZE121,124,ZZE12#..WG LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76812-13030D0	NZE121,124,ZZE12#..WG SUPER RED II,3E5	04/2004 - 09/2006	1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-13030	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
76821-13060	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76821-13070	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-13030	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
76821-13060	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76821-13070	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76822 - PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76822-13030	NZE121,124,ZZE12#..WG NO.2	04/2004 - 10/2004	2
76822-13020	NZE121,124,ZZE12#..WG NO.1	04/2004 - 10/2004	4
76822-13020	NZE121,124,ZZE12#..WG	10/2004 - 09/2006	6
76822 - PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76822-13030	NZE121,124,ZZE12#..WG NO.2	04/2004 - 10/2004	2
76822-13020	NZE121,124,ZZE12#..WG NO.1	04/2004 - 10/2004	4
76822-13020	NZE121,124,ZZE12#..WG	10/2004 - 09/2006	6
76822 - PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76822-13030	NZE121,124,ZZE12#..WG NO.2	04/2004 - 10/2004	2
76822-13020	NZE121,124,ZZE12#..WG NO.1	04/2004 - 10/2004	4
76822-13020	NZE121,124,ZZE12#..WG	10/2004 - 09/2006	6
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76823-13010	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76823-13010	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76823-13010	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76823-13010	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76824-13030	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76824-13030	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76824-13030	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
76824-13030	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
Common parts
53117-22010
90109-05078
90179-05011
90179-05102
90179-06156
90189-06119
90562-04007
Linked diagrams
7501
8112

ZZE122G-AWPEK (2000)

(0008-0209)

(0209-0404)

(0404- )WG

Part Price Details
