Toyota Corolla/fielder ZZE122 FRONT STEERING GEAR & LINK

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
ZZE122G-AWPEK (2000)
4505 - FRONT STEERING GEAR & LINK

ZZE122G-AWPEK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

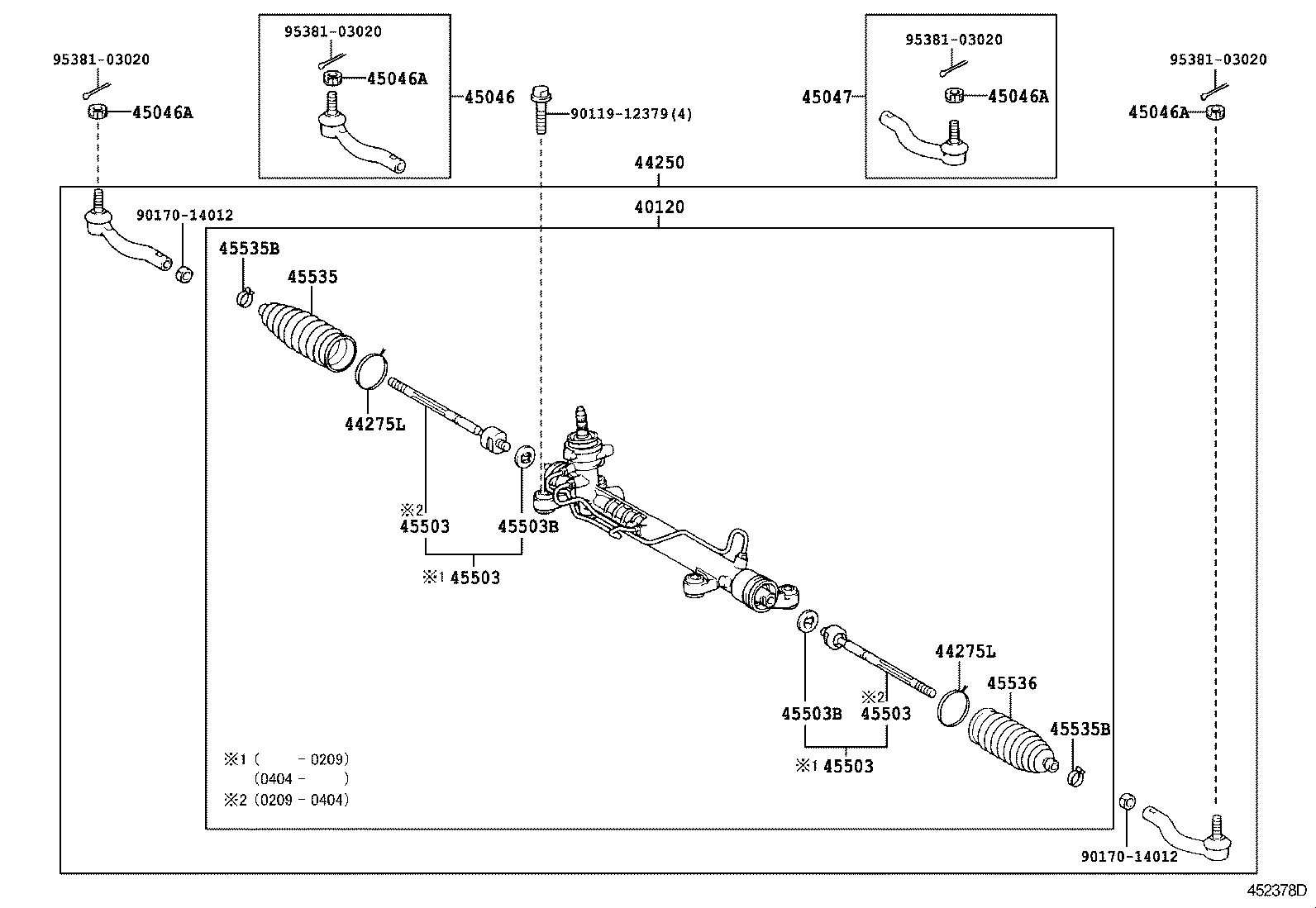

ILLUST NO. 1 OF 2(0008-0209)CE121,ZZE122,123 ; (0209- )ZZE122..5F ; (0209- )CE121,ZZE123

Click highlighted areas on diagram

Part #	Description	Period	Qty
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-12590	CE121,ZZE122,123 TOYODA KOKI	08/2000 - 09/2002	1
40120-12590	CE121,ZZE122,123 TOYODA KOKI	09/2002 - 04/2004	1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44200-12750	CE121,ZZE122,123	08/2000 - 09/2002	1
44275L - WIRE, BOOT
90580-14073	CE121,NZE124,ZZE12#	08/2000 - 09/2002	2
44275L - WIRE, BOOT
90580-14073	CE121,NZE124,ZZE12#	08/2000 - 09/2002	2
45046 - END SUB-ASSY, TIE ROD, RH
45046-19265	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	1
45046-49115	CE121,ZZE122,123	08/2000 - 09/2002	1
45046-19265	NZE120,121;ZZE122..4FC	09/2002 - 04/2004	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90171-12028	NZE12#,ZZE12#	04/2004 - 09/2006	2
90171-12028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90171-12028	NZE12#,ZZE12#	04/2004 - 09/2006	2
90171-12028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90171-12028	NZE12#,ZZE12#	04/2004 - 09/2006	2
90171-12028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90171-12028	NZE12#,ZZE12#	04/2004 - 09/2006	2
90171-12028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49045	CE121,ZZE122,123	08/2000 - 09/2002	1
45047-19115	NZE120,121;ZZE122..4FC	09/2002 - 04/2004	1
45047-19115	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	1
45503 - END SUB-ASSY, STEERING RACK
45503-19255	CE121,ZZE122,123	08/2000 - 09/2002	2
45503-12130	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	2
45503-12130	NZE120,121;ZZE122..4FC ｱﾘ(ﾃﾞﾝﾄﾞｳｼｷﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ)	09/2002 - 04/2004	2
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	2
45503-12130	NZE120,121;ZZE122..4FC ｱﾘ(ﾃﾞﾝﾄﾞｳｼｷﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ)	09/2002 - 04/2004	2
45503-19255	CE121,ZZE122,123	08/2000 - 09/2002	2
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	2
45503-12130	NZE120,121;ZZE122..4FC ｱﾘ(ﾃﾞﾝﾄﾞｳｼｷﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ)	09/2002 - 04/2004	2
45503-19255	CE121,ZZE122,123	08/2000 - 09/2002	2
45503 - END SUB-ASSY, STEERING RACK
45503-19255	CE121,ZZE122,123	08/2000 - 09/2002	2
45503-12130	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	2
45503-12130	NZE120,121;ZZE122..4FC ｱﾘ(ﾃﾞﾝﾄﾞｳｼｷﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ)	09/2002 - 04/2004	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	CE121,NZE124,ZZE12# 外径=35.2	08/2000 - 09/2002	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	CE121,NZE124,ZZE12# 外径=35.2	08/2000 - 09/2002	2
45535 - BOOT, STEERING RACK, NO.1
45535-32070	CE121,ZZE122,123	08/2000 - 09/2002	1
45535-52060	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	1
45535-52060	NZE120,121;ZZE122..4FC	09/2002 - 04/2004	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	CE121,ZZE122,123	08/2000 - 09/2002	2
90467-19021	NZE120,121;ZZE122..4FC (J)	09/2002 - 04/2004	2
90467-19021	NZE120,121;ZZE122..4FC (J)	04/2004 - 09/2006	2
90080-46174	NZE120,121;ZZE122..4FC (L)	09/2002 - 04/2004	2
90080-46174	NZE120,121;ZZE122..4FC (L)	04/2004 - 09/2006	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	CE121,ZZE122,123	08/2000 - 09/2002	2
90467-19021	NZE120,121;ZZE122..4FC (J)	09/2002 - 04/2004	2
90467-19021	NZE120,121;ZZE122..4FC (J)	04/2004 - 09/2006	2
90080-46174	NZE120,121;ZZE122..4FC (L)	09/2002 - 04/2004	2
90080-46174	NZE120,121;ZZE122..4FC (L)	04/2004 - 09/2006	2
45536 - BOOT, STEERING RACK, NO.2
45535-52060	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	1
45535-52060	NZE120,121;ZZE122..4FC	09/2002 - 04/2004	1
45535-32070	CE121,ZZE122,123	08/2000 - 09/2002	1
Common parts
90119-12379
90170-14012
95381-03020

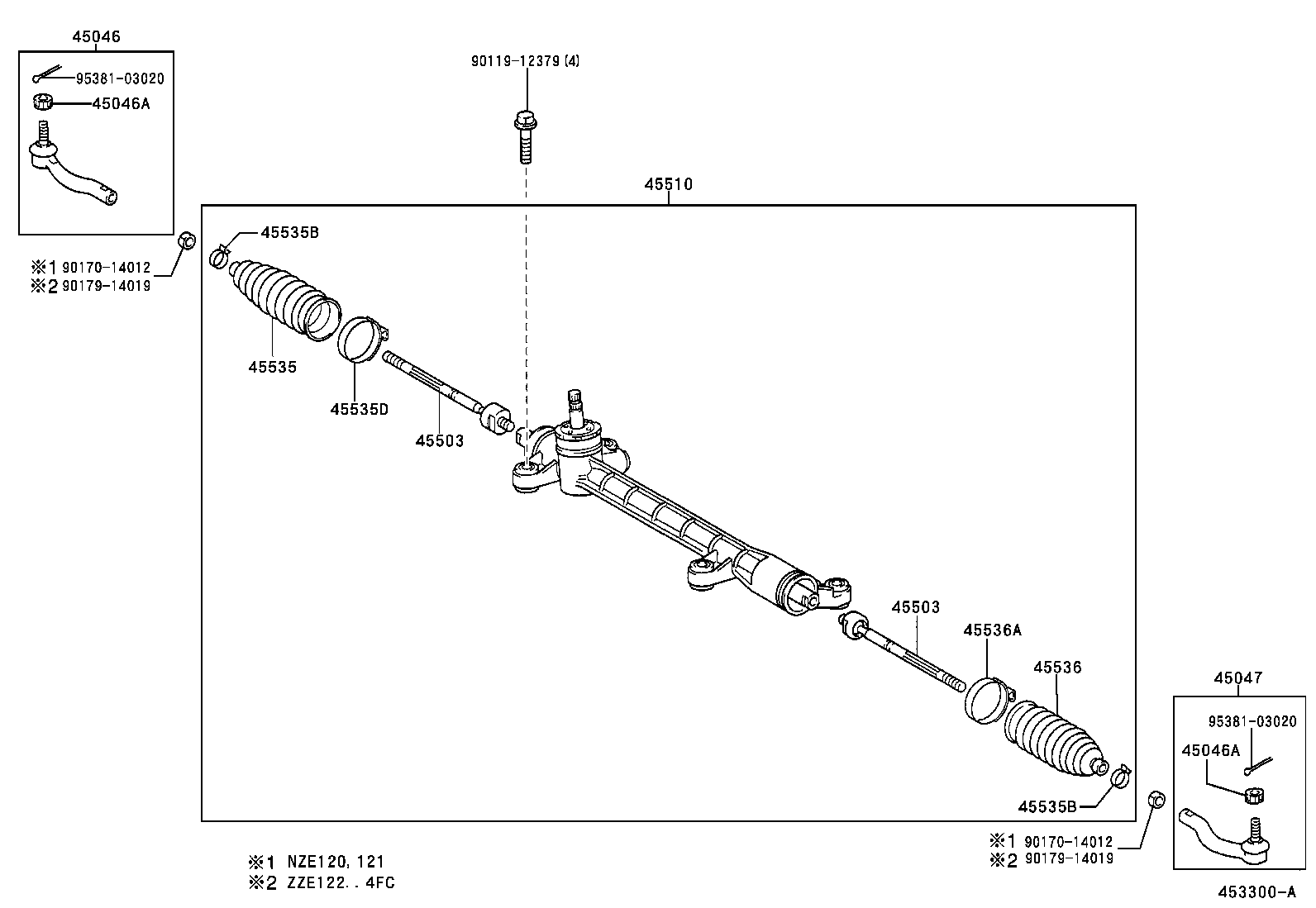

ILLUST NO. 2 OF 2(0008-0209)CE121,NZE124,ZZE12# ; (0209- )ZZE122..5F ; (0209- )CE121,NZE124,ZZ

Click highlighted areas on diagram

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-12170	CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-20171	CE121,NZE124,ZZE12#	11/2001 - 09/2002	1
04455-12220	CE121,NZE124,ZZE12#	08/2000 - 11/2001	1

(0008- )NZE120,121 ; (0209- )ZZE122..4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-19265	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	1
45046-49115	CE121,ZZE122,123	08/2000 - 09/2002	1
45046-19265	NZE120,121;ZZE122..4FC	09/2002 - 04/2004	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90171-12028	NZE12#,ZZE12#	04/2004 - 09/2006	2
90171-12028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90171-12028	NZE12#,ZZE12#	04/2004 - 09/2006	2
90171-12028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49045	CE121,ZZE122,123	08/2000 - 09/2002	1
45047-19115	NZE120,121;ZZE122..4FC	09/2002 - 04/2004	1
45047-19115	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	1
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	2
45503-12130	NZE120,121;ZZE122..4FC ｱﾘ(ﾃﾞﾝﾄﾞｳｼｷﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ)	09/2002 - 04/2004	2
45503-19255	CE121,ZZE122,123	08/2000 - 09/2002	2
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	2
45503-12130	NZE120,121;ZZE122..4FC ｱﾘ(ﾃﾞﾝﾄﾞｳｼｷﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ)	09/2002 - 04/2004	2
45503-19255	CE121,ZZE122,123	08/2000 - 09/2002	2
45510 - GEAR ASSY, STEERING
45510-12330	ZZE122..4FC	09/2002 - 04/2004	1
45510-12330	ZZE122..4FC	04/2004 - 09/2006	1
45535 - BOOT, STEERING RACK, NO.1
45535-32070	CE121,ZZE122,123	08/2000 - 09/2002	1
45535-52060	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	1
45535-52060	NZE120,121;ZZE122..4FC	09/2002 - 04/2004	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	CE121,ZZE122,123	08/2000 - 09/2002	2
90467-19021	NZE120,121;ZZE122..4FC (J)	09/2002 - 04/2004	2
90467-19021	NZE120,121;ZZE122..4FC (J)	04/2004 - 09/2006	2
90080-46174	NZE120,121;ZZE122..4FC (L)	09/2002 - 04/2004	2
90080-46174	NZE120,121;ZZE122..4FC (L)	04/2004 - 09/2006	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	CE121,ZZE122,123	08/2000 - 09/2002	2
90467-19021	NZE120,121;ZZE122..4FC (J)	09/2002 - 04/2004	2
90467-19021	NZE120,121;ZZE122..4FC (J)	04/2004 - 09/2006	2
90080-46174	NZE120,121;ZZE122..4FC (L)	09/2002 - 04/2004	2
90080-46174	NZE120,121;ZZE122..4FC (L)	04/2004 - 09/2006	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-58008	NZE120,121;ZZE122..4FC	09/2002 - 04/2004	1
90460-58008	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	1
45536 - BOOT, STEERING RACK, NO.2
45535-52060	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	1
45535-52060	NZE120,121;ZZE122..4FC	09/2002 - 04/2004	1
45535-32070	CE121,ZZE122,123	08/2000 - 09/2002	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-58008	NZE120,121;ZZE122..4FC	09/2002 - 04/2004	1
90460-58008	NZE120,121;ZZE122..4FC	04/2004 - 09/2006	1
Common parts
90119-12379
90170-14012
90179-14019
95381-03020

ZZE122G-AWPEK (2000)

ILLUST NO. 1 OF 2(0008-0209)CE121,ZZE122,123 ; (0209- )ZZE122..5F ; (0209- )CE121,ZZE123

ILLUST NO. 2 OF 2(0008-0209)CE121,NZE124,ZZE12# ; (0209- )ZZE122..5F ; (0209- )CE121,NZE124,ZZ

(0008- )NZE120,121 ; (0209- )ZZE122..4FC

Part Price Details
