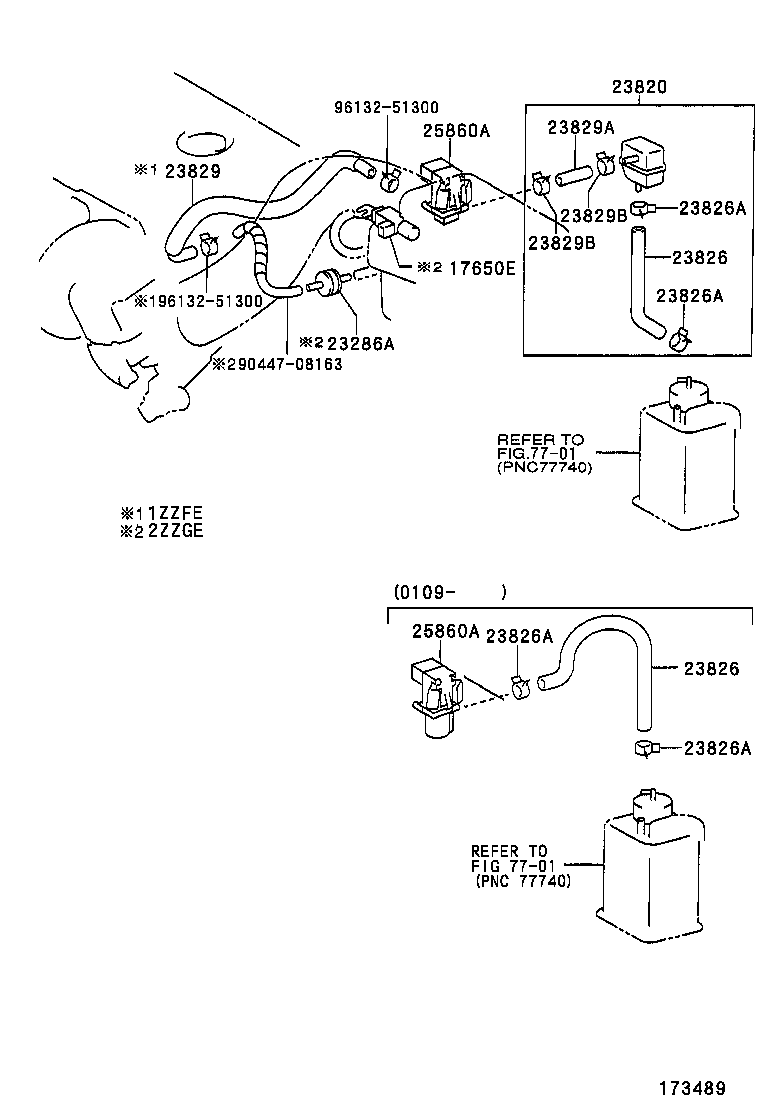

Toyota Corolla/fielder ZZE122 VACUUM PIPING

Part #	Description	Period	Qty
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-21040	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2001	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21030	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
23826-21050	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2001	1
23826-21030	1ZZFE,2ZZGE..ZZE12#	09/2001 - 09/2002	1
23826-21030	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21030	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
23826-21050	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2001	1
23826-21030	1ZZFE,2ZZGE..ZZE12#	09/2001 - 09/2002	1
23826-21030	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	2
96132-51100	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	2
96132-51100	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	2
96132-51100	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	2
96132-51100	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	2
96132-51100	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	2
96132-51100	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	2
96132-51100	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	2
96132-51100	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	2
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-22080	1ZZFE..ZZE122,124	09/2002 - 04/2004	1
23829-22080	1ZZFE..ZZE122,124	04/2004 - 09/2006	1
23829-22080	1ZZFE..ZZE122,124	08/2000 - 09/2002	1
23829A - HOSE, FUEL VAPOR FEED
95326-07005	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2001	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2001	2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2001	2
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12257	1ZZFE,2ZZGE..ZZE12#	09/2001 - 09/2002	1
90910-12257	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
90910-12257	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
90910-12236	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2001	1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12257	1ZZFE,2ZZGE..ZZE12#	09/2001 - 09/2002	1
90910-12257	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
90910-12257	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
90910-12236	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2001	1
Common parts
90447-08163
96132-51300
Linked diagrams
7701

ZZE122G-AWPEK (2000)

(0008- )1ZZFE,2ZZGE
