Toyota Corolla/fielder ZZE122 EXHAUST PIPE

ZZE122G-AWPEK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

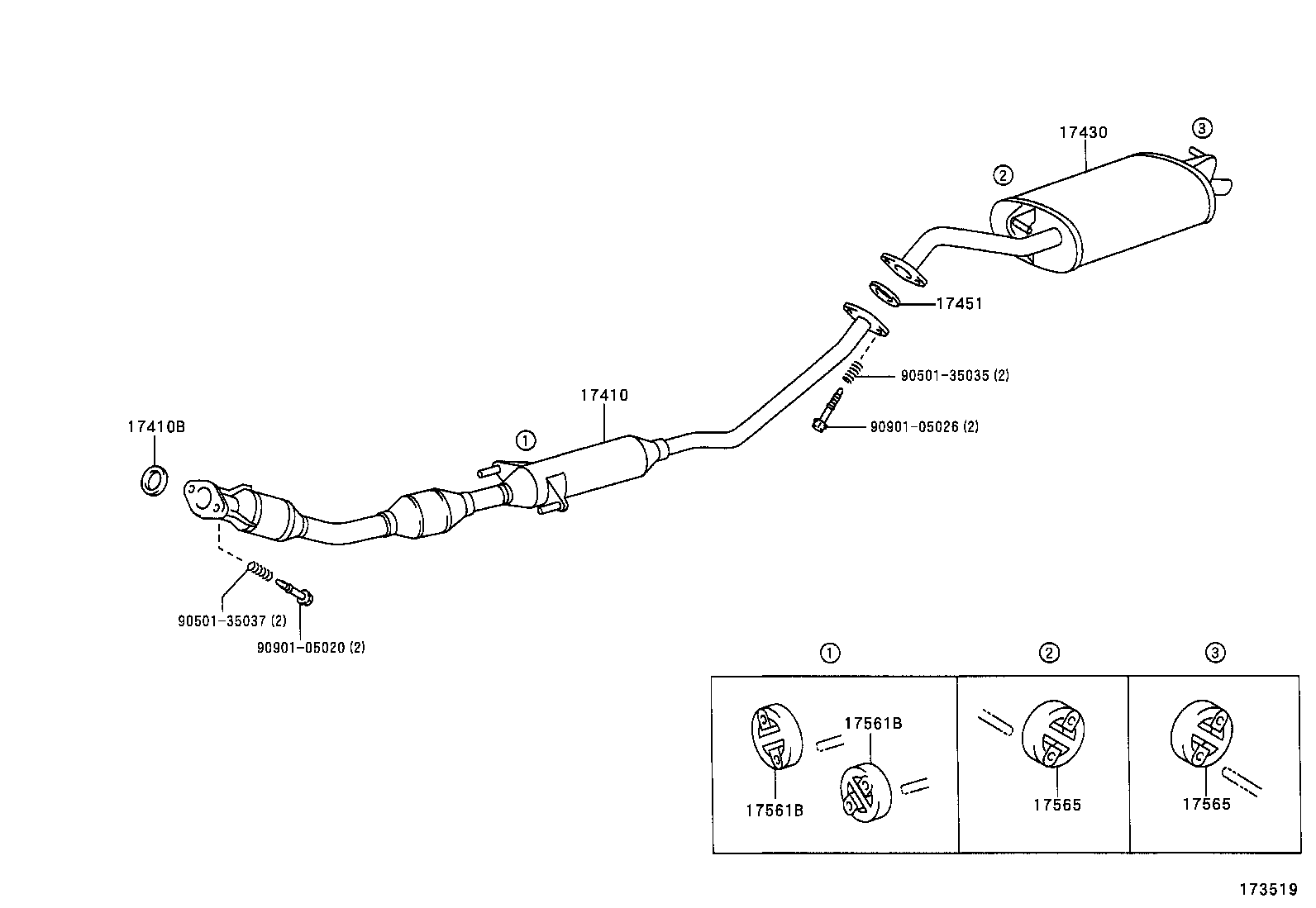

(0209- )1ZZFE..ZZE122..4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-22180	1ZZFE..ZZE122	08/2000 - 09/2002	1
17410-22420	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	1
17410-22420	1ZZFE..ZZE122..4FC	04/2004 - 09/2006	1
17410B - GASKET, EXHAUST PIPE
17451-22070	1ZZFE..ZZE122	08/2000 - 09/2002	1
17451-22070	1ZZFE..ZZE122	09/2002 - 04/2004	1
17451-22070	1ZZFE..ZZE122	04/2004 - 09/2006	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-22400	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	1
17430-22400	1ZZFE..ZZE122..4FC	04/2004 - 09/2005	1
17430-22401	1ZZFE..ZZE122..4FC	10/2005 - 09/2006	1
17430-22170	1ZZFE..ZZE122	08/2000 - 09/2002	1
17451 - GASKET, EXHAUST PIPE
17451-16030	1ZZFE..ZZE122	08/2000 - 09/2002	1
17451-16030	1ZZFE..ZZE122	04/2004 - 09/2006	1
17451-16030	1ZZFE..ZZE122	09/2002 - 04/2004	1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-21030	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	09/2002 - 11/2002	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	11/2002 - 04/2004	2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-21030	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	09/2002 - 11/2002	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	11/2002 - 04/2004	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-21040	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	2
17565-21040	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	2
17565-21040	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE120,121,ZZE122,123	04/2004 - 09/2006	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-21040	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	2
17565-21040	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	2
17565-21040	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE120,121,ZZE122,123	04/2004 - 09/2006	2
Common parts
90501-35035
90501-35037
90901-05020
90901-05026

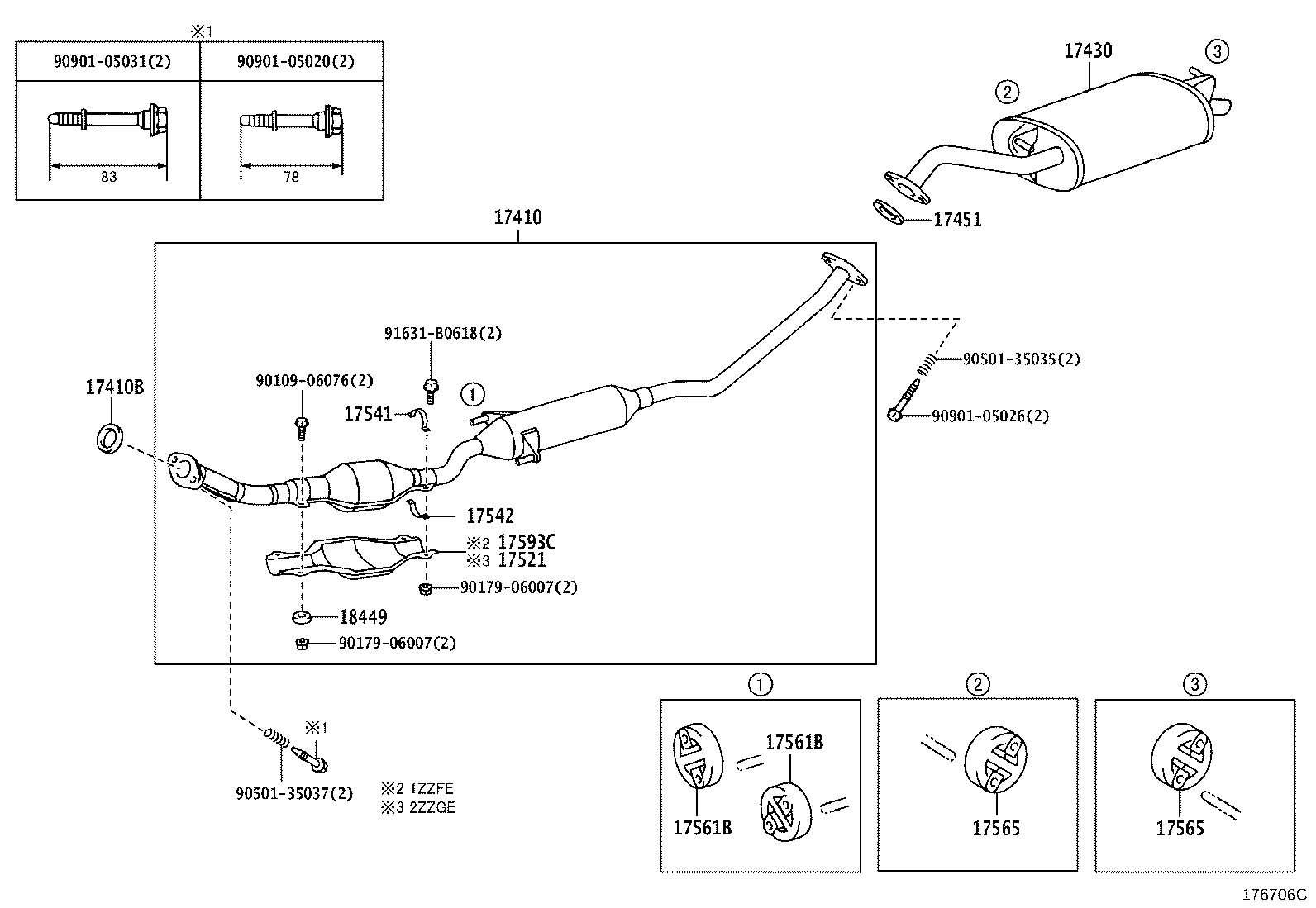

(0008-0209)1ZZFE,2ZZGE..ZZE122,123 ; (0209- )2ZZGE ; (0209- )1ZZFE..ZZE122..5

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-22180	1ZZFE..ZZE122	08/2000 - 09/2002	1
17410-22420	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	1
17410-22420	1ZZFE..ZZE122..4FC	04/2004 - 09/2006	1
17410B - GASKET, EXHAUST PIPE
17451-22070	1ZZFE..ZZE122	08/2000 - 09/2002	1
17451-22070	1ZZFE..ZZE122	09/2002 - 04/2004	1
17451-22070	1ZZFE..ZZE122	04/2004 - 09/2006	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-22400	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	1
17430-22400	1ZZFE..ZZE122..4FC	04/2004 - 09/2005	1
17430-22401	1ZZFE..ZZE122..4FC	10/2005 - 09/2006	1
17430-22170	1ZZFE..ZZE122	08/2000 - 09/2002	1
17451 - GASKET, EXHAUST PIPE
17451-16030	1ZZFE..ZZE122	08/2000 - 09/2002	1
17451-16030	1ZZFE..ZZE122	04/2004 - 09/2006	1
17451-16030	1ZZFE..ZZE122	09/2002 - 04/2004	1
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-42010	1ZZFE..ZZE122	08/2000 - 09/2002	1
17542 - STAY, EXHAUST PIPE PROTECTOR, NO.2
17542-42010	1ZZFE..ZZE122	08/2000 - 09/2002	1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-21030	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	09/2002 - 11/2002	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	11/2002 - 04/2004	2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-21030	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	09/2002 - 11/2002	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
17565-21030	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	11/2002 - 04/2004	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-21040	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	2
17565-21040	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	2
17565-21040	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE120,121,ZZE122,123	04/2004 - 09/2006	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-21040	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE120,121,ZZE122,123	08/2000 - 09/2002	2
17565-21040	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE120,121,ZZE122,123	09/2002 - 04/2004	2
17565-21040	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE120,121,ZZE122,123	04/2004 - 09/2006	2
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-22020	1ZZFE..ZZE122	08/2000 - 09/2002	1
18449 - SPACER, CONVERTER PROTECTOR
18449-74010	1ZZFE,2ZZGE..ZZE122,123	08/2000 - 09/2002	2
Common parts
90109-06076
90179-06007
90501-35035
90501-35037
90901-05020
90901-05026
90901-05031
91631-B0618

ZZE122G-AWPEK (2000)

(0209- )1ZZFE..ZZE122..4FC

(0008-0209)1ZZFE,2ZZGE..ZZE122,123 ; (0209- )2ZZGE ; (0209- )1ZZFE..ZZE122..5
