Toyota Corolla/fielder ZZE122 RADIATOR & WATER OUTLET

ZZE122G-AWPEK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

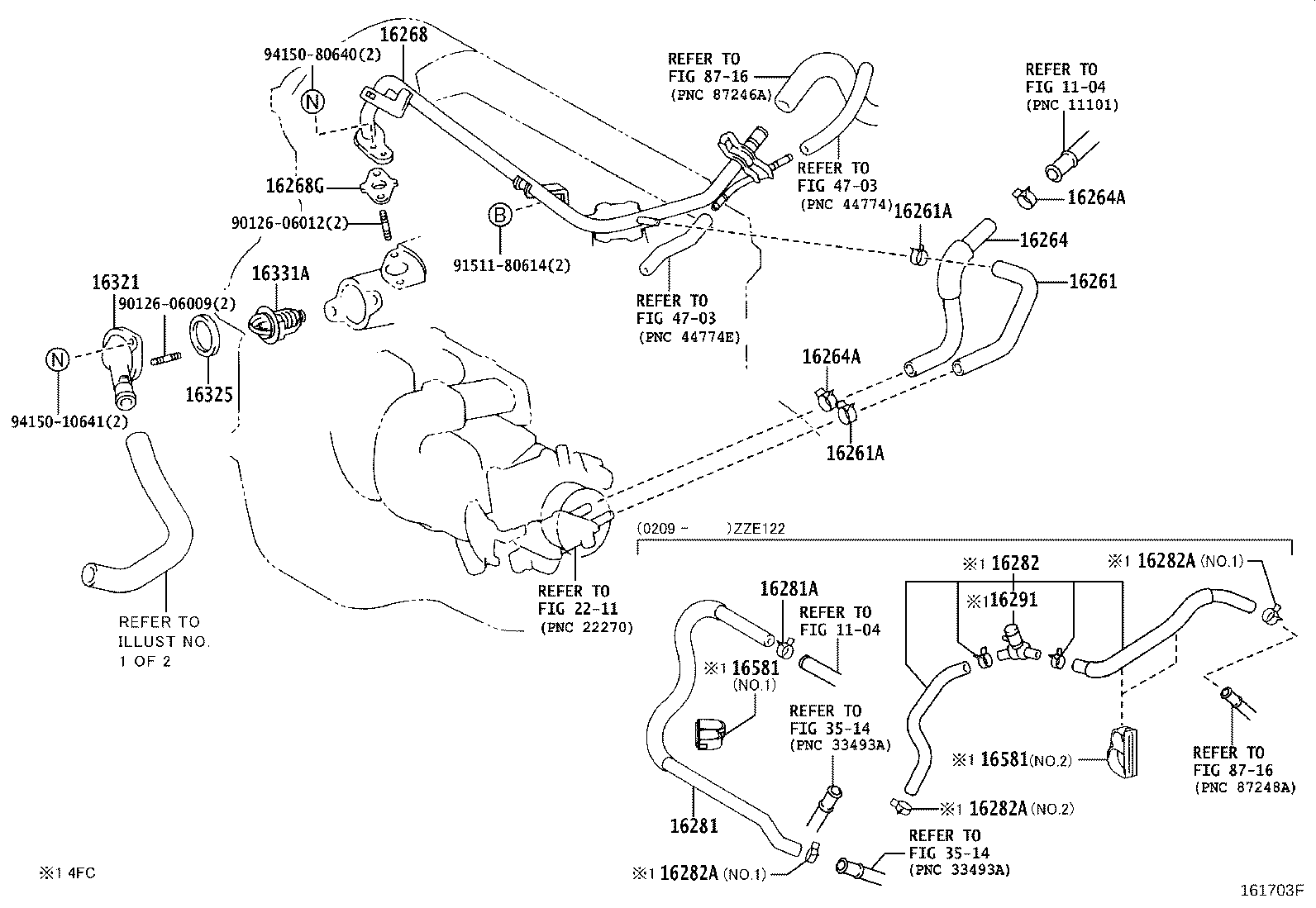

ILLUST NO. 2 OF 2(0008- )1ZZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-22080	1ZZFE..ZZE122 (J)	08/2000 - 09/2002	1
16261-0D030	1ZZFE..ZZE122,124 (L)	06/2004 - 12/2999	1
16261-22080	1ZZFE..ZZE122,124 (J)	04/2004 - 12/2999	1
16261-22080	1ZZFE..ZZE122,124	09/2002 - 04/2004	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300	1ZZFE..ZZE122,124	08/2000 - 09/2002	2
96135-51300	1ZZFE..ZZE122,124	09/2002 - 11/2003	2
96137-41501	1ZZFE..ZZE122,124	11/2003 - 04/2004	2
96137-41501	1ZZFE..ZZE122,124	04/2004 - 09/2006	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300	1ZZFE..ZZE122,124	08/2000 - 09/2002	2
96135-51300	1ZZFE..ZZE122,124	09/2002 - 11/2003	2
96137-41501	1ZZFE..ZZE122,124	11/2003 - 04/2004	2
96137-41501	1ZZFE..ZZE122,124	04/2004 - 09/2006	2
16264 - HOSE, WATER BY-PASS, NO.2
16264-22090	1ZZFE..ZZE122,124	09/2002 - 04/2004	1
16264-22090	1ZZFE..ZZE122 (J)	08/2000 - 09/2002	1
16264-0D020	1ZZFE..ZZE122,124 (L)	06/2004 - 12/2999	1
16264-22090	1ZZFE..ZZE122,124 (J)	04/2004 - 12/2999	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300	1ZZFE..ZZE122,124	08/2000 - 09/2002	2
96135-51300	1ZZFE..ZZE122,124	09/2002 - 11/2003	2
96137-41501	1ZZFE..ZZE122,124	11/2003 - 04/2004	2
96137-41501	1ZZFE..ZZE122,124	04/2004 - 09/2006	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300	1ZZFE..ZZE122,124	08/2000 - 09/2002	2
96135-51300	1ZZFE..ZZE122,124	09/2002 - 11/2003	2
96137-41501	1ZZFE..ZZE122,124	11/2003 - 04/2004	2
96137-41501	1ZZFE..ZZE122,124	04/2004 - 09/2006	2
16268 - PIPE, WATER BY-PASS, NO.1
16268-22080	1ZZFE..ZZE122,124..4FC	09/2002 - 04/2004	1
16268-22100	1ZZFE..ZZE122	08/2000 - 09/2002	1
16268-22080	1ZZFE..ZZE122,124..4FC	04/2004 - 09/2006	1
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-22010	1ZZFE..ZZE122,124	09/2002 - 04/2004	1
16258-22010	1ZZFE..ZZE122,124	04/2004 - 09/2006	1
16258-22010	1ZZFE..ZZE122,124	08/2000 - 09/2002	1
16281 - HOSE, WATER BY-PASS, NO.4
16281-22060	1ZZFE..ZZE122..4FC	04/2004 - 09/2006	1
16281-22050	1ZZFE..ZZE122..4FC	09/2002 - 04/2003	1
16281-22060	1ZZFE..ZZE122..4FC	04/2003 - 04/2004	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96134-41900	1ZZFE..ZZE122..4FC	04/2004 - 09/2006	1
96134-41900	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	1
16282 - HOSE, WATER BY-PASS, NO.5
16282-22090	1ZZFE..ZZE122..4FC	09/2005 - 01/2006	1
16282-22040	1ZZFE..ZZE122..4FC	04/2004 - 09/2005	1
16282-22040	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	1
16282-22091	1ZZFE..ZZE122..4FC	02/2006 - 09/2006	1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96134-41900	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	3
96134-41900	1ZZFE..ZZE122..4FC NO.1	04/2004 - 09/2006	2
96134-41900	1ZZFE..ZZE122..4FC	04/2004 - 01/2006	1
90467-19022	1ZZFE..ZZE122..4FC NO.2	02/2006 - 09/2006	1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96134-41900	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	3
96134-41900	1ZZFE..ZZE122..4FC NO.1	04/2004 - 09/2006	2
96134-41900	1ZZFE..ZZE122..4FC	04/2004 - 01/2006	1
90467-19022	1ZZFE..ZZE122..4FC NO.2	02/2006 - 09/2006	1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96134-41900	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	3
96134-41900	1ZZFE..ZZE122..4FC NO.1	04/2004 - 09/2006	2
96134-41900	1ZZFE..ZZE122..4FC	04/2004 - 01/2006	1
90467-19022	1ZZFE..ZZE122..4FC NO.2	02/2006 - 09/2006	1
16291 - JOINT, WATER HOSE
16291-22011	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	1
16291-22011	1ZZFE..ZZE122..4FC	04/2004 - 09/2006	1
16321 - INLET, WATER
16321-22070	1ZZFE..ZZE122,124	09/2002 - 04/2004	1
16321-22070	1ZZFE..ZZE122,124	08/2000 - 09/2002	1
16321-22070	1ZZFE..ZZE122,124	04/2004 - 09/2006	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010	1ZZFE..ZZE122,124 (J)	08/2000 - 09/2002	1
16325-62010	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
16325-62010	1ZZFE..ZZE122,124	04/2004 - 06/2004	1
16325-62010	1ZZFE..ZZE122,124 (J)	06/2004 - 09/2006	1
16325-0H020	1ZZFE..ZZE122,124 (L)	06/2004 - 09/2006	1
16331A - THERMOSTAT
90916-03129	1ZZFE..ZZE122,124 *WAX 82−95,(J)	08/2000 - 09/2002	1
90916-03129	1ZZFE..ZZE122,124 *WAX 82−95	04/2004 - 09/2006	1
90916-03129	1ZZFE..ZZE122,124 *WAX 82−95	09/2002 - 04/2004	1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-22060	1ZZFE..ZZE122..4FC NO.2	09/2002 - 04/2004	2
16581-22070	1ZZFE..ZZE122..4FC NO.1	09/2002 - 04/2004	1
16581-22070	1ZZFE..ZZE122..4FC NO.1	04/2004 - 09/2006	1
16581-22060	1ZZFE..ZZE122..4FC NO.2	04/2004 - 09/2006	2
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-22060	1ZZFE..ZZE122..4FC NO.2	09/2002 - 04/2004	2
16581-22070	1ZZFE..ZZE122..4FC NO.1	09/2002 - 04/2004	1
16581-22070	1ZZFE..ZZE122..4FC NO.1	04/2004 - 09/2006	1
16581-22060	1ZZFE..ZZE122..4FC NO.2	04/2004 - 09/2006	2
Common parts
90126-06009
90126-06012
91511-80614
94150-10641
94150-80640
Linked diagrams
1104
2211
3514
4703
8716

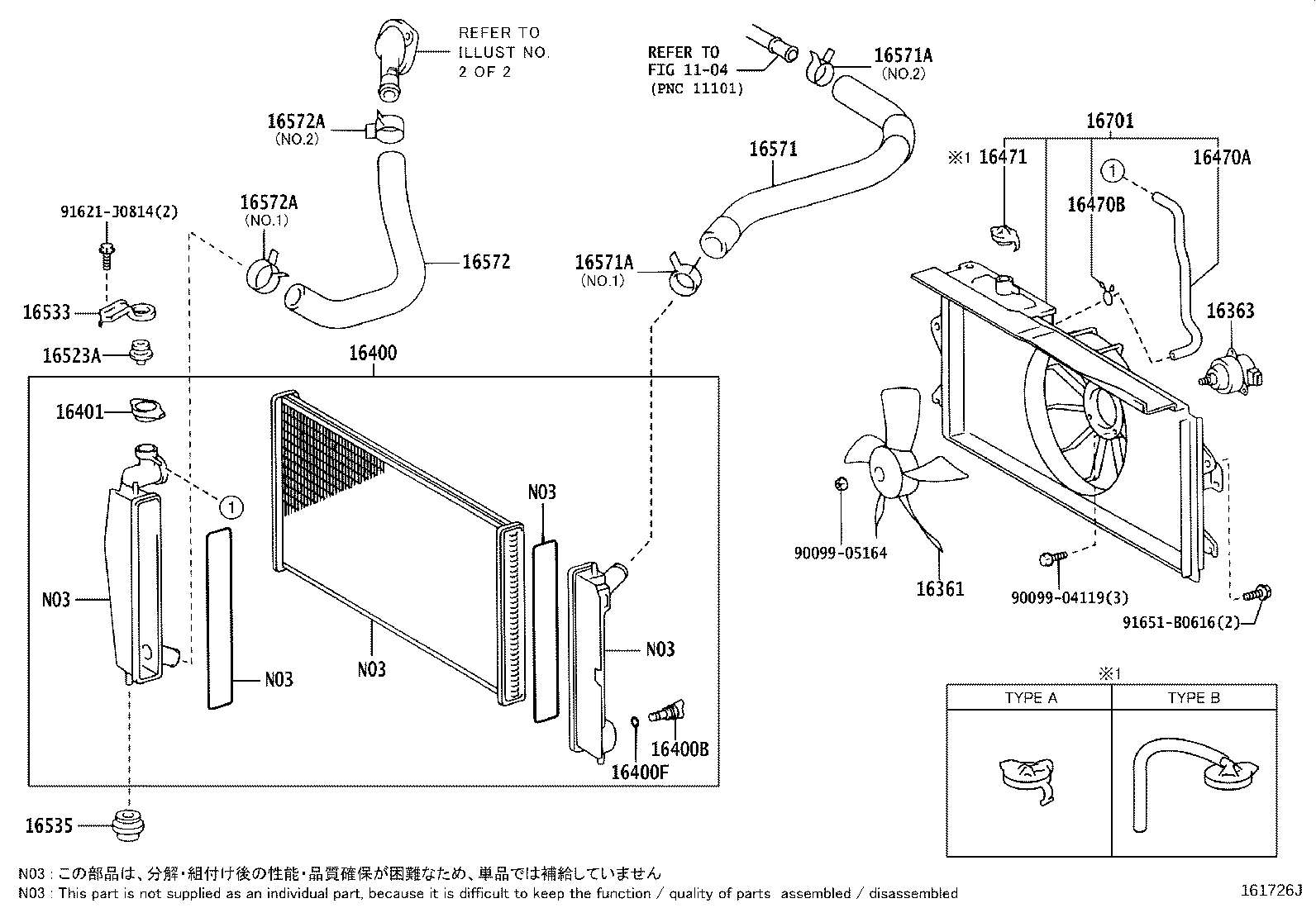

ILLUST NO. 1 OF 2(0008- )1ZZFE,2ZZGE

Click highlighted areas on diagram

Part #	Description	Period	Qty
16361 - FAN
16361-21060	1ZZFE,2ZZGE..ZZE122,123	08/2000 - 09/2002	1
16361-21060	1ZZFE,2ZZGE..ZZE122,123	09/2002 - 04/2004	1
16361-21060	1ZZFE,2ZZGE..ZZE122,123	04/2004 - 09/2006	1
16363 - MOTOR, COOLING FAN
16363-23020	1ZZFE,2ZZGE..ZZE122,123	08/2000 - 09/2002	1
16363-23020	1ZZFE,2ZZGE..ZZE122,123	09/2002 - 05/2003	1
16363-28150	1ZZFE,2ZZGE..ZZE122,123	05/2003 - 04/2004	1
16363-28150	1ZZFE,2ZZGE..ZZE122,123	04/2004 - 09/2006	1
16400 - RADIATOR ASSY
16400-21150	1ZZFE..ZZE122..4FC	04/2004 - 09/2006	1
16400-21160	1ZZFE..ZZE122..4FC	08/2000 - 09/2002	1
16400-21150	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
23322-54010	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23322-54010	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
16492-21050	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
16492-21050	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
16401 - CAP SUB-ASSY, RADIATOR
16401-72090	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
16401-72090	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
16401-72090	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-21040	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
16377-21040	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
16377-21040	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	1ZZFE,2ZZGE..ZZE12#	09/2002 - 10/2002	2
90467-11085	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	2
90467-11085	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
90467-11085	1ZZFE,2ZZGE..ZZE122,123	10/2002 - 04/2004	2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-21030	1ZZFE,2ZZGE..ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
16471-23010	1ZZFE,2ZZGE..ZZE12# TYPE A:ｲﾗｽﾄ参照	09/2002 - 11/2002	1
16405-21030	1ZZFE,2ZZGE..ZZE12# TYPE B:ｲﾗｽﾄ参照	11/2002 - 04/2004	1
16471-23010	1ZZFE,2ZZGE..ZZE12# TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
16523A - CUSHION, RADIATOR SUPPORT
16523-21020	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	2
16523-21020	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	2
16523-21020	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	2
16533 - SUPPORT, RADIATOR, UPPER
16533-21020	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	2
16533-21020	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	2
16533-21020	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	2
16535 - SUPPORT, RADIATOR, LOWER
16535-21040	1ZZFE..ZZE122,124..4FC	09/2002 - 04/2004	2
16504-21010	1ZZFE..ZZE122,124..4FC	08/2000 - 09/2001	2
16535-21040	1ZZFE..ZZE122,124..4FC	04/2004 - 09/2006	2
16535-21040	1ZZFE..ZZE122,124..4FC	09/2001 - 09/2002	2
16571 - HOSE, RADIATOR, INLET
16571-22151	1ZZFE..ZZE122..4FC	09/2005 - 09/2006	1
16571-22070	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
16571-22150	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	1
16571-22150	1ZZFE..ZZE122..4FC	04/2004 - 09/2005	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34004	1ZZFE,2ZZGE..ZZE12# NO.2	09/2002 - 04/2004	1
90467-37005	1ZZFE,2ZZGE..ZZE12# NO.1	08/2000 - 09/2002	1
90467-34004	1ZZFE,2ZZGE..ZZE12# NO.2	08/2000 - 09/2002	1
90467-34004	1ZZFE,2ZZGE..ZZE12# NO.1	04/2004 - 05/2006	1
90467-37005	1ZZFE,2ZZGE..ZZE12# NO.2	04/2004 - 05/2006	1
90467-37005	1ZZFE,2ZZGE..ZZE12# NO.1	09/2002 - 04/2004	1
96136-44301	1ZZFE,2ZZGE..ZZE12#	05/2006 - 09/2006	2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34004	1ZZFE,2ZZGE..ZZE12# NO.2	09/2002 - 04/2004	1
90467-37005	1ZZFE,2ZZGE..ZZE12# NO.1	08/2000 - 09/2002	1
90467-34004	1ZZFE,2ZZGE..ZZE12# NO.2	08/2000 - 09/2002	1
90467-34004	1ZZFE,2ZZGE..ZZE12# NO.1	04/2004 - 05/2006	1
90467-37005	1ZZFE,2ZZGE..ZZE12# NO.2	04/2004 - 05/2006	1
90467-37005	1ZZFE,2ZZGE..ZZE12# NO.1	09/2002 - 04/2004	1
96136-44301	1ZZFE,2ZZGE..ZZE12#	05/2006 - 09/2006	2
16572 - HOSE, RADIATOR, OUTLET
16572-22070	1ZZFE..ZZE122,124	08/2000 - 09/2002	1
16572-22110	1ZZFE..ZZE122..4FC	09/2002 - 04/2004	1
16572-22110	1ZZFE..ZZE122..4FC	04/2004 - 09/2006	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-37002	1ZZFE,2ZZGE..ZZE12# NO.1	08/2000 - 09/2002	1
90466-35001	1ZZFE,2ZZGE..ZZE12# NO.2	08/2000 - 09/2002	1
90466-37002	1ZZFE,2ZZGE..ZZE12# NO.1	09/2002 - 04/2004	1
90466-35001	1ZZFE,2ZZGE..ZZE12# NO.2	09/2002 - 04/2004	1
90466-35001	1ZZFE,2ZZGE..ZZE12# NO.2	04/2004 - 04/2006	1
90466-37002	1ZZFE,2ZZGE..ZZE12# NO.1	04/2004 - 04/2006	1
96136-43901	1ZZFE,2ZZGE..ZZE12# NO.2	05/2006 - 09/2006	1
96136-44301	1ZZFE,2ZZGE..ZZE12# NO.1	05/2006 - 09/2006	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-37002	1ZZFE,2ZZGE..ZZE12# NO.1	08/2000 - 09/2002	1
90466-35001	1ZZFE,2ZZGE..ZZE12# NO.2	08/2000 - 09/2002	1
90466-37002	1ZZFE,2ZZGE..ZZE12# NO.1	09/2002 - 04/2004	1
90466-35001	1ZZFE,2ZZGE..ZZE12# NO.2	09/2002 - 04/2004	1
90466-35001	1ZZFE,2ZZGE..ZZE12# NO.2	04/2004 - 04/2006	1
90466-37002	1ZZFE,2ZZGE..ZZE12# NO.1	04/2004 - 04/2006	1
96136-43901	1ZZFE,2ZZGE..ZZE12# NO.2	05/2006 - 09/2006	1
96136-44301	1ZZFE,2ZZGE..ZZE12# NO.1	05/2006 - 09/2006	1
16701 - SHROUD SUB-ASSY, FAN
16711-21080	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
16711-21080	1ZZFE,2ZZGE..ZZE12#	08/2000 - 09/2002	1
16711-21080	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
Common parts
90099-04119
90099-05164
91621-J0814
91651-B0616
Linked diagrams
1104

ZZE122G-AWPEK (2000)

ILLUST NO. 2 OF 2(0008- )1ZZFE

ILLUST NO. 1 OF 2(0008- )1ZZFE,2ZZGE
