Toyota Corolla/fielder ZZE122 FRONT DRIVE SHAFT

ZZE122G-AWMEK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

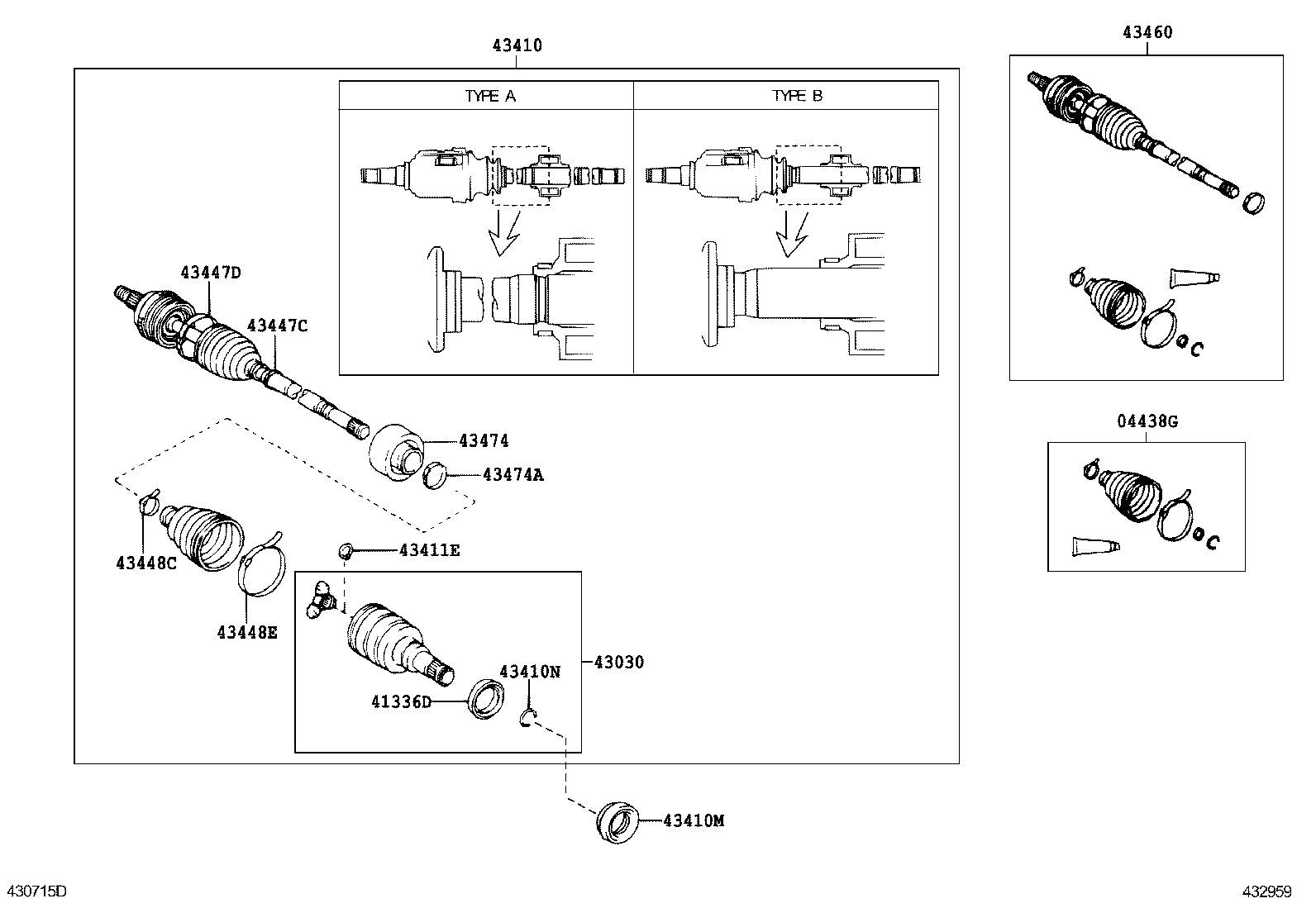

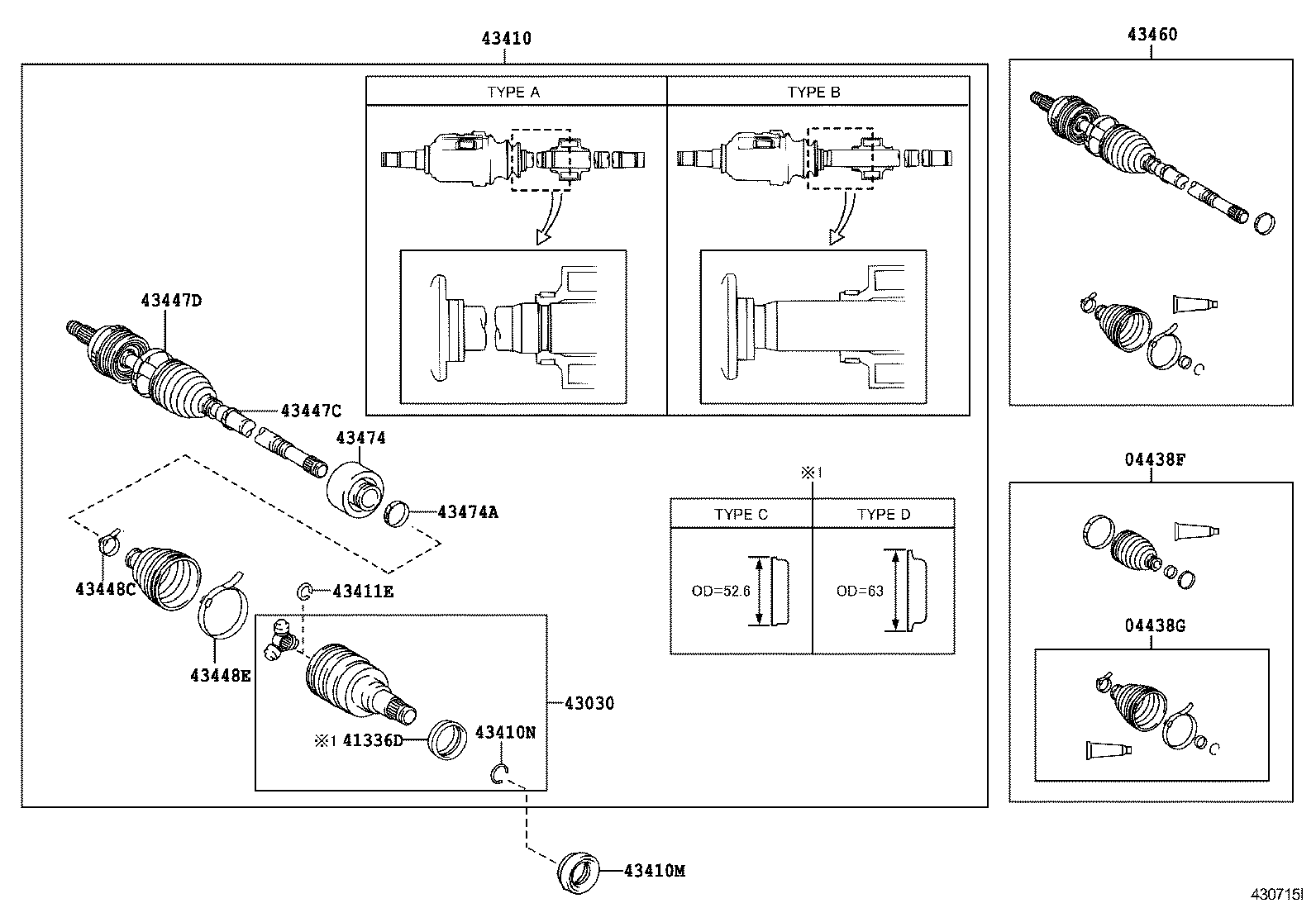

ILLUST NO. 2 OF 3(0008-0404)ZZE122 ; (0008-0404)CE121..4FC

Click highlighted areas on diagram

ﾗｲﾄ

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-12481	ZZE122;CE121..4FC PNC 43410=TYPE B	08/2000 - 09/2002	1
04438-12600	ZZE122;CE121..4FC PNC 43410=TYPE A	08/2000 - 12/2001	1
04438-12481	ZZE122;CE121..4FC	09/2002 - 12/2003	1
04428-12250	ZZE122;CE121..4FC	12/2003 - 04/2004	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-32240	ZZE122;CE121,ZZE124..4FC	08/2000 - 09/2002	1
04438-42200	ZZE122;CE121..4FC	12/2002 - 12/2003	1
04438-32240	ZZE122;CE121..4FC	09/2002 - 12/2002	1
04438-42200	ZZE122;CE121..4FC	12/2003 - 04/2004	2
04438-42200	ZZE122	04/2004 - 09/2006	1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-32010	ZZE122 TYPE D:ｲﾗｽﾄ参照	08/2000 - 03/2001	1
41336-12060	ZZE122	03/2001 - 09/2002	1
41336-12060	ZZE122;CE121..4FC	09/2002 - 04/2004	1
41336-12060	ZZE122 TYPE C:ｲﾗｽﾄ参照	11/2000 - 03/2001	1
41336-12060	ZZE122	04/2004 - 09/2006	1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-02020	ZZE122 (L)	10/2000 - 09/2002	1
43030-12110	ZZE122 (J)	08/2000 - 03/2001	1
43040-02020	ZZE122 (L)	09/2002 - 04/2004	1
43040-32040	ZZE122 (J)	03/2001 - 09/2002	1
43040-02020	ZZE122 (L)	04/2004 - 09/2006	1
43040-32040	ZZE122 (J)	04/2004 - 09/2006	1
43040-32040	ZZE122 (J)	09/2002 - 04/2004	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-02220	ZZE122 TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
43410-12670	ZZE122 TYPE B:ｲﾗｽﾄ参照	04/2001 - 09/2002	1
43410-02220	ZZE122 TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
43410-12670	ZZE122 TYPE B:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
43410-02220	ZZE122 TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
43410-12670	ZZE122 TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-35051	ZZE122..5F	08/2000 - 09/2002	1
90311-35057	ZZE122,123..MTM	09/2005 - 09/2006	1
90311-35051	ZZE122,123..MTM	09/2002 - 04/2004	1
90311-35051	ZZE122,123..MTM	04/2004 - 09/2005	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90521-27005	ZZE122	08/2000 - 09/2002	1
90521-27005	ZZE122;CE121..4FC	09/2002 - 04/2004	1
90521-27005	ZZE122	04/2004 - 09/2006	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005	ZZE122;CE121,NZE124,ZZE124..4FC	09/2002 - 04/2004	1
90520-22005	ZZE122	08/2000 - 09/2002	1
90520-22005	ZZE122,124	04/2004 - 09/2006	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12150	ZZE122;CE121,ZZE124..4FC	09/2002 - 04/2004	1
42345-12150	ZZE122	10/2000 - 09/2002	1
42345-12150	ZZE122,124	04/2004 - 09/2006	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12140	ZZE122	10/2000 - 09/2002	1
42345-12140	ZZE122;CE121,ZZE124..4FC	09/2002 - 04/2004	1
42345-12140	ZZE122,124	04/2004 - 09/2006	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01078	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
90949-01078	NZE12#,ZZE122,124	04/2004 - 09/2006	1
90949-01078	CE121..4FC;NZE120,121,ZZE122	09/2002 - 04/2004	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160	ZZE122;CE121,NZE124,ZZE124..4FC	09/2002 - 04/2004	1
42345-12160	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
42345-12160	NZE124,ZZE122,124	04/2004 - 09/2006	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09470	ZZE122;CE121..4FC PNC 43410=TYPE A	08/2000 - 09/2002	1
43460-80004	ZZE122;CE121..4FC PNC 43410=TYPE B	04/2001 - 09/2002	1
43460-80004	ZZE122;CE121..4FC PNC 43410=TYPE B	09/2002 - 04/2004	1
43460-80043	ZZE122 PNC 43410=TYPE B	04/2004 - 09/2006	1
43460-09470	ZZE122;CE121..4FC PNC 43410=TYPE A	09/2002 - 04/2004	1
43460-80052	ZZE122 PNC 43410=TYPE A	04/2004 - 09/2006	1
43474 - DAMPER, DRIVE SHAFT
43474-12040	ZZE122 PNC 43410=TYPE A	08/2000 - 07/2002	1
43474-12120	CE121..4FC;NZE120,121,ZZE122 PNC 43410=TYPE B	04/2001 - 09/2002	1
43474-12130	ZZE122;CE121..4FC PNC 43410=TYPE A	07/2002 - 09/2002	1
43474-12120	NZE120,121,ZZE122 PNC 43410=TYPE B	04/2004 - 09/2006	1
43474-12130	ZZE122 PNC 43410=TYPE A	04/2004 - 09/2006	1
43474-12120	CE121..4FC;NZE120,121,ZZE122 PNC 43410=TYPE B	09/2002 - 04/2004	1
43474-12130	ZZE122;CE121..4FC PNC 43410=TYPE A	09/2002 - 04/2004	1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010	ZZE122	08/2000 - 04/2001	1
42345-14010	CE121,NZE120,121,ZZE122	09/2002 - 04/2004	1
42345-14010	ZZE122	04/2004 - 09/2006	1

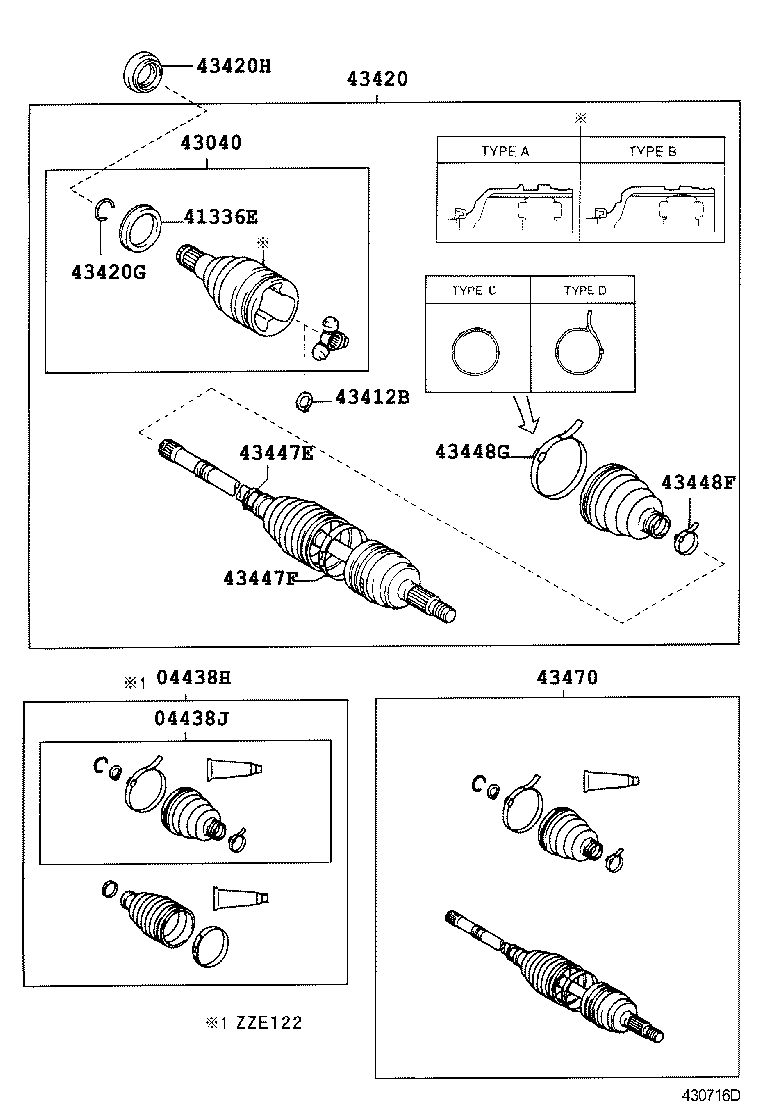

ILLUST NO. 3 OF 3(0008-0404)ZZE122 ; (0008-0404)CE121..4FC

Click highlighted areas on diagram

ﾚﾌﾄ

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-12481	ZZE122;CE121..4FC PNC 43420=TYPE A	08/2000 - 09/2002	1
04438-12600	ZZE122;CE121..4FC PNC 43420=TYPE B	08/2000 - 12/2001	1
04438-12481	ZZE122;CE121..4FC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 12/2003	1
04438-12640	ZZE122;CE121,ZZE124..4FC	12/2003 - 04/2004	1
04428-42100	ZZE122,124	04/2004 - 09/2006	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42200	ZZE122;CE121..4FC	12/2002 - 04/2004	1
04438-32240	ZZE122;CE121,ZZE124..4FC	08/2000 - 09/2002	1
04438-32240	ZZE122;CE121..4FC	09/2002 - 12/2002	1
04438-42200	ZZE122,124	04/2004 - 09/2006	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12060	ZZE12#..4FC,5F	04/2004 - 09/2006	1
41336-32020	ZZE122;CE121,ZZE124..4FC	08/2000 - 11/2000	1
41336-12060	ZZE122;CE121,ZZE124..4FC	11/2000 - 09/2002	1
41336-12060	ZZE122	09/2002 - 04/2004	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-32040	ZZE122;CE121..4FC (J)	08/2000 - 09/2002	1
43040-02020	ZZE122	09/2002 - 04/2004	1
43040-02020	ZZE122;CE121..4FC (L)	10/2000 - 09/2002	1
43040-02020	ZZE122 (L)	04/2004 - 09/2006	1
43040-32040	ZZE122 (J)	04/2004 - 09/2006	1
43040-32040	ZZE122;CE121..4FC TYPE A OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22005	ZZE122;CE121,ZZE124..4FC	08/2000 - 09/2002	1
90520-22005	ZZE122	09/2002 - 04/2004	1
90520-22005	ZZE122,124	04/2004 - 09/2006	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-02240	ZZE122 (L)	08/2000 - 09/2002	1
43420-02240	ZZE122 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
43420-12590	ZZE122 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
43420-12590	ZZE122 (J)	04/2001 - 09/2002	1
43420-12590	ZZE122 (J)	04/2004 - 09/2006	1
43420-02240	ZZE122 (L)	04/2004 - 09/2006	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-27005	ZZE122;CE121,ZZE123,124..4FC,6F	08/2000 - 09/2002	1
90521-27005	ZZE122	09/2002 - 04/2004	1
90521-27005	ZZE12#	04/2004 - 09/2006	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35044	ZZE122..5F	08/2000 - 09/2002	1
90311-35044	ZZE122,123..MTM	09/2002 - 04/2004	1
90311-35044	ZZE122,123..MTM	04/2004 - 09/2005	1
90311-35058	ZZE122,123..MTM	09/2005 - 09/2006	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12150	ZZE122 内径=30.4	04/2001 - 09/2002	1
42345-12150	ZZE122	09/2002 - 04/2004	1
42345-20040	ZZE122;CE121..4FC 内径=33.9	08/2000 - 12/2001	1
42345-12150	ZZE122,124	04/2004 - 09/2006	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-28020	ZZE122;CE121..4FC 内径=98.6	08/2000 - 12/2001	1
42345-12140	ZZE122,124	04/2004 - 09/2006	1
42345-12140	ZZE122	09/2002 - 04/2004	1
42345-12140	ZZE122 内径=92.0	04/2001 - 09/2002	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078	NZE12#,ZZE122,124	04/2004 - 09/2006	1
90949-01078	ZZE122	09/2002 - 04/2004	1
90949-01078	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160	ZZE122,124 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 02/2002	1
42345-12160	ZZE122	02/2002 - 03/2002	2
42345-12160	ZZE122 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	03/2002 - 09/2002	1
42345-12160	ZZE122,124	04/2004 - 09/2006	1
42345-12160	ZZE122	09/2002 - 04/2004	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-09700	ZZE122 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,(L)	09/2002 - 12/2003	1
43470-80015	ZZE122 (J),PNC 43420=TYPE B	04/2001 - 09/2002	1
43470-09700	ZZE122 (L),PNC 43420=TYPE B	08/2000 - 09/2002	1
43470-80015	ZZE122 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,(J)	09/2002 - 12/2003	1
43470-80015	ZZE122 (J)	12/2003 - 04/2004	1
43470-09700	ZZE122 (L)	12/2003 - 04/2004	1
43470-80015	ZZE122	04/2004 - 10/2005	1
43470-80095	ZZE122	10/2005 - 09/2006	1

ILLUST NO. 3 OF 3(0404- )ZZE122

Click highlighted areas on diagram

ﾚﾌﾄ

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-12481	ZZE122;CE121..4FC PNC 43420=TYPE A	08/2000 - 09/2002	1
04438-12600	ZZE122;CE121..4FC PNC 43420=TYPE B	08/2000 - 12/2001	1
04438-12481	ZZE122;CE121..4FC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 12/2003	1
04438-12640	ZZE122;CE121,ZZE124..4FC	12/2003 - 04/2004	1
04428-42100	ZZE122,124	04/2004 - 09/2006	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42200	ZZE122;CE121..4FC	12/2002 - 04/2004	1
04438-32240	ZZE122;CE121,ZZE124..4FC	08/2000 - 09/2002	1
04438-32240	ZZE122;CE121..4FC	09/2002 - 12/2002	1
04438-42200	ZZE122,124	04/2004 - 09/2006	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12060	ZZE12#..4FC,5F	04/2004 - 09/2006	1
41336-32020	ZZE122;CE121,ZZE124..4FC	08/2000 - 11/2000	1
41336-12060	ZZE122;CE121,ZZE124..4FC	11/2000 - 09/2002	1
41336-12060	ZZE122	09/2002 - 04/2004	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-32040	ZZE122;CE121..4FC (J)	08/2000 - 09/2002	1
43040-02020	ZZE122	09/2002 - 04/2004	1
43040-02020	ZZE122;CE121..4FC (L)	10/2000 - 09/2002	1
43040-02020	ZZE122 (L)	04/2004 - 09/2006	1
43040-32040	ZZE122 (J)	04/2004 - 09/2006	1
43040-32040	ZZE122;CE121..4FC TYPE A OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22005	ZZE122;CE121,ZZE124..4FC	08/2000 - 09/2002	1
90520-22005	ZZE122	09/2002 - 04/2004	1
90520-22005	ZZE122,124	04/2004 - 09/2006	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-02240	ZZE122 (L)	08/2000 - 09/2002	1
43420-02240	ZZE122 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
43420-12590	ZZE122 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
43420-12590	ZZE122 (J)	04/2001 - 09/2002	1
43420-12590	ZZE122 (J)	04/2004 - 09/2006	1
43420-02240	ZZE122 (L)	04/2004 - 09/2006	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-27005	ZZE122;CE121,ZZE123,124..4FC,6F	08/2000 - 09/2002	1
90521-27005	ZZE122	09/2002 - 04/2004	1
90521-27005	ZZE12#	04/2004 - 09/2006	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35044	ZZE122..5F	08/2000 - 09/2002	1
90311-35044	ZZE122,123..MTM	09/2002 - 04/2004	1
90311-35044	ZZE122,123..MTM	04/2004 - 09/2005	1
90311-35058	ZZE122,123..MTM	09/2005 - 09/2006	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12150	ZZE122 内径=30.4	04/2001 - 09/2002	1
42345-12150	ZZE122	09/2002 - 04/2004	1
42345-20040	ZZE122;CE121..4FC 内径=33.9	08/2000 - 12/2001	1
42345-12150	ZZE122,124	04/2004 - 09/2006	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-28020	ZZE122;CE121..4FC 内径=98.6	08/2000 - 12/2001	1
42345-12140	ZZE122,124	04/2004 - 09/2006	1
42345-12140	ZZE122	09/2002 - 04/2004	1
42345-12140	ZZE122 内径=92.0	04/2001 - 09/2002	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078	NZE12#,ZZE122,124	04/2004 - 09/2006	1
90949-01078	ZZE122	09/2002 - 04/2004	1
90949-01078	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160	ZZE122,124 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 02/2002	1
42345-12160	ZZE122	02/2002 - 03/2002	2
42345-12160	ZZE122 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	03/2002 - 09/2002	1
42345-12160	ZZE122,124	04/2004 - 09/2006	1
42345-12160	ZZE122	09/2002 - 04/2004	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-09700	ZZE122 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,(L)	09/2002 - 12/2003	1
43470-80015	ZZE122 (J),PNC 43420=TYPE B	04/2001 - 09/2002	1
43470-09700	ZZE122 (L),PNC 43420=TYPE B	08/2000 - 09/2002	1
43470-80015	ZZE122 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,(J)	09/2002 - 12/2003	1
43470-80015	ZZE122 (J)	12/2003 - 04/2004	1
43470-09700	ZZE122 (L)	12/2003 - 04/2004	1
43470-80015	ZZE122	04/2004 - 10/2005	1
43470-80095	ZZE122	10/2005 - 09/2006	1

ILLUST NO. 1 OF 3(0008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 2 OF 3(0404- )ZZE122

Click highlighted areas on diagram

ﾗｲﾄ

Part #	Description	Period	Qty
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-32240	ZZE122;CE121,ZZE124..4FC	08/2000 - 09/2002	1
04438-42200	ZZE122;CE121..4FC	12/2002 - 12/2003	1
04438-32240	ZZE122;CE121..4FC	09/2002 - 12/2002	1
04438-42200	ZZE122;CE121..4FC	12/2003 - 04/2004	2
04438-42200	ZZE122	04/2004 - 09/2006	1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-32010	ZZE122 TYPE D:ｲﾗｽﾄ参照	08/2000 - 03/2001	1
41336-12060	ZZE122	03/2001 - 09/2002	1
41336-12060	ZZE122;CE121..4FC	09/2002 - 04/2004	1
41336-12060	ZZE122 TYPE C:ｲﾗｽﾄ参照	11/2000 - 03/2001	1
41336-12060	ZZE122	04/2004 - 09/2006	1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-02020	ZZE122 (L)	10/2000 - 09/2002	1
43030-12110	ZZE122 (J)	08/2000 - 03/2001	1
43040-02020	ZZE122 (L)	09/2002 - 04/2004	1
43040-32040	ZZE122 (J)	03/2001 - 09/2002	1
43040-02020	ZZE122 (L)	04/2004 - 09/2006	1
43040-32040	ZZE122 (J)	04/2004 - 09/2006	1
43040-32040	ZZE122 (J)	09/2002 - 04/2004	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-02220	ZZE122 TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
43410-12670	ZZE122 TYPE B:ｲﾗｽﾄ参照	04/2001 - 09/2002	1
43410-02220	ZZE122 TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
43410-12670	ZZE122 TYPE B:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
43410-02220	ZZE122 TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
43410-12670	ZZE122 TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-35051	ZZE122..5F	08/2000 - 09/2002	1
90311-35057	ZZE122,123..MTM	09/2005 - 09/2006	1
90311-35051	ZZE122,123..MTM	09/2002 - 04/2004	1
90311-35051	ZZE122,123..MTM	04/2004 - 09/2005	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90521-27005	ZZE122	08/2000 - 09/2002	1
90521-27005	ZZE122;CE121..4FC	09/2002 - 04/2004	1
90521-27005	ZZE122	04/2004 - 09/2006	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005	ZZE122;CE121,NZE124,ZZE124..4FC	09/2002 - 04/2004	1
90520-22005	ZZE122	08/2000 - 09/2002	1
90520-22005	ZZE122,124	04/2004 - 09/2006	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12150	ZZE122;CE121,ZZE124..4FC	09/2002 - 04/2004	1
42345-12150	ZZE122	10/2000 - 09/2002	1
42345-12150	ZZE122,124	04/2004 - 09/2006	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12140	ZZE122	10/2000 - 09/2002	1
42345-12140	ZZE122;CE121,ZZE124..4FC	09/2002 - 04/2004	1
42345-12140	ZZE122,124	04/2004 - 09/2006	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01078	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
90949-01078	NZE12#,ZZE122,124	04/2004 - 09/2006	1
90949-01078	CE121..4FC;NZE120,121,ZZE122	09/2002 - 04/2004	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160	ZZE122;CE121,NZE124,ZZE124..4FC	09/2002 - 04/2004	1
42345-12160	ZZE122;CE121,NZE124,ZZE124..4FC	08/2000 - 09/2002	1
42345-12160	NZE124,ZZE122,124	04/2004 - 09/2006	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09470	ZZE122;CE121..4FC PNC 43410=TYPE A	08/2000 - 09/2002	1
43460-80004	ZZE122;CE121..4FC PNC 43410=TYPE B	04/2001 - 09/2002	1
43460-80004	ZZE122;CE121..4FC PNC 43410=TYPE B	09/2002 - 04/2004	1
43460-80043	ZZE122 PNC 43410=TYPE B	04/2004 - 09/2006	1
43460-09470	ZZE122;CE121..4FC PNC 43410=TYPE A	09/2002 - 04/2004	1
43460-80052	ZZE122 PNC 43410=TYPE A	04/2004 - 09/2006	1
43474 - DAMPER, DRIVE SHAFT
43474-12040	ZZE122 PNC 43410=TYPE A	08/2000 - 07/2002	1
43474-12120	CE121..4FC;NZE120,121,ZZE122 PNC 43410=TYPE B	04/2001 - 09/2002	1
43474-12130	ZZE122;CE121..4FC PNC 43410=TYPE A	07/2002 - 09/2002	1
43474-12120	NZE120,121,ZZE122 PNC 43410=TYPE B	04/2004 - 09/2006	1
43474-12130	ZZE122 PNC 43410=TYPE A	04/2004 - 09/2006	1
43474-12120	CE121..4FC;NZE120,121,ZZE122 PNC 43410=TYPE B	09/2002 - 04/2004	1
43474-12130	ZZE122;CE121..4FC PNC 43410=TYPE A	09/2002 - 04/2004	1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010	ZZE122	08/2000 - 04/2001	1
42345-14010	CE121,NZE120,121,ZZE122	09/2002 - 04/2004	1
42345-14010	ZZE122	04/2004 - 09/2006	1

ZZE122G-AWMEK (2000)

ILLUST NO. 2 OF 3(0008-0404)ZZE122 ; (0008-0404)CE121..4FC

ILLUST NO. 3 OF 3(0008-0404)ZZE122 ; (0008-0404)CE121..4FC

ILLUST NO. 3 OF 3(0404- )ZZE122

ILLUST NO. 1 OF 3(0008- )

ILLUST NO. 2 OF 3(0404- )ZZE122

Part Price Details
