Toyota Corolla/fielder NZE124 BACK DOOR PANEL & GLASS

NZE124G-AWPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
67750 - BOARD ASSY, BACK DOOR TRIM
67750-13080B0	CE121,NZE121,124,ZZE12#..WG DK.GRAY,TRIM1#	09/2002 - 04/2004	1
67750-13080B0	CE121,NZE121,124..WG DK.GRAY,TRIM1#	10/2001 - 09/2002	1
67750-13080A0	CE121,NZE121,124..WG IVORY,TRIM0#	09/2002 - 04/2004	1
67750-13080A0	CE121,NZE121,124..WG IVORY,TRIM0#	08/2000 - 09/2002	1
67750-13080A0	NZE121,124..WG IVORY,TRIM0#	04/2004 - 09/2006	1
67750-13080B0	NZE121,124,ZZE12#..WG DK.GRAY,TRIM1#	04/2004 - 09/2006	1
67939B - GARNISH, BACK DOOR, CENTER
67939-13010C0	CE121,NZE121,124..WG ｱﾘ(ｼﾂﾅｲﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#,1#	10/2001 - 09/2002	1
67939-13020C0	CE121,NZE121,124..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#,1#	10/2001 - 09/2002	1
67939-13020C0	NZE121,124..WG HIDｽﾎﾟｰﾂｾﾚｸｼﾖﾝ *(K),BLACK,TRIM16	09/2004 - 11/2004	1
67939-13010C0	CE121,NZE121,124..WG ｱﾘ(ｼﾂﾅｲﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#	09/2002 - 04/2004	1
67939-13010C0	NZE121,124..WG ｱﾘ(ｼﾂﾅｲﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#	04/2004 - 09/2006	1
67939-13010C0	CE121,NZE121,124..WG ｱﾘ(ｼﾂﾅｲﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#	08/2000 - 10/2001	1
67939-13020C0	CE121,NZE121,124..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#	08/2000 - 10/2001	1
67939-13020C0	NZE121,124..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#,1#	04/2004 - 09/2006	1
67939-13020C0	CE121,NZE121,124..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#,1#	09/2002 - 04/2004	1
67939B - GARNISH, BACK DOOR, CENTER
67939-13010C0	CE121,NZE121,124..WG ｱﾘ(ｼﾂﾅｲﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#,1#	10/2001 - 09/2002	1
67939-13020C0	CE121,NZE121,124..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#,1#	10/2001 - 09/2002	1
67939-13020C0	NZE121,124..WG HIDｽﾎﾟｰﾂｾﾚｸｼﾖﾝ *(K),BLACK,TRIM16	09/2004 - 11/2004	1
67939-13010C0	CE121,NZE121,124..WG ｱﾘ(ｼﾂﾅｲﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#	09/2002 - 04/2004	1
67939-13010C0	NZE121,124..WG ｱﾘ(ｼﾂﾅｲﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#	04/2004 - 09/2006	1
67939-13010C0	CE121,NZE121,124..WG ｱﾘ(ｼﾂﾅｲﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#	08/2000 - 10/2001	1
67939-13020C0	CE121,NZE121,124..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#	08/2000 - 10/2001	1
67939-13020C0	NZE121,124..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#,1#	04/2004 - 09/2006	1
67939-13020C0	CE121,NZE121,124..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM0#,1#	09/2002 - 04/2004	1
74811D - HANDLE, DOOR PULL
74811-13010A0	CE121,NZE121,124..WG IVORY,TRIM0#	08/2000 - 09/2002	1
74811-13010B5	CE121,NZE121,124,ZZE12#..WG DK.GRAY,TRIM1#	09/2002 - 04/2004	1
74811-13010A0	NZE121,124..WG IVORY,TRIM0#	04/2004 - 09/2006	1
74811-13010A0	CE121,NZE121,124..WG IVORY,TRIM0#	09/2002 - 04/2004	1
74811-13010B5	CE121,NZE121,124..WG DK.GRAY,TRIM1#	10/2001 - 09/2002	1
74811-13010B5	NZE121,124,ZZE12#..WG DK.GRAY,TRIM1#	04/2004 - 09/2006	1
Common parts
90467-10161
90468-04147

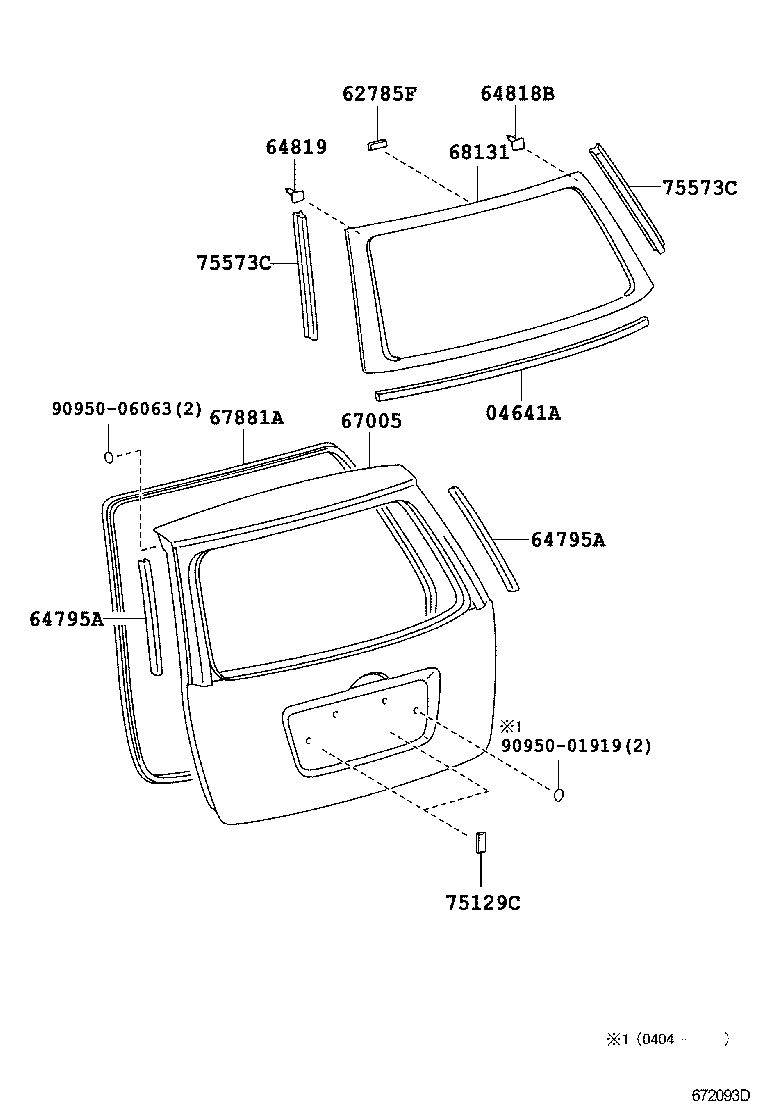

ILLUST NO. 2 OF 2(0008- )WG

Click highlighted areas on diagram

Part #	Description	Period	Qty
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
56117-47010	CE121,NZE121,124,ZZE12#..WG	08/2000 - 11/2003	1
56117-47010	CE121,NZE121,124,ZZE12#..WG	11/2003 - 04/2004	1
56117-47010	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
62785F - SPACER, BACK DOOR GLASS
62785-16030	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
62785-16030	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
62785-16030	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
64795A - TRIM, BACK WINDOW OPENING
64795-13010C0	CE121,NZE121,124..WG BLACK,TRIM0#,1#	10/2001 - 09/2002	2
64795-13010C0	NZE121,124..WG BLACK,TRIM0#	04/2004 - 09/2006	2
64795-13010C0	NZE121,124..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ),BLACK,TRIM0#,1#	04/2004 - 09/2006	2
64795-13010C0	CE121,NZE121,124..WG BLACK,TRIM0#,1#	09/2002 - 04/2004	2
64795-13010C0	CE121,NZE121,124..WG BLACK,TRIM0#	08/2000 - 10/2001	2
64795A - TRIM, BACK WINDOW OPENING
64795-13010C0	CE121,NZE121,124..WG BLACK,TRIM0#,1#	10/2001 - 09/2002	2
64795-13010C0	NZE121,124..WG BLACK,TRIM0#	04/2004 - 09/2006	2
64795-13010C0	NZE121,124..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ),BLACK,TRIM0#,1#	04/2004 - 09/2006	2
64795-13010C0	CE121,NZE121,124..WG BLACK,TRIM0#,1#	09/2002 - 04/2004	2
64795-13010C0	CE121,NZE121,124..WG BLACK,TRIM0#	08/2000 - 10/2001	2
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-13040	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
64818-13040	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
64818-13040	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-13030	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
64819-13030	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	1
64819-13030	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1F630	CE121,NZE121,124,ZZE12#..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	08/2000 - 09/2002	1
67005-1F620	CE121,NZE121,124..WG	08/2000 - 09/2002	1
67005-1F870	CE121,NZE121,124,ZZE12#..WG ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ- & ﾘﾔｽﾎﾟｲﾗ)	09/2002 - 09/2003	1
67005-1F850	CE121,NZE121,124..WG	09/2002 - 04/2004	1
67005-13B60	NZE121,124..WG HIDｽﾎﾟｰﾂｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
67005-1F870	NZE121,124,ZZE12#..WG ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ- & ﾘﾔｽﾎﾟｲﾗ)	09/2003 - 04/2004	1
67005-1F860	CE121,NZE121,124,ZZE12#..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	09/2002 - 04/2004	1
67005-13B80	NZE121,124,ZZE12#..WG ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ- & ﾘﾔｽﾎﾟｲﾗ)	04/2004 - 09/2006	1
67005-13B70	NZE121,124..WG ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-)	04/2004 - 09/2006	1
67005-13B60	NZE121,124,ZZE12#..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	04/2004 - 09/2006	1
67005-13B50	NZE121,124..WG	04/2004 - 09/2006	1
67881A - WEATHERSTRIP, BACK DOOR
67881-13231	CE121,NZE121,124,ZZE12#..WG	09/2003 - 04/2004	1
67881-13230	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	1
67881-13231	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	1
67881-13230	CE121,NZE121,124,ZZE12#..WG	09/2002 - 09/2003	1
68131 - GLASS, BACK DOOR
68131-13521	NZE121,124..WG *EHTT,厚さ=3.1,ｸﾞﾘｰﾝ	04/2004 - 09/2006	1
68131-13530	CE121,NZE121,124,ZZE12#..WG *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ	08/2000 - 09/2002	1
68131-13530	CE121,NZE121,124,ZZE12#..WG *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ	09/2002 - 01/2003	1
68131-13531	CE121,NZE121,124,ZZE12#..WG *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ	01/2003 - 04/2004	1
68131-13521	CE121,NZE121,124..WG *EHTT,厚さ=3.1,ｸﾞﾘｰﾝ	01/2003 - 04/2004	1
68131-13520	CE121,NZE121,124..WG *EHTT,厚さ=3.1,ｸﾞﾘｰﾝ	09/2002 - 01/2003	1
68131-13520	CE121,NZE121,124..WG *EHTT,厚さ=3.1,ｸﾞﾘｰﾝ	08/2000 - 09/2002	1
68131-13531	NZE121,124,ZZE12#..WG *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ	04/2004 - 09/2006	1
75129C - CUSHION, REAR LICENCE PLATE
75129-13020	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	2
75129-13020	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	2
75129-13020	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-13050	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	2
75573-13050	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	2
75573-13050	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-13050	NZE121,124,ZZE12#..WG	04/2004 - 09/2006	2
75573-13050	CE121,NZE121,124,ZZE12#..WG	09/2002 - 04/2004	2
75573-13050	CE121,NZE121,124,ZZE12#..WG	08/2000 - 09/2002	2
Common parts
90950-01919
90950-06063
