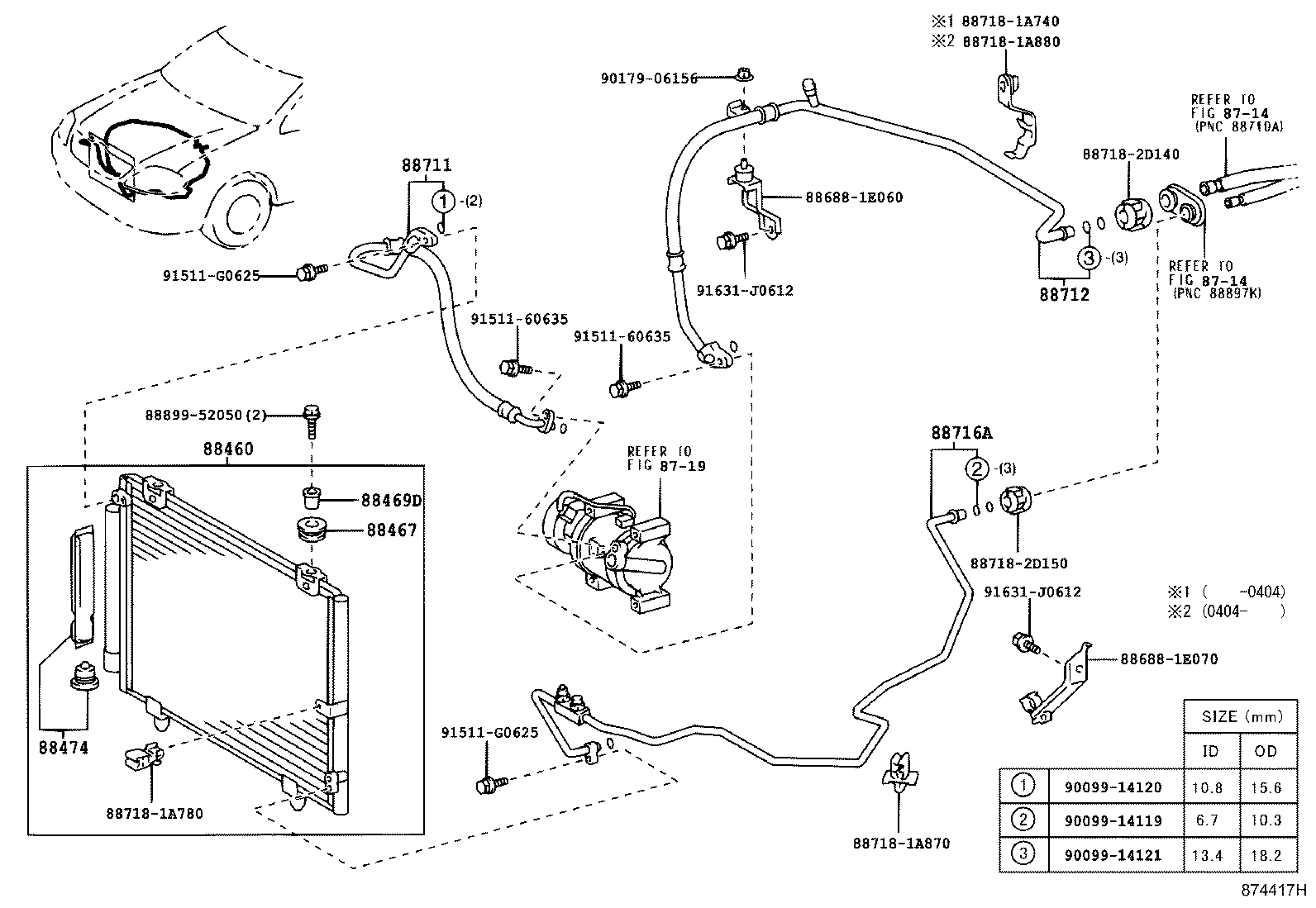

Toyota Corolla/fielder NZE124 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88450-12240	ZZE122..4FC;NZE12#,ZZE124	08/2000 - 09/2002	1
88450-12241	ZZE122..4FC;NZE12#,ZZE123,124	09/2002 - 04/2004	1
88450-12241	ZZE122..4FC;NZE12#,ZZE123,124..4FC,5F	04/2004 - 09/2006	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
88467-12180	NZE12#,ZZE12#	04/2004 - 09/2006	2
88467-12180	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	NZE12#,ZZE12#	04/2004 - 09/2006	2
88469-52010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
88469-52010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
88474 - DRYER, COOLER
88474-47010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
88474-17010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88474-17010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-12760	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
88703-12530	NZE12#	08/2000 - 09/2002	1
88703-12620	NZE12#	09/2002 - 04/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-12810	NZE12#	09/2002 - 04/2004	1
88704-12810	NZE12#	08/2000 - 09/2002	1
88704-1A130	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-12510	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
88710-12510	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
88710-12510	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
88688-1E060
88688-1E070
88718-1A740
88718-1A780
88718-1A870
88718-1A880
88718-2D140
88718-2D150
88899-52050
90099-14119
90099-14120
90099-14121
90179-06156
91511-60635
91511-G0625
91631-J0612
Linked diagrams
8714
8719

NZE124-AEPNK (2000)
