NZE124-AEPNK (2000)
Toyota Corolla/Fielder
Production
Aug 2000
-
Sep 2006
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

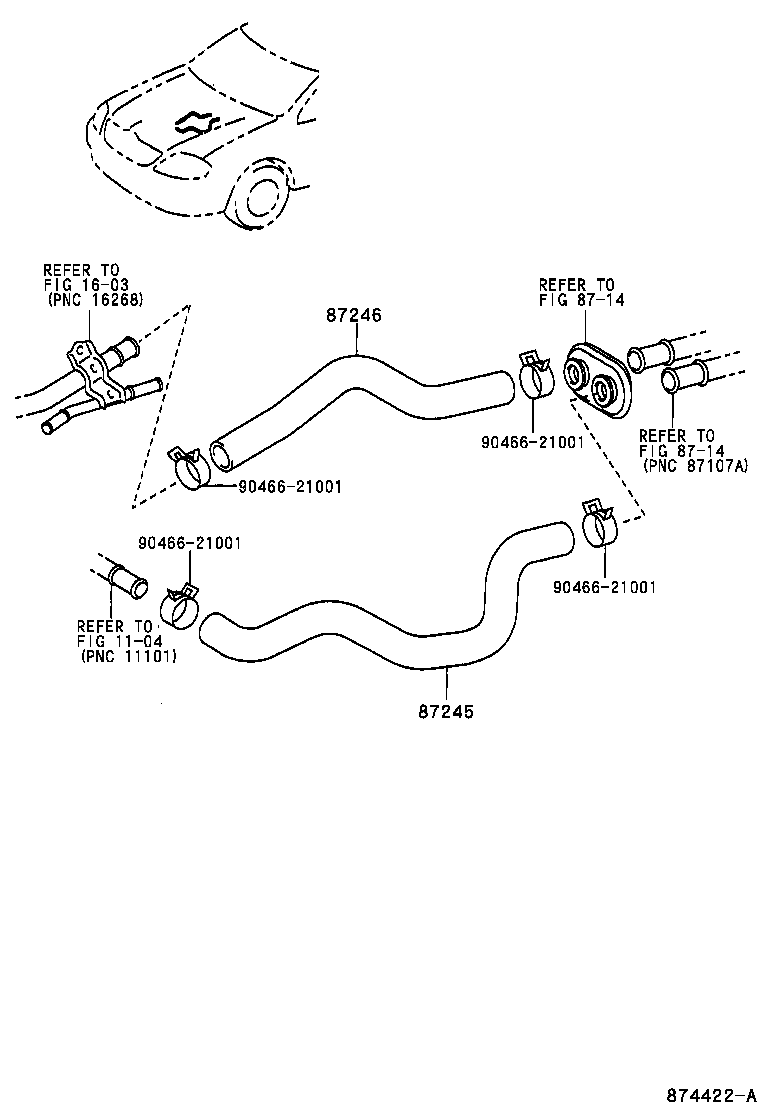

(0008-0609)NZE12#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-1E050 |
NZE12# |
1 | ||
| 87245-1E070 |
ZZE122,124 |
1 | ||
| 87245-1E050 |
NZE12# |
1 | ||
| 87245-1E071 |
ZZE122,124 |
1 | ||
| 87245-1E050 |
NZE120,124;NZE121..5F |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-1E080 |
ZZE122,124 |
1 | ||
| 87245-1E080 |
ZZE122,124 |
1 | ||
| 87245-1E060 |
NZE12# |
1 | ||
| 87245-1E060 |
NZE12# |
1 | ||
| 87245-1E060 |
NZE120,124;NZE121..5F |
1 | ||
| Common parts | ||||
| 90466-21001 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||

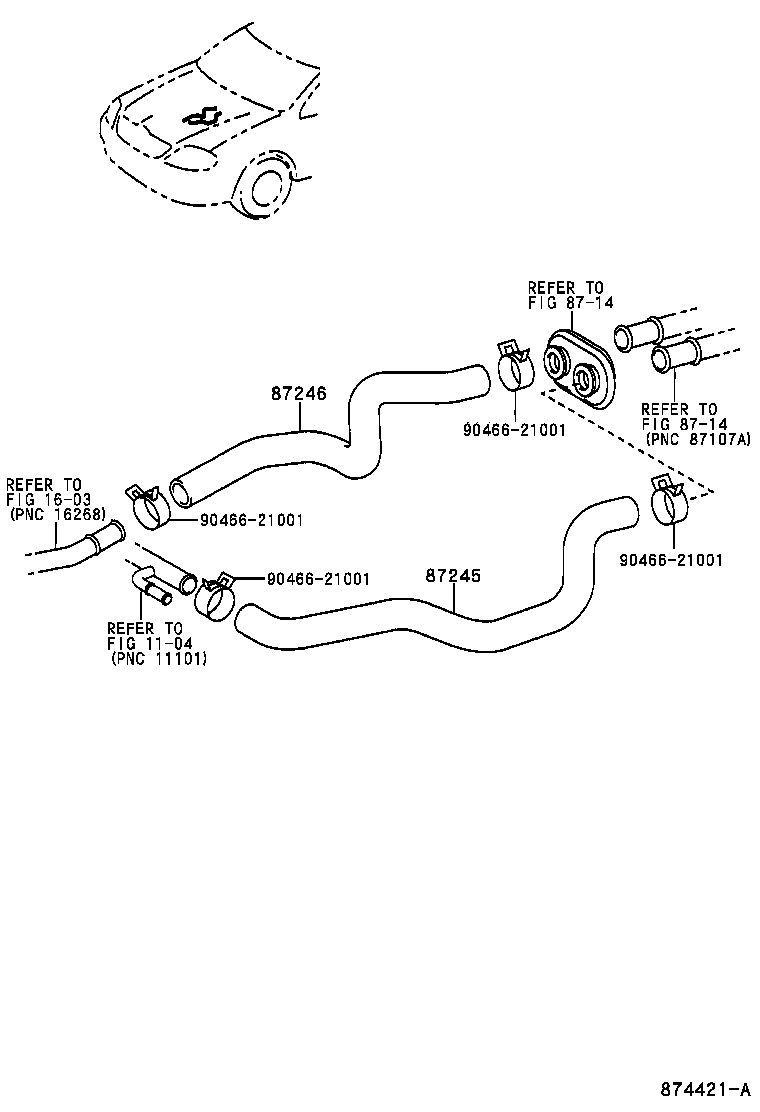

(0008-0209)ZZE122,124 ; (0209- )ZZE124 ; (0209- )ZZE122..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-1E050 |
NZE12# |
1 | ||
| 87245-1E070 |
ZZE122,124 |
1 | ||
| 87245-1E050 |
NZE12# |
1 | ||
| 87245-1E071 |
ZZE122,124 |
1 | ||
| 87245-1E050 |
NZE120,124;NZE121..5F |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-1E080 |
ZZE122,124 |
1 | ||
| 87245-1E080 |
ZZE122,124 |
1 | ||
| 87245-1E060 |
NZE12# |
1 | ||
| 87245-1E060 |
NZE12# |
1 | ||
| 87245-1E060 |
NZE120,124;NZE121..5F |
1 | ||
| Common parts | ||||
| 90466-21001 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
