NZE124-AEPNK (2000)
Toyota Corolla/Fielder
(0008-0404)

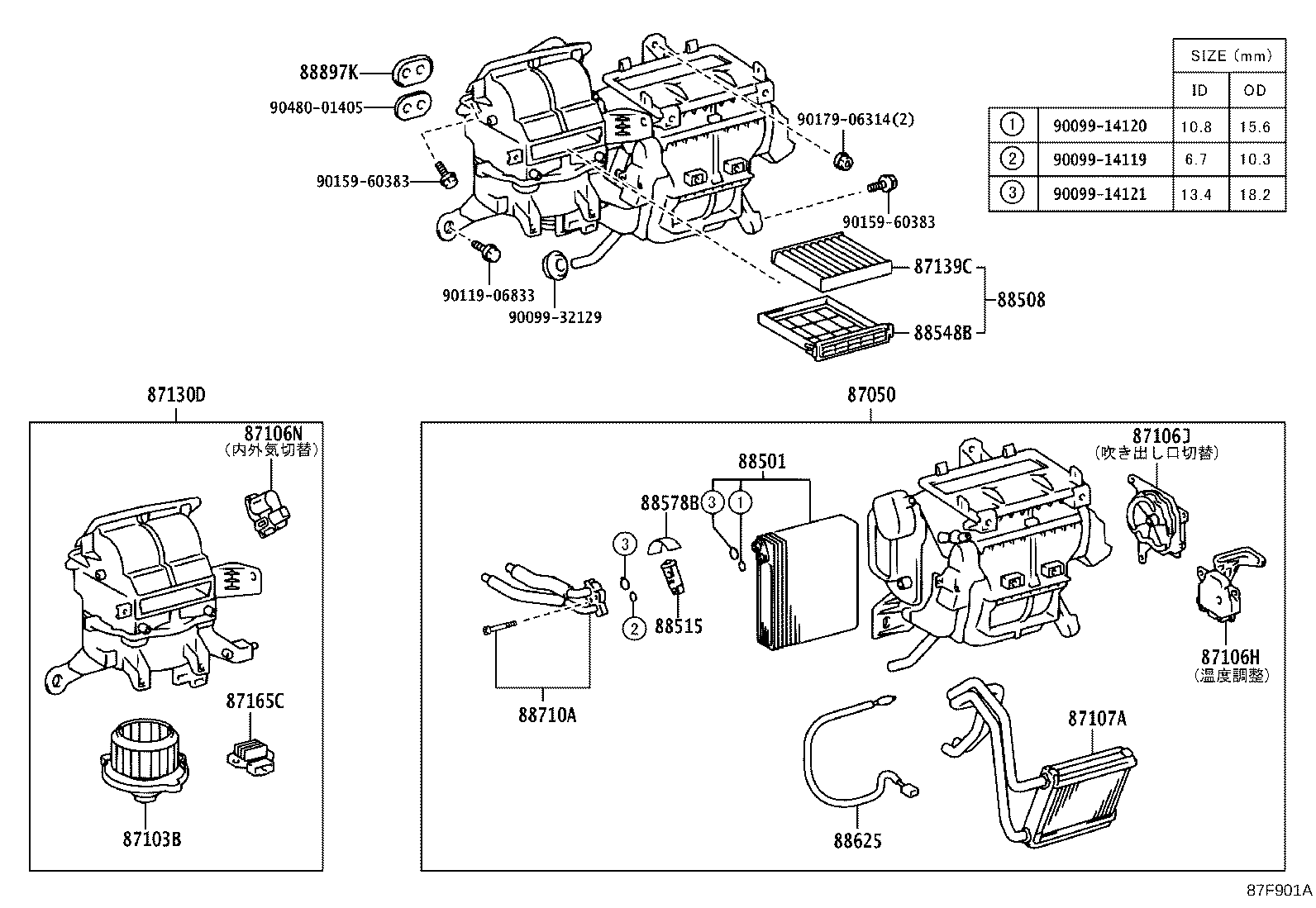

ﾏﾆﾕｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12170 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12150 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12150 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12180 |
CE121,NZE12#,ZZE122,124..S,X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12010 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12190 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12170 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12180 |
CE121,NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87050-12030 |
NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12040 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12040 |
NZE121,124..SED..X ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12190 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..SED..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-12050 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87103-12050 |
NZE12#,ZZE12# |
1 | ||
| 87103-12050 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-12550 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87107-12540 |
NZE12#,ZZE12# |
1 | ||
| 87107-12550 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12480 |
CE121,NZE12#,ZZE122,124..S,X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12480 |
CE121,NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
NZE121,124..SED..X ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12480 |
NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87130-12490 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..SED..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-20350 |
CE121,NZE12#..X |
1 | ||
| 87138-20350 |
NZE12#..X |
1 | ||
| 87138-20350 |
CE121,NZE12#,ZZE122,124..S,X |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88568-52010 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ,粗塵ﾌｨﾙﾀ |
1 | ||
| 88568-12020 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-44010 |
NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-12030 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-12010 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ,微細塵ﾌｨﾙﾀ |
1 | ||
| 87139-44010 |
CE121,NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-12030 |
NZE121,124..SED..X |
1 | ||
| 88568-12020 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-44010 |
CE121,NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-44010 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K),脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-52010 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ,粗塵ﾌｨﾙﾀ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12440 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88501-12440 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88501-12440 |
NZE12#,ZZE12# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-12040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88508-52010 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88508-52010 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88508-12040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-60150 |
NZE12#,ZZE12# |
1 | ||
| 88515-27020 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-48040 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-48040 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-28160 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 88548-52010 |
NZE12#,ZZE12# |
1 | ||
| 88548-52010 |
NZE12#,ZZE12# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88578-12520 |
NZE12#,ZZE12# |
1 | ||
| 88578-12520 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-48060 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 88625-48060 |
NZE121,124..SED..X |
1 | ||
| 88625-60140 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88625-21010 |
NZE12#,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88625-60140 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12540 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88710-12730 |
NZE12#,ZZE12# |
1 | ||
| 88710-12540 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 90480-01434 |
CE121,NZE12#,ZZE12# |
1 | ||
| 90480-01434 |
CE121,NZE12#,ZZE12# |
1 | ||
| 90480-01434 |
NZE12#,ZZE12# |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32129 | ||||
| 90119-06833 | ||||
| 90159-60383 | ||||
| 90179-06314 | ||||
| 90480-01405 | ||||
(0008-0404)

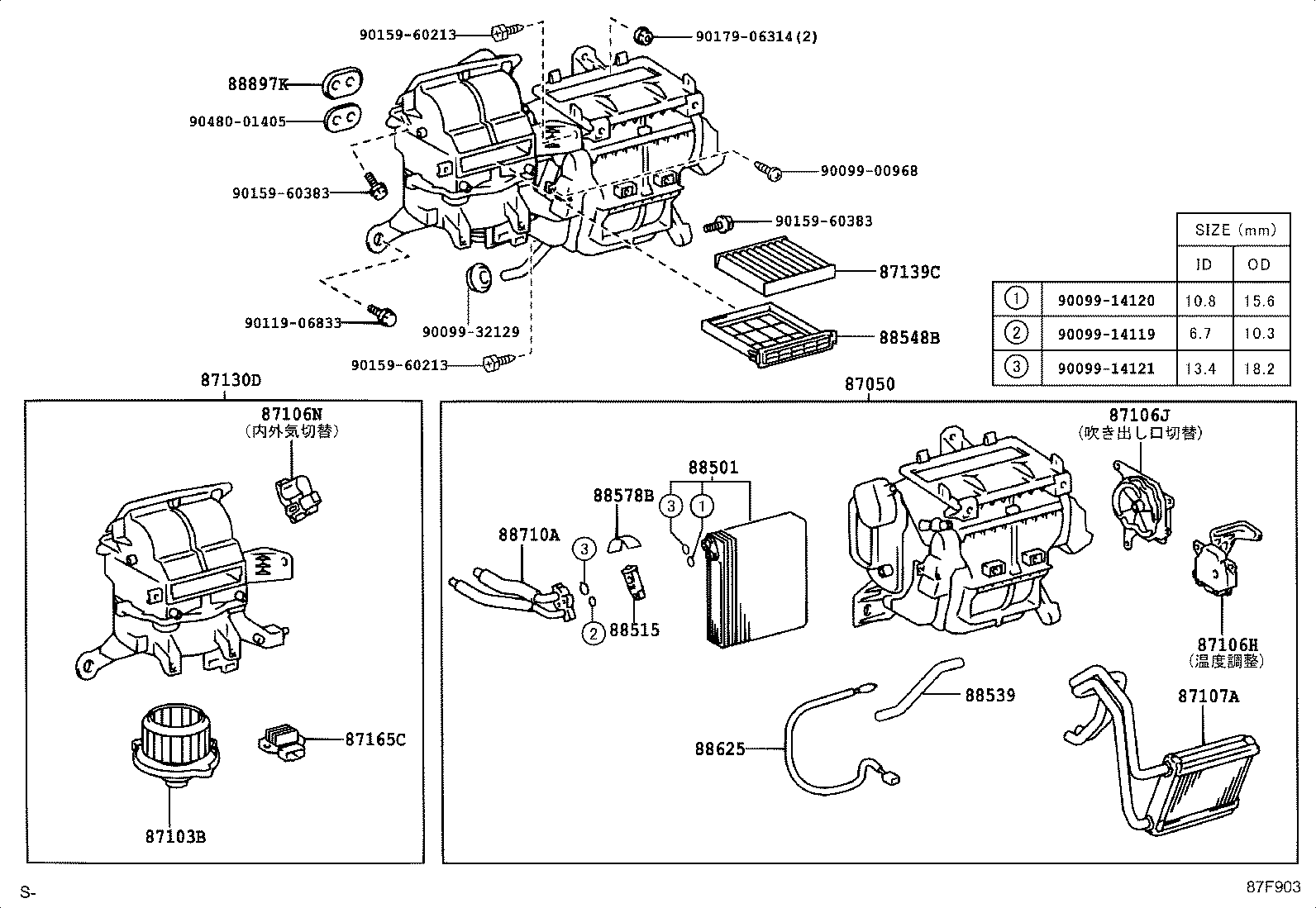

ｵ-ﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12170 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12150 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12150 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12180 |
CE121,NZE12#,ZZE122,124..S,X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12010 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12190 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12170 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12180 |
CE121,NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87050-12030 |
NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12040 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12040 |
NZE121,124..SED..X ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12190 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..SED..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-12050 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87103-12050 |
NZE12#,ZZE12# |
1 | ||
| 87103-12050 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-12130 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12131 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87106-12131 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12130 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12131 |
NZE121,124..SED..X |
1 | ||
| 87106-12131 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-12140 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87106-12140 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12140 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12140 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12140 |
NZE121,124..SED..X |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-12150 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87106-12150 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12150 |
NZE121,124..SED..X |
1 | ||
| 87106-12150 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12150 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-12550 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87107-12540 |
NZE12#,ZZE12# |
1 | ||
| 87107-12550 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12480 |
CE121,NZE12#,ZZE122,124..S,X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12480 |
CE121,NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
NZE121,124..SED..X ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12480 |
NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87130-12490 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..SED..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88568-52010 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ,粗塵ﾌｨﾙﾀ |
1 | ||
| 88568-12020 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-44010 |
NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-12030 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-12010 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ,微細塵ﾌｨﾙﾀ |
1 | ||
| 87139-44010 |
CE121,NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-12030 |
NZE121,124..SED..X |
1 | ||
| 88568-12020 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-44010 |
CE121,NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-44010 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K),脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-52010 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ,粗塵ﾌｨﾙﾀ |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-41010 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87165-13010 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87165-13010 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87165-13010 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87165-13010 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87165-13010 |
NZE121,124..SED..X |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12440 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88501-12440 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88501-12440 |
NZE12#,ZZE12# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-12040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88508-52010 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88508-52010 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88508-12040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-60150 |
NZE12#,ZZE12# |
1 | ||
| 88515-27020 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-48040 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-48040 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-28160 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 88548-52010 |
NZE12#,ZZE12# |
1 | ||
| 88548-52010 |
NZE12#,ZZE12# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88578-12520 |
NZE12#,ZZE12# |
1 | ||
| 88578-12520 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-48060 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 88625-48060 |
NZE121,124..SED..X |
1 | ||
| 88625-60140 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88625-21010 |
NZE12#,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88625-60140 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12540 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88710-12730 |
NZE12#,ZZE12# |
1 | ||
| 88710-12540 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 90480-01434 |
CE121,NZE12#,ZZE12# |
1 | ||
| 90480-01434 |
CE121,NZE12#,ZZE12# |
1 | ||
| 90480-01434 |
NZE12#,ZZE12# |
1 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32129 | ||||
| 90119-06833 | ||||
| 90159-60383 | ||||
| 90179-06314 | ||||
| 90480-01405 | ||||
(0404-0609)
ﾏﾆﾕｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12170 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12150 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12150 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12180 |
CE121,NZE12#,ZZE122,124..S,X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12010 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12190 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12170 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12180 |
CE121,NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87050-12030 |
NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12040 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12040 |
NZE121,124..SED..X ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12190 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..SED..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-12050 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87103-12050 |
NZE12#,ZZE12# |
1 | ||
| 87103-12050 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-12550 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87107-12540 |
NZE12#,ZZE12# |
1 | ||
| 87107-12550 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12480 |
CE121,NZE12#,ZZE122,124..S,X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12480 |
CE121,NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
NZE121,124..SED..X ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12480 |
NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87130-12490 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..SED..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-20350 |
CE121,NZE12#..X |
1 | ||
| 87138-20350 |
NZE12#..X |
1 | ||
| 87138-20350 |
CE121,NZE12#,ZZE122,124..S,X |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88568-52010 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ,粗塵ﾌｨﾙﾀ |
1 | ||
| 88568-12020 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-44010 |
NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-12030 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-12010 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ,微細塵ﾌｨﾙﾀ |
1 | ||
| 87139-44010 |
CE121,NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-12030 |
NZE121,124..SED..X |
1 | ||
| 88568-12020 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-44010 |
CE121,NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-44010 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K),脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-52010 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ,粗塵ﾌｨﾙﾀ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12440 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88501-12440 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88501-12440 |
NZE12#,ZZE12# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-60150 |
NZE12#,ZZE12# |
1 | ||
| 88515-27020 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-48040 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-48040 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-28160 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12170 |
NZE12#,ZZE12# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 88548-52010 |
NZE12#,ZZE12# |
1 | ||
| 88548-52010 |
NZE12#,ZZE12# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88578-12520 |
NZE12#,ZZE12# |
1 | ||
| 88578-12520 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-48060 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 88625-48060 |
NZE121,124..SED..X |
1 | ||
| 88625-60140 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88625-21010 |
NZE12#,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88625-60140 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12540 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88710-12730 |
NZE12#,ZZE12# |
1 | ||
| 88710-12540 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 90480-01434 |
CE121,NZE12#,ZZE12# |
1 | ||
| 90480-01434 |
CE121,NZE12#,ZZE12# |
1 | ||
| 90480-01434 |
NZE12#,ZZE12# |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32129 | ||||
| 90119-06833 | ||||
| 90159-50138 | ||||
| 90159-60213 | ||||
| 90159-60383 | ||||
| 90179-06314 | ||||
| 90480-01405 | ||||
(0404-0609)
ｵｰﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12170 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12150 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12150 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12180 |
CE121,NZE12#,ZZE122,124..S,X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12010 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12190 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12170 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12180 |
CE121,NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87050-12030 |
NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87050-12040 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12040 |
NZE121,124..SED..X ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12190 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87050-12020 |
NZE121,124..SED..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-12050 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87103-12050 |
NZE12#,ZZE12# |
1 | ||
| 87103-12050 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-12130 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12131 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87106-12131 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12130 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12131 |
NZE121,124..SED..X |
1 | ||
| 87106-12131 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-12140 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87106-12140 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12140 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12140 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12140 |
NZE121,124..SED..X |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-12150 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87106-12150 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12150 |
NZE121,124..SED..X |
1 | ||
| 87106-12150 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87106-12150 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-12550 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87107-12540 |
NZE12#,ZZE12# |
1 | ||
| 87107-12550 |
CE121,NZE12#,ZZE12# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12480 |
CE121,NZE12#,ZZE122,124..S,X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12480 |
CE121,NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12440 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12490 |
NZE121,124..SED..X ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12480 |
NZE12#..X ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87130-12490 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-12450 |
NZE121,124..SED..X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88568-52010 |
CE121,NZE12#,ZZE122,124..S,X ﾏﾆﾕｱﾙ ｴｱｺﾝ,粗塵ﾌｨﾙﾀ |
1 | ||
| 88568-12020 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-44010 |
NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-12030 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-12010 |
NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ,微細塵ﾌｨﾙﾀ |
1 | ||
| 87139-44010 |
CE121,NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-12030 |
NZE121,124..SED..X |
1 | ||
| 88568-12020 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87139-44010 |
CE121,NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-44010 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K),脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 88568-52010 |
CE121,NZE12#..X ﾏﾆﾕｱﾙ ｴｱｺﾝ,粗塵ﾌｨﾙﾀ |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-41010 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87165-13010 |
NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 87165-13010 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87165-13010 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87165-13010 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 87165-13010 |
NZE121,124..SED..X |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12440 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88501-12440 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88501-12440 |
NZE12#,ZZE12# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-60150 |
NZE12#,ZZE12# |
1 | ||
| 88515-27020 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-48040 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-48040 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88515-28160 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12170 |
NZE12#,ZZE12# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 88548-52010 |
NZE12#,ZZE12# |
1 | ||
| 88548-52010 |
NZE12#,ZZE12# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88578-12520 |
NZE12#,ZZE12# |
1 | ||
| 88578-12520 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-48060 |
NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER |
1 | ||
| 88625-48060 |
NZE121,124..SED..X |
1 | ||
| 88625-60140 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88625-21010 |
NZE12#,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88625-60140 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12540 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88710-12730 |
NZE12#,ZZE12# |
1 | ||
| 88710-12540 |
CE121,NZE12#,ZZE12# |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 90480-01434 |
CE121,NZE12#,ZZE12# |
1 | ||
| 90480-01434 |
CE121,NZE12#,ZZE12# |
1 | ||
| 90480-01434 |
NZE12#,ZZE12# |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32129 | ||||
| 90119-06833 | ||||
| 90159-60213 | ||||
| 90159-60383 | ||||
| 90179-06314 | ||||
| 90480-01405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
