NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0609)

Click highlighted areas on diagram

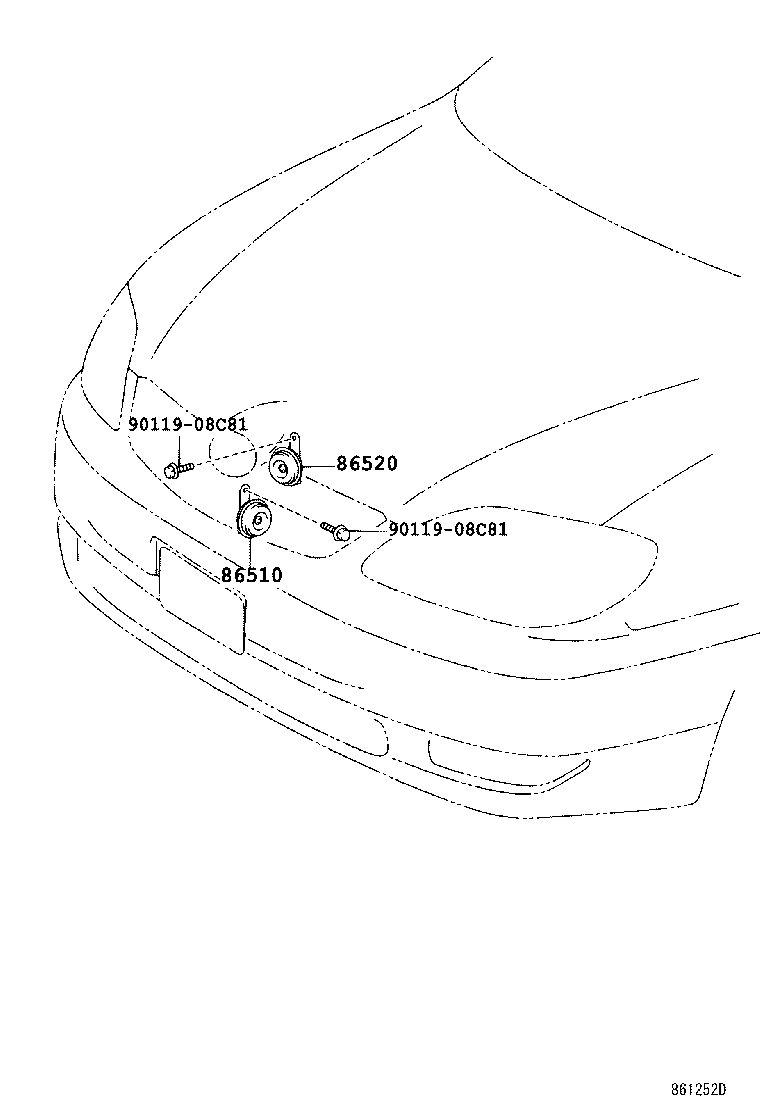

diagram 86510 86520 9011908C81 9011908C81
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-48070

CE121,NZE12#,ZZE12#

 1
86510-28130

CE121,NZE12#,ZZE12#

品番ﾗﾍﾞﾙ=86510−28130

 1
86510-48070

NZE12#,ZZE12#

 1
86510-12600

CE121,NZE12#,ZZE12#

品番ﾗﾍﾞﾙ=86510−12600

 1
86510-12600

CE121,NZE12#,ZZE12#

 1
86520 - HORN ASSY, LOW PITCHED
86520-12600

CE121,NZE12#,ZZE12#

品番ﾗﾍﾞﾙ=86520−12600

 1
86520-47010

NZE12#,ZZE12#

 1
86520-28180

CE121,NZE12#,ZZE12#

品番ﾗﾍﾞﾙ=86520−28180

 1
86520-47010

CE121,NZE12#,ZZE12#

 1
86520-12600

CE121,NZE12#,ZZE12#

 1
Common parts
90119-08C81
