NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0209-0404)G,LXL,S,ZAER ; (0209-0404)CE121,NZE121,124..WG

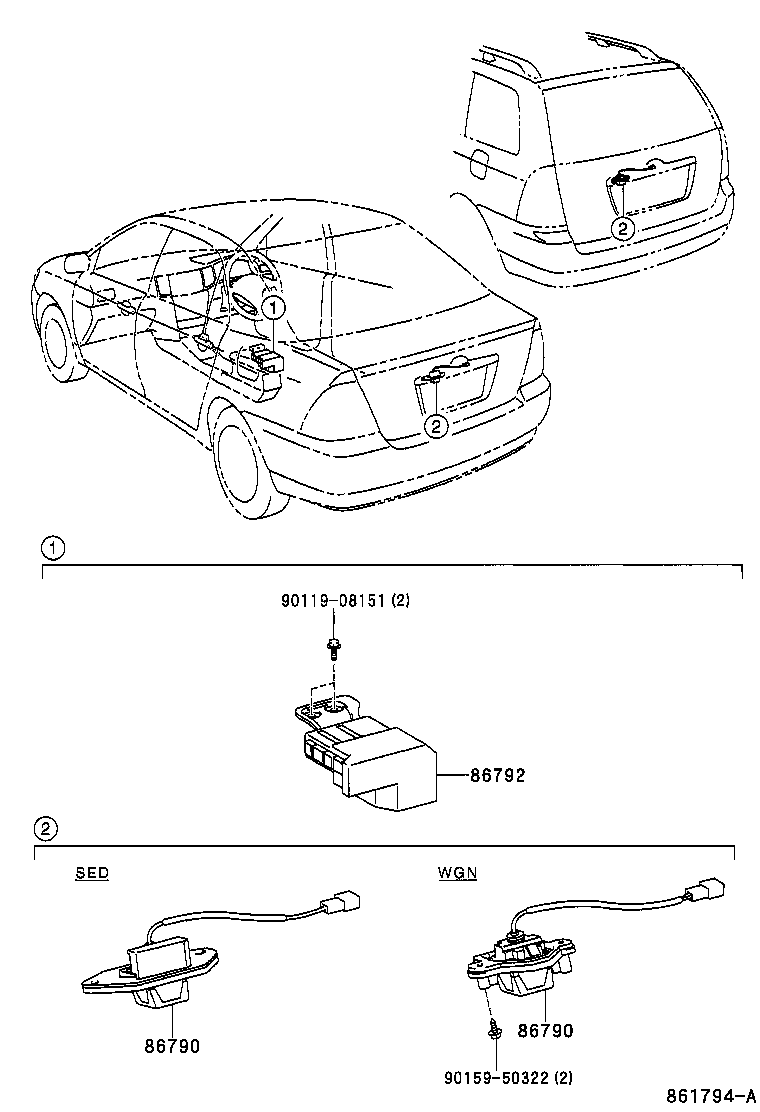

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86790 - CAMERA ASSY, TELEVISION
86790-12020	NZE12#,ZZE122,124..SED ﾘﾔ	04/2004 - 05/2004	1
86790-12021	NZE12#,ZZE122,124..SED ﾘﾔ	05/2004 - 09/2006	1
86790 - CAMERA ASSY, TELEVISION
86790-12020	NZE12#,ZZE122,124..SED ﾘﾔ	04/2004 - 05/2004	1
86790-12021	NZE12#,ZZE122,124..SED ﾘﾔ	05/2004 - 09/2006	1
86792 - CONTROLLER, TELEVISION CAMERA
86792-12030	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
Common parts
90119-08151
90159-50322

(0404- )

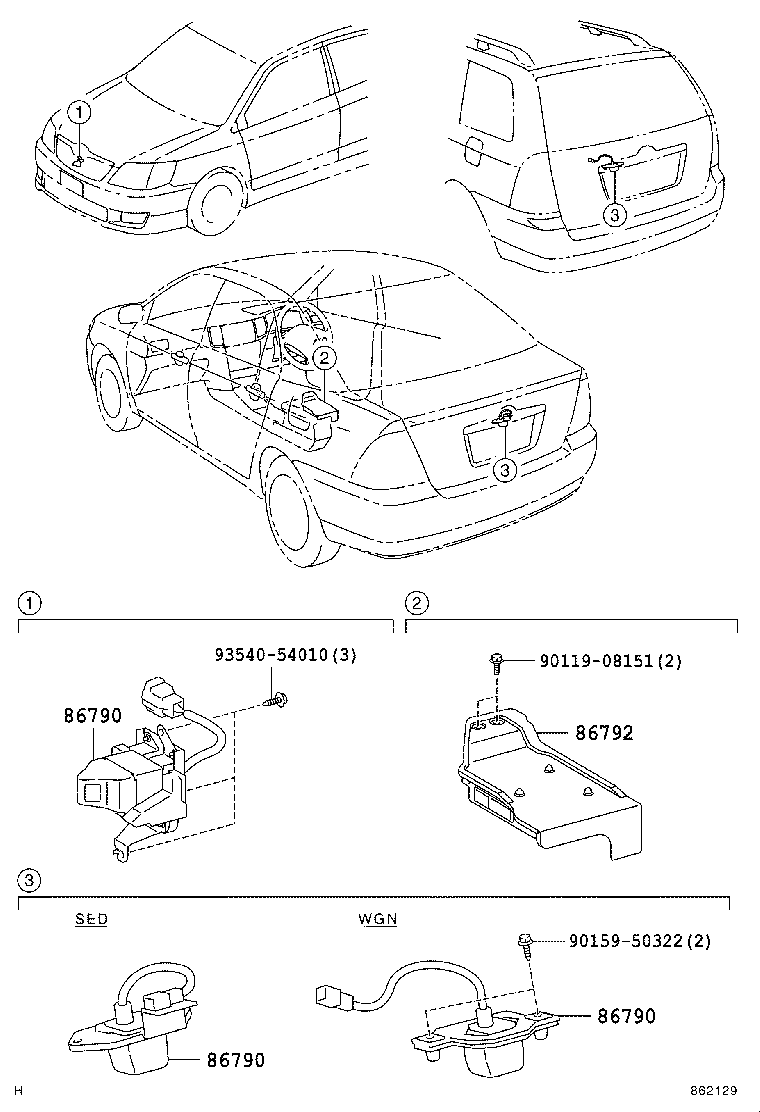

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86790 - CAMERA ASSY, TELEVISION
86790-12020	NZE12#,ZZE122,124..SED ﾘﾔ	04/2004 - 05/2004	1
86790-12021	NZE12#,ZZE122,124..SED ﾘﾔ	05/2004 - 09/2006	1
86790 - CAMERA ASSY, TELEVISION
86790-12020	NZE12#,ZZE122,124..SED ﾘﾔ	04/2004 - 05/2004	1
86790-12021	NZE12#,ZZE122,124..SED ﾘﾔ	05/2004 - 09/2006	1
86790 - CAMERA ASSY, TELEVISION
86790-12020	NZE12#,ZZE122,124..SED ﾘﾔ	04/2004 - 05/2004	1
86790-12021	NZE12#,ZZE122,124..SED ﾘﾔ	05/2004 - 09/2006	1
86792 - CONTROLLER, TELEVISION CAMERA
86792-12030	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
Common parts
90119-08151
90159-50322
93540-54010
