COROLLA/FIELDER
NZE124-AEPNK (2000)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

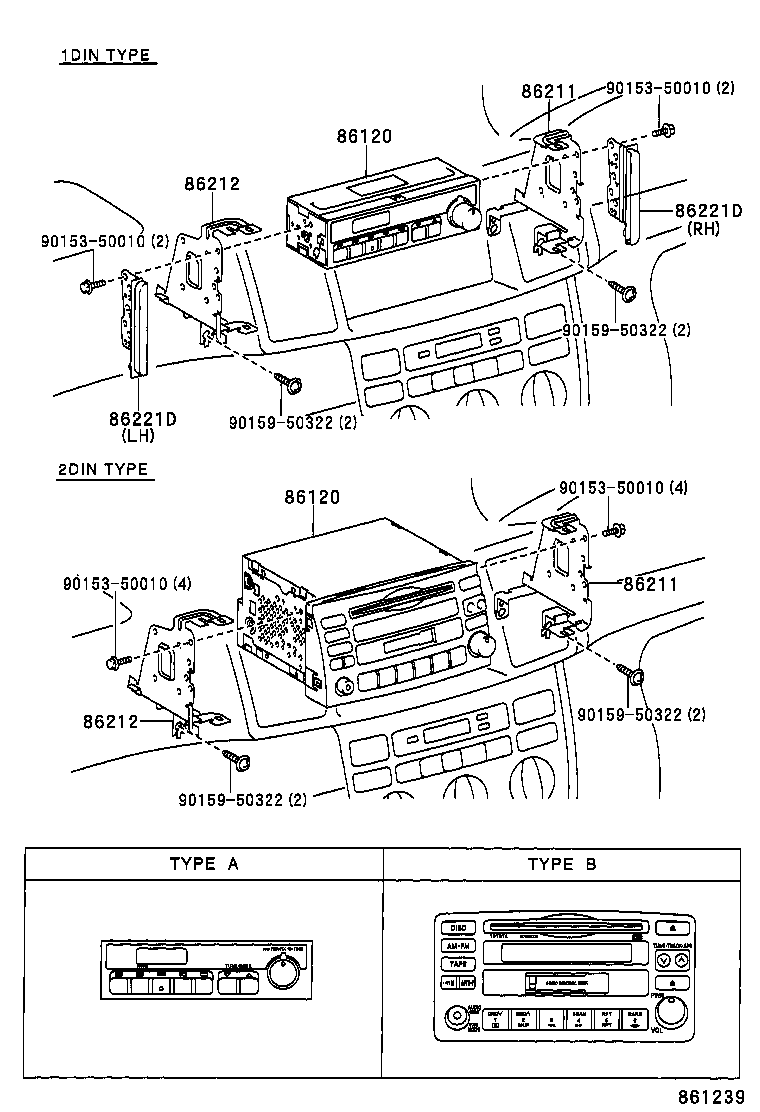

ILLUST NO. 1 OF 2(0008-0609)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-32480	CE121,NZE12#..SED..X FUJITSU TEN,ID=10210,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
86120-27010	CE121,NZE12#..SED..X FUJITSU TEN,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 10/2001	1
86120-32480	CE121,NZE12#..SED..X FUJITSU TEN,ID=10210,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	10/2001 - 09/2002	1
86120-1A140	CE121,NZE12#,ZZE12#..G,S,X,ZAER MATSUSHITA,ID=55832,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 09/2003	1
86120-1A140	CE121,NZE12#,ZZE12# MATSUSHITA,ID=55832,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
86120-32480	NZE12#..SED..X FUJITSU TEN,ID=10210,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
86120 - RECEIVER ASSY, RADIO
86120-32480	CE121,NZE12#..SED..X FUJITSU TEN,ID=10210,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
86120-27010	CE121,NZE12#..SED..X FUJITSU TEN,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 10/2001	1
86120-32480	CE121,NZE12#..SED..X FUJITSU TEN,ID=10210,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	10/2001 - 09/2002	1
86120-1A140	CE121,NZE12#,ZZE12#..G,S,X,ZAER MATSUSHITA,ID=55832,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 09/2003	1
86120-1A140	CE121,NZE12#,ZZE12# MATSUSHITA,ID=55832,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
86120-32480	NZE12#..SED..X FUJITSU TEN,ID=10210,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
86211 - BRACKET, RADIO, NO.1
86211-12370	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
86211-12370	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
86211-12370	NZE12#,ZZE12#	04/2004 - 09/2006	1
86211 - BRACKET, RADIO, NO.1
86211-12370	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
86211-12370	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
86211-12370	NZE12#,ZZE12#	04/2004 - 09/2006	1
86212 - BRACKET, RADIO, NO.2
86212-12350	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
86212-12350	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
86212-12350	NZE12#,ZZE12#	04/2004 - 09/2006	1
86212 - BRACKET, RADIO, NO.2
86212-12350	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
86212-12350	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
86212-12350	NZE12#,ZZE12#	04/2004 - 09/2006	1
86221D - PANEL, RADIO RECEIVER
86221-52060	NZE12#,ZZE12# 右側	04/2004 - 09/2006	1
86221-52060	CE121,NZE12#,ZZE12# 右側	09/2002 - 04/2004	1
86221-52050	CE121,NZE12#,ZZE12# 左側	09/2002 - 04/2004	1
86221-52060	CE121,NZE12#,ZZE12# 右側	08/2000 - 09/2002	1
86221-52050	NZE12#,ZZE12# 左側	04/2004 - 09/2006	1
86221-52050	CE121,NZE12#,ZZE12# 左側	08/2000 - 09/2002	1
86221D - PANEL, RADIO RECEIVER
86221-52060	NZE12#,ZZE12# 右側	04/2004 - 09/2006	1
86221-52060	CE121,NZE12#,ZZE12# 右側	09/2002 - 04/2004	1
86221-52050	CE121,NZE12#,ZZE12# 左側	09/2002 - 04/2004	1
86221-52060	CE121,NZE12#,ZZE12# 右側	08/2000 - 09/2002	1
86221-52050	NZE12#,ZZE12# 左側	04/2004 - 09/2006	1
86221-52050	CE121,NZE12#,ZZE12# 左側	08/2000 - 09/2002	1
Common parts
90153-50010
90159-50322

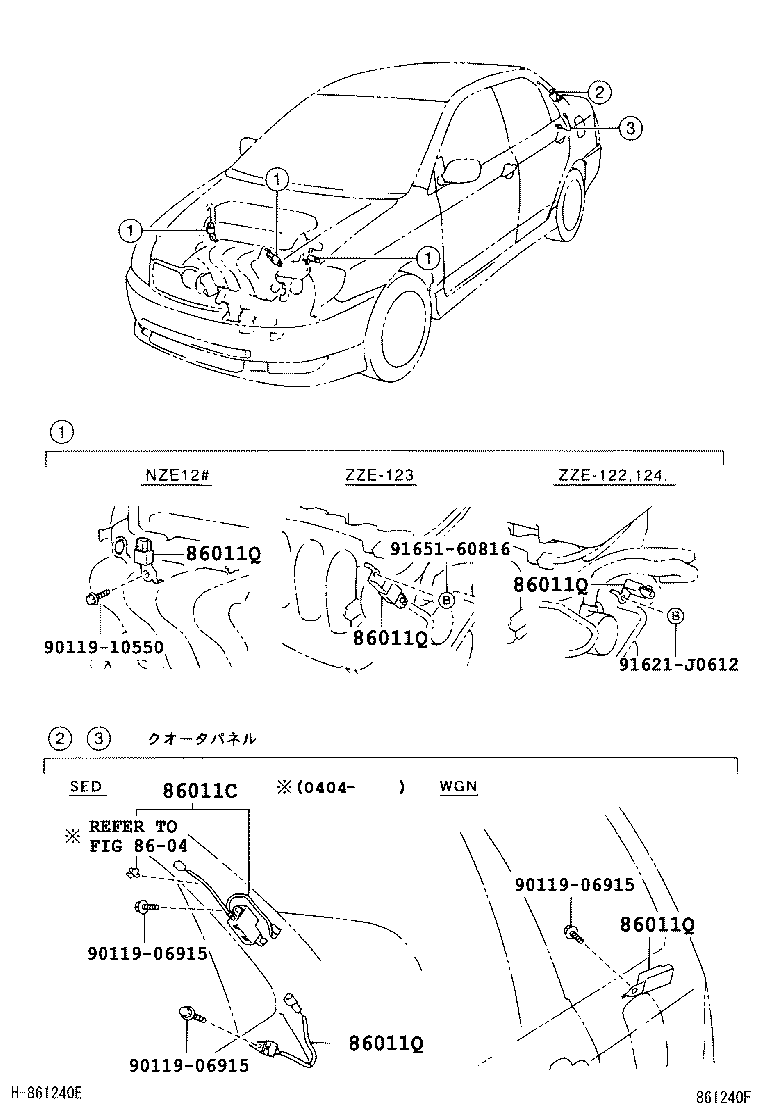

ILLUST NO. 2 OF 2(0008-0609)

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

Part #	Description	Period	Qty
86011C - FILTER, NOISE
90980-05353	CE121,NZE12#..SED..X	09/2002 - 09/2003	1
90980-05353	NZE12#..SED Lﾊﾟﾂｹ-ｼﾞﾅﾋﾞｴﾃﾞｲｼﾖﾝ *(B)	09/2003 - 04/2004	1
86011Q - CONDENSER, RADIO SETTING
90980-04155	CE121,NZE12#,ZZE122,124..SED ｸｵｰﾀﾊﾟﾈﾙ	08/2000 - 09/2002	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	09/2002 - 04/2004	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	08/2000 - 09/2002	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	08/2000 - 09/2002	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	09/2002 - 04/2004	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	04/2004 - 09/2006	1
90980-04155	CE121,NZE12#,ZZE122,124..SED ｸｵｰﾀﾊﾟﾈﾙ	09/2002 - 09/2003	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	04/2004 - 09/2006	1
90980-04155	NZE12#..SED Lﾊﾟﾂｹ-ｼﾞﾅﾋﾞｴﾃﾞｲｼﾖﾝ *(B),ｸｵｰﾀﾊﾟﾈﾙ	09/2003 - 04/2004	1
86011Q - CONDENSER, RADIO SETTING
90980-04155	CE121,NZE12#,ZZE122,124..SED ｸｵｰﾀﾊﾟﾈﾙ	08/2000 - 09/2002	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	09/2002 - 04/2004	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	08/2000 - 09/2002	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	08/2000 - 09/2002	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	09/2002 - 04/2004	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	04/2004 - 09/2006	1
90980-04155	CE121,NZE12#,ZZE122,124..SED ｸｵｰﾀﾊﾟﾈﾙ	09/2002 - 09/2003	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	04/2004 - 09/2006	1
90980-04155	NZE12#..SED Lﾊﾟﾂｹ-ｼﾞﾅﾋﾞｴﾃﾞｲｼﾖﾝ *(B),ｸｵｰﾀﾊﾟﾈﾙ	09/2003 - 04/2004	1
86011Q - CONDENSER, RADIO SETTING
90980-04155	CE121,NZE12#,ZZE122,124..SED ｸｵｰﾀﾊﾟﾈﾙ	08/2000 - 09/2002	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	09/2002 - 04/2004	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	08/2000 - 09/2002	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	08/2000 - 09/2002	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	09/2002 - 04/2004	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	04/2004 - 09/2006	1
90980-04155	CE121,NZE12#,ZZE122,124..SED ｸｵｰﾀﾊﾟﾈﾙ	09/2002 - 09/2003	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	04/2004 - 09/2006	1
90980-04155	NZE12#..SED Lﾊﾟﾂｹ-ｼﾞﾅﾋﾞｴﾃﾞｲｼﾖﾝ *(B),ｸｵｰﾀﾊﾟﾈﾙ	09/2003 - 04/2004	1
86011Q - CONDENSER, RADIO SETTING
90980-04155	CE121,NZE12#,ZZE122,124..SED ｸｵｰﾀﾊﾟﾈﾙ	08/2000 - 09/2002	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	09/2002 - 04/2004	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	08/2000 - 09/2002	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	08/2000 - 09/2002	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	09/2002 - 04/2004	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	04/2004 - 09/2006	1
90980-04155	CE121,NZE12#,ZZE122,124..SED ｸｵｰﾀﾊﾟﾈﾙ	09/2002 - 09/2003	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	04/2004 - 09/2006	1
90980-04155	NZE12#..SED Lﾊﾟﾂｹ-ｼﾞﾅﾋﾞｴﾃﾞｲｼﾖﾝ *(B),ｸｵｰﾀﾊﾟﾈﾙ	09/2003 - 04/2004	1
86011Q - CONDENSER, RADIO SETTING
90980-04155	CE121,NZE12#,ZZE122,124..SED ｸｵｰﾀﾊﾟﾈﾙ	08/2000 - 09/2002	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	09/2002 - 04/2004	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	08/2000 - 09/2002	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	08/2000 - 09/2002	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	09/2002 - 04/2004	1
90980-04154	ZZE122,124 ｴﾝｼﾞﾝ	04/2004 - 09/2006	1
90980-04155	CE121,NZE12#,ZZE122,124..SED ｸｵｰﾀﾊﾟﾈﾙ	09/2002 - 09/2003	1
90980-04141	NZE12# ｴﾝｼﾞﾝ	04/2004 - 09/2006	1
90980-04155	NZE12#..SED Lﾊﾟﾂｹ-ｼﾞﾅﾋﾞｴﾃﾞｲｼﾖﾝ *(B),ｸｵｰﾀﾊﾟﾈﾙ	09/2003 - 04/2004	1
Common parts
-
90119-06915
90119-10550
91621-J0612
91651-60816
Linked diagrams
8604

NZE124-AEPNK (2000)

ILLUST NO. 1 OF 2(0008-0609)

ILLUST NO. 2 OF 2(0008-0609)
