Toyota Corolla/fielder NZE124 AIR BAG

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

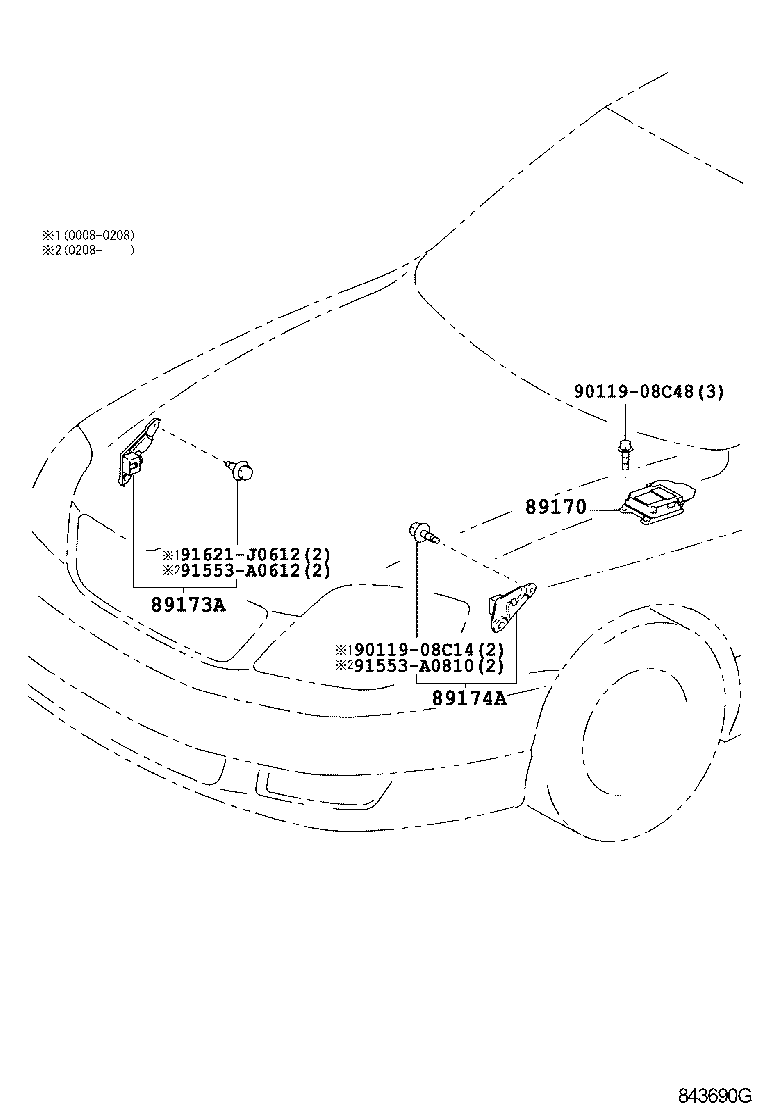

(0008-0209)

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-0W280	NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｻｲﾄﾞ & ｶ-ﾃﾝｼ-ﾙﾄﾞ	04/2004 - 09/2006	1
89170-12481	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	12/2003 - 04/2004	1
89170-12350	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	08/2000 - 09/2002	1
89170-12480	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	09/2002 - 12/2003	1
89170-12430	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｻｲﾄﾞ	09/2002 - 04/2004	1
89170-12481	NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	04/2004 - 09/2006	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-19235	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
89173-19375	NZE12#,ZZE12#	04/2004 - 09/2006	1
89173-19235	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19175	NZE12#,ZZE12#	04/2004 - 09/2006	1
89174-19045	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
89174-19045	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
Common parts
90119-08C14
90119-08C48
91553-A0612
91553-A0810
91621-J0612

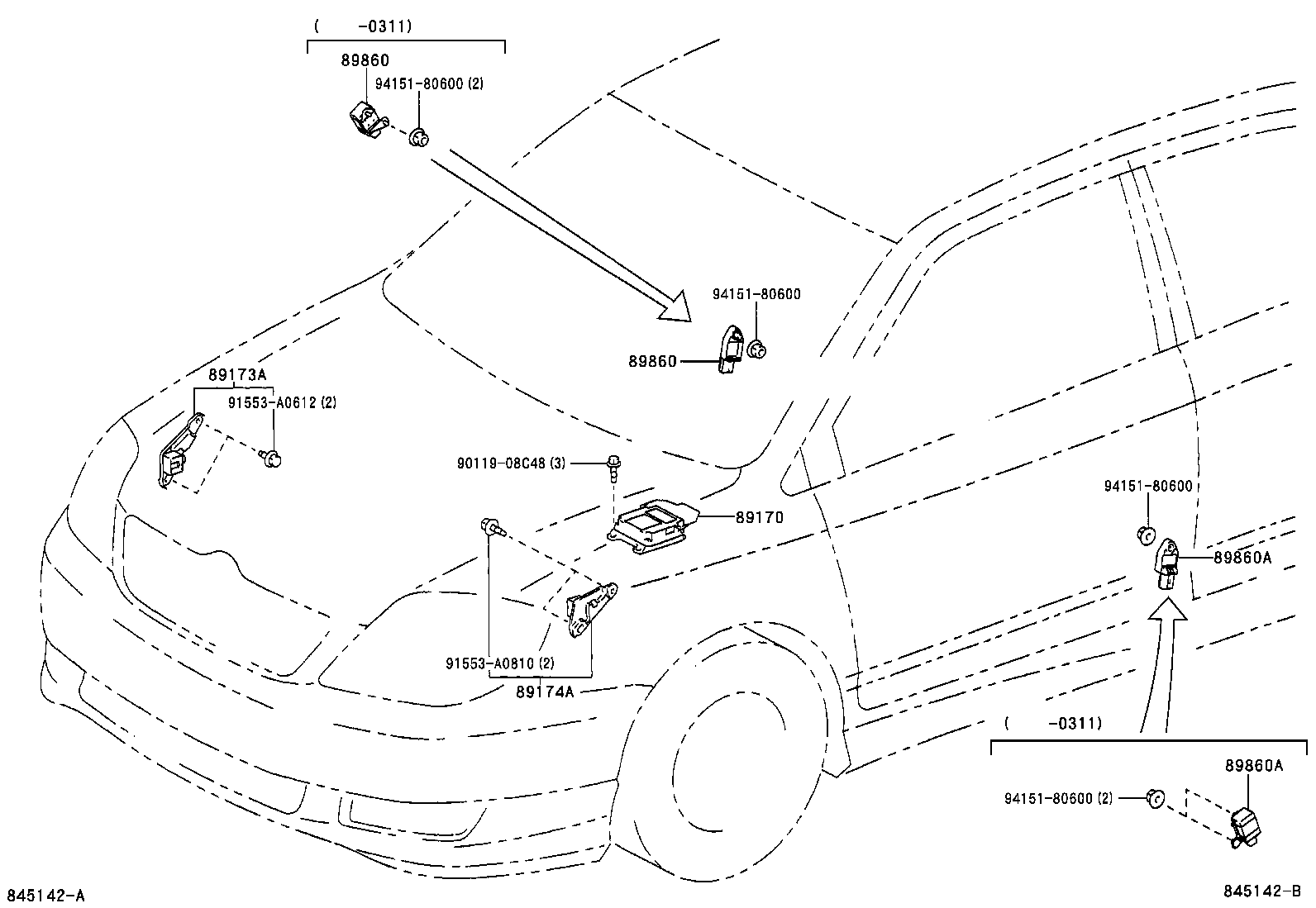

(0209-0404)

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-0W280	NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｻｲﾄﾞ & ｶ-ﾃﾝｼ-ﾙﾄﾞ	04/2004 - 09/2006	1
89170-12481	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	12/2003 - 04/2004	1
89170-12350	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	08/2000 - 09/2002	1
89170-12480	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	09/2002 - 12/2003	1
89170-12430	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｻｲﾄﾞ	09/2002 - 04/2004	1
89170-12481	NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	04/2004 - 09/2006	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-19235	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
89173-19375	NZE12#,ZZE12#	04/2004 - 09/2006	1
89173-19235	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19175	NZE12#,ZZE12#	04/2004 - 09/2006	1
89174-19045	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
89174-19045	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-05010	NZE12#,ZZE12#	04/2004 - 09/2006	1
89860-13020	CE121,NZE12#,ZZE12#	09/2002 - 11/2003	1
89831-05010	CE121,NZE12#,ZZE12#	11/2003 - 04/2004	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-05010	NZE12#,ZZE12#	04/2004 - 09/2006	1
89860-13020	CE121,NZE12#,ZZE12#	09/2002 - 11/2003	1
89831-05010	CE121,NZE12#,ZZE12#	11/2003 - 04/2004	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-13020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
89831-05010	NZE12#,ZZE12#	04/2004 - 09/2006	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-13020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
89831-05010	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90119-08C48
91553-A0612
91553-A0810
94151-80600

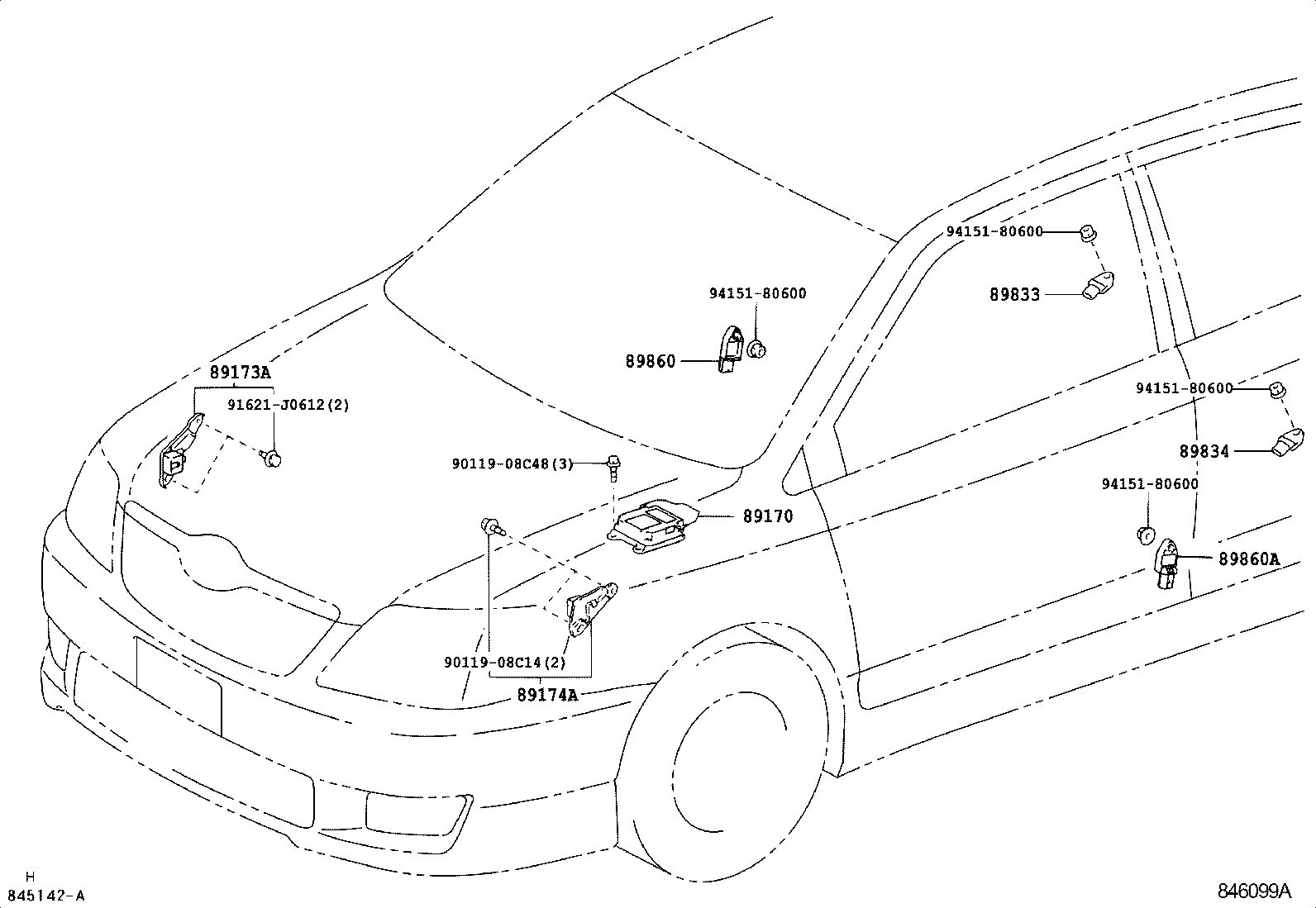

(0404-0609)

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-0W280	NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｻｲﾄﾞ & ｶ-ﾃﾝｼ-ﾙﾄﾞ	04/2004 - 09/2006	1
89170-12481	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	12/2003 - 04/2004	1
89170-12350	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	08/2000 - 09/2002	1
89170-12480	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	09/2002 - 12/2003	1
89170-12430	CE121,NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｻｲﾄﾞ	09/2002 - 04/2004	1
89170-12481	NZE12#,ZZE12# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ	04/2004 - 09/2006	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-19235	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
89173-19375	NZE12#,ZZE12#	04/2004 - 09/2006	1
89173-19235	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19175	NZE12#,ZZE12#	04/2004 - 09/2006	1
89174-19045	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
89174-19045	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
89833 - SENSOR, AIR BAG, REAR RH
89831-02010	NZE12#,ZZE12#	04/2004 - 09/2006	1
89834 - SENSOR, AIR BAG, REAR LH
89831-02010	NZE12#,ZZE12#	04/2004 - 09/2006	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-05010	NZE12#,ZZE12#	04/2004 - 09/2006	1
89860-13020	CE121,NZE12#,ZZE12#	09/2002 - 11/2003	1
89831-05010	CE121,NZE12#,ZZE12#	11/2003 - 04/2004	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-13020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
89831-05010	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90119-08C14
90119-08C48
91621-J0612
94151-80600
