Toyota Corolla/fielder NZE124 ELECTRONIC FUEL INJECTION SYSTEM

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
8404 - ELECTRONIC FUEL INJECTION SYSTEM

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

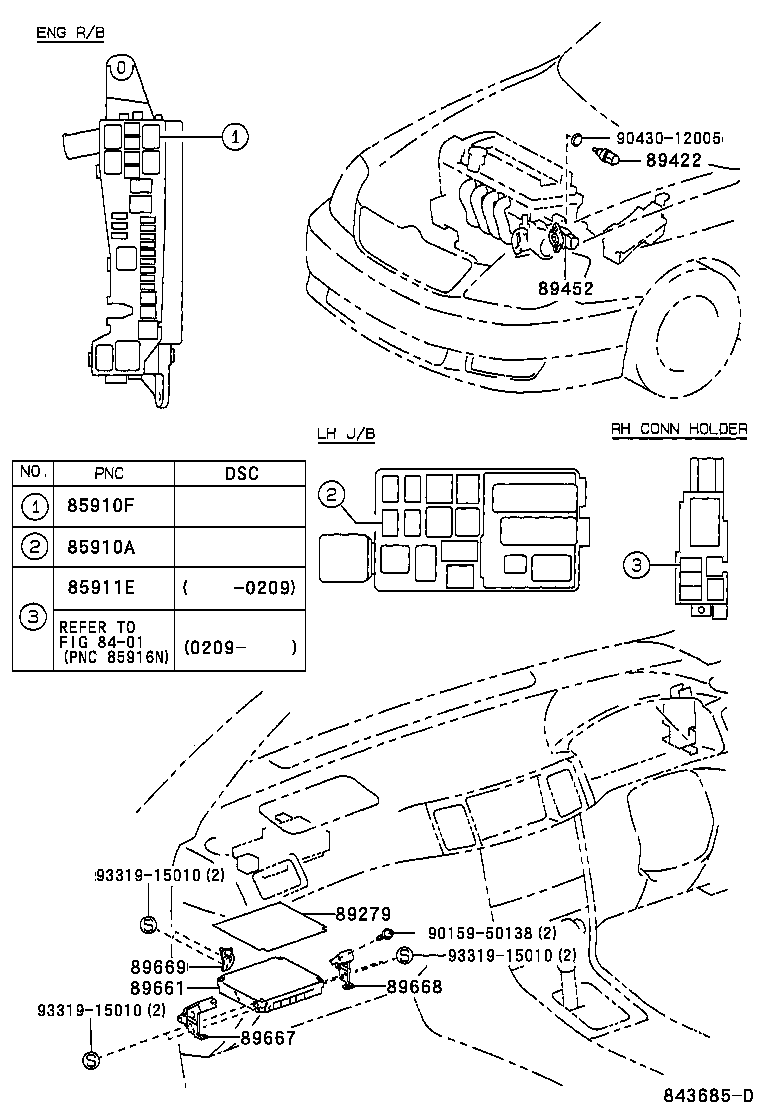

(0008-0404)NZE12#

Click highlighted areas on diagram

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02020	NZE124 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	08/2000 - 09/2001	1
90080-87019	NZE121,124 品番ﾗﾍﾞﾙ=90080−87019	09/2001 - 10/2001	1
90987-02020	NZE124 品番ﾗﾍﾞﾙ=90987−02020	09/2001 - 10/2001	1
90080-87008	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87008	08/2000 - 09/2002	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
90080-87010	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87010	08/2000 - 09/2002	1
90080-87019	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87019	10/2001 - 09/2002	1
90987-02020	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	08/2000 - 04/2004	1
90987-02020	NZE124 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	10/2001 - 09/2002	1
90987-02020	NZE121,ZZE122,124 品番ﾗﾍﾞﾙ=90987−02020	08/2000 - 09/2002	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02020	NZE124 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	08/2000 - 09/2001	1
90080-87008	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87008	08/2000 - 09/2002	1
90080-87019	NZE121,124 品番ﾗﾍﾞﾙ=90080−87019	09/2001 - 10/2001	1
90080-87010	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87010	08/2000 - 09/2002	1
90987-02020	NZE121,ZZE122,124 品番ﾗﾍﾞﾙ=90987−02020	08/2000 - 09/2002	1
90987-02020	NZE124 品番ﾗﾍﾞﾙ=90987−02020	09/2001 - 10/2001	1
90080-87019	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87019	10/2001 - 09/2002	1
90987-02020	NZE124 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	10/2001 - 09/2002	1
90987-02020	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	09/2002 - 04/2004	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
85911E - RELAY, ALTERNATOR CUT
90987-02020	NZE124	08/2000 - 09/2001	1
90080-87019	NZE121,124 品番ﾗﾍﾞﾙ=90080−87019	09/2001 - 10/2001	1
90987-02020	NZE124 品番ﾗﾍﾞﾙ=90987−02020	09/2001 - 10/2001	1
90987-02020	NZE124	10/2001 - 09/2002	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12150	ZZE122,124	08/2000 - 09/2002	1
89279-12150	NZE121..5F;NZE120,124,ZZE122,124	04/2004 - 09/2006	1
89279-12150	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89279-12160	NZE12#,ZZE123	08/2000 - 09/2002	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
89422-35010	NZE12#,ZZE12#	08/2000 - 09/2002	1
89422-35010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130	NZE12#	08/2000 - 09/2002	1
89452-0A010	ZZE122,124 (L)	08/2000 - 12/2001	1
89452-20130	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89452-20130	NZE121..5F;NZE120,124,ZZE122,124	04/2004 - 09/2006	1
89452-20130	ZZE122,124 (J)	08/2000 - 12/2001	1
89452-20130	ZZE122,124	12/2001 - 09/2002	1
89661 - COMPUTER, ENGINE CONTROL
89666-12160	NZE124 AISAN	08/2000 - 09/2002	1
89666-12400	NZE124 TOYOTA	04/2004 - 09/2006	1
89666-12400	NZE124 TOYOTA	09/2002 - 04/2004	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12200	NZE12#,ZZE123	08/2000 - 09/2002	1
89667-12190	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89667-12190	NZE121..5F;NZE120,124,ZZE122,124	04/2004 - 09/2006	1
89667-12190	ZZE122,124	08/2000 - 09/2002	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12100	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89668-12110	NZE121;NZE120,124,ZZE123..4FC,6F	08/2000 - 09/2002	1
89668-12100	ZZE122,124	08/2000 - 09/2002	1
89668-12100	NZE121..5F;NZE120,124,ZZE122,124	04/2004 - 09/2006	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-12030	NZE12#,ZZE12#	08/2000 - 09/2002	1
89669-12030	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
89669-12030	NZE12#,ZZE12#	09/2002 - 04/2004	1
Common parts
90159-50138
90430-12005
93319-15010
Linked diagrams
8401

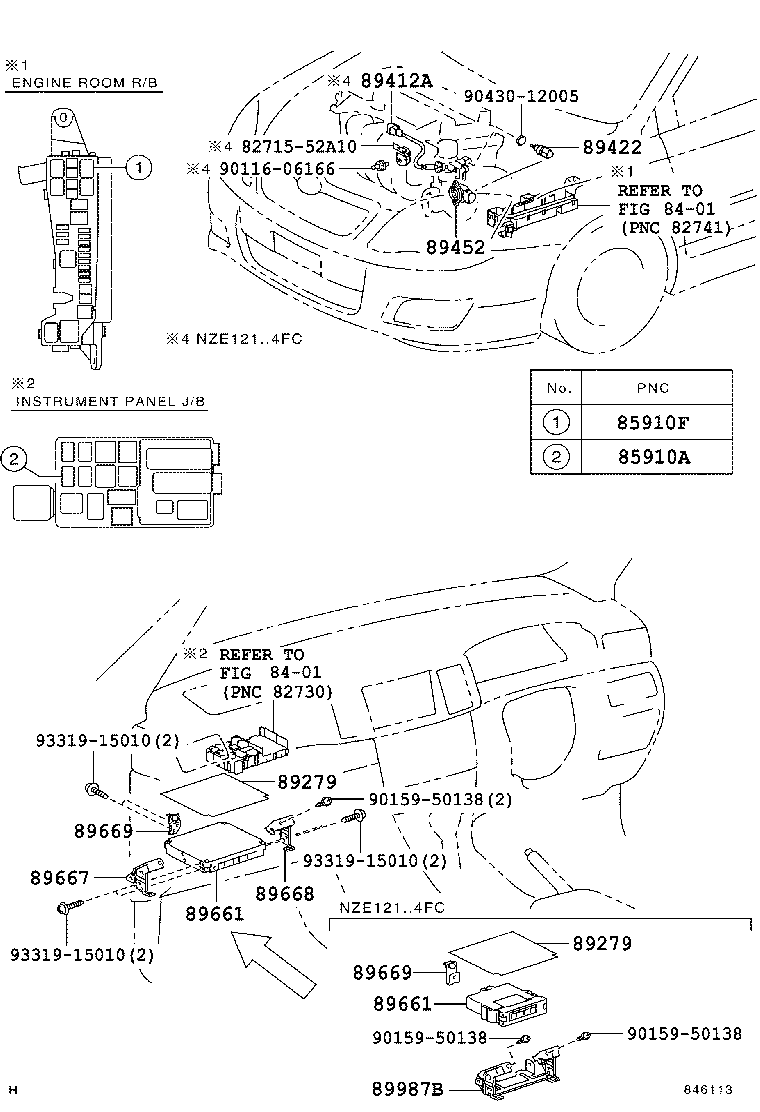

(0404-0609)NZE12#

Click highlighted areas on diagram

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02020	NZE124 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	08/2000 - 09/2001	1
90080-87019	NZE121,124 品番ﾗﾍﾞﾙ=90080−87019	09/2001 - 10/2001	1
90987-02020	NZE124 品番ﾗﾍﾞﾙ=90987−02020	09/2001 - 10/2001	1
90080-87008	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87008	08/2000 - 09/2002	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
90080-87010	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87010	08/2000 - 09/2002	1
90080-87019	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87019	10/2001 - 09/2002	1
90987-02020	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	08/2000 - 04/2004	1
90987-02020	NZE124 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	10/2001 - 09/2002	1
90987-02020	NZE121,ZZE122,124 品番ﾗﾍﾞﾙ=90987−02020	08/2000 - 09/2002	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02020	NZE124 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	08/2000 - 09/2001	1
90080-87008	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87008	08/2000 - 09/2002	1
90080-87019	NZE121,124 品番ﾗﾍﾞﾙ=90080−87019	09/2001 - 10/2001	1
90080-87010	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87010	08/2000 - 09/2002	1
90987-02020	NZE121,ZZE122,124 品番ﾗﾍﾞﾙ=90987−02020	08/2000 - 09/2002	1
90987-02020	NZE124 品番ﾗﾍﾞﾙ=90987−02020	09/2001 - 10/2001	1
90080-87019	ZZE122,124 品番ﾗﾍﾞﾙ=90080−87019	10/2001 - 09/2002	1
90987-02020	NZE124 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	10/2001 - 09/2002	1
90987-02020	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	09/2002 - 04/2004	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12150	ZZE122,124	08/2000 - 09/2002	1
89279-12150	NZE121..5F;NZE120,124,ZZE122,124	04/2004 - 09/2006	1
89279-12150	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89279-12160	NZE12#,ZZE123	08/2000 - 09/2002	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12150	ZZE122,124	08/2000 - 09/2002	1
89279-12150	NZE121..5F;NZE120,124,ZZE122,124	04/2004 - 09/2006	1
89279-12150	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89279-12160	NZE12#,ZZE123	08/2000 - 09/2002	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
89422-35010	NZE12#,ZZE12#	08/2000 - 09/2002	1
89422-35010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130	NZE12#	08/2000 - 09/2002	1
89452-0A010	ZZE122,124 (L)	08/2000 - 12/2001	1
89452-20130	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89452-20130	NZE121..5F;NZE120,124,ZZE122,124	04/2004 - 09/2006	1
89452-20130	ZZE122,124 (J)	08/2000 - 12/2001	1
89452-20130	ZZE122,124	12/2001 - 09/2002	1
89661 - COMPUTER, ENGINE CONTROL
89666-12160	NZE124 AISAN	08/2000 - 09/2002	1
89666-12400	NZE124 TOYOTA	04/2004 - 09/2006	1
89666-12400	NZE124 TOYOTA	09/2002 - 04/2004	1
89661 - COMPUTER, ENGINE CONTROL
89666-12160	NZE124 AISAN	08/2000 - 09/2002	1
89666-12400	NZE124 TOYOTA	04/2004 - 09/2006	1
89666-12400	NZE124 TOYOTA	09/2002 - 04/2004	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12200	NZE12#,ZZE123	08/2000 - 09/2002	1
89667-12190	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89667-12190	NZE121..5F;NZE120,124,ZZE122,124	04/2004 - 09/2006	1
89667-12190	ZZE122,124	08/2000 - 09/2002	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12100	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89668-12110	NZE121;NZE120,124,ZZE123..4FC,6F	08/2000 - 09/2002	1
89668-12100	ZZE122,124	08/2000 - 09/2002	1
89668-12100	NZE121..5F;NZE120,124,ZZE122,124	04/2004 - 09/2006	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-12030	NZE12#,ZZE12#	08/2000 - 09/2002	1
89669-12030	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
89669-12030	NZE12#,ZZE12#	09/2002 - 04/2004	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-12030	NZE12#,ZZE12#	08/2000 - 09/2002	1
89669-12030	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
89669-12030	NZE12#,ZZE12#	09/2002 - 04/2004	1
Common parts
82715-52A10
90116-06166
90159-50138
90430-12005
93319-15010
Linked diagrams
8401

NZE124-AEPNK (2000)

(0008-0404)NZE12#

(0404-0609)NZE12#
