Toyota Corolla/fielder NZE124 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
8401 - SWITCH & RELAY & COMPUTER

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

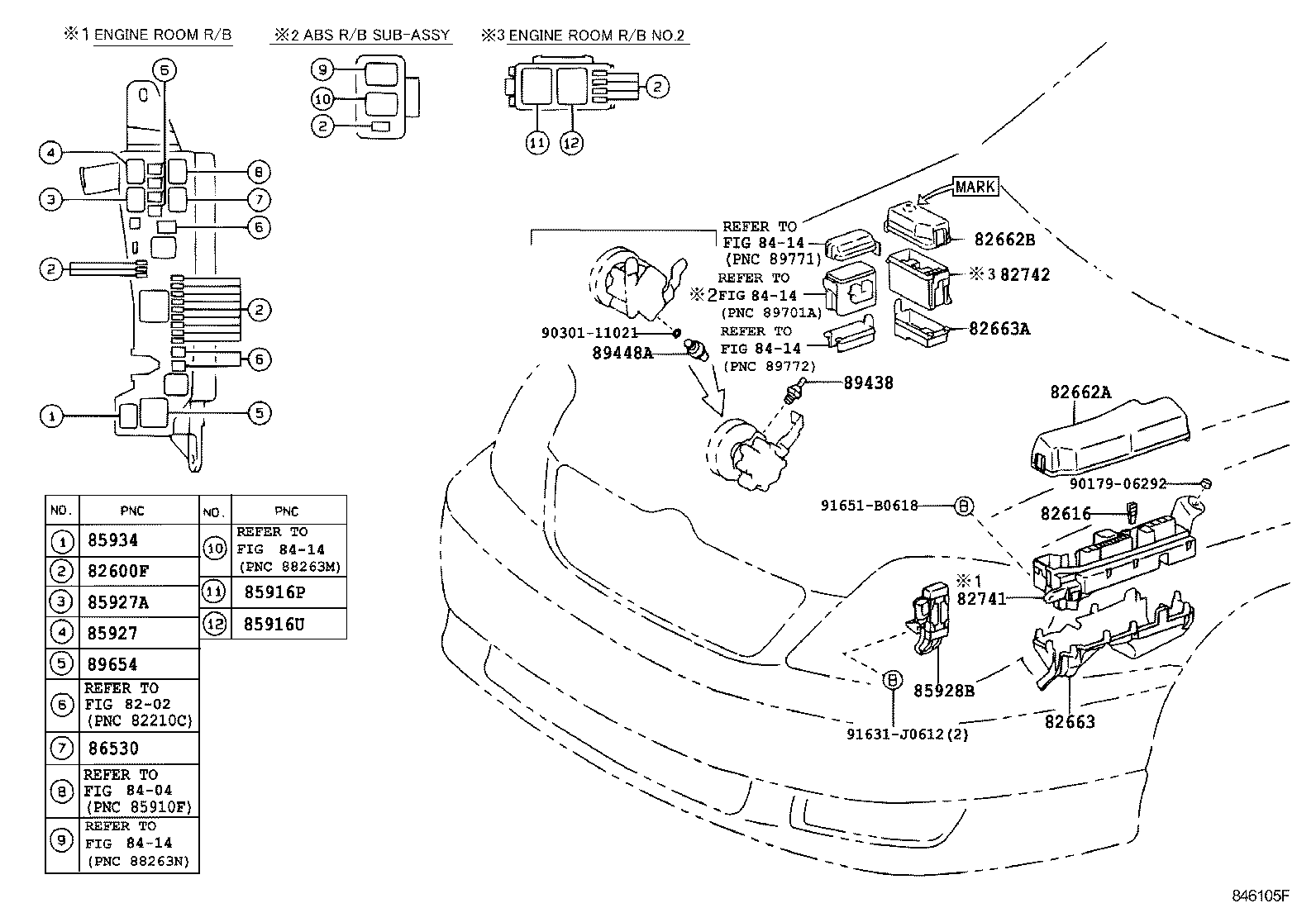

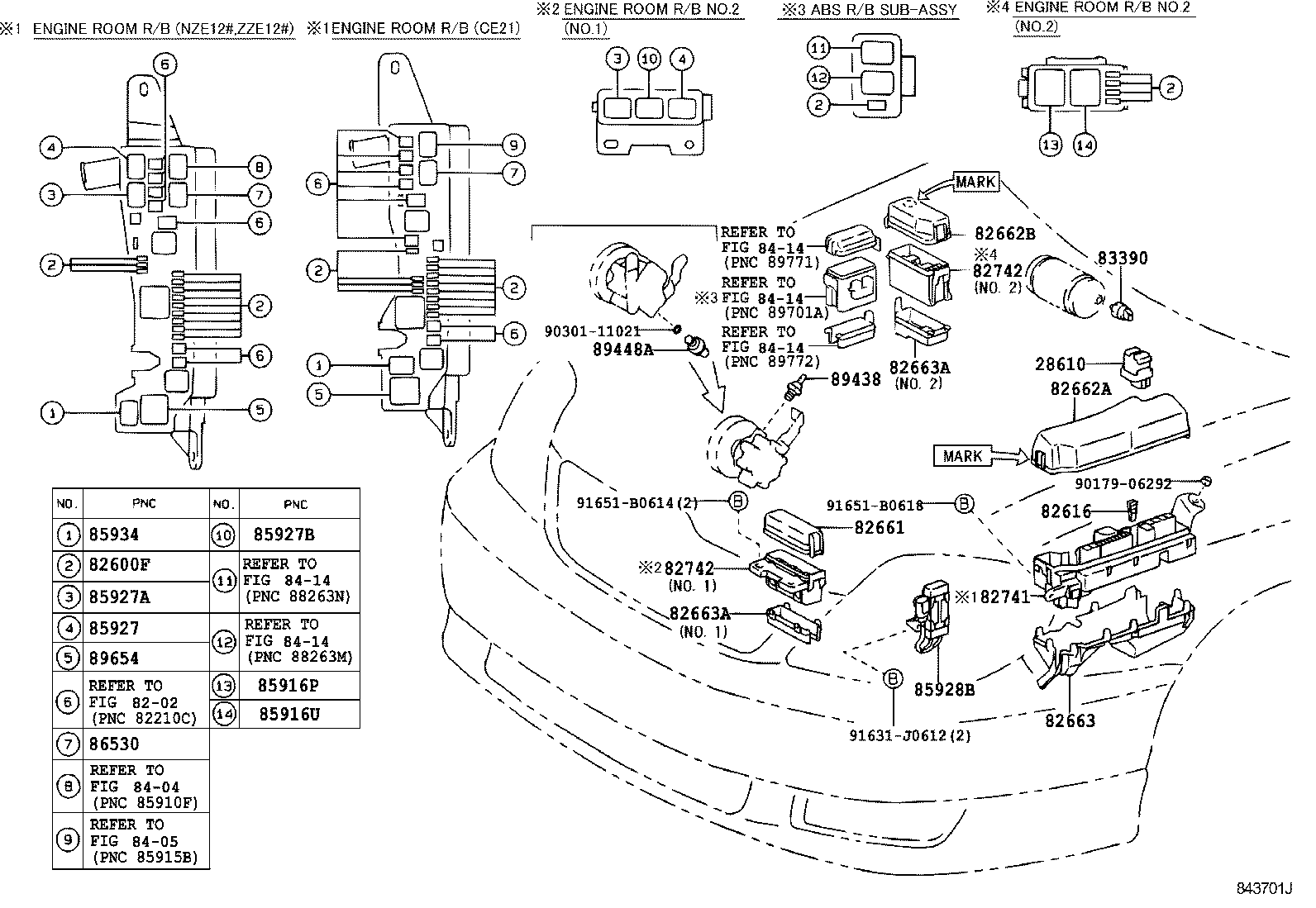

ILLUST NO. 2 OF 7(0008-0404)

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82600F - FUSE, FUSE BLOCK
90982-09010	CE121,NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	08/2000 - 09/2002	1
90982-09007	CE121,NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	09/2002 - 04/2004	1
90982-09007	CE121,NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	08/2000 - 09/2002	1
90982-09009	CE121,NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	08/2000 - 09/2002	1
90982-09008	CE121,NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	08/2000 - 09/2002	1
90982-09008	CE121,NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	09/2002 - 04/2004	1
90982-09007	NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	04/2004 - 09/2006	1
90982-09010	CE121,NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	09/2002 - 04/2004	1
90982-09008	NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	04/2004 - 09/2006	1
90982-09013	NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	04/2004 - 09/2006	1
90982-09010	NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	04/2004 - 09/2006	1
90982-09009	NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	04/2004 - 09/2006	1
90982-09012	CE121,NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	09/2002 - 04/2004	1
90982-09012	NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	04/2004 - 09/2006	1
90982-09012	CE121,NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	08/2000 - 09/2002	1
90982-09013	CE121,NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	09/2002 - 04/2004	1
90982-09013	CE121,NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	08/2000 - 09/2002	1
90982-09009	CE121,NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	09/2002 - 04/2004	1
82616 - PULLER, FUSE
82616-20010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
82616-20010	NZE12#,ZZE12#	04/2004 - 09/2006	1
82616-20010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-12010	NZE124..X;NZE120,121,ZZE122,123 MARK P OR 1:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
82662-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
82662-12060	NZE124,ZZE124 MARK 3:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
82662-12060	NZE124..WG;NZE124,ZZE124..G,LXL,S MARK 3:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-13041	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER MARK H:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
82662-13041	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER MARK H:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
82662-13041	NZE121,124..SED..X	12/2004 - 09/2006	1
82662-12020	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
82663 - COVER, RELAY BLOCK, LOWER
82663-12010	NZE12#,ZZE12#	08/2000 - 09/2002	1
82663-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
82663-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-12040	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER NO.2	09/2002 - 04/2004	1
82663-12040	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
82663-12040	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
82663-12040	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-12040	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER NO.2	09/2002 - 04/2004	1
82663-12040	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
82663-12040	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
82663-12040	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-12020	NZE12#,ZZE12#	09/2002 - 04/2004	1
82741-12020	NZE12#,ZZE12#	08/2000 - 09/2002	1
82741-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82741-12050	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
82741-12050	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER NO.2	09/2002 - 04/2004	1
82741-12050	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
82741-12050	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82741-12050	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
82741-12050	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER NO.2	09/2002 - 04/2004	1
82741-12050	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
82741-12050	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
85916P - RELAY, HEADLAMP
90987-02025	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
90987-02025	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
90987-02025	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
90987-02025	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
85916U - RELAY, HEADLAMP, NO.2
90987-04010	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
90987-04010	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
90987-04010	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
90987-04010	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
85927 - RELAY, COOLING FAN
90080-87008	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87008	08/2000 - 09/2002	1
90987-02012	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012	08/2000 - 09/2001	1
90080-87021	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87021	09/2001 - 09/2002	1
90080-87010	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010	09/2002 - 04/2004	1
90080-87008	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87008	09/2002 - 04/2004	1
90987-02012	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012	10/2001 - 09/2002	1
90080-87020	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87020	09/2002 - 04/2004	1
90080-87010	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010	08/2000 - 09/2002	1
90080-87021	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87021	09/2002 - 04/2004	1
90987-02012	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012	09/2002 - 04/2004	1
90080-87020	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87020	09/2001 - 09/2002	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
85927A - RELAY, COOLING FAN, NO.2
90080-87009	NZE12#,ZZE12# 品番ﾗﾍﾞﾙ=90080−87009	08/2000 - 09/2002	1
90987-04004	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-04004	09/2002 - 04/2004	1
90987-04004	NZE12#,ZZE12# 品番ﾗﾍﾞﾙ=90987−04004	08/2000 - 09/2002	1
90987-04004	NZE12#,ZZE12#	04/2004 - 09/2006	1
90080-87009	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87009	09/2002 - 04/2004	1
85928B - RESISTOR, COOLING FAN
85928-12010	NZE12#,ZZE12#	08/2000 - 09/2002	1
85928-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
85928-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
85934 - RELAY, MAGNET-CLUTCH
90987-02020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
90987-02028	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
90987-02028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
86530 - RELAY ASSY, HORN
90987-02020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
90987-02020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
89438 - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	ZZE122..5F;ZZE123,124	09/2002 - 04/2004	1
89438-33010	ZZE122..5F;ZZE123,124	04/2004 - 09/2006	1
89448A - SENSOR, POWER STEERING OIL PRESSURE
89448-51010	NZE124	08/2000 - 09/2002	1
89448-51010	NZE124	09/2002 - 04/2004	1
89448-51010	NZE124	04/2004 - 09/2006	1
Common parts
90179-06292
90301-11021
91631-J0612
91651-B0614
91651-B0618
Linked diagrams
8202
8404
8405
8414

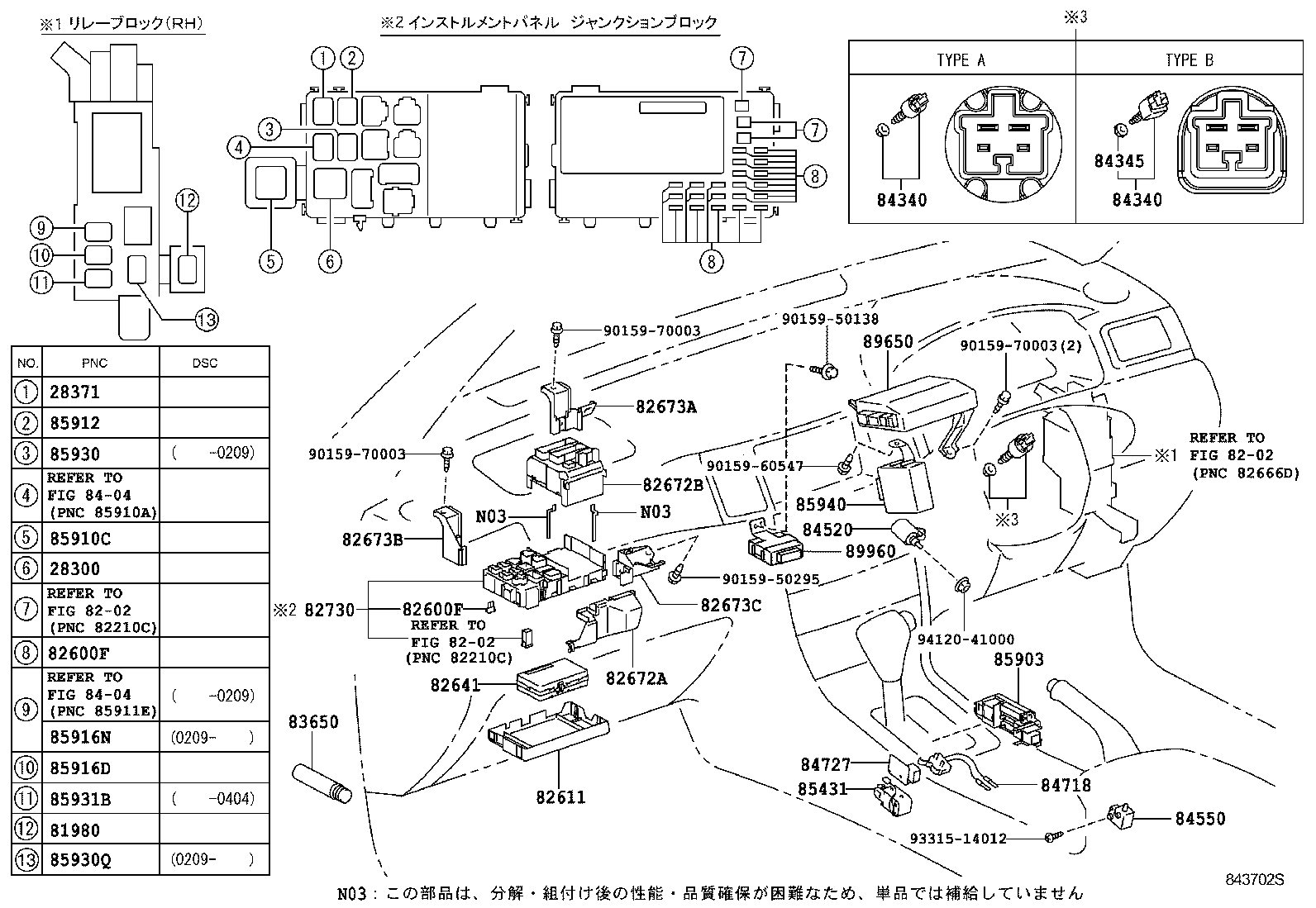

ILLUST NO. 3 OF 7(0008-0609)

Click highlighted areas on diagram

ｶｳﾙ

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-10020	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
28300-10020	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
28300-10020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	1
28371 - RELAY, IGNITION, NO.1
90987-02020	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
90987-02020	3CE,1NZFE,2NZFE,1ZZFE,2ZZGE..CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
90987-02020	1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-50030	CE121,NZE12#,ZZE12# (J)	03/2001 - 09/2002	1
81980-50030	CE121,NZE12#,ZZE12#	08/2000 - 03/2001	1
81980-50030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
81980-02020	CE121,NZE12#,ZZE12# (L)	03/2001 - 09/2002	1
81980-50030	NZE12#,ZZE12#	04/2004 - 09/2006	1
82600F - FUSE, FUSE BLOCK
90982-09010	CE121,NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	08/2000 - 09/2002	1
90982-09007	CE121,NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	09/2002 - 04/2004	1
90982-09007	CE121,NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	08/2000 - 09/2002	1
90982-09009	CE121,NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	08/2000 - 09/2002	1
90982-09008	CE121,NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	08/2000 - 09/2002	1
90982-09008	CE121,NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	09/2002 - 04/2004	1
90982-09007	NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	04/2004 - 09/2006	1
90982-09010	CE121,NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	09/2002 - 04/2004	1
90982-09008	NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	04/2004 - 09/2006	1
90982-09013	NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	04/2004 - 09/2006	1
90982-09010	NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	04/2004 - 09/2006	1
90982-09009	NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	04/2004 - 09/2006	1
90982-09012	CE121,NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	09/2002 - 04/2004	1
90982-09012	NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	04/2004 - 09/2006	1
90982-09012	CE121,NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	08/2000 - 09/2002	1
90982-09013	CE121,NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	09/2002 - 04/2004	1
90982-09013	CE121,NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	08/2000 - 09/2002	1
90982-09009	CE121,NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	09/2002 - 04/2004	1
82600F - FUSE, FUSE BLOCK
90982-09010	CE121,NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	08/2000 - 09/2002	1
90982-09007	CE121,NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	09/2002 - 04/2004	1
90982-09007	CE121,NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	08/2000 - 09/2002	1
90982-09009	CE121,NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	08/2000 - 09/2002	1
90982-09008	CE121,NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	08/2000 - 09/2002	1
90982-09008	CE121,NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	09/2002 - 04/2004	1
90982-09007	NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	04/2004 - 09/2006	1
90982-09010	CE121,NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	09/2002 - 04/2004	1
90982-09008	NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	04/2004 - 09/2006	1
90982-09013	NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	04/2004 - 09/2006	1
90982-09010	NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	04/2004 - 09/2006	1
90982-09009	NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	04/2004 - 09/2006	1
90982-09012	CE121,NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	09/2002 - 04/2004	1
90982-09012	NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	04/2004 - 09/2006	1
90982-09012	CE121,NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	08/2000 - 09/2002	1
90982-09013	CE121,NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	09/2002 - 04/2004	1
90982-09013	CE121,NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	08/2000 - 09/2002	1
90982-09009	CE121,NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	09/2002 - 04/2004	1
82611 - COVER, FUSE BLOCK
82611-12120	NZE12#,ZZE12#	04/2004 - 09/2006	1
82611-12120	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
82611-12120	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
82641 - RELAY, INTEGRATION NO.1
82641-12200	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	08/2000 - 09/2002	1
82641-12190	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
82641-12230	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ｺﾝﾗｲﾄ)	09/2002 - 04/2004	1
82641-12240	CE121,NZE12#..X ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	09/2002 - 04/2004	1
82641-12250	CE121,NZE12#..SED..X	09/2002 - 04/2004	1
82641-12230	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
82641-12250	NZE12#..SED..X ﾅｼ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	04/2004 - 09/2006	1
82641-12230	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ｺﾝﾗｲﾄ)	04/2004 - 09/2006	1
82641-12230	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
82641-12240	NZE12#..X	04/2004 - 09/2006	1
82672A - COVER, JUNCTION BLOCK
82672-12400	NZE12#,ZZE12#	04/2004 - 09/2006	1
82672-12400	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
82672-12400	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
82672B - COVER, JUNCTION BLOCK
82672-12410	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
82672-12410	NZE12#,ZZE12#	04/2004 - 09/2006	1
82672-12410	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
82673A - BRACKET, JUNCTION BLOCK
82673-12010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
82673-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
82673-12010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
82673B - BRACKET, JUNCTION BLOCK
82673-12040	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
82673-12040	NZE12#,ZZE12#	04/2004 - 09/2006	1
82673-12040	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
82673C - BRACKET, JUNCTION BLOCK
82673-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
82673-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
82673-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-12140	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
82730-12140	NZE12#,ZZE12#	04/2004 - 09/2006	1
82730-12140	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
83650 - FUSEE
90986-01005	NZE12#,ZZE12#	04/2004 - 09/2006	1
90986-01005	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
90986-01005	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
84340 - SWITCH ASSY, STOP LAMP
84340-32050	NZE121..SED..5F;NZE120,124,ZZE122,124..SED TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
84340-32050	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
84340-32050	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
84340-69035	NZE121..5F;NZE120,124,ZZE12# TYPE B:ｲﾗｽﾄ参照	08/2005 - 09/2006	1
84340 - SWITCH ASSY, STOP LAMP
84340-32050	NZE121..SED..5F;NZE120,124,ZZE122,124..SED TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
84340-32050	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
84340-32050	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
84340-69035	NZE121..5F;NZE120,124,ZZE12# TYPE B:ｲﾗｽﾄ参照	08/2005 - 09/2006	1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-51010	NZE12#,ZZE12#	08/2005 - 09/2006	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16060	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
84550-16060	NZE12#,ZZE12#	04/2004 - 09/2006	1
84550-16060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
84727 - SWITCH, SHIFT LOCK CONTROL
84727-12080	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
84727-12080	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
84727-12080	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
85431 - SOLENOID, SHIFT LOCK
85431-12060	CE121,NZE12#,ZZE123..4FC	08/2000 - 09/2002	1
85431-12060	CE121,NZE12#,ZZE123..4FC	09/2002 - 04/2004	1
85431-12060	NZE12#,ZZE123..4FC	04/2004 - 09/2006	1
85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL
85903-12020	ZZE122,124..4FC	09/2002 - 04/2004	1
85903-12020	ZZE122,124..4FC	08/2000 - 09/2002	1
85903-12020	ZZE122,124..4FC	04/2004 - 09/2006	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
90987-04010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
90987-04010	NZE12#,ZZE12#	04/2004 - 09/2006	1
85912 - RELAY, DEFOGGER
90080-87008	CE121,NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87008	08/2000 - 09/2002	1
90080-87010	CE121,NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010	08/2000 - 09/2002	1
90987-02012	CE121,NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012	08/2000 - 11/2000	1
90987-02020	CE121,NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	11/2000 - 09/2002	1
90987-02020	CE121,NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	09/2002 - 04/2004	1
90080-87010	CE121,NZE12#..X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010	09/2002 - 04/2004	1
90080-87008	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER 品番ﾗﾍﾞﾙ=90080−87008	04/2004 - 06/2005	1
90080-87008	NZE121,124..SED..X 品番ﾗﾍﾞﾙ=90080−87008	12/2004 - 06/2005	1
90080-87008	CE121,NZE12#..X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87008	09/2002 - 04/2004	1
90987-02020	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K);ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	09/2004 - 11/2004	1
90080-87008	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K);ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87008	09/2004 - 11/2004	1
90987-02012	NZE121,124,ZZE12# 品番ﾗﾍﾞﾙ=90987−02012	07/2005 - 09/2006	1
90987-02020	NZE12#..X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	04/2004 - 09/2006	1
85916D - RELAY, FOG LAMP
90987-02015	CE121,NZE12#,ZZE122,124..G,S,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015	08/2000 - 04/2002	1
90987-02020	CE121,NZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	11/2000 - 09/2002	1
90987-02012	CE121,NZE12#,ZZE122,124..G,S,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012	08/2000 - 11/2000	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
90987-02020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
85916N - RELAY, TAIL LAMP
90987-02020	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
90987-02020	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
90987-02020	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
90987-02020	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
85930 - RELAY ASSY, POWER WINDOW
90987-02020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
85930Q - RELAY, POWER
90987-02020	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
90987-02020	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-12140	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
89960 - COMPUTER ASSY, HEADLAMP LEVELING
89960-12020	NZE124..WG;NZE124,ZZE124..G,LXL,S	04/2004 - 03/2005	1
89960-12021	NZE124,ZZE124	04/2005 - 09/2006	1
89960-12020	NZE124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
89960-12020	NZE124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 03/2005	1
Common parts
90159-50138
90159-50295
90159-60547
90159-70003
93315-14012
94120-41000
Linked diagrams
8202
8404

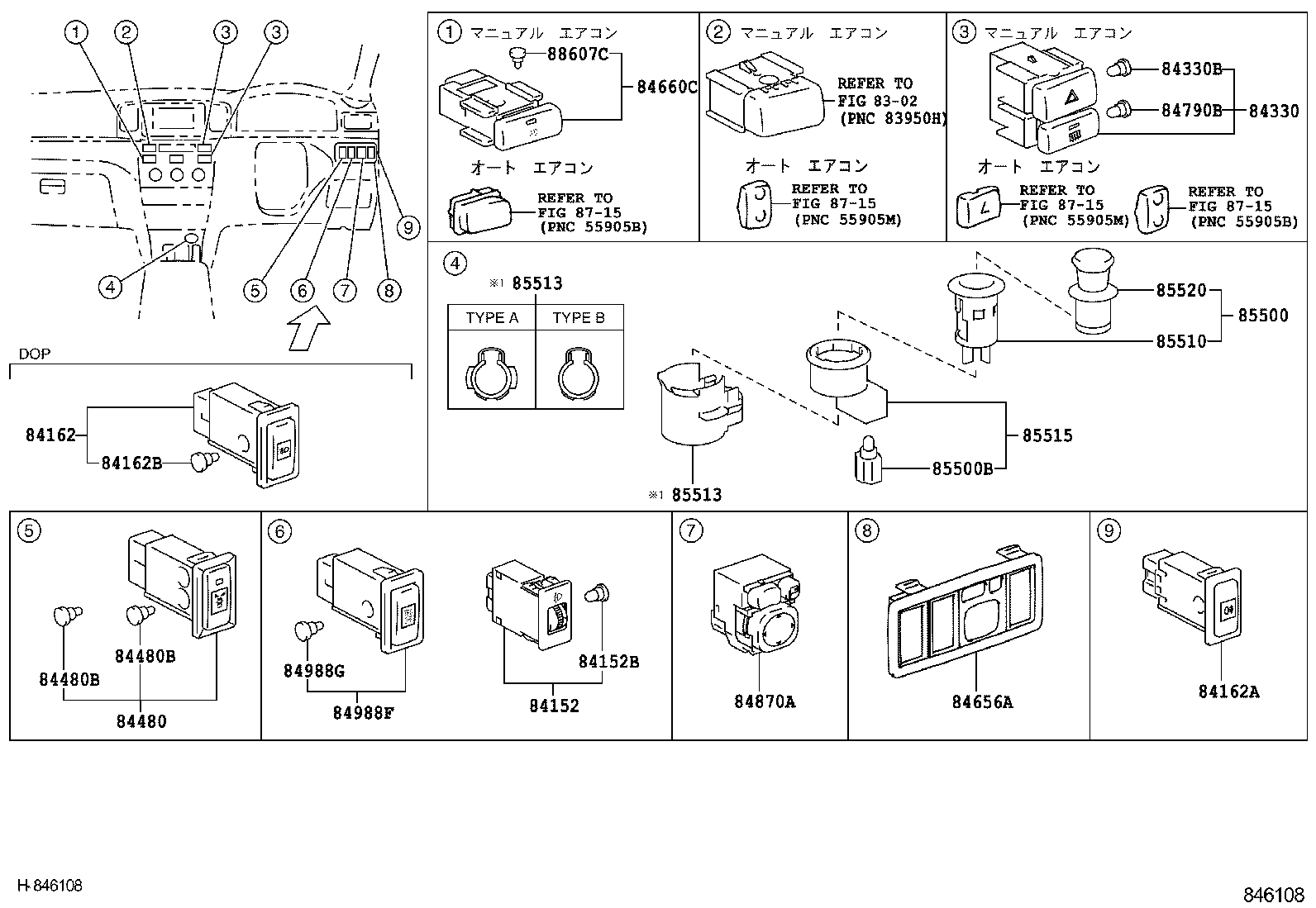

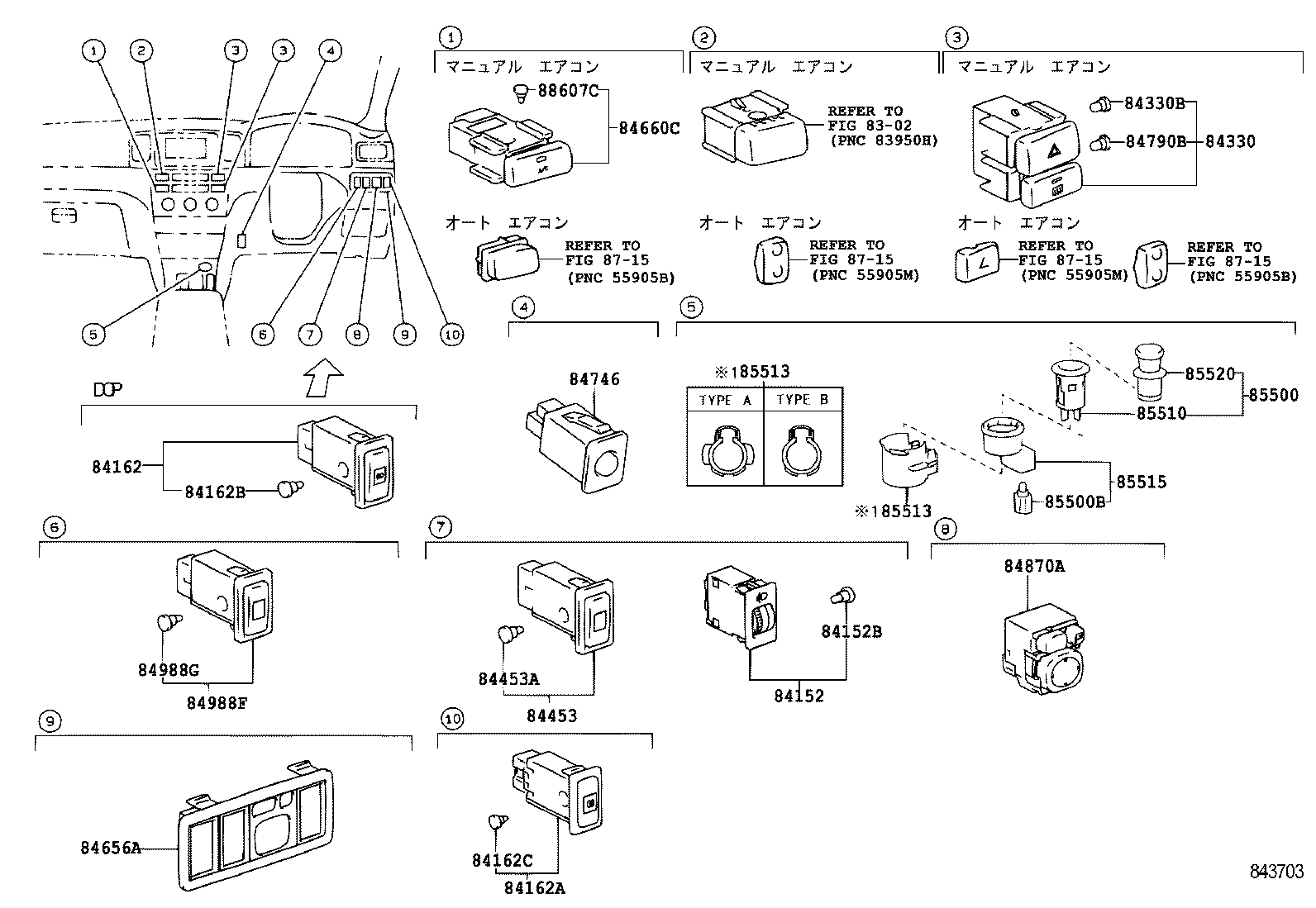

ILLUST NO. 4 OF 7(0008-0404)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
84152 - SWITCH, HEADLAMP LEVELING
84152-12060	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
84152-12060	NZE12#	04/2004 - 09/2006	1
84152B - BULB (FOR HEADLAMP LEVELING SWITCH)
90010-08100	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER 14V 40MA,ｸﾞﾘｰﾝ	09/2002 - 04/2004	1
90010-08100	NZE12# 14V 40MA,ｸﾞﾘｰﾝ	04/2004 - 09/2006	1
84162 - SWITCH, FRONT FOG LAMP
84160-95D00	CE121,NZE12#,ZZE122,124..G,S,X DOP用	09/2002 - 04/2004	1
84160-95D00	CE121,NZE12#,ZZE122,124..G,S,X DOP用	08/2000 - 09/2002	1
84160-95D00	NZE12#,ZZE122,124..G,S,X DOP用	04/2004 - 09/2006	1
84162A - SWITCH, REAR FOG LAMP
84165-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
84165-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
84165-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
84162B - BULB, FOG LAMP SWITCH
84999-10320	CE121,NZE12#,ZZE122,124..G,S,X 14V 0.84W	08/2000 - 09/2002	1
84999-10320	NZE12#,ZZE122,124..G,S,X 14V 0.84W	04/2004 - 09/2006	1
84999-10320	CE121,NZE12#,ZZE122,124..G,S,X 14V 0.84W	09/2002 - 04/2004	1
84162C - BULB (FOR REAR FOG LAMP SWITCH)
90010-09012	CE121,NZE12#,ZZE12# 14V 40MA,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	09/2002 - 04/2004	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-12500	NZE12#..X ﾄｿｳｱﾘ(ｼﾙﾊﾞｰ) & ｱﾘ(ﾏﾆｭｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
84332-12440	CE121,NZE12#..X ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
84332-12440	NZE12#..SED..X ﾄｿｳｱﾘ(ﾌﾞﾗｯｸ) & ｱﾘ(ﾏﾆｭｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
84332-12440	ZZE122..5F;CE121,NZE12#,ZZE124..S,X ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10310	CE121,NZE12#,ZZE122,124..S,X 14V 0.91W,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
84999-10310	NZE12#..SED..X 14V 0.91W,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
84999-10310	CE121,NZE12#..X 14V 0.91W,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
84656A - BEZEL, SWITCH
84656-12090A0	CE121,NZE12#..X IVORY,TRIM0#	08/2000 - 09/2002	1
84656-12100A0	CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),IVORY,TRIM0#	08/2000 - 09/2002	1
84656-12100B0	ZZE122,124..S ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),DK.GRAY,TRIM1#	08/2000 - 09/2002	1
84656-12090B1	CE121,NZE12#..SED..X STONE,TRIM1#	08/2000 - 09/2002	1
84656-12090B0	ZZE122,124..S DK.GRAY,TRIM1#	08/2000 - 09/2002	1
84656-12110A0	CE121,NZE12#..SED..X ﾅｼ(ｱｳﾀﾐﾗ- ｽｲﾂﾁ),IVORY,TRIM0#	08/2000 - 09/2002	1
84656-12090A0	CE121,NZE12#..X IVORY,TRIM0#	09/2002 - 04/2004	1
84656-12110B1	CE121,NZE12#..SED..X ﾅｼ(ｱｳﾀﾐﾗ- ｽｲﾂﾁ),STONE,TRIM1#	08/2000 - 09/2002	1
84656-12100A0	CE121,NZE12#..X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),IVORY,TRIM0#	09/2002 - 04/2004	1
84656-12100B1	CE121,NZE12#..SED..X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),STONE,TRIM1#	08/2000 - 09/2002	1
84656-12090B2	CE121,NZE12#..SED..X MD.GRAY,TRIM1#	09/2002 - 04/2004	1
84656-12100B2	CE121,NZE12#..SED..X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),MD.GRAY,TRIM1#	09/2002 - 04/2004	1
84656-12090B2	NZE12#..SED..X MD.GRAY,TRIM1#	04/2004 - 09/2006	1
84656-12090A0	NZE12#..X IVORY,TRIM0#	04/2004 - 09/2006	1
84656-12100B2	NZE12#,ZZE122,124..SED ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),MD.GRAY,TRIM1#	04/2004 - 09/2006	1
84656-12110B2	NZE12#..SED..X ﾅｼ(ｱｳﾀﾐﾗ- ｽｲﾂﾁ),MD.GRAY,TRIM1#	04/2004 - 09/2006	1
84656-12110B2	CE121,NZE12#..SED..X ﾅｼ(ｱｳﾀﾐﾗ- ｽｲﾂﾁ),MD.GRAY,TRIM1#	09/2002 - 04/2004	1
84656-12100A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),IVORY,TRIM0#	04/2004 - 09/2006	1
84660C - SWITCH, COOLER
84660-12200	NZE12#..SED..X ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ(ASSISTA)	04/2004 - 09/2006	1
84660-12200	CE121,NZE12#..X ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
84660-12200	CE121,NZE12#,ZZE122,124..S,X ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
84660-12230	NZE12#..X	04/2004 - 09/2006	1
84746 - SWITCH, TIRE PRESSURE WARNING
84746-12010	CE121,NZE12#,ZZE122,124	08/2000 - 09/2002	1
84746-12010	CE121,NZE12#,ZZE122,124	09/2002 - 04/2004	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
90010-01060	CE121,NZE12#,ZZE122,124..S,X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
90010-01060	CE121,NZE12#..X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
90010-01060	NZE12#..SED..X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
84870A - SWITCH ASSY, OUTER MIRROR
84872-52030	NZE12#..X	04/2004 - 09/2006	1
84872-52030	CE121,NZE12#,ZZE122,124..S,X	08/2000 - 09/2002	1
84872-52040	NZE12#,ZZE12# ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-)	04/2004 - 09/2006	1
84872-52040	CE121,NZE12#,ZZE122,124..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-)	08/2000 - 09/2002	1
84872-52040	CE121,NZE12#,ZZE122,124..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-)	09/2002 - 04/2004	1
84872-52030	CE121,NZE12#..X	09/2002 - 04/2004	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12240	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
85500-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
85500-12240	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
85500B - BULB, CIGARETTE LIGHTER
90010-01065	CE121,NZE12#,ZZE12# 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	09/2002 - 04/2004	1
90010-01065	NZE12#,ZZE12# 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	04/2004 - 09/2006	1
90010-01065	CE121,NZE12#,ZZE12# 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	08/2000 - 09/2002	1
85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER
85510-16040	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
85510-16040	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
85510-16040	NZE12#,ZZE12#	04/2004 - 09/2006	1
85513 - COVER, CIGARETTE LIGHTER
85513-28010	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2002 - 09/2002	1
85513-28010	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
85513-12020	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
85513-12020	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
85513-28010	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
85513-12020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
85513 - COVER, CIGARETTE LIGHTER
85513-28010	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2002 - 09/2002	1
85513-28010	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
85513-12020	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
85513-12020	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
85513-28010	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
85513-12020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-12110	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
85515-12110	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
85515-12110	NZE12#,ZZE12#	04/2004 - 09/2006	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	NZE12#,ZZE12#	04/2004 - 09/2006	1
85520-28010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
85520-28010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
88607C - LAMP SUB-ASSY, INDICATOR
90010-03044	CE121,NZE12#,ZZE122,124..S,X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
90010-03044	NZE12#..SED..X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
90010-03044	CE121,NZE12#..X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
Linked diagrams
8302
8715

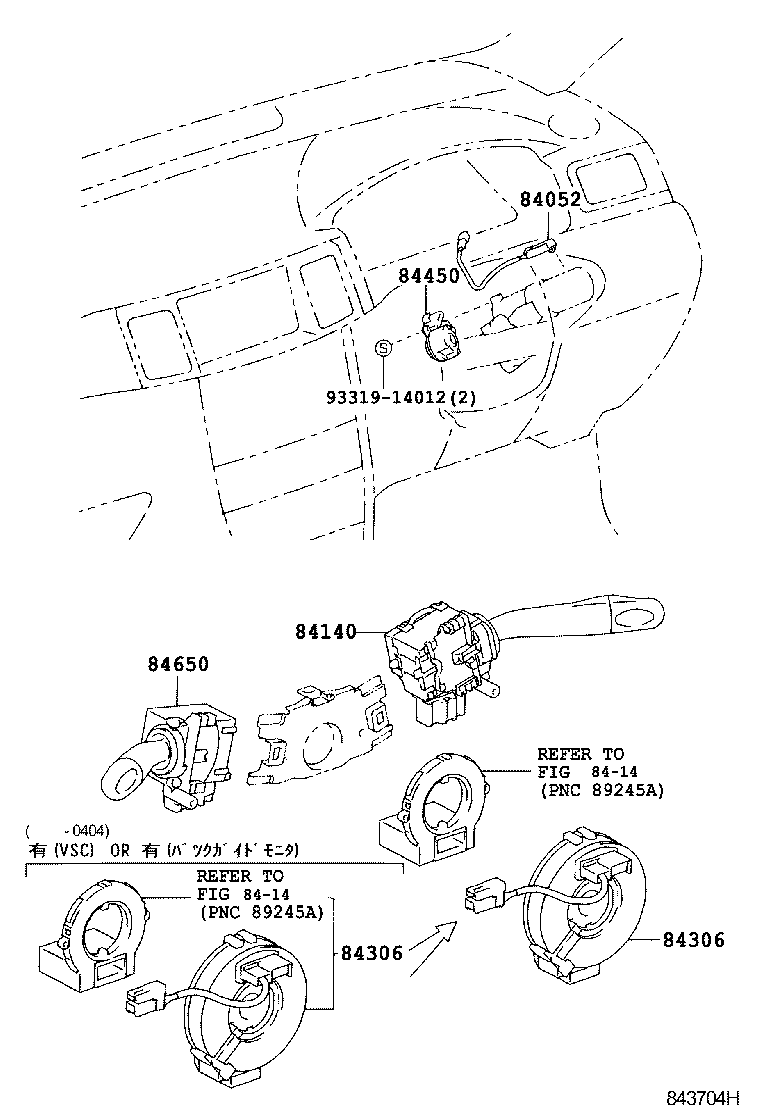

ILLUST NO. 5 OF 7(0008-0609)

Click highlighted areas on diagram

ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝｽｲﾂﾁ

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-60010	NZE12#,ZZE12#	04/2004 - 09/2006	1
84052-60010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
84052-60010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-32250	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
84140-12510	CE121,NZE12#,ZZE122,124..G,S,X ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ)	08/2000 - 09/2002	1
84140-12510	CE121,NZE12#..X ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ)	09/2002 - 04/2004	1
84140-32250	NZE121,124..SED..X ｱﾘ(ｺﾝﾗｲﾄ)	12/2004 - 09/2006	1
84140-52050	NZE12#..X ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ),品番ﾗﾍﾞﾙ=52050	04/2004 - 12/2005	1
84140-42020	ZZE122,124 ｱﾘ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ)	08/2000 - 09/2002	1
84140-12530	NZE12#..X ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ),品番ﾗﾍﾞﾙ=12530	04/2004 - 09/2006	1
84306 - CABLE SUB-ASSY, SPIRAL
84307-12020	ZZE123..6F;CE121,NZE121,124..WG;CE121,NZE121,124,ZZE122,124..G,LXL,S ｱﾘ(VSC) OR ｱﾘ(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀ)	09/2002 - 04/2004	1
84306-52041	ZZE123..6F;NZE12#,ZZE122,124	04/2004 - 09/2006	1
84306-52041	ZZE123..6F;CE121,NZE12#,ZZE122,124	09/2002 - 04/2004	1
84306-52020	ZZE123..6F;CE121,NZE12#,ZZE122,124	08/2000 - 09/2002	1
84306 - CABLE SUB-ASSY, SPIRAL
84307-12020	ZZE123..6F;CE121,NZE121,124..WG;CE121,NZE121,124,ZZE122,124..G,LXL,S ｱﾘ(VSC) OR ｱﾘ(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀ)	09/2002 - 04/2004	1
84306-52041	ZZE123..6F;NZE12#,ZZE122,124	04/2004 - 09/2006	1
84306-52041	ZZE123..6F;CE121,NZE12#,ZZE122,124	09/2002 - 04/2004	1
84306-52020	ZZE123..6F;CE121,NZE12#,ZZE122,124	08/2000 - 09/2002	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-52010	NZE12#,ZZE12#	04/2004 - 09/2006	1
84450-52010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
84450-52010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-1A800	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	09/2002 - 04/2004	1
84652-1A800	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	08/2000 - 09/2002	1
84652-2G450	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
84652-52080	CE121,NZE12#..SED..X	09/2002 - 04/2004	1
84652-1A800	NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	04/2004 - 09/2006	1
84652-52080	CE121,NZE12#..SED..X	08/2000 - 09/2002	1
84652-52080	NZE12#..SED..X	04/2004 - 09/2006	1
84652-2G450	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
Common parts
93319-14012
Linked diagrams
8414

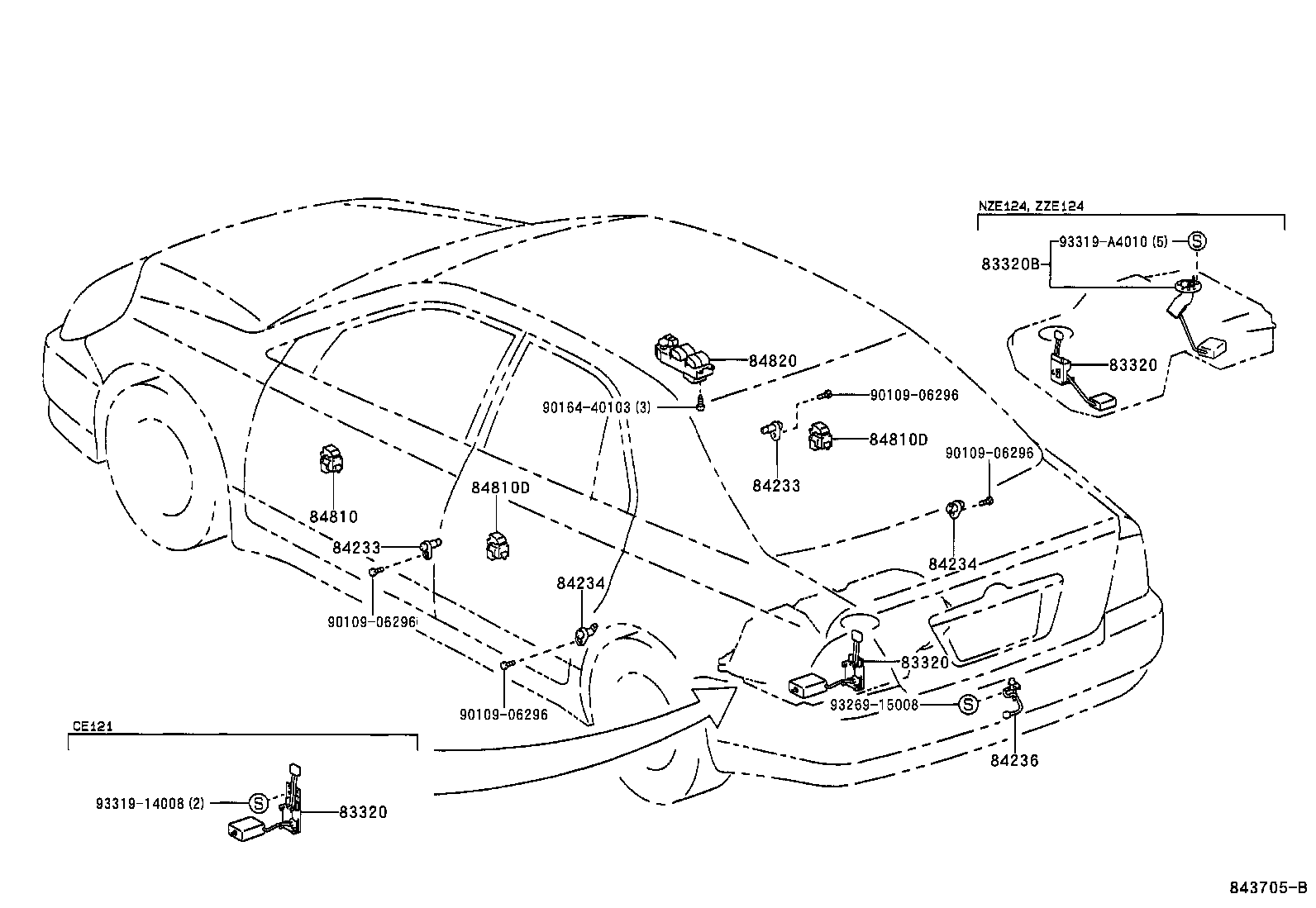

ILLUST NO. 7 OF 7(0008-0404)

Click highlighted areas on diagram

ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-12650	NZE124,ZZE124	09/2002 - 04/2004	1
83320-12650	NZE124,ZZE124	08/2000 - 09/2002	1
83320-12710	NZE124,ZZE124	04/2004 - 09/2006	1
83320 - GAGE ASSY, FUEL SENDER
83320-12650	NZE124,ZZE124	09/2002 - 04/2004	1
83320-12650	NZE124,ZZE124	08/2000 - 09/2002	1
83320-12710	NZE124,ZZE124	04/2004 - 09/2006	1
83320 - GAGE ASSY, FUEL SENDER
83320-12650	NZE124,ZZE124	09/2002 - 04/2004	1
83320-12650	NZE124,ZZE124	08/2000 - 09/2002	1
83320-12710	NZE124,ZZE124	04/2004 - 09/2006	1
83320B - GAGE ASSY, FUEL SENDER, NO.2
83320-80388	NZE124,ZZE124	09/2002 - 04/2004	1
83320-80388	NZE124,ZZE124	08/2000 - 09/2002	1
83320-80414	NZE124,ZZE124	04/2004 - 09/2006	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84231-60070	NZE12#,ZZE12#	04/2004 - 09/2006	2
84231-60070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84231-60070	NZE12#,ZZE12#	04/2004 - 09/2006	2
84231-60070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-53010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84231-53010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84231-53010	NZE12#,ZZE12#	04/2004 - 09/2006	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-53010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84231-53010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84231-53010	NZE12#,ZZE12#	04/2004 - 09/2006	2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84030-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
84810-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
84030-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84030-12030	NZE12#,ZZE12#	04/2004 - 09/2006	2
84810-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84030-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84030-12030	NZE12#,ZZE12#	04/2004 - 09/2006	2
84810-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84030-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84040-12070	CE121,NZE12#,ZZE12#	09/2002 - 11/2002	1
84820-12460	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
84040-12071	CE121,NZE12#,ZZE12#	11/2002 - 04/2004	1
84040-12071	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90109-06296
90164-40103
93269-15008
93319-14008
93319-A4010

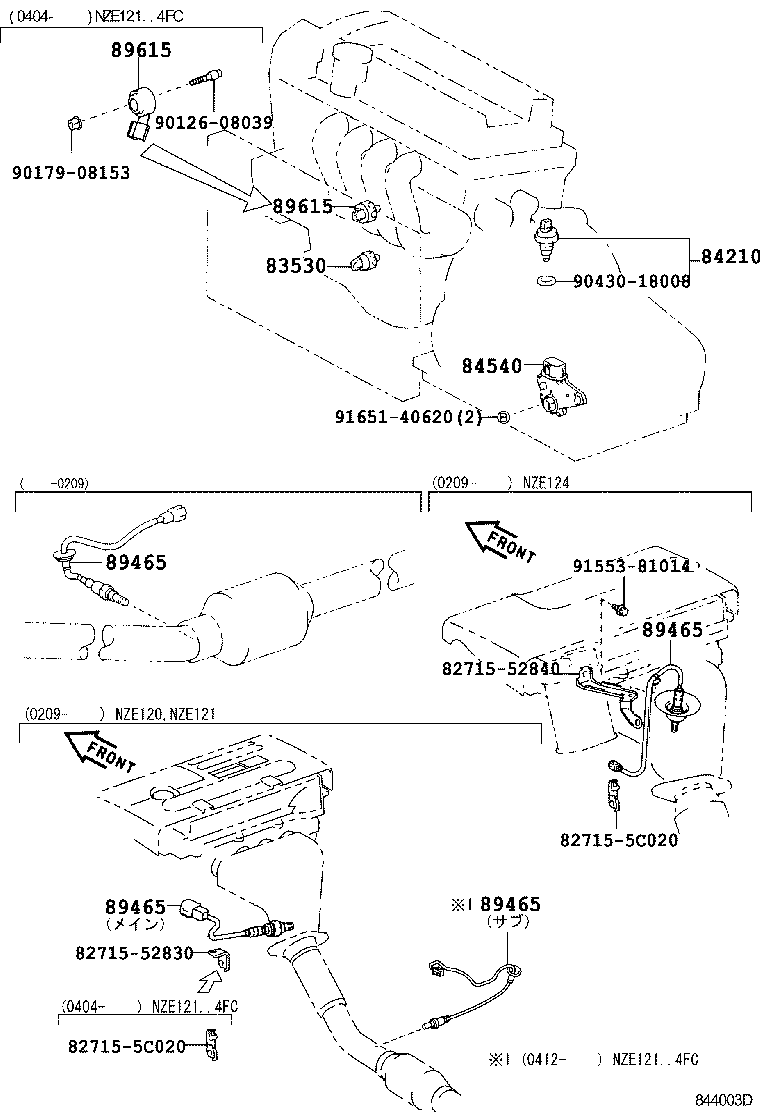

ILLUST NO. 1 OF 7(0008-0609)NZE12#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ

Part #	Description	Period	Qty
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020	NZE12#,ZZE12# DENSO	08/2000 - 09/2002	1
83530-60020	NZE12#,ZZE12# YAZAKI	04/2004 - 09/2006	1
83530-60020	NZE12#,ZZE12# YAZAKI	08/2000 - 09/2002	1
83530-28020	NZE12#,ZZE12# DENSO	09/2002 - 04/2004	1
83530-28020	NZE12#,ZZE12# DENSO	04/2004 - 09/2006	1
83530-60020	NZE12#,ZZE12# YAZAKI	09/2002 - 04/2004	1
84540 - SWITCH ASSY, NEUTRAL START
84540-52050	CE121,NZE121,124,ZZE122,124..4FC 品番ﾗﾍﾞﾙ=84540−52050	08/2000 - 09/2002	1
84540-52050	CE121,NZE121,124,ZZE122,124..4FC ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84540-52050	09/2002 - 04/2004	1
84540-52010	CE121,NZE121,124,ZZE122,124..4FC 品番ﾗﾍﾞﾙ=84540−52010	03/2002 - 09/2002	1
84540-46010	NZE12#,ZZE122,124..4FC	04/2004 - 09/2006	1
84540-52010	CE121,NZE121,124,ZZE122,124..4FC ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84540-52010	09/2002 - 04/2004	1
89465 - SENSOR, OXYGEN
89465-52210	NZE124	12/2002 - 04/2004	1
89465-12610	NZE124,ZZE124	08/2000 - 09/2002	1
89465-52240	NZE124	09/2002 - 12/2002	1
89465-52210	NZE124	04/2004 - 09/2006	1
89465 - SENSOR, OXYGEN
89465-52210	NZE124	12/2002 - 04/2004	1
89465-12610	NZE124,ZZE124	08/2000 - 09/2002	1
89465-52240	NZE124	09/2002 - 12/2002	1
89465-52210	NZE124	04/2004 - 09/2006	1
89465 - SENSOR, OXYGEN
89465-52210	NZE124	12/2002 - 04/2004	1
89465-12610	NZE124,ZZE124	08/2000 - 09/2002	1
89465-52240	NZE124	09/2002 - 12/2002	1
89465-52210	NZE124	04/2004 - 09/2006	1
89465 - SENSOR, OXYGEN
89465-52210	NZE124	12/2002 - 04/2004	1
89465-12610	NZE124,ZZE124	08/2000 - 09/2002	1
89465-52240	NZE124	09/2002 - 12/2002	1
89465-52210	NZE124	04/2004 - 09/2006	1
89615 - SENSOR, KNOCK CONTROL
89615-52040	NZE12# TOYOTA	08/2000 - 09/2002	1
89615-12120	ZZE122,124	08/2000 - 09/2002	1
89615-52030	NZE12# DENSO	09/2002 - 09/2003	1
89615-52030	NZE12# DENSO	08/2000 - 09/2002	1
89615-52030	NZE12#	09/2003 - 04/2004	1
89615-20090	ZZE122,124..4FC	09/2002 - 04/2004	1
89615-52040	NZE12# TOYOTA	09/2002 - 09/2003	1
89615-52030	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
89615-20090	NZE121,ZZE122,124..4FC	04/2004 - 09/2006	1
89615 - SENSOR, KNOCK CONTROL
89615-52040	NZE12# TOYOTA	08/2000 - 09/2002	1
89615-12120	ZZE122,124	08/2000 - 09/2002	1
89615-52030	NZE12# DENSO	09/2002 - 09/2003	1
89615-52030	NZE12# DENSO	08/2000 - 09/2002	1
89615-52030	NZE12#	09/2003 - 04/2004	1
89615-20090	ZZE122,124..4FC	09/2002 - 04/2004	1
89615-52040	NZE12# TOYOTA	09/2002 - 09/2003	1
89615-52030	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
89615-20090	NZE121,ZZE122,124..4FC	04/2004 - 09/2006	1
Common parts
82715-52830
82715-52840
82715-5C020
90126-08039
90179-08153
90430-18008
91553-81014
91651-40620

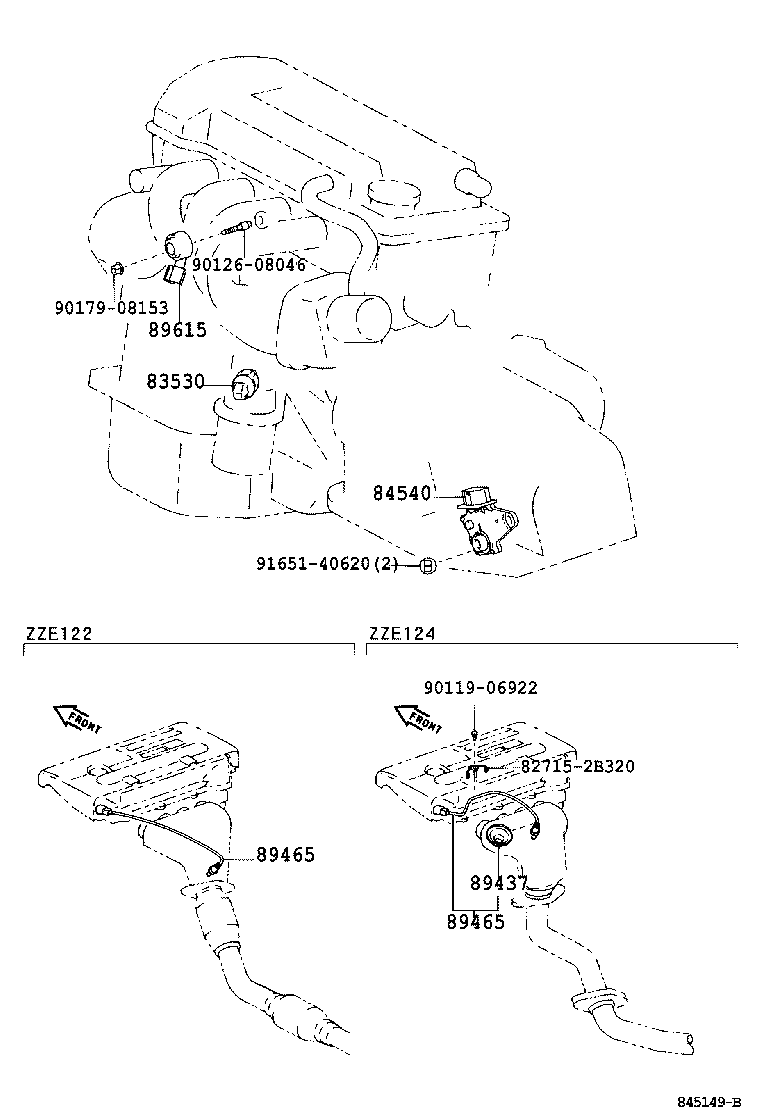

ILLUST NO. 1 OF 7(0008-0209)ZZE122,124 ; (0209-0609)ZZE122..5F

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ

Part #	Description	Period	Qty
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020	NZE12#,ZZE12# DENSO	08/2000 - 09/2002	1
83530-60020	NZE12#,ZZE12# YAZAKI	04/2004 - 09/2006	1
83530-60020	NZE12#,ZZE12# YAZAKI	08/2000 - 09/2002	1
83530-28020	NZE12#,ZZE12# DENSO	09/2002 - 04/2004	1
83530-28020	NZE12#,ZZE12# DENSO	04/2004 - 09/2006	1
83530-60020	NZE12#,ZZE12# YAZAKI	09/2002 - 04/2004	1
84540 - SWITCH ASSY, NEUTRAL START
84540-52050	CE121,NZE121,124,ZZE122,124..4FC 品番ﾗﾍﾞﾙ=84540−52050	08/2000 - 09/2002	1
84540-52050	CE121,NZE121,124,ZZE122,124..4FC ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84540-52050	09/2002 - 04/2004	1
84540-52010	CE121,NZE121,124,ZZE122,124..4FC 品番ﾗﾍﾞﾙ=84540−52010	03/2002 - 09/2002	1
84540-46010	NZE12#,ZZE122,124..4FC	04/2004 - 09/2006	1
84540-52010	CE121,NZE121,124,ZZE122,124..4FC ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84540-52010	09/2002 - 04/2004	1
89465 - SENSOR, OXYGEN
89465-52210	NZE124	12/2002 - 04/2004	1
89465-12610	NZE124,ZZE124	08/2000 - 09/2002	1
89465-52240	NZE124	09/2002 - 12/2002	1
89465-52210	NZE124	04/2004 - 09/2006	1
89615 - SENSOR, KNOCK CONTROL
89615-52040	NZE12# TOYOTA	08/2000 - 09/2002	1
89615-12120	ZZE122,124	08/2000 - 09/2002	1
89615-52030	NZE12# DENSO	09/2002 - 09/2003	1
89615-52030	NZE12# DENSO	08/2000 - 09/2002	1
89615-52030	NZE12#	09/2003 - 04/2004	1
89615-20090	ZZE122,124..4FC	09/2002 - 04/2004	1
89615-52040	NZE12# TOYOTA	09/2002 - 09/2003	1
89615-52030	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
89615-20090	NZE121,ZZE122,124..4FC	04/2004 - 09/2006	1
Common parts
90430-18008
91651-40620

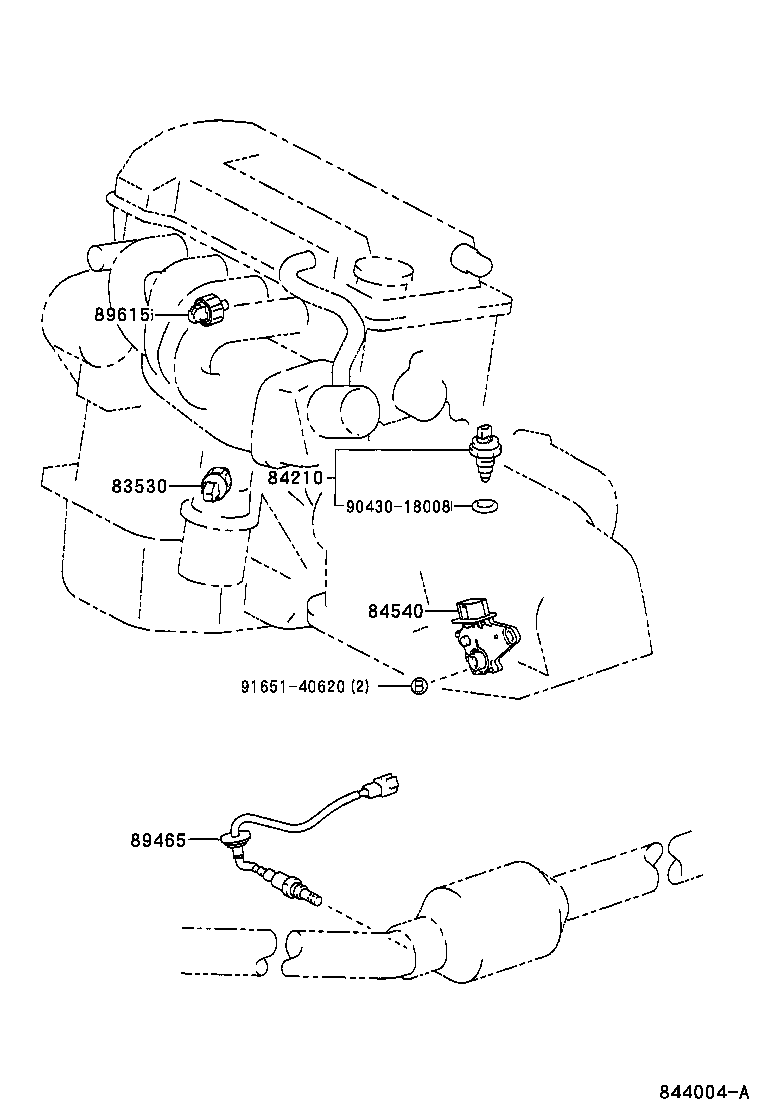

ILLUST NO. 1 OF 7(0209-0609)ZZE122,124..4FC

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ

Part #	Description	Period	Qty
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020	NZE12#,ZZE12# DENSO	08/2000 - 09/2002	1
83530-60020	NZE12#,ZZE12# YAZAKI	08/2000 - 09/2002	1
83530-28020	NZE12#,ZZE12# DENSO	09/2002 - 04/2004	1
83530-28020	NZE12#,ZZE12# DENSO	04/2004 - 09/2006	1
83530-60020	NZE12#,ZZE12# YAZAKI	04/2004 - 09/2006	1
83530-60020	NZE12#,ZZE12# YAZAKI	09/2002 - 04/2004	1
84540 - SWITCH ASSY, NEUTRAL START
84540-52050	CE121,NZE121,124,ZZE122,124..4FC 品番ﾗﾍﾞﾙ=84540−52050	08/2000 - 09/2002	1
84540-52050	CE121,NZE121,124,ZZE122,124..4FC ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84540-52050	09/2002 - 04/2004	1
84540-52010	CE121,NZE121,124,ZZE122,124..4FC 品番ﾗﾍﾞﾙ=84540−52010	03/2002 - 09/2002	1
84540-46010	NZE12#,ZZE122,124..4FC	04/2004 - 09/2006	1
84540-52010	CE121,NZE121,124,ZZE122,124..4FC ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84540-52010	09/2002 - 04/2004	1
89465 - SENSOR, OXYGEN
89465-52210	NZE124	12/2002 - 04/2004	1
89465-12610	NZE124,ZZE124	08/2000 - 09/2002	1
89465-52240	NZE124	09/2002 - 12/2002	1
89465-52210	NZE124	04/2004 - 09/2006	1
89465 - SENSOR, OXYGEN
89465-52210	NZE124	12/2002 - 04/2004	1
89465-12610	NZE124,ZZE124	08/2000 - 09/2002	1
89465-52240	NZE124	09/2002 - 12/2002	1
89465-52210	NZE124	04/2004 - 09/2006	1
89615 - SENSOR, KNOCK CONTROL
89615-52040	NZE12# TOYOTA	08/2000 - 09/2002	1
89615-12120	ZZE122,124	08/2000 - 09/2002	1
89615-52030	NZE12# DENSO	09/2002 - 09/2003	1
89615-52030	NZE12# DENSO	08/2000 - 09/2002	1
89615-52030	NZE12#	09/2003 - 04/2004	1
89615-20090	ZZE122,124..4FC	09/2002 - 04/2004	1
89615-52040	NZE12# TOYOTA	09/2002 - 09/2003	1
89615-52030	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
89615-20090	NZE121,ZZE122,124..4FC	04/2004 - 09/2006	1
Common parts
82715-2B320
90119-06922
90126-08046
90179-08153
91651-40620

ILLUST NO. 2 OF 7(0404-0609)

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82600F - FUSE, FUSE BLOCK
90982-09010	CE121,NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	08/2000 - 09/2002	1
90982-09007	CE121,NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	09/2002 - 04/2004	1
90982-09007	CE121,NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	08/2000 - 09/2002	1
90982-09009	CE121,NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	08/2000 - 09/2002	1
90982-09008	CE121,NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	08/2000 - 09/2002	1
90982-09008	CE121,NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	09/2002 - 04/2004	1
90982-09007	NZE12#,ZZE12# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	04/2004 - 09/2006	1
90982-09010	CE121,NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	09/2002 - 04/2004	1
90982-09008	NZE12#,ZZE12# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	04/2004 - 09/2006	1
90982-09013	NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	04/2004 - 09/2006	1
90982-09010	NZE12#,ZZE12# 15A,ﾐﾆﾋｭｰｽﾞ,青	04/2004 - 09/2006	1
90982-09009	NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	04/2004 - 09/2006	1
90982-09012	CE121,NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	09/2002 - 04/2004	1
90982-09012	NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	04/2004 - 09/2006	1
90982-09012	CE121,NZE12#,ZZE12# 25A,ﾐﾆﾋｭｰｽﾞ	08/2000 - 09/2002	1
90982-09013	CE121,NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	09/2002 - 04/2004	1
90982-09013	CE121,NZE12#,ZZE12# 30A,ﾐﾆﾋｭｰｽﾞ,緑	08/2000 - 09/2002	1
90982-09009	CE121,NZE12#,ZZE12# 10A,ﾐﾆﾋｭｰｽﾞ,赤	09/2002 - 04/2004	1
82616 - PULLER, FUSE
82616-20010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
82616-20010	NZE12#,ZZE12#	04/2004 - 09/2006	1
82616-20010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-12010	NZE124..X;NZE120,121,ZZE122,123 MARK P OR 1:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
82662-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
82662-12060	NZE124,ZZE124 MARK 3:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
82662-12060	NZE124..WG;NZE124,ZZE124..G,LXL,S MARK 3:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-13041	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER MARK H:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
82662-13041	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER MARK H:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
82662-13041	NZE121,124..SED..X	12/2004 - 09/2006	1
82662-12020	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
82663 - COVER, RELAY BLOCK, LOWER
82663-12010	NZE12#,ZZE12#	08/2000 - 09/2002	1
82663-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
82663-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-12040	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER NO.2	09/2002 - 04/2004	1
82663-12040	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
82663-12040	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
82663-12040	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-12020	NZE12#,ZZE12#	09/2002 - 04/2004	1
82741-12020	NZE12#,ZZE12#	08/2000 - 09/2002	1
82741-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82741-12050	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
82741-12050	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER NO.2	09/2002 - 04/2004	1
82741-12050	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
82741-12050	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
85916P - RELAY, HEADLAMP
90987-02025	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
90987-02025	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
90987-02025	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
90987-02025	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
85916U - RELAY, HEADLAMP, NO.2
90987-04010	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
90987-04010	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
90987-04010	NZE121,124..SED..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	12/2004 - 09/2006	1
90987-04010	NZE121,124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
85927 - RELAY, COOLING FAN
90080-87008	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87008	08/2000 - 09/2002	1
90987-02012	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012	08/2000 - 09/2001	1
90080-87021	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87021	09/2001 - 09/2002	1
90080-87010	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010	09/2002 - 04/2004	1
90080-87008	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87008	09/2002 - 04/2004	1
90987-02012	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012	10/2001 - 09/2002	1
90080-87020	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87020	09/2002 - 04/2004	1
90080-87010	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010	08/2000 - 09/2002	1
90080-87021	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87021	09/2002 - 04/2004	1
90987-02012	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012	09/2002 - 04/2004	1
90080-87020	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87020	09/2001 - 09/2002	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
85927A - RELAY, COOLING FAN, NO.2
90080-87009	NZE12#,ZZE12# 品番ﾗﾍﾞﾙ=90080−87009	08/2000 - 09/2002	1
90987-04004	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-04004	09/2002 - 04/2004	1
90987-04004	NZE12#,ZZE12# 品番ﾗﾍﾞﾙ=90987−04004	08/2000 - 09/2002	1
90987-04004	NZE12#,ZZE12#	04/2004 - 09/2006	1
90080-87009	NZE12#,ZZE12# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87009	09/2002 - 04/2004	1
85928B - RESISTOR, COOLING FAN
85928-12010	NZE12#,ZZE12#	08/2000 - 09/2002	1
85928-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
85928-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
85934 - RELAY, MAGNET-CLUTCH
90987-02020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
90987-02028	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
90987-02028	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
86530 - RELAY ASSY, HORN
90987-02020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
90987-02020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
89438 - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	ZZE122..5F;ZZE123,124	09/2002 - 04/2004	1
89438-33010	ZZE122..5F;ZZE123,124	04/2004 - 09/2006	1
89448A - SENSOR, POWER STEERING OIL PRESSURE
89448-51010	NZE124	08/2000 - 09/2002	1
89448-51010	NZE124	09/2002 - 04/2004	1
89448-51010	NZE124	04/2004 - 09/2006	1
Common parts
90179-06292
90301-11021
91631-J0612
91651-B0618
Linked diagrams
8202
8404
8414

ILLUST NO. 4 OF 7(0404-0609)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
84152 - SWITCH, HEADLAMP LEVELING
84152-12060	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
84152-12060	NZE12#	04/2004 - 09/2006	1
84152B - BULB (FOR HEADLAMP LEVELING SWITCH)
90010-08100	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER 14V 40MA,ｸﾞﾘｰﾝ	09/2002 - 04/2004	1
90010-08100	NZE12# 14V 40MA,ｸﾞﾘｰﾝ	04/2004 - 09/2006	1
84162 - SWITCH, FRONT FOG LAMP
84160-95D00	CE121,NZE12#,ZZE122,124..G,S,X DOP用	09/2002 - 04/2004	1
84160-95D00	CE121,NZE12#,ZZE122,124..G,S,X DOP用	08/2000 - 09/2002	1
84160-95D00	NZE12#,ZZE122,124..G,S,X DOP用	04/2004 - 09/2006	1
84162A - SWITCH, REAR FOG LAMP
84165-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
84165-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
84165-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
84162B - BULB, FOG LAMP SWITCH
84999-10320	CE121,NZE12#,ZZE122,124..G,S,X 14V 0.84W	08/2000 - 09/2002	1
84999-10320	NZE12#,ZZE122,124..G,S,X 14V 0.84W	04/2004 - 09/2006	1
84999-10320	CE121,NZE12#,ZZE122,124..G,S,X 14V 0.84W	09/2002 - 04/2004	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-12500	NZE12#..X ﾄｿｳｱﾘ(ｼﾙﾊﾞｰ) & ｱﾘ(ﾏﾆｭｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
84332-12440	CE121,NZE12#..X ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
84332-12440	NZE12#..SED..X ﾄｿｳｱﾘ(ﾌﾞﾗｯｸ) & ｱﾘ(ﾏﾆｭｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
84332-12440	ZZE122..5F;CE121,NZE12#,ZZE124..S,X ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10310	CE121,NZE12#,ZZE122,124..S,X 14V 0.91W,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
84999-10310	NZE12#..SED..X 14V 0.91W,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
84999-10310	CE121,NZE12#..X 14V 0.91W,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
84480 - SWITCH ASSY, MAIN
84480-12010	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
84480B - BULB, MAIN SWITCH ASSY
84999-10320	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER 14V 0.84W	04/2004 - 09/2006	1
90010-01108	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER 14V 0.56W	04/2004 - 09/2006	1
84480B - BULB, MAIN SWITCH ASSY
84999-10320	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER 14V 0.84W	04/2004 - 09/2006	1
90010-01108	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER 14V 0.56W	04/2004 - 09/2006	1
84656A - BEZEL, SWITCH
84656-12090A0	CE121,NZE12#..X IVORY,TRIM0#	08/2000 - 09/2002	1
84656-12100A0	CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),IVORY,TRIM0#	08/2000 - 09/2002	1
84656-12100B0	ZZE122,124..S ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),DK.GRAY,TRIM1#	08/2000 - 09/2002	1
84656-12090B1	CE121,NZE12#..SED..X STONE,TRIM1#	08/2000 - 09/2002	1
84656-12090B0	ZZE122,124..S DK.GRAY,TRIM1#	08/2000 - 09/2002	1
84656-12110A0	CE121,NZE12#..SED..X ﾅｼ(ｱｳﾀﾐﾗ- ｽｲﾂﾁ),IVORY,TRIM0#	08/2000 - 09/2002	1
84656-12090A0	CE121,NZE12#..X IVORY,TRIM0#	09/2002 - 04/2004	1
84656-12110B1	CE121,NZE12#..SED..X ﾅｼ(ｱｳﾀﾐﾗ- ｽｲﾂﾁ),STONE,TRIM1#	08/2000 - 09/2002	1
84656-12100A0	CE121,NZE12#..X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),IVORY,TRIM0#	09/2002 - 04/2004	1
84656-12100B1	CE121,NZE12#..SED..X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),STONE,TRIM1#	08/2000 - 09/2002	1
84656-12090B2	CE121,NZE12#..SED..X MD.GRAY,TRIM1#	09/2002 - 04/2004	1
84656-12100B2	CE121,NZE12#..SED..X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),MD.GRAY,TRIM1#	09/2002 - 04/2004	1
84656-12090B2	NZE12#..SED..X MD.GRAY,TRIM1#	04/2004 - 09/2006	1
84656-12090A0	NZE12#..X IVORY,TRIM0#	04/2004 - 09/2006	1
84656-12100B2	NZE12#,ZZE122,124..SED ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),MD.GRAY,TRIM1#	04/2004 - 09/2006	1
84656-12110B2	NZE12#..SED..X ﾅｼ(ｱｳﾀﾐﾗ- ｽｲﾂﾁ),MD.GRAY,TRIM1#	04/2004 - 09/2006	1
84656-12110B2	CE121,NZE12#..SED..X ﾅｼ(ｱｳﾀﾐﾗ- ｽｲﾂﾁ),MD.GRAY,TRIM1#	09/2002 - 04/2004	1
84656-12100A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-),IVORY,TRIM0#	04/2004 - 09/2006	1
84660C - SWITCH, COOLER
84660-12200	NZE12#..SED..X ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ(ASSISTA)	04/2004 - 09/2006	1
84660-12200	CE121,NZE12#..X ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
84660-12200	CE121,NZE12#,ZZE122,124..S,X ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
84660-12230	NZE12#..X	04/2004 - 09/2006	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
90010-01060	CE121,NZE12#,ZZE122,124..S,X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
90010-01060	CE121,NZE12#..X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
90010-01060	NZE12#..SED..X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
84870A - SWITCH ASSY, OUTER MIRROR
84872-52030	NZE12#..X	04/2004 - 09/2006	1
84872-52030	CE121,NZE12#,ZZE122,124..S,X	08/2000 - 09/2002	1
84872-52040	NZE12#,ZZE12# ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-)	04/2004 - 09/2006	1
84872-52040	CE121,NZE12#,ZZE122,124..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-)	08/2000 - 09/2002	1
84872-52040	CE121,NZE12#,ZZE122,124..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-)	09/2002 - 04/2004	1
84872-52030	CE121,NZE12#..X	09/2002 - 04/2004	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12240	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
85500-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
85500-12240	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
85500B - BULB, CIGARETTE LIGHTER
90010-01065	CE121,NZE12#,ZZE12# 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	09/2002 - 04/2004	1
90010-01065	NZE12#,ZZE12# 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	04/2004 - 09/2006	1
90010-01065	CE121,NZE12#,ZZE12# 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	08/2000 - 09/2002	1
85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER
85510-16040	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
85510-16040	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
85510-16040	NZE12#,ZZE12#	04/2004 - 09/2006	1
85513 - COVER, CIGARETTE LIGHTER
85513-28010	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2002 - 09/2002	1
85513-28010	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
85513-12020	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
85513-12020	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
85513-28010	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
85513-12020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
85513 - COVER, CIGARETTE LIGHTER
85513-28010	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2002 - 09/2002	1
85513-28010	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
85513-12020	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
85513-12020	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
85513-28010	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
85513-12020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-12110	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
85515-12110	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
85515-12110	NZE12#,ZZE12#	04/2004 - 09/2006	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	NZE12#,ZZE12#	04/2004 - 09/2006	1
85520-28010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
85520-28010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
88607C - LAMP SUB-ASSY, INDICATOR
90010-03044	CE121,NZE12#,ZZE122,124..S,X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
90010-03044	NZE12#..SED..X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
90010-03044	CE121,NZE12#..X 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
Linked diagrams
8302
8715

ILLUST NO. 7 OF 7(0404-0609)

Click highlighted areas on diagram

ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-12650	NZE124,ZZE124	09/2002 - 04/2004	1
83320-12650	NZE124,ZZE124	08/2000 - 09/2002	1
83320-12710	NZE124,ZZE124	04/2004 - 09/2006	1
83320 - GAGE ASSY, FUEL SENDER
83320-12650	NZE124,ZZE124	09/2002 - 04/2004	1
83320-12650	NZE124,ZZE124	08/2000 - 09/2002	1
83320-12710	NZE124,ZZE124	04/2004 - 09/2006	1
83320B - GAGE ASSY, FUEL SENDER, NO.2
83320-80388	NZE124,ZZE124	09/2002 - 04/2004	1
83320-80388	NZE124,ZZE124	08/2000 - 09/2002	1
83320-80414	NZE124,ZZE124	04/2004 - 09/2006	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84231-60070	NZE12#,ZZE12#	04/2004 - 09/2006	2
84231-60070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84231-60070	NZE12#,ZZE12#	04/2004 - 09/2006	2
84231-60070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-53010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84231-53010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84231-53010	NZE12#,ZZE12#	04/2004 - 09/2006	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-53010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84231-53010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84231-53010	NZE12#,ZZE12#	04/2004 - 09/2006	2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84030-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
84810-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
84030-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84030-12030	NZE12#,ZZE12#	04/2004 - 09/2006	2
84810-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84030-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84030-12030	NZE12#,ZZE12#	04/2004 - 09/2006	2
84810-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
84030-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84040-12070	CE121,NZE12#,ZZE12#	09/2002 - 11/2002	1
84820-12460	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
84040-12071	CE121,NZE12#,ZZE12#	11/2002 - 04/2004	1
84040-12071	NZE12#,ZZE12#	04/2004 - 09/2006	1
89407 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH
89407-12020	NZE124..SED..X HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
89408E - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH
89407-12020	NZE124..WG;NZE124,ZZE124..G,LXL,S	04/2004 - 09/2006	1
89407-12020	NZE124..SED..X	12/2004 - 09/2006	1
Common parts
48966-68010
90109-06296
90164-40103
91631-B0820
91651-B0616
93269-15008
93319-A4010
94150-10641

NZE124-AEPNK (2000)

ILLUST NO. 2 OF 7(0008-0404)

ILLUST NO. 3 OF 7(0008-0609)

ILLUST NO. 4 OF 7(0008-0404)

ILLUST NO. 5 OF 7(0008-0609)

ILLUST NO. 7 OF 7(0008-0404)

ILLUST NO. 1 OF 7(0008-0609)NZE12#

ILLUST NO. 1 OF 7(0008-0209)ZZE122,124 ; (0209-0609)ZZE122..5F

ILLUST NO. 1 OF 7(0209-0609)ZZE122,124..4FC

ILLUST NO. 2 OF 7(0404-0609)

ILLUST NO. 4 OF 7(0404-0609)

ILLUST NO. 7 OF 7(0404-0609)

Part Price Details
