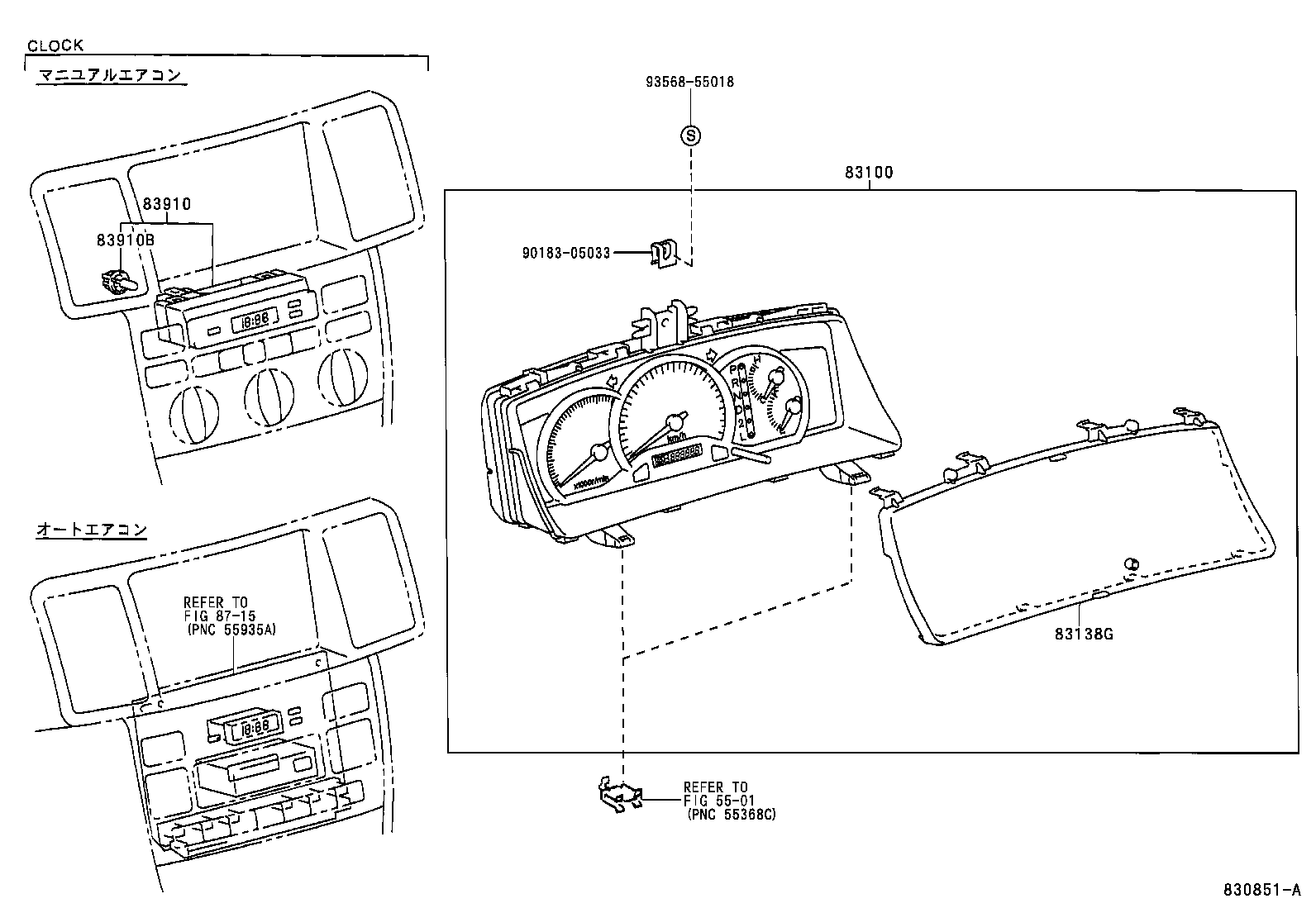

Toyota Corolla/fielder NZE124 METER

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83800-1E730	ZZE122,124..4FC DENSO	08/2000 - 09/2002	1
83800-1H030	NZE12#..SED..4FC..X DENSO	08/2000 - 09/2002	1
83800-12A90	NZE121,124..SED..4FC..X DENSO,HIDｾﾚｸｼﾖﾝ *(K)	09/2004 - 11/2004	1
83800-1H760	NZE12#..SED..4FC..X DENSO	09/2002 - 04/2004	1
83800-1K050	ZZE122,124..4FC..S DENSO,ｱﾘ(15 ｲﾝﾁﾃﾞｲｽｸﾎｲ-ﾙ)	09/2002 - 04/2004	1
83800-12B20	NZE12#..SED..4FC..X DENSO	04/2004 - 09/2006	1
83800-1H510	ZZE122,124..4FC DENSO	09/2002 - 04/2004	1
83800-12A40	ZZE122,124..4FC DENSO	04/2004 - 09/2006	1
83800-12A90	NZE121,124..SED..4FC..X DENSO,HIDｾﾚｸｼﾖﾝ	12/2004 - 09/2006	1
83800-12A90	NZE121,124..SED..4FC..X DENSO,HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M)	12/2005 - 09/2006	1
83138G - GLASS, COMBINATION METER
83852-1E760	CE121,NZE12#	09/2002 - 04/2004	1
83852-1E760	CE121,NZE12#	08/2000 - 09/2002	1
83852-12A70	NZE12#	04/2004 - 09/2006	1
83910 - CLOCK ASSY
83910-12560	CE121,NZE12#,ZZE122,124..S,X ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
83910-12560	CE121,NZE12#,ZZE122,124..S,X ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
83910-12560	NZE12#..X ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
83910B - BULB, CLOCK INDICATOR
90010-07018	CE121,NZE12#,ZZE122,124..S,X 14V 1.12W,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/2002 - 04/2004	1
90010-07018	NZE12#..X 14V 1.12W,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	04/2004 - 09/2006	1
90010-07018	CE121,NZE12#,ZZE122,124..S,X 14V 1.12W,ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	08/2000 - 09/2002	1
Common parts
90183-05033
93568-55018
Linked diagrams
5501
8715

NZE124-AEPNK (2000)

(0008- )CE121,NZE12#
