Toyota Corolla/fielder NZE124 FOG LAMP

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

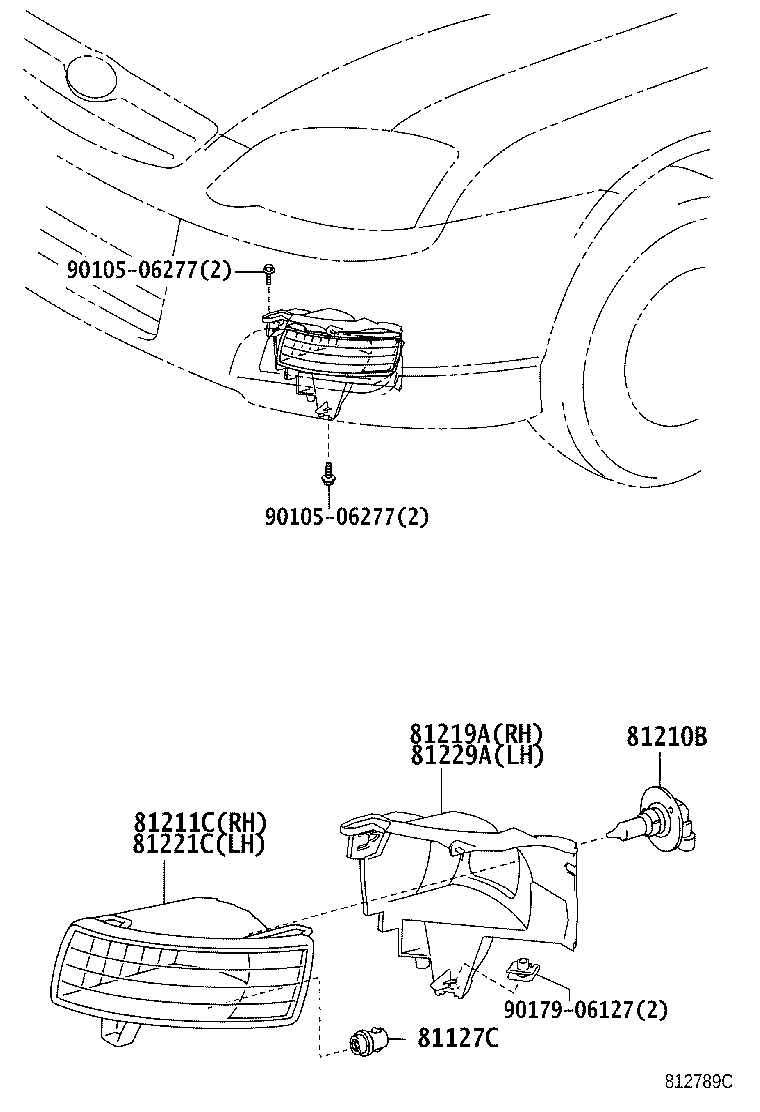

Click highlighted areas on diagram

Part #	Description	Period	Qty
81127C - BEARING FOG LAMP
90075-10811	NZE12#,ZZE12#	04/2004 - 12/2999	2
90075-10811	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90075-10811	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
81210B - BULB, FOG LAMP
90981-13047	CE121,NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	09/2002 - 04/2004	2
90981-13047	CE121,NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	08/2000 - 09/2002	2
90981-13047	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	04/2004 - 09/2006	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
81211-12180	ZZE122,124;CE121,NZE121,124,ZZE123..WG	09/2002 - 04/2004	1
81211-12180	NZE12#,ZZE12#	04/2004 - 12/2999	1
81211-12150	CE121,NZE12#..SED	09/2002 - 04/2004	1
81219A - BRACKET, FOG LAMP, RH
81219-12220	NZE12#,ZZE12#	04/2004 - 12/2999	1
81219-12180	ZZE122,124;CE121,NZE121,124,ZZE123..WG	09/2002 - 04/2004	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-12180	NZE12#,ZZE12#	04/2004 - 12/2999	1
81221-12180	ZZE122,124;CE121,NZE121,124,ZZE123..WG	09/2002 - 04/2004	1
81221-12160	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
81221-12160	CE121,NZE12#..SED	09/2002 - 04/2004	1
81229A - BRACKET, FOG LAMP, LH
81229-12180	ZZE122,124;CE121,NZE121,124,ZZE123..WG	09/2002 - 04/2004	1
81229-12140	NZE12#,ZZE12#	04/2004 - 12/2999	1
Common parts
90105-06277
90179-06127

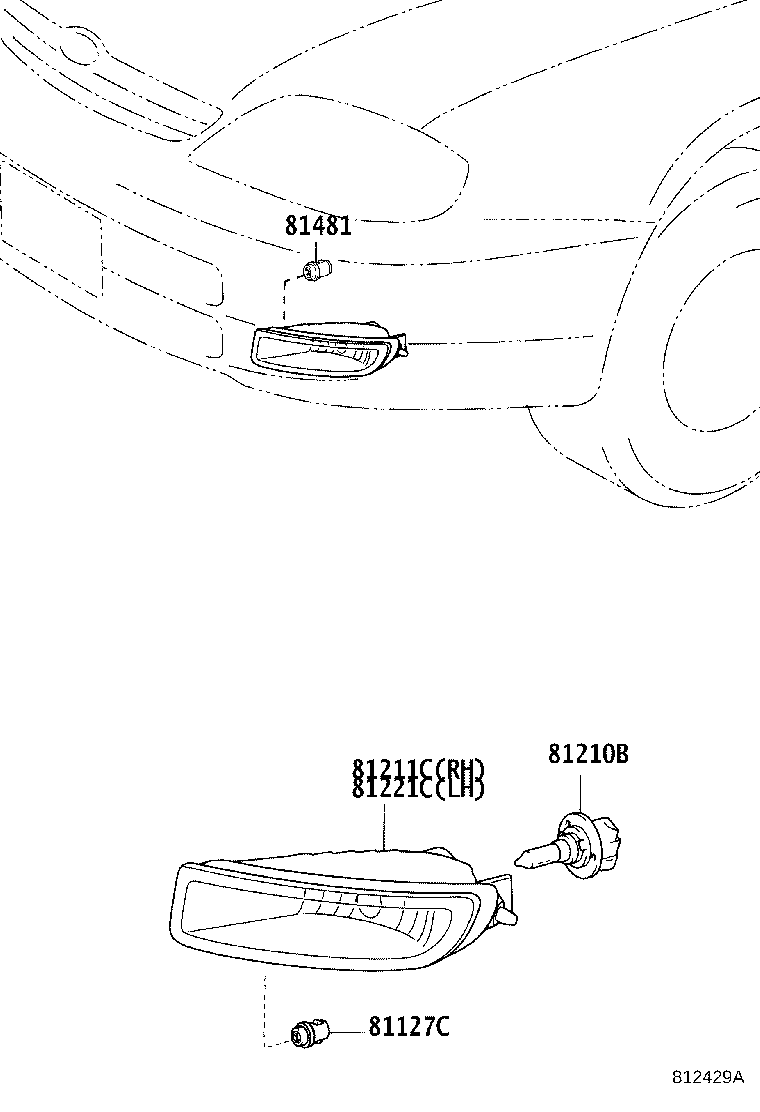

Click highlighted areas on diagram

Part #	Description	Period	Qty
81127C - BEARING FOG LAMP
90075-10811	NZE12#,ZZE12#	04/2004 - 12/2999	2
90075-10811	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90075-10811	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
81210B - BULB, FOG LAMP
90981-13047	CE121,NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	09/2002 - 04/2004	2
90981-13047	CE121,NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	08/2000 - 09/2002	2
90981-13047	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	04/2004 - 09/2006	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
81211-12180	ZZE122,124;CE121,NZE121,124,ZZE123..WG	09/2002 - 04/2004	1
81211-12180	NZE12#,ZZE12#	04/2004 - 12/2999	1
81211-12150	CE121,NZE12#..SED	09/2002 - 04/2004	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-12180	NZE12#,ZZE12#	04/2004 - 12/2999	1
81221-12180	ZZE122,124;CE121,NZE121,124,ZZE123..WG	09/2002 - 04/2004	1
81221-12160	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
81221-12160	CE121,NZE12#..SED	09/2002 - 04/2004	1
81481 - BRACKET, FOG LAMP
81481-10030	CE121,NZE12#..SED	09/2002 - 04/2004	2
81481-10030	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2

Click highlighted areas on diagram

Part #	Description	Period	Qty
81127C - BEARING FOG LAMP
90075-10811	NZE12#,ZZE12#	04/2004 - 12/2999	2
90075-10811	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90075-10811	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
81210B - BULB, FOG LAMP
90981-13047	CE121,NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	09/2002 - 04/2004	2
90981-13047	CE121,NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	08/2000 - 09/2002	2
90981-13047	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	04/2004 - 09/2006	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
81211-12180	ZZE122,124;CE121,NZE121,124,ZZE123..WG	09/2002 - 04/2004	1
81211-12180	NZE12#,ZZE12#	04/2004 - 12/2999	1
81211-12150	CE121,NZE12#..SED	09/2002 - 04/2004	1
81219A - BRACKET, FOG LAMP, RH
81219-12220	NZE12#,ZZE12#	04/2004 - 12/2999	1
81219-12180	ZZE122,124;CE121,NZE121,124,ZZE123..WG	09/2002 - 04/2004	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-12180	NZE12#,ZZE12#	04/2004 - 12/2999	1
81221-12180	ZZE122,124;CE121,NZE121,124,ZZE123..WG	09/2002 - 04/2004	1
81221-12160	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
81221-12160	CE121,NZE12#..SED	09/2002 - 04/2004	1
81229A - BRACKET, FOG LAMP, LH
81229-12180	ZZE122,124;CE121,NZE121,124,ZZE123..WG	09/2002 - 04/2004	1
81229-12140	NZE12#,ZZE12#	04/2004 - 12/2999	1
Common parts
90105-06277
90179-06127
