Toyota Corolla/fielder NZE124 ACCELERATOR LINK

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

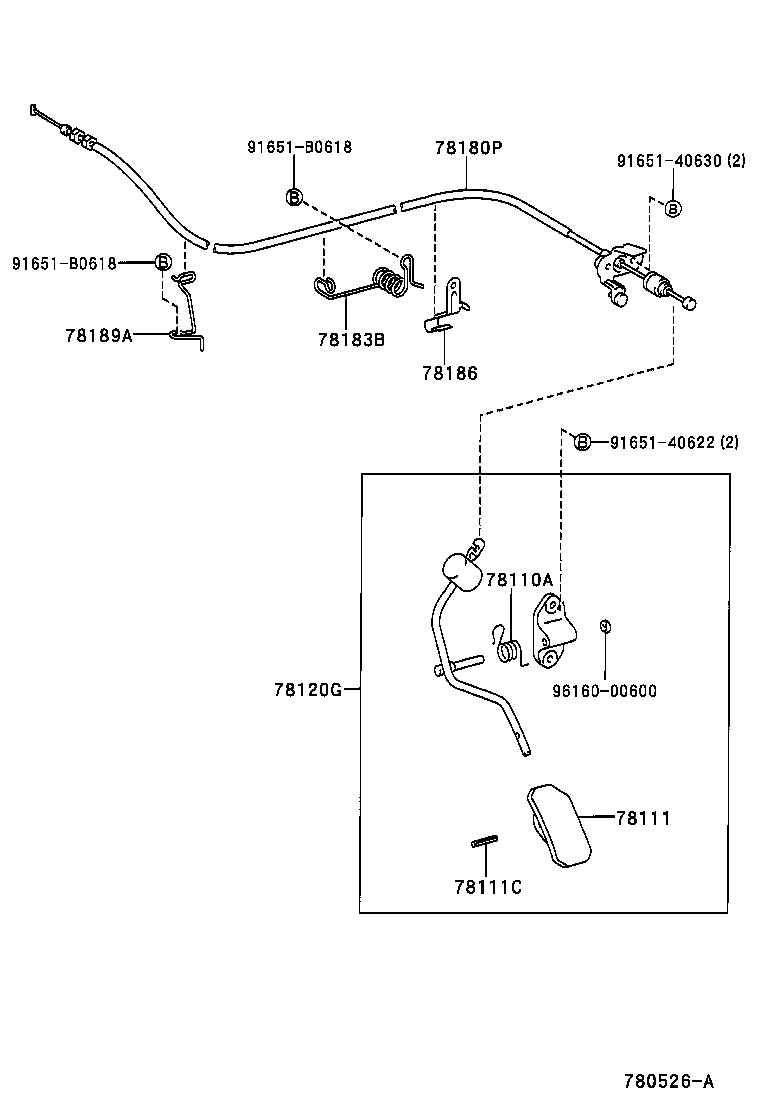

(0008-0404)NZE12# ; (0404- )NZE120,124 ; (0404- )NZE121..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03307	NZE12#,ZZE12#	09/2002 - 04/2004	1
90959-03307	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
90959-03307	NZE12#,ZZE12#	08/2000 - 09/2002	1
78111 - PEDAL, ACCELERATOR
78111-32020	NZE12#,ZZE12#	08/2000 - 09/2002	1
78111-32020	NZE12#,ZZE12#	04/2004 - 09/2006	1
78111-32020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019	NZE12#,ZZE12#	08/2000 - 09/2002	1
90254-04019	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
90254-04019	NZE12#,ZZE12#	04/2004 - 09/2006	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12290	NZE12#	08/2000 - 09/2002	1
78120-12290	NZE12#	09/2002 - 04/2004	1
78120-12290	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-13080	NZE12#	08/2000 - 09/2002	1
78180-13050	ZZE122,124	11/2001 - 09/2002	1
78180-1A752	ZZE122,124	10/2005 - 09/2006	1
78180-13080	NZE12#	09/2002 - 11/2002	1
78180-13050	ZZE122,124	09/2002 - 12/2002	1
78180-1A751	ZZE122,124	04/2004 - 09/2005	1
78180-1A721	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
78180-1A751	ZZE122,124	08/2000 - 11/2001	1
78180-1A711	NZE12#	12/2002 - 04/2004	1
78180-1A751	ZZE122,124	12/2002 - 04/2004	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12240	NZE12#,ZZE12#	08/2000 - 09/2002	1
78183-12240	NZE12#,ZZE12#	09/2002 - 02/2003	1
78183-13010	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	02/2003 - 04/2004	1
78183-12240	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	02/2003 - 04/2004	1
78183-13010	NZE121..5F;NZE120,124,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12370	NZE12#,ZZE12#	09/2002 - 04/2004	1
78186-12370	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
78186-12370	NZE12#,ZZE12#	08/2000 - 09/2002	1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12100	NZE12#,ZZE12#	08/2000 - 09/2002	1
78189-12100	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
78189-12100	NZE12#,ZZE12#	09/2002 - 04/2004	1
Common parts
91651-40622
91651-40630
91651-B0618
96160-00600

(0008- )ZZE122,124

Click highlighted areas on diagram

Part #	Description	Period	Qty
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03307	NZE12#,ZZE12#	09/2002 - 04/2004	1
90959-03307	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
90959-03307	NZE12#,ZZE12#	08/2000 - 09/2002	1
78111 - PEDAL, ACCELERATOR
78111-32020	NZE12#,ZZE12#	08/2000 - 09/2002	1
78111-32020	NZE12#,ZZE12#	04/2004 - 09/2006	1
78111-32020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019	NZE12#,ZZE12#	08/2000 - 09/2002	1
90254-04019	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
90254-04019	NZE12#,ZZE12#	04/2004 - 09/2006	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12290	NZE12#	08/2000 - 09/2002	1
78120-12290	NZE12#	09/2002 - 04/2004	1
78120-12290	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-13080	NZE12#	08/2000 - 09/2002	1
78180-13050	ZZE122,124	11/2001 - 09/2002	1
78180-1A752	ZZE122,124	10/2005 - 09/2006	1
78180-13080	NZE12#	09/2002 - 11/2002	1
78180-13050	ZZE122,124	09/2002 - 12/2002	1
78180-1A751	ZZE122,124	04/2004 - 09/2005	1
78180-1A721	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
78180-1A751	ZZE122,124	08/2000 - 11/2001	1
78180-1A711	NZE12#	12/2002 - 04/2004	1
78180-1A751	ZZE122,124	12/2002 - 04/2004	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12240	NZE12#,ZZE12#	08/2000 - 09/2002	1
78183-12240	NZE12#,ZZE12#	09/2002 - 02/2003	1
78183-13010	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	02/2003 - 04/2004	1
78183-12240	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	02/2003 - 04/2004	1
78183-13010	NZE121..5F;NZE120,124,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12360	ZZE122,124	09/2002 - 04/2004	1
78184-12360	ZZE122,124	04/2004 - 09/2006	1
78184-12360	ZZE122,124	08/2000 - 09/2002	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12370	NZE12#,ZZE12#	09/2002 - 04/2004	1
78186-12370	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
78186-12370	NZE12#,ZZE12#	08/2000 - 09/2002	1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12100	NZE12#,ZZE12#	08/2000 - 09/2002	1
78189-12100	NZE121..5F;NZE120,124,ZZE12#	04/2004 - 09/2006	1
78189-12100	NZE12#,ZZE12#	09/2002 - 04/2004	1
Common parts
91641-C0614
91651-40622
91651-40630
91651-B0618
96160-00600
