Toyota Corolla/fielder NZE124 FUEL TANK & TUBE

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

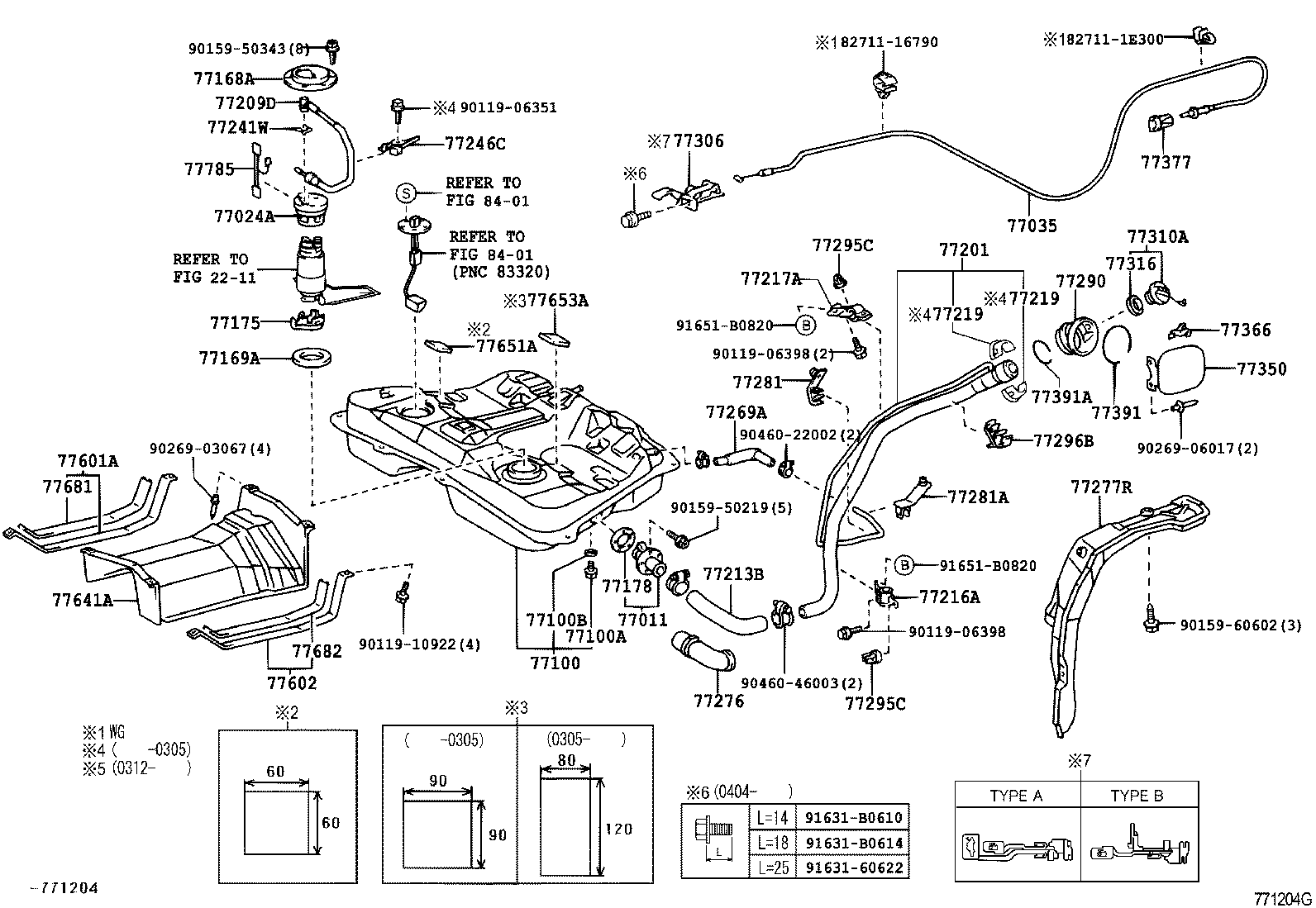

ILLUST NO. 1 OF 2(0008-0209)NZE124,ZZE124

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-63010	NZE124,ZZE124	08/2000 - 09/2002	1
77011-63010	NZE124,ZZE124	04/2004 - 09/2006	1
77011-63010	NZE124,ZZE124	09/2002 - 04/2004	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-30070	NZE124,ZZE124	09/2002 - 04/2004	1
77024-30070	NZE124,ZZE124	12/2005 - 09/2006	1
77024-30070	NZE124,ZZE124	04/2004 - 12/2005	1
77024-30070	NZE124,ZZE124	08/2000 - 09/2002	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-12400	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
77035-12400	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
77035-12400	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
77100 - TANK ASSY, FUEL
77001-12840	NZE124,ZZE124	08/2000 - 09/2002	1
77001-12840	NZE124,ZZE124	04/2004 - 11/2005	1
77001-12840	NZE124,ZZE124	09/2002 - 04/2004	1
77001-12A70	NZE124,ZZE124	12/2005 - 09/2006	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	NZE124,ZZE124	08/2000 - 09/2002	1
90105-12116	NZE124,ZZE124	09/2002 - 04/2004	1
90105-12116	NZE124,ZZE124	04/2004 - 09/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	NZE124,ZZE124	08/2000 - 09/2002	1
90430-12245	NZE124,ZZE124	04/2004 - 09/2006	1
90430-12245	NZE124,ZZE124	09/2002 - 04/2004	1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-33050	NZE124,ZZE124	04/2004 - 12/2005	1
77168-33050	NZE124,ZZE124	09/2002 - 04/2004	1
77168-33050	NZE124,ZZE124	12/2005 - 09/2006	1
77168-33050	NZE124,ZZE124	08/2000 - 09/2002	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-33020	NZE124,ZZE124	12/2005 - 09/2006	1
77169-33020	NZE124,ZZE124	04/2004 - 12/2005	1
77169-33020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77169-33020	NZE124,ZZE124	08/2000 - 09/2002	1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-30050	NZE124,ZZE124	09/2002 - 04/2004	1
77175-30050	NZE124,ZZE124	12/2005 - 09/2006	1
77175-30050	NZE124,ZZE124	08/2000 - 09/2002	1
77175-30050	NZE124,ZZE124	04/2004 - 12/2005	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030	NZE124,ZZE124	08/2000 - 09/2002	1
77178-20030	NZE124,ZZE124	04/2004 - 09/2006	1
77178-20030	NZE124,ZZE124	09/2002 - 04/2004	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-12580	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77201-12580	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77201-12591	NZE12#,ZZE12#	04/2004 - 09/2006	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-12170	NZE124,ZZE124	09/2002 - 04/2004	1
77209-12170	NZE124,ZZE124	04/2004 - 12/2005	1
77209-12170	NZE124,ZZE124	08/2000 - 09/2002	1
77209-12170	NZE124,ZZE124	12/2005 - 09/2006	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-63010	NZE124,ZZE124	04/2004 - 09/2006	1
77213-63010	NZE124,ZZE124	09/2002 - 04/2004	1
77213-63010	NZE124,ZZE124	08/2000 - 09/2002	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-32060	NZE12#,ZZE12#	04/2004 - 09/2006	1
77216-32060	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77216-32060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-32050	NZE12#,ZZE12#	04/2004 - 09/2006	1
77217-32050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77217-32050	CE121,NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ	08/2000 - 09/2002	1
77241W - CLIP, TUBE JOINT
77241-33011	NZE124,ZZE124	08/2000 - 09/2002	1
77241-33011	NZE124,ZZE124	12/2005 - 09/2006	1
77241-33011	NZE12#,ZZE12#	09/2002 - 04/2004	1
77241-33011	NZE124,ZZE124	04/2004 - 12/2005	1
77246C - SUPPORT, FUEL MAIN TUBE
77246-21010	NZE124,ZZE124	05/2003 - 04/2004	1
77246-63010	NZE124,ZZE124	08/2000 - 09/2002	1
77246-63010	NZE124,ZZE124	09/2002 - 05/2003	1
77246-21010	NZE124,ZZE124	04/2004 - 09/2006	1
77269A - HOSE, FUEL TANK BREATHER
77269-32010	NZE124,ZZE124	04/2004 - 09/2006	1
77269-32010	NZE124,ZZE124	08/2000 - 09/2002	1
77269-32010	NZE124,ZZE124	09/2002 - 04/2004	1
77276 - PROTECTOR, FUEL HOSE
77276-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
77276-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77276-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-12170	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77277-12170	NZE12#,ZZE12#	04/2004 - 09/2006	1
77277-12170	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-32040	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77281-32040	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77281-32040	NZE12#,ZZE12#	04/2004 - 09/2006	1
77281A - CLAMP, FUEL FILLER PIPE
77281-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
77281-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77281-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77291-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
77291-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77295C - GROMMET, FUEL TUBE
77295-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
77295-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
77295-12070	NZE12#,ZZE12#	04/2004 - 09/2006	2
77295C - GROMMET, FUEL TUBE
77295-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
77295-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
77295-12070	NZE12#,ZZE12#	04/2004 - 09/2006	2
77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1
77296-12030	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77296-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
77296-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
64606-12060	CE121,NZE12#,ZZE122,124..SED TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
64606-12060	NZE12#,ZZE122,124..SED TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
64606-12060	CE121,NZE12#,ZZE122,124..SED TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
77310A - CAP ASSY, FUEL TANK
77310-48010	NZE12#,ZZE12#	04/2004 - 09/2006	1
77310-48010	NZE12#,ZZE12#	08/2000 - 09/2002	1
77310-48010	NZE12#,ZZE12#	09/2002 - 04/2004	1
77316 - GASKET, FUEL TANK CAP
77316-16010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77316-16010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77316-16010	NZE12#,ZZE12#	04/2004 - 09/2006	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-12440	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
77350-12440	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
77350-12440	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30080	NZE12#,ZZE12#	04/2004 - 09/2006	1
77360-30080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77360-30080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
77377-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77377-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77391 - RING, FUEL INLET BOX
77391-12040	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77391-12040	NZE12#,ZZE12#	04/2004 - 09/2006	1
77391-12040	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77391A - RING, FUEL INLET BOX
77391-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77391-12020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77391-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-12240	NZE124,ZZE124	09/2002 - 04/2004	1
77601-12240	NZE124,ZZE124	08/2000 - 09/2002	1
77601-12240	NZE124,ZZE124	04/2004 - 09/2006	1
77602 - CASE SUB-ASSY, FUEL TANK, UPPER
77601-12240	NZE124,ZZE124	04/2004 - 09/2006	1
77601-12240	NZE124,ZZE124	08/2000 - 09/2002	1
77601-12240	NZE124,ZZE124	09/2002 - 04/2004	1
77641A - PROTECTOR, FUEL TANK, NO.1
77606-32040	NZE124,ZZE124	09/2002 - 04/2004	1
77606-32040	NZE124,ZZE124	08/2000 - 09/2002	1
77606-32040	NZE124,ZZE124	04/2004 - 09/2006	1
77651A - CUSHION, FUEL TANK, NO.1
77651-20090	NZE124,ZZE124	08/2000 - 09/2002	6
77651-20090	NZE124,ZZE124	05/2003 - 04/2004	5
77651-20090	NZE124,ZZE124	04/2004 - 11/2005	5
77651-20090	NZE124,ZZE124	09/2002 - 05/2003	6
77651-20090	NZE124,ZZE124	12/2005 - 09/2006	5
77653A - CUSHION, FUEL TANK, NO.3
77653-60060	NZE124,ZZE124	04/2004 - 11/2005	2
77653-60060	NZE124,ZZE124	05/2003 - 04/2004	2
77653-60020	NZE124,ZZE124	09/2002 - 05/2003	1
77653-60060	NZE124,ZZE124	12/2005 - 09/2006	2
77653-60020	NZE124,ZZE124	08/2000 - 09/2002	1
77681 - SEAT, FUEL TANK BAND, RH
77682-16010	NZE124,ZZE124	09/2002 - 04/2004	1
77682-16010	NZE124,ZZE124	04/2004 - 12/2999	1
77682-16010	NZE124,ZZE124	08/2000 - 09/2002	1
77682 - SEAT, FUEL TANK BAND, LH
77682-16010	NZE124,ZZE124	08/2000 - 09/2002	1
77682-16010	NZE124,ZZE124	04/2004 - 09/2006	2
77682-16010	NZE124,ZZE124	09/2002 - 04/2004	1
77785 - HARNESS, FUEL PUMP
77785-52020	NZE124,ZZE124	08/2000 - 09/2002	1
77785-52020	NZE124,ZZE124	12/2005 - 09/2006	1
77785-52020	NZE12#,ZZE12#	09/2002 - 04/2004	1
77785-52020	NZE124,ZZE124	04/2004 - 12/2005	1
Common parts
82711-16790
82711-1E300
90119-06351
90119-06398
90119-10922
90159-50219
90159-50343
90159-60602
90269-03067
90269-06017
90460-22002
90460-46003
91631-B0610
91651-B0820
93319-A4010
Linked diagrams
2211
8401

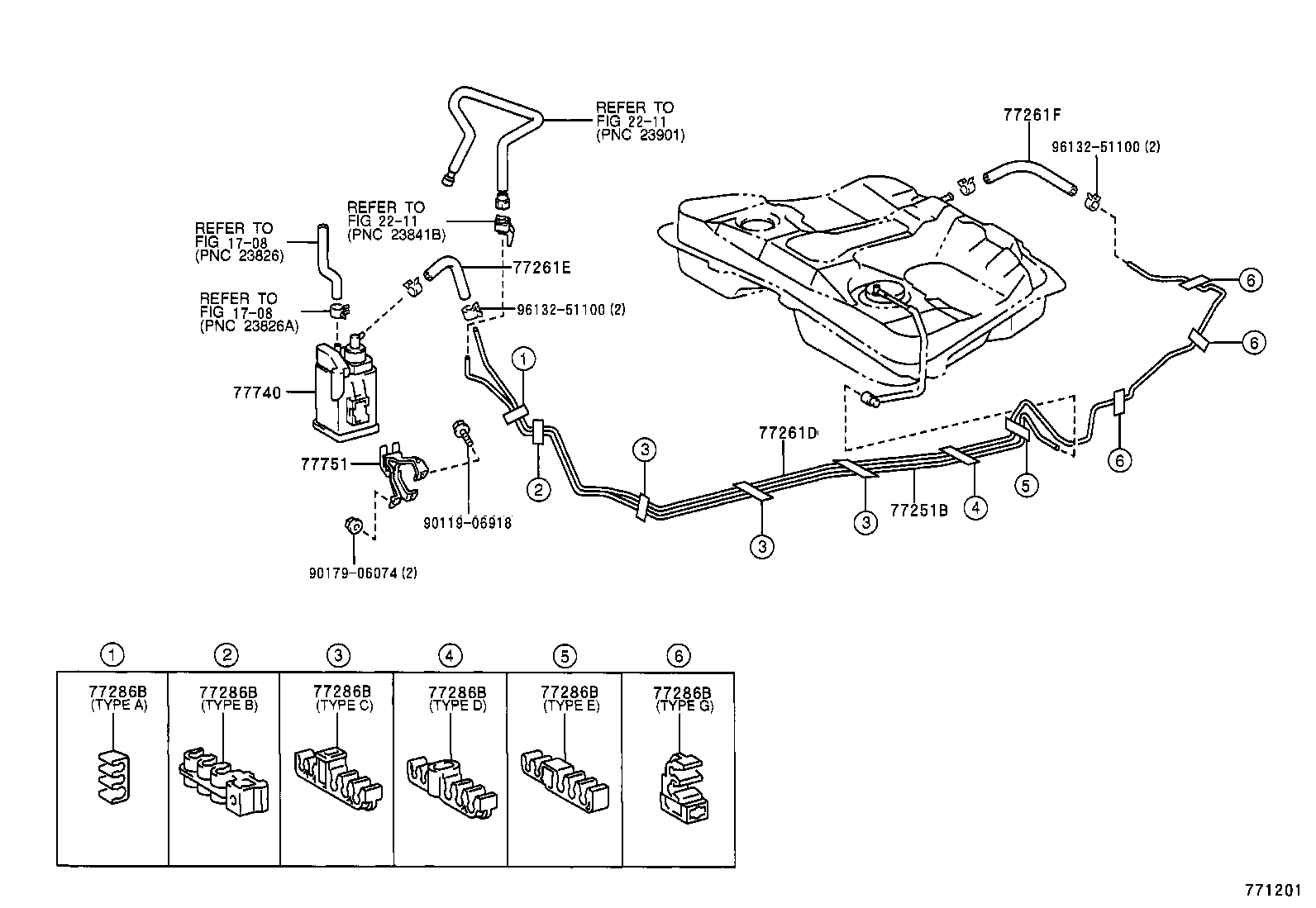

ILLUST NO. 2 OF 2(0008- )NZE124,ZZE124

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-12670	NZE124,ZZE124	08/2000 - 09/2002	1
77251-12670	NZE124,ZZE124	04/2004 - 09/2006	1
77251-12670	NZE124,ZZE124	09/2002 - 04/2004	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12450	NZE124,ZZE124	08/2000 - 09/2002	1
77261-12450	NZE124,ZZE124	09/2002 - 04/2004	1
77261-12450	NZE124,ZZE124	04/2004 - 09/2006	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95337-06013	NZE12#,ZZE12# 長さ=130	09/2002 - 04/2004	1
95337-06013	NZE12#,ZZE12# 長さ=130	04/2004 - 09/2006	1
95337-06013	NZE12#,ZZE12# 長さ=130	08/2000 - 09/2002	1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95337-06018	NZE124,ZZE124 長さ=180	09/2002 - 04/2004	1
95337-06018	NZE124,ZZE124 長さ=180	04/2004 - 09/2006	1
95337-06018	NZE124,ZZE124 長さ=180	08/2000 - 09/2002	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-12060	CE121,NZE12#,ZZE12# TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77289-20060	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77298-12060	NZE124,ZZE124 TYPE E:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-12100	NZE124,ZZE124 TYPE D:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	CE121,NZE12#,ZZE12# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286-47020	NZE124,ZZE124 TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	NZE124,ZZE124 TYPE C:ｲﾗｽﾄ参照	09/2002 - 04/2004	3
77298-12100	CE121,NZE12#,ZZE12# TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77289-20060	NZE124,ZZE124 TYPE B:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-12060	CE121,NZE12#,ZZE12# TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77289-20060	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77298-12060	NZE124,ZZE124 TYPE E:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-12100	NZE124,ZZE124 TYPE D:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	CE121,NZE12#,ZZE12# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286-47020	NZE124,ZZE124 TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	NZE124,ZZE124 TYPE C:ｲﾗｽﾄ参照	09/2002 - 04/2004	3
77298-12100	CE121,NZE12#,ZZE12# TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77289-20060	NZE124,ZZE124 TYPE B:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-12060	CE121,NZE12#,ZZE12# TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77289-20060	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77298-12060	NZE124,ZZE124 TYPE E:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-12100	NZE124,ZZE124 TYPE D:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	CE121,NZE12#,ZZE12# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286-47020	NZE124,ZZE124 TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	NZE124,ZZE124 TYPE C:ｲﾗｽﾄ参照	09/2002 - 04/2004	3
77298-12100	CE121,NZE12#,ZZE12# TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77289-20060	NZE124,ZZE124 TYPE B:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-12060	CE121,NZE12#,ZZE12# TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77289-20060	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77298-12060	NZE124,ZZE124 TYPE E:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-12100	NZE124,ZZE124 TYPE D:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	CE121,NZE12#,ZZE12# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286-47020	NZE124,ZZE124 TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	NZE124,ZZE124 TYPE C:ｲﾗｽﾄ参照	09/2002 - 04/2004	3
77298-12100	CE121,NZE12#,ZZE12# TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77289-20060	NZE124,ZZE124 TYPE B:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-12060	CE121,NZE12#,ZZE12# TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77289-20060	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77298-12060	NZE124,ZZE124 TYPE E:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-12100	NZE124,ZZE124 TYPE D:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	CE121,NZE12#,ZZE12# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286-47020	NZE124,ZZE124 TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	NZE124,ZZE124 TYPE C:ｲﾗｽﾄ参照	09/2002 - 04/2004	3
77298-12100	CE121,NZE12#,ZZE12# TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77289-20060	NZE124,ZZE124 TYPE B:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-12060	CE121,NZE12#,ZZE12# TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77289-20060	CE121,NZE12#,ZZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77298-12060	NZE124,ZZE124 TYPE E:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-12100	NZE124,ZZE124 TYPE D:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	CE121,NZE12#,ZZE12# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	3
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286-47020	NZE124,ZZE124 TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77298-20080	NZE124,ZZE124 TYPE C:ｲﾗｽﾄ参照	09/2002 - 04/2004	3
77298-12100	CE121,NZE12#,ZZE12# TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77289-20060	NZE124,ZZE124 TYPE B:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
77299-32030	NZE124,ZZE124 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77740 - CANISTER ASSY, CHARCOAL
77740-12690	NZE12#,ZZE12#	04/2004 - 09/2004	1
77740-12710	NZE12#,ZZE12#	10/2004 - 09/2006	1
77740-12690	NZE12#,ZZE12#	08/2000 - 09/2002	1
77740-12690	NZE12#,ZZE12#	09/2002 - 04/2004	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77705-12110	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	1
77705-12110	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
77705-12110	NZE12#,ZZE12#..4FC	08/2000 - 09/2002	1
Common parts
90119-06918
90179-06074
96132-51100
Linked diagrams
1708
2211

ILLUST NO. 1 OF 2(0209- )NZE124,ZZE124

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-63010	NZE124,ZZE124	08/2000 - 09/2002	1
77011-63010	NZE124,ZZE124	04/2004 - 09/2006	1
77011-63010	NZE124,ZZE124	09/2002 - 04/2004	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-30070	NZE124,ZZE124	09/2002 - 04/2004	1
77024-30070	NZE124,ZZE124	12/2005 - 09/2006	1
77024-30070	NZE124,ZZE124	04/2004 - 12/2005	1
77024-30070	NZE124,ZZE124	08/2000 - 09/2002	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-12400	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
77035-12400	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
77035-12400	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
77100 - TANK ASSY, FUEL
77001-12840	NZE124,ZZE124	08/2000 - 09/2002	1
77001-12840	NZE124,ZZE124	04/2004 - 11/2005	1
77001-12840	NZE124,ZZE124	09/2002 - 04/2004	1
77001-12A70	NZE124,ZZE124	12/2005 - 09/2006	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	NZE124,ZZE124	08/2000 - 09/2002	1
90105-12116	NZE124,ZZE124	09/2002 - 04/2004	1
90105-12116	NZE124,ZZE124	04/2004 - 09/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	NZE124,ZZE124	08/2000 - 09/2002	1
90430-12245	NZE124,ZZE124	04/2004 - 09/2006	1
90430-12245	NZE124,ZZE124	09/2002 - 04/2004	1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-33050	NZE124,ZZE124	04/2004 - 12/2005	1
77168-33050	NZE124,ZZE124	09/2002 - 04/2004	1
77168-33050	NZE124,ZZE124	12/2005 - 09/2006	1
77168-33050	NZE124,ZZE124	08/2000 - 09/2002	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-33020	NZE124,ZZE124	12/2005 - 09/2006	1
77169-33020	NZE124,ZZE124	04/2004 - 12/2005	1
77169-33020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77169-33020	NZE124,ZZE124	08/2000 - 09/2002	1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-30050	NZE124,ZZE124	09/2002 - 04/2004	1
77175-30050	NZE124,ZZE124	12/2005 - 09/2006	1
77175-30050	NZE124,ZZE124	08/2000 - 09/2002	1
77175-30050	NZE124,ZZE124	04/2004 - 12/2005	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030	NZE124,ZZE124	08/2000 - 09/2002	1
77178-20030	NZE124,ZZE124	04/2004 - 09/2006	1
77178-20030	NZE124,ZZE124	09/2002 - 04/2004	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-12580	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77201-12580	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77201-12591	NZE12#,ZZE12#	04/2004 - 09/2006	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-12170	NZE124,ZZE124	09/2002 - 04/2004	1
77209-12170	NZE124,ZZE124	04/2004 - 12/2005	1
77209-12170	NZE124,ZZE124	08/2000 - 09/2002	1
77209-12170	NZE124,ZZE124	12/2005 - 09/2006	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-63010	NZE124,ZZE124	04/2004 - 09/2006	1
77213-63010	NZE124,ZZE124	09/2002 - 04/2004	1
77213-63010	NZE124,ZZE124	08/2000 - 09/2002	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-32060	NZE12#,ZZE12#	04/2004 - 09/2006	1
77216-32060	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77216-32060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-32050	NZE12#,ZZE12#	04/2004 - 09/2006	1
77217-32050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77217-32050	CE121,NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ	08/2000 - 09/2002	1
77219 - COVER, FUEL TANK FILLER PIPE
77219-52050	CE121,NZE12#,ZZE12#	12/2003 - 04/2004	2
77219-52050	NZE12#,ZZE12#	04/2004 - 09/2006	2
77219 - COVER, FUEL TANK FILLER PIPE
77219-52050	CE121,NZE12#,ZZE12#	12/2003 - 04/2004	2
77219-52050	NZE12#,ZZE12#	04/2004 - 09/2006	2
77241W - CLIP, TUBE JOINT
77241-33011	NZE124,ZZE124	08/2000 - 09/2002	1
77241-33011	NZE124,ZZE124	12/2005 - 09/2006	1
77241-33011	NZE12#,ZZE12#	09/2002 - 04/2004	1
77241-33011	NZE124,ZZE124	04/2004 - 12/2005	1
77246C - SUPPORT, FUEL MAIN TUBE
77246-21010	NZE124,ZZE124	05/2003 - 04/2004	1
77246-63010	NZE124,ZZE124	08/2000 - 09/2002	1
77246-63010	NZE124,ZZE124	09/2002 - 05/2003	1
77246-21010	NZE124,ZZE124	04/2004 - 09/2006	1
77269A - HOSE, FUEL TANK BREATHER
77269-32010	NZE124,ZZE124	04/2004 - 09/2006	1
77269-32010	NZE124,ZZE124	08/2000 - 09/2002	1
77269-32010	NZE124,ZZE124	09/2002 - 04/2004	1
77276 - PROTECTOR, FUEL HOSE
77276-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
77276-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77276-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-12170	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77277-12170	NZE12#,ZZE12#	04/2004 - 09/2006	1
77277-12170	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-32040	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77281-32040	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77281-32040	NZE12#,ZZE12#	04/2004 - 09/2006	1
77281A - CLAMP, FUEL FILLER PIPE
77281-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
77281-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77281-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77291-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
77291-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77295C - GROMMET, FUEL TUBE
77295-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
77295-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
77295-12070	NZE12#,ZZE12#	04/2004 - 09/2006	2
77295C - GROMMET, FUEL TUBE
77295-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
77295-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
77295-12070	NZE12#,ZZE12#	04/2004 - 09/2006	2
77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1
77296-12030	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77296-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
77296-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
64606-12060	CE121,NZE12#,ZZE122,124..SED TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
64606-12060	NZE12#,ZZE122,124..SED TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
64606-12060	CE121,NZE12#,ZZE122,124..SED TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
77310A - CAP ASSY, FUEL TANK
77310-48010	NZE12#,ZZE12#	04/2004 - 09/2006	1
77310-48010	NZE12#,ZZE12#	08/2000 - 09/2002	1
77310-48010	NZE12#,ZZE12#	09/2002 - 04/2004	1
77316 - GASKET, FUEL TANK CAP
77316-16010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77316-16010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77316-16010	NZE12#,ZZE12#	04/2004 - 09/2006	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-12440	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
77350-12440	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
77350-12440	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30080	NZE12#,ZZE12#	04/2004 - 09/2006	1
77360-30080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77360-30080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
77377-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77377-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77391 - RING, FUEL INLET BOX
77391-12040	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77391-12040	NZE12#,ZZE12#	04/2004 - 09/2006	1
77391-12040	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77391A - RING, FUEL INLET BOX
77391-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77391-12020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
77391-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-12240	NZE124,ZZE124	09/2002 - 04/2004	1
77601-12240	NZE124,ZZE124	08/2000 - 09/2002	1
77601-12240	NZE124,ZZE124	04/2004 - 09/2006	1
77602 - CASE SUB-ASSY, FUEL TANK, UPPER
77601-12240	NZE124,ZZE124	04/2004 - 09/2006	1
77601-12240	NZE124,ZZE124	08/2000 - 09/2002	1
77601-12240	NZE124,ZZE124	09/2002 - 04/2004	1
77641A - PROTECTOR, FUEL TANK, NO.1
77606-32040	NZE124,ZZE124	09/2002 - 04/2004	1
77606-32040	NZE124,ZZE124	08/2000 - 09/2002	1
77606-32040	NZE124,ZZE124	04/2004 - 09/2006	1
77651A - CUSHION, FUEL TANK, NO.1
77651-20090	NZE124,ZZE124	08/2000 - 09/2002	6
77651-20090	NZE124,ZZE124	05/2003 - 04/2004	5
77651-20090	NZE124,ZZE124	04/2004 - 11/2005	5
77651-20090	NZE124,ZZE124	09/2002 - 05/2003	6
77651-20090	NZE124,ZZE124	12/2005 - 09/2006	5
77653A - CUSHION, FUEL TANK, NO.3
77653-60060	NZE124,ZZE124	04/2004 - 11/2005	2
77653-60060	NZE124,ZZE124	05/2003 - 04/2004	2
77653-60020	NZE124,ZZE124	09/2002 - 05/2003	1
77653-60060	NZE124,ZZE124	12/2005 - 09/2006	2
77653-60020	NZE124,ZZE124	08/2000 - 09/2002	1
77681 - SEAT, FUEL TANK BAND, RH
77682-16010	NZE124,ZZE124	09/2002 - 04/2004	1
77682-16010	NZE124,ZZE124	04/2004 - 12/2999	1
77682-16010	NZE124,ZZE124	08/2000 - 09/2002	1
77682 - SEAT, FUEL TANK BAND, LH
77682-16010	NZE124,ZZE124	08/2000 - 09/2002	1
77682-16010	NZE124,ZZE124	04/2004 - 09/2006	2
77682-16010	NZE124,ZZE124	09/2002 - 04/2004	1
77785 - HARNESS, FUEL PUMP
77785-52020	NZE124,ZZE124	08/2000 - 09/2002	1
77785-52020	NZE124,ZZE124	12/2005 - 09/2006	1
77785-52020	NZE12#,ZZE12#	09/2002 - 04/2004	1
77785-52020	NZE124,ZZE124	04/2004 - 12/2005	1
Common parts
82711-16790
82711-1E300
90119-06351
90119-06398
90119-10922
90159-50219
90159-50343
90159-60602
90269-03067
90269-06017
90460-22002
90460-46003
91631-60622
91631-B0610
91631-B0614
91651-B0820
Linked diagrams
2211
8401

NZE124-AEPNK (2000)

ILLUST NO. 1 OF 2(0008-0209)NZE124,ZZE124

ILLUST NO. 2 OF 2(0008- )NZE124,ZZE124

ILLUST NO. 1 OF 2(0209- )NZE124,ZZE124

Part Price Details
