Toyota Corolla/fielder NZE124 MUDGUARD & SPOILER

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

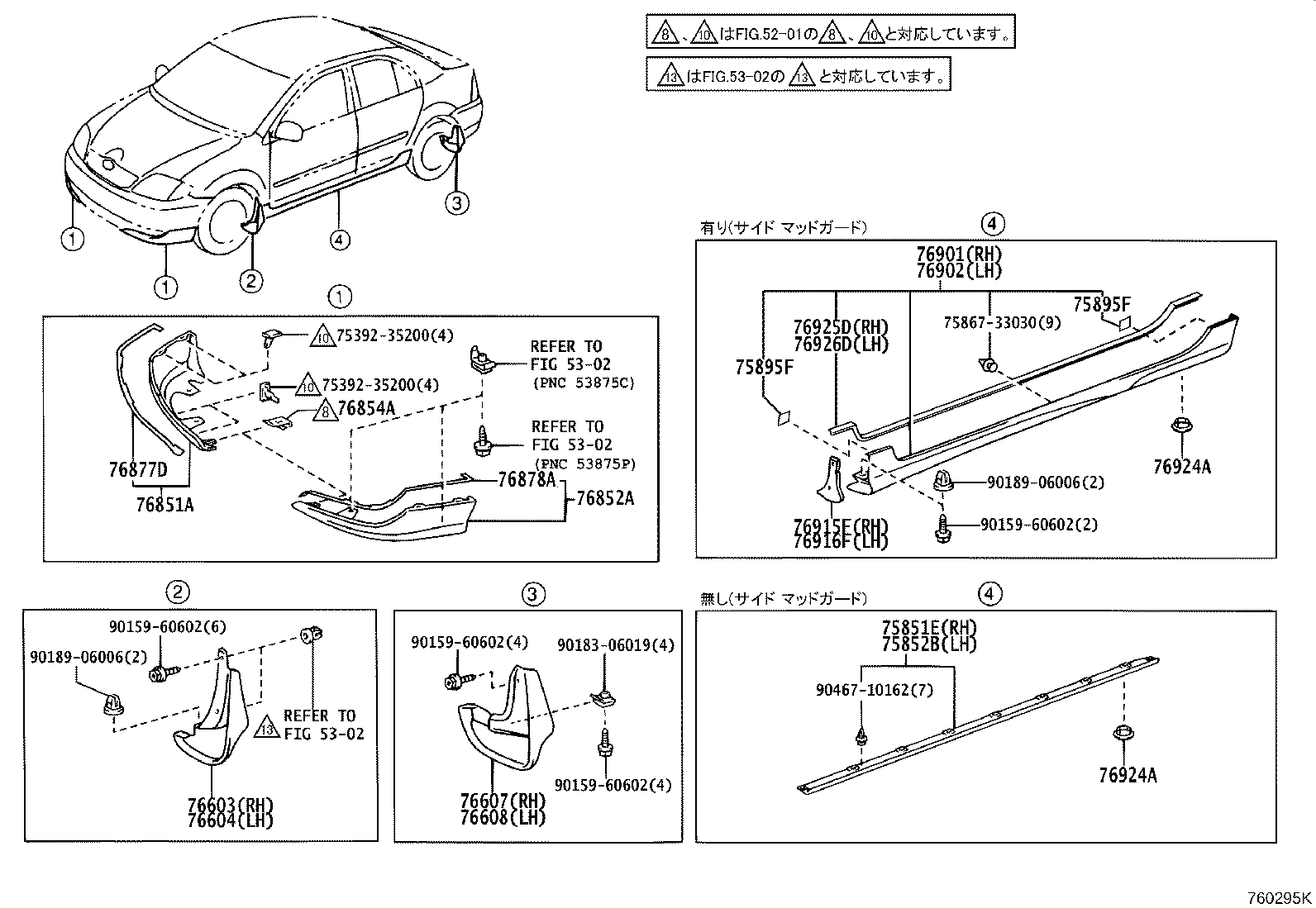

ILLUST NO. 1 OF 2(0008-0209)

Click highlighted areas on diagram

Part #	Description	Period	Qty
75851E - MOULDING, BODY ROCKER PANEL, RH
75851-12090	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
75851-12091	NZE12#,ZZE12#	04/2004 - 09/2006	1
75851-12091	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
75851-12091	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
75852B - MOULDING, BODY ROCKER PANEL, LH
75852-12061	NZE12#,ZZE12#	04/2004 - 09/2006	1
75852-12061	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
75852-12061	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
75852-12060	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12200J0	CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
76621-12200C1	CE121,NZE12#,ZZE12# BLACK MC.,209	10/2001 - 09/2002	1
76621-12200C0	CE121,NZE12#,ZZE12# BLACK ME,205	08/2000 - 10/2001	1
76621-12200H0	CE121,NZE12#,ZZE12# TURQUOISE M.M.,769	08/2000 - 09/2002	1
76621-12200A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	08/2000 - 09/2002	1
76621-12200B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	08/2000 - 09/2002	1
76621-12200B1	CE121,NZE12#,ZZE12# SILVER ME.,199	08/2000 - 09/2002	1
76621-12200G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
76621-12200B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76621-12200A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
76621-12200B2	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER ME. GR.,1D9	09/2003 - 04/2004	1
76621-12200B3	CE121,NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
76621-12200A1	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SUPER WHITE 2,040	09/2003 - 04/2004	1
76621-12200A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
76621-12200A1	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
76621-12200B3	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
76621-12200D2	CE121,NZE12#,ZZE12# BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76621-12200A3	CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
76621-12200C1	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
76621-12200C1	CE121,NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
76621-12200B2	NZE12#,ZZE12# SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76621-12200B3	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER M.M.,1E7	09/2003 - 04/2004	1
76621-12200J0	NZE12#,ZZE12# DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76621-12200A4	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
76621-12200J6	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12200B1	CE121,NZE12#,ZZE12# SILVER ME.,199	08/2000 - 09/2002	1
76622-12200J0	CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
76622-12200H0	CE121,NZE12#,ZZE12# TURQUOISE M.M.,769	08/2000 - 09/2002	1
76622-12200A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	08/2000 - 09/2002	1
76622-12200G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
76622-12200C1	CE121,NZE12#,ZZE12# BLACK MC.,209	10/2001 - 09/2002	1
76622-12200C1	CE121,NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
76622-12200C0	CE121,NZE12#,ZZE12# BLACK ME,205	08/2000 - 10/2001	1
76622-12200A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
76622-12200B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76622-12200B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	08/2000 - 09/2002	1
76622-12200A1	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
76622-12200B3	CE121,NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
76622-12200A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
76622-12200A1	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SUPER WHITE 2,040	09/2003 - 04/2004	1
76622-12200C1	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
76622-12200B2	NZE12#,ZZE12# SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76622-12200B3	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER M.M.,1E7	09/2003 - 04/2004	1
76622-12200A4	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
76622-12200B2	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER ME. GR.,1D9	09/2003 - 04/2004	1
76622-12200D2	CE121,NZE12#,ZZE12# BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76622-12200B3	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
76622-12200J6	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76622-12200A3	CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
76622-12200J0	NZE12#,ZZE12# DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-12480C0	CE121,NZE12#,ZZE12# BLACK ME,205	08/2000 - 10/2001	1
76625-12480A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	08/2000 - 09/2002	1
76625-12480B1	CE121,NZE12#,ZZE12# SILVER ME.,199	08/2000 - 09/2002	1
76625-12480B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	08/2000 - 09/2002	1
76625-12480G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
76625-12480A3	CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
76625-12480A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
76625-12480A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
76625-12480C1	CE121,NZE12#,ZZE12# BLACK MC.,209	10/2001 - 09/2002	1
76625-12480C1	CE121,NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
76625-12480D2	CE121,NZE12#,ZZE12# BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76625-12480H0	CE121,NZE12#,ZZE12# TURQUOISE M.M.,769	08/2000 - 09/2002	1
76625-12480A1	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SUPER WHITE 2,040	09/2003 - 04/2004	1
76625-12480J0	CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
76625-12480B3	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER M.M.,1E7	09/2003 - 04/2004	1
76625-12480B2	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER ME. GR.,1D9	09/2003 - 04/2004	1
76625-12480B3	CE121,NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
76625-12480A1	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
76625-12480C1	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
76625-12480B3	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
76625-12480A4	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
76625-12480J3	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76625-12480B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76625-12480B2	NZE12#,ZZE12# SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76625-12480J0	NZE12#,ZZE12# DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-12480B1	CE121,NZE12#,ZZE12# SILVER ME.,199	08/2000 - 09/2002	1
76626-12480J0	CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
76626-12480C0	CE121,NZE12#,ZZE12# BLACK ME,205	08/2000 - 10/2001	1
76626-12480B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	08/2000 - 09/2002	1
76626-12480C1	CE121,NZE12#,ZZE12# BLACK MC.,209	10/2001 - 09/2002	1
76626-12480A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	08/2000 - 09/2002	1
76626-12480H0	CE121,NZE12#,ZZE12# TURQUOISE M.M.,769	08/2000 - 09/2002	1
76626-12480B3	CE121,NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
76626-12480A1	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SUPER WHITE 2,040	09/2003 - 04/2004	1
76626-12480A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
76626-12480A3	CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
76626-12480G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
76626-12480B3	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER M.M.,1E7	09/2003 - 04/2004	1
76626-12480A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
76626-12480B2	NZE12#,ZZE12# SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76626-12480A1	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
76626-12480B2	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER ME. GR.,1D9	09/2003 - 04/2004	1
76626-12480B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76626-12480C1	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
76626-12480A4	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
76626-12480D2	CE121,NZE12#,ZZE12# BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76626-12480C1	CE121,NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
76626-12480B3	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
76626-12480J0	NZE12#,ZZE12# DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76626-12480J3	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-52020	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	16
76924-52021	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	16
76924-52021	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	16
76924-52021	NZE12#,ZZE12#	04/2004 - 09/2006	16
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-52020	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	16
76924-52021	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	16
76924-52021	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	16
76924-52021	NZE12#,ZZE12#	04/2004 - 09/2006	16
Common parts
67771-16170
90159-60602
90183-06019
90189-06006
90467-10162
Linked diagrams
5302

ILLUST NO. 2 OF 2(0008-0609)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-16100
90109-06367
90176-06036
90179-05004
90179-06115
90467-09196
91651-B0610
Linked diagrams
8117

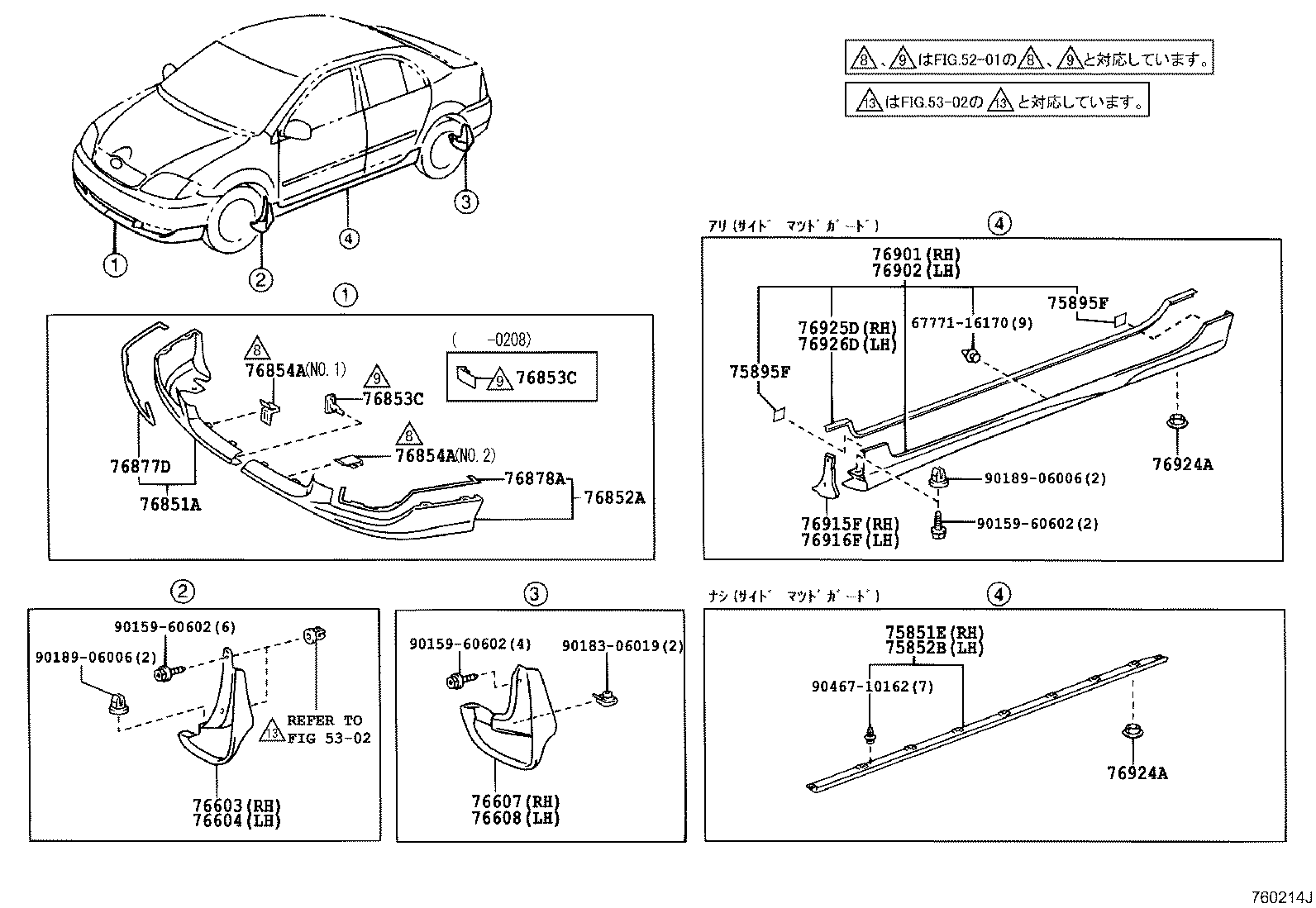

ILLUST NO. 1 OF 2(0209-0609)

Click highlighted areas on diagram

Part #	Description	Period	Qty
75851E - MOULDING, BODY ROCKER PANEL, RH
75851-12090	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
75851-12091	NZE12#,ZZE12#	04/2004 - 09/2006	1
75851-12091	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
75851-12091	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
75852B - MOULDING, BODY ROCKER PANEL, LH
75852-12061	NZE12#,ZZE12#	04/2004 - 09/2006	1
75852-12061	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
75852-12061	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
75852-12060	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12200J0	CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
76621-12200C1	CE121,NZE12#,ZZE12# BLACK MC.,209	10/2001 - 09/2002	1
76621-12200C0	CE121,NZE12#,ZZE12# BLACK ME,205	08/2000 - 10/2001	1
76621-12200H0	CE121,NZE12#,ZZE12# TURQUOISE M.M.,769	08/2000 - 09/2002	1
76621-12200A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	08/2000 - 09/2002	1
76621-12200B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	08/2000 - 09/2002	1
76621-12200B1	CE121,NZE12#,ZZE12# SILVER ME.,199	08/2000 - 09/2002	1
76621-12200G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
76621-12200B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76621-12200A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
76621-12200B2	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER ME. GR.,1D9	09/2003 - 04/2004	1
76621-12200B3	CE121,NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
76621-12200A1	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SUPER WHITE 2,040	09/2003 - 04/2004	1
76621-12200A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
76621-12200A1	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
76621-12200B3	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
76621-12200D2	CE121,NZE12#,ZZE12# BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76621-12200A3	CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
76621-12200C1	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
76621-12200C1	CE121,NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
76621-12200B2	NZE12#,ZZE12# SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76621-12200B3	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER M.M.,1E7	09/2003 - 04/2004	1
76621-12200J0	NZE12#,ZZE12# DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76621-12200A4	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
76621-12200J6	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12200B1	CE121,NZE12#,ZZE12# SILVER ME.,199	08/2000 - 09/2002	1
76622-12200J0	CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
76622-12200H0	CE121,NZE12#,ZZE12# TURQUOISE M.M.,769	08/2000 - 09/2002	1
76622-12200A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	08/2000 - 09/2002	1
76622-12200G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
76622-12200C1	CE121,NZE12#,ZZE12# BLACK MC.,209	10/2001 - 09/2002	1
76622-12200C1	CE121,NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
76622-12200C0	CE121,NZE12#,ZZE12# BLACK ME,205	08/2000 - 10/2001	1
76622-12200A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
76622-12200B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76622-12200B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	08/2000 - 09/2002	1
76622-12200A1	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
76622-12200B3	CE121,NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
76622-12200A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
76622-12200A1	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SUPER WHITE 2,040	09/2003 - 04/2004	1
76622-12200C1	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
76622-12200B2	NZE12#,ZZE12# SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76622-12200B3	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER M.M.,1E7	09/2003 - 04/2004	1
76622-12200A4	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
76622-12200B2	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER ME. GR.,1D9	09/2003 - 04/2004	1
76622-12200D2	CE121,NZE12#,ZZE12# BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76622-12200B3	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
76622-12200J6	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76622-12200A3	CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
76622-12200J0	NZE12#,ZZE12# DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-12480C0	CE121,NZE12#,ZZE12# BLACK ME,205	08/2000 - 10/2001	1
76625-12480A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	08/2000 - 09/2002	1
76625-12480B1	CE121,NZE12#,ZZE12# SILVER ME.,199	08/2000 - 09/2002	1
76625-12480B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	08/2000 - 09/2002	1
76625-12480G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
76625-12480A3	CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
76625-12480A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
76625-12480A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
76625-12480C1	CE121,NZE12#,ZZE12# BLACK MC.,209	10/2001 - 09/2002	1
76625-12480C1	CE121,NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
76625-12480D2	CE121,NZE12#,ZZE12# BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76625-12480H0	CE121,NZE12#,ZZE12# TURQUOISE M.M.,769	08/2000 - 09/2002	1
76625-12480A1	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SUPER WHITE 2,040	09/2003 - 04/2004	1
76625-12480J0	CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
76625-12480B3	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER M.M.,1E7	09/2003 - 04/2004	1
76625-12480B2	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER ME. GR.,1D9	09/2003 - 04/2004	1
76625-12480B3	CE121,NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
76625-12480A1	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
76625-12480C1	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
76625-12480B3	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
76625-12480A4	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
76625-12480J3	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76625-12480B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76625-12480B2	NZE12#,ZZE12# SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76625-12480J0	NZE12#,ZZE12# DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-12480B3	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
76626-12480B1	CE121,NZE12#,ZZE12# SILVER ME.,199	08/2000 - 09/2002	1
76626-12480J0	CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
76626-12480C0	CE121,NZE12#,ZZE12# BLACK ME,205	08/2000 - 10/2001	1
76626-12480B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	08/2000 - 09/2002	1
76626-12480C1	CE121,NZE12#,ZZE12# BLACK MC.,209	10/2001 - 09/2002	1
76626-12480A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	08/2000 - 09/2002	1
76626-12480H0	CE121,NZE12#,ZZE12# TURQUOISE M.M.,769	08/2000 - 09/2002	1
76626-12480B3	CE121,NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
76626-12480A1	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SUPER WHITE 2,040	09/2003 - 04/2004	1
76626-12480A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
76626-12480A3	CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
76626-12480G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
76626-12480B3	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER M.M.,1E7	09/2003 - 04/2004	1
76626-12480A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
76626-12480B2	NZE12#,ZZE12# SILVER ME.GR.,1D9	04/2004 - 09/2006	1
76626-12480A1	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
76626-12480B2	NZE12#..SED L ﾊﾟﾂｹ-ｼﾞ *(P),SILVER ME. GR.,1D9	09/2003 - 04/2004	1
76626-12480B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	09/2002 - 04/2004	1
76626-12480C1	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
76626-12480A4	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
76626-12480D2	CE121,NZE12#,ZZE12# BORDEAUX MC.,3P2	09/2002 - 04/2004	1
76626-12480C1	CE121,NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
76626-12480J0	NZE12#,ZZE12# DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
76626-12480J3	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-52020	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	16
76924-52021	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	16
76924-52021	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	16
76924-52021	NZE12#,ZZE12#	04/2004 - 09/2006	16
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-52020	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	16
76924-52021	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	16
76924-52021	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	16
76924-52021	NZE12#,ZZE12#	04/2004 - 09/2006	16
Common parts
75392-35200
75867-33030
90159-60602
90183-06019
90189-06006
90467-10162
Linked diagrams
5302

NZE124-AEPNK (2000)

ILLUST NO. 1 OF 2(0008-0209)

ILLUST NO. 2 OF 2(0008-0609)

ILLUST NO. 1 OF 2(0209-0609)

Part Price Details
