Toyota Corolla/fielder NZE124 EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
7501 - EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

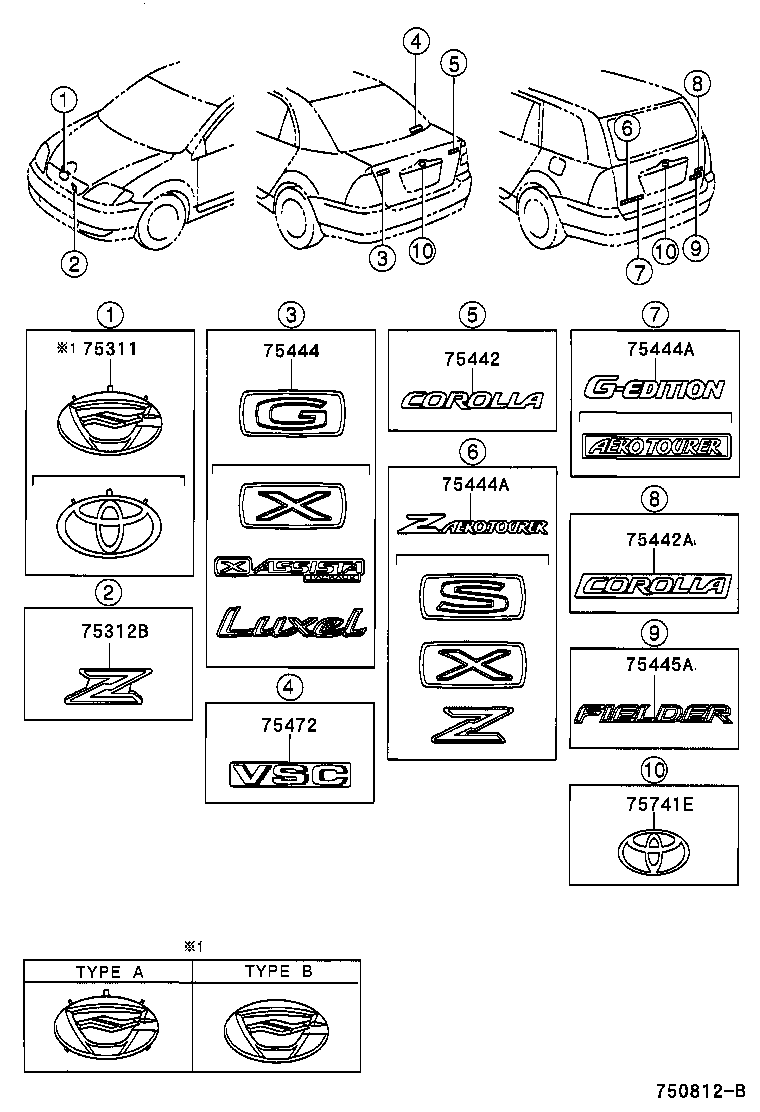

(0008-0404)

Click highlighted areas on diagram

Part #	Description	Period	Qty
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-1E070	ZZE122,124;NZE121,124,ZZE123..WG TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
75311-1E080	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	08/2000 - 09/2002	1
75311-1E080	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	09/2002 - 04/2004	1
75311-1E070	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
75311-1E090	CE121,NZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-1A450	CE121,NZE12#,ZZE122,124..SED COROLLA	08/2000 - 09/2002	1
75442-1A490	NZE12#,ZZE122,124..SED COROLLA	04/2004 - 09/2006	1
75442-1A450	CE121,NZE12#,ZZE122,124..SED COROLLA	09/2002 - 04/2004	1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-1A660B1	CE121,NZE12#..SED..X X ASSISTA PACKAGE,DARK GRAY ME.,040 ,199 ,1D9	08/2000 - 09/2002	1
75444-1A660B1	CE121,NZE12#..SED..X X ASSISTA PACKAGE,DARK GRAY ME.,040 ,1D9 ,1E7	09/2002 - 04/2004	1
75444-1A710	CE121,NZE12#..SED..X X	08/2000 - 09/2002	1
75444-1A660B0	CE121,NZE12#..SED..X X ASSISTA PACKAGE,IVORY,769 ,8P4	08/2000 - 09/2002	1
75444-1A660B1	NZE12#..SED..X X ASSISTA PACKAGE,DARK GRAY ME.,040 ,1E7	04/2004 - 09/2006	1
75444-1A710	CE121,NZE12#..SED..X X	09/2002 - 04/2004	1
75444-1A660B0	CE121,NZE12#..SED..X X ASSISTA PACKAGE,IVORY,3P2	09/2002 - 04/2004	1
75474-12010	NZE121,124..SED..X 40TH ANNIVERSARY(V),HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (M)	12/2005 - 09/2006	1
75444-1A710	NZE12#..SED..X X	04/2004 - 09/2006	1
75444A - PLATE, BACK DOOR NAME, NO.4
75444-13290	ZZE122,124..S S	08/2000 - 09/2002	1
75444-13290	ZZE122,124..S S	09/2002 - 04/2004	1
75444-13290	ZZE122,124..S S	04/2004 - 09/2006	1
75444A - PLATE, BACK DOOR NAME, NO.4
75444-13290	ZZE122,124..S S	08/2000 - 09/2002	1
75444-13290	ZZE122,124..S S	09/2002 - 04/2004	1
75444-13290	ZZE122,124..S S	04/2004 - 09/2006	1
75741E - EMBLEM, SYMBOL
90975-02011	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
90975-02011	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
90975-02011	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1

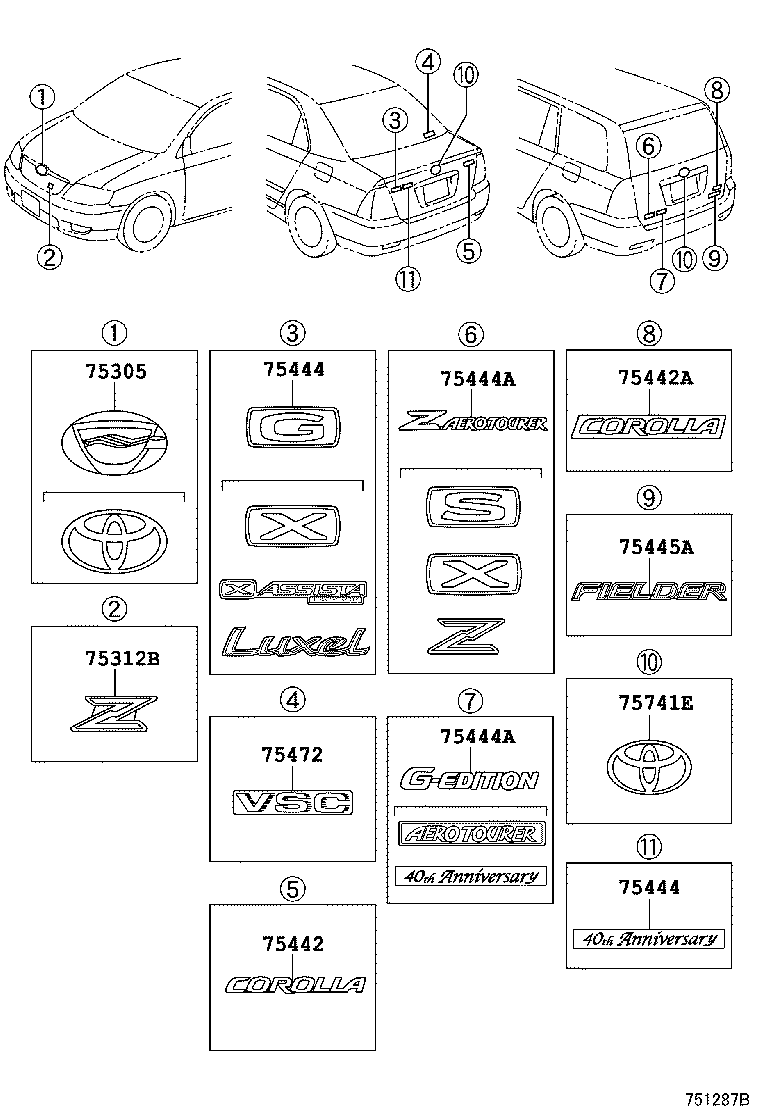

(0404- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
75305 - EMBLEM, HOOD
75331-12120	NZE12#,ZZE12#	04/2004 - 09/2006	1
75331-12130	NZE12#..SED..X ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ(ASSISTA),ﾄﾖﾀﾏｰｸ	04/2004 - 09/2006	1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-1A450	CE121,NZE12#,ZZE122,124..SED COROLLA	08/2000 - 09/2002	1
75442-1A490	NZE12#,ZZE122,124..SED COROLLA	04/2004 - 09/2006	1
75442-1A450	CE121,NZE12#,ZZE122,124..SED COROLLA	09/2002 - 04/2004	1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-1A660B1	CE121,NZE12#..SED..X X ASSISTA PACKAGE,DARK GRAY ME.,040 ,199 ,1D9	08/2000 - 09/2002	1
75444-1A660B1	CE121,NZE12#..SED..X X ASSISTA PACKAGE,DARK GRAY ME.,040 ,1D9 ,1E7	09/2002 - 04/2004	1
75444-1A710	CE121,NZE12#..SED..X X	08/2000 - 09/2002	1
75444-1A660B0	CE121,NZE12#..SED..X X ASSISTA PACKAGE,IVORY,769 ,8P4	08/2000 - 09/2002	1
75444-1A660B1	NZE12#..SED..X X ASSISTA PACKAGE,DARK GRAY ME.,040 ,1E7	04/2004 - 09/2006	1
75444-1A710	CE121,NZE12#..SED..X X	09/2002 - 04/2004	1
75444-1A660B0	CE121,NZE12#..SED..X X ASSISTA PACKAGE,IVORY,3P2	09/2002 - 04/2004	1
75474-12010	NZE121,124..SED..X 40TH ANNIVERSARY(V),HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (M)	12/2005 - 09/2006	1
75444-1A710	NZE12#..SED..X X	04/2004 - 09/2006	1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-1A660B1	CE121,NZE12#..SED..X X ASSISTA PACKAGE,DARK GRAY ME.,040 ,199 ,1D9	08/2000 - 09/2002	1
75444-1A660B1	CE121,NZE12#..SED..X X ASSISTA PACKAGE,DARK GRAY ME.,040 ,1D9 ,1E7	09/2002 - 04/2004	1
75444-1A710	CE121,NZE12#..SED..X X	08/2000 - 09/2002	1
75444-1A660B0	CE121,NZE12#..SED..X X ASSISTA PACKAGE,IVORY,769 ,8P4	08/2000 - 09/2002	1
75444-1A660B1	NZE12#..SED..X X ASSISTA PACKAGE,DARK GRAY ME.,040 ,1E7	04/2004 - 09/2006	1
75444-1A710	CE121,NZE12#..SED..X X	09/2002 - 04/2004	1
75444-1A660B0	CE121,NZE12#..SED..X X ASSISTA PACKAGE,IVORY,3P2	09/2002 - 04/2004	1
75474-12010	NZE121,124..SED..X 40TH ANNIVERSARY(V),HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ (M)	12/2005 - 09/2006	1
75444-1A710	NZE12#..SED..X X	04/2004 - 09/2006	1
75444A - PLATE, BACK DOOR NAME, NO.4
75444-13290	ZZE122,124..S S	08/2000 - 09/2002	1
75444-13290	ZZE122,124..S S	09/2002 - 04/2004	1
75444-13290	ZZE122,124..S S	04/2004 - 09/2006	1
75444A - PLATE, BACK DOOR NAME, NO.4
75444-13290	ZZE122,124..S S	08/2000 - 09/2002	1
75444-13290	ZZE122,124..S S	09/2002 - 04/2004	1
75444-13290	ZZE122,124..S S	04/2004 - 09/2006	1
75741E - EMBLEM, SYMBOL
90975-02011	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
90975-02011	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
90975-02011	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
