Toyota Corolla/fielder NZE124 SEAT BELT & CHILD RESTRAINT SEAT

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
7104 - SEAT BELT & CHILD RESTRAINT SEAT

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

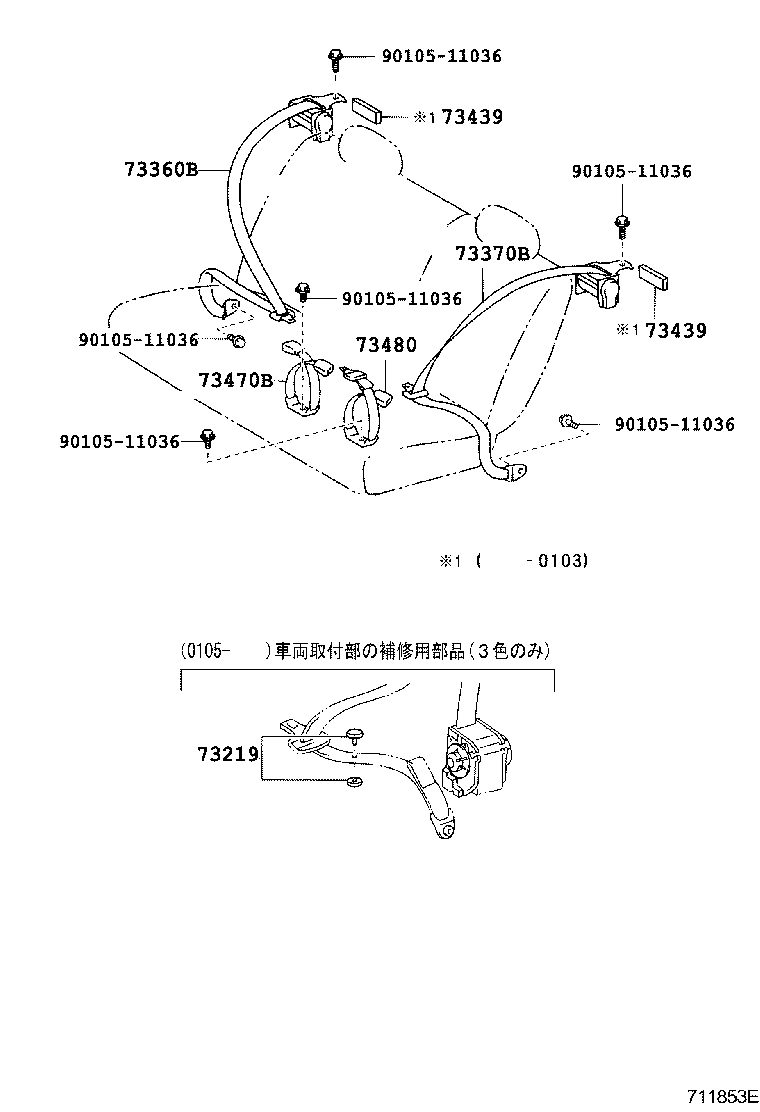

ILLUST NO. 2 OF 2(0008- )SED

Click highlighted areas on diagram

ﾘﾔｼｰﾄﾍﾞﾙﾄ

Part #	Description	Period	Qty
73219 - STOPPER, TONGUE PLATE
73219-33030	CE121,NZE12#,ZZE12# ﾍﾞｰｼﾞｭ	09/2002 - 04/2004	1
73219-33010	CE121,NZE12#,ZZE12# ﾌﾞﾗｯｸ	05/2001 - 09/2002	1
73219-33010	CE121,NZE12#,ZZE12# ﾌﾞﾗｯｸ	09/2002 - 04/2004	1
73219-33020	CE121,NZE12#,ZZE12# ｸﾞﾚｰ	05/2001 - 09/2002	1
73219-33030	NZE12#,ZZE12# ﾍﾞｰｼﾞｭ	04/2004 - 09/2006	1
73219-33030	CE121,NZE12#,ZZE12# ﾍﾞｰｼﾞｭ	05/2001 - 09/2002	1
73219-33020	CE121,NZE12#,ZZE12# ｸﾞﾚｰ	09/2002 - 04/2004	1
73219-33010	NZE12#,ZZE12# ﾌﾞﾗｯｸ	04/2004 - 09/2006	1
73219-33020	NZE12#,ZZE12# ｸﾞﾚｰ	04/2004 - 09/2006	1
73360B - BELT ASSY, REAR SEAT, OUTER
73360-12750A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 10/2001	1
73360-12751C0	NZE12#,ZZE12# BLACK,TRIM1#	04/2004 - 09/2006	1
73360-12750C0	CE121,NZE12#,ZZE122,124..SED BLACK,TRIM1#	08/2000 - 10/2001	1
73360-12751A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
73360-12751A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
73360-12751C0	CE121,NZE12#,ZZE122,124..G,LXL,X BLACK,TRIM1#	10/2001 - 09/2002	1
73360-12751A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	10/2001 - 09/2002	1
73360-12751C0	CE121,NZE12#,ZZE12# BLACK,TRIM1#	09/2002 - 04/2004	1
73370B - BELT ASSY, REAR SEAT, OUTER
73360-12750A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 10/2001	1
73360-12750C0	CE121,NZE12#,ZZE122,124..SED BLACK,TRIM1#	08/2000 - 10/2001	1
73360-12751C0	CE121,NZE12#,ZZE122,124..G,LXL,X BLACK,TRIM1#	10/2001 - 09/2002	1
73360-12751A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
73360-12751C0	CE121,NZE12#,ZZE12# BLACK,TRIM1#	09/2002 - 04/2004	1
73360-12751A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	10/2001 - 09/2002	1
73360-12751A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
73360-12751C0	NZE12#,ZZE12# BLACK,TRIM1#	04/2004 - 09/2006	1
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-12040	CE121,NZE12#,ZZE122,124..SED	08/2000 - 03/2001	2
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-12040	CE121,NZE12#,ZZE122,124..SED	08/2000 - 03/2001	2
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-12140A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
73470-12140A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
73470-12140A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
73470-12140C0	CE121,NZE12#,ZZE122,124..SED BLACK,TRIM1#	08/2000 - 09/2002	1
73470-12140C0	NZE12#,ZZE122,124..SED BLACK,TRIM1#	04/2004 - 09/2006	1
73470-12140C0	CE121,NZE12#,ZZE122,124..SED BLACK,TRIM1#	09/2002 - 04/2004	1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-12100A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
73480-12100C0	CE121,NZE12#,ZZE122,124..SED BLACK,TRIM1#	08/2000 - 09/2002	1
73480-12100C0	CE121,NZE12#,ZZE122,124..SED BLACK,TRIM1#	09/2002 - 04/2004	1
73480-12100A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
73480-12100C0	NZE12#,ZZE122,124..SED BLACK,TRIM1#	04/2004 - 09/2006	1
73480-12100A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
Common parts
90105-11036

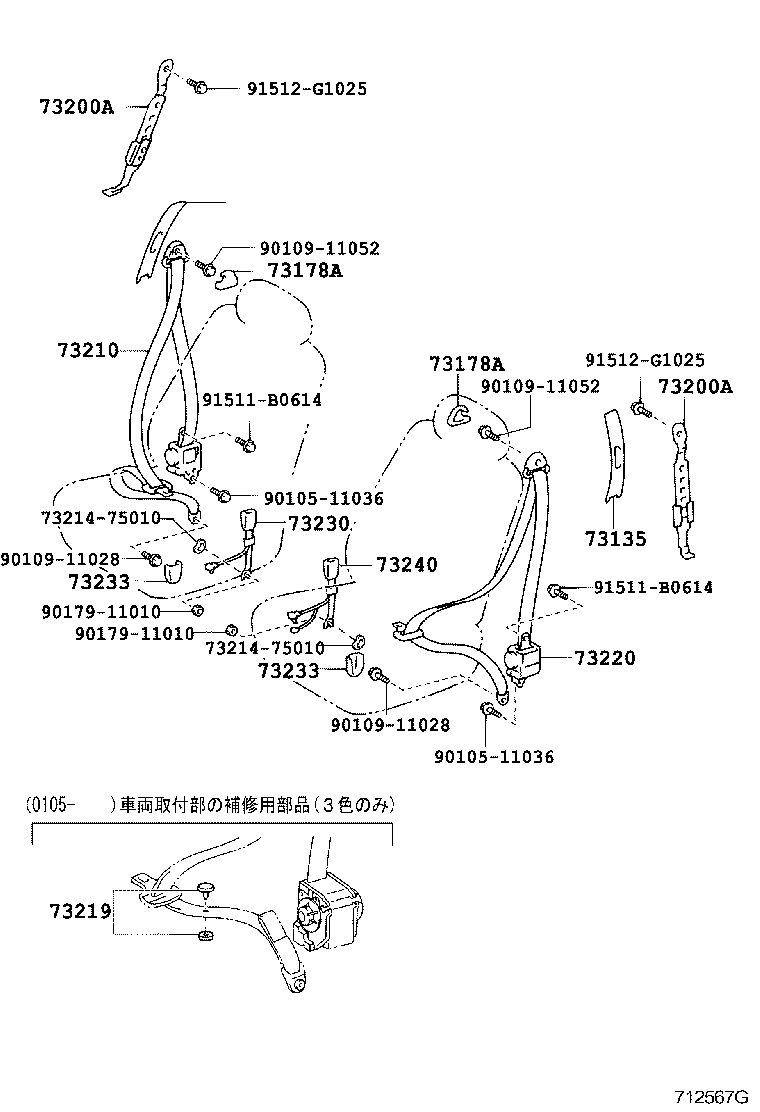

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

ﾌﾛﾝﾄｼｰﾄﾍﾞﾙﾄ

Part #	Description	Period	Qty
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-12030B9	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	2
73135-12030A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	2
73135-12030A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	2
73135-12030B9	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	2
73237-02020A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(*80,ｳﾝﾃﾝｾｷ&ｼﾞｮｼｭｾｷ) E-TYPE,IVORY,TRIM0#	04/2004 - 09/2006	2
73135-12030A0	NZE121,124;CE121,NZE120,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	2
73237-02020B0	NZE12#,ZZE12# ｱﾘ(*80,ｳﾝﾃﾝｾｷ&ｼﾞｮｼｭｾｷ) E-TYPE,LT.GRAY,TRIM1#	04/2004 - 09/2006	2
73135-12030B9	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B3	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	2
73178-33020A1	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	2
73178-33020A1	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	2
73178-33020B3	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	2
73178-33020B3	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	2
73178-33020A1	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B3	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	2
73178-33020A1	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	2
73178-33020A1	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	2
73178-33020B3	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	2
73178-33020B3	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	2
73178-33020A1	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52040B0	CE121,NZE120..SED;NZE121,124,ZZE12# LT.GRAY,TRIM1#	01/2002 - 09/2002	2
73200-52040A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	2
73200-52040A0	NZE121,124;CE121,NZE120,ZZE122,124..SED IVORY,TRIM0#	01/2002 - 09/2002	2
73200-52010A0	NZE121,124;CE121,NZE120,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 01/2002	2
73200-52040B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	2
73200-52010B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 01/2002	2
73200-52040B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	2
73200-52040A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52040B0	CE121,NZE120..SED;NZE121,124,ZZE12# LT.GRAY,TRIM1#	01/2002 - 09/2002	2
73200-52040A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	2
73200-52040A0	NZE121,124;CE121,NZE120,ZZE122,124..SED IVORY,TRIM0#	01/2002 - 09/2002	2
73200-52010A0	NZE121,124;CE121,NZE120,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 01/2002	2
73200-52040B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	2
73200-52010B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 01/2002	2
73200-52040B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	2
73200-52040A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1A350A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
73210-1A340A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	05/2001 - 09/2002	1
73210-1A350C0	NZE12#,ZZE12# BLACK,TRIM1#	04/2004 - 09/2006	1
73210-1A220A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 05/2001	1
73210-1A350A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
73210-1A220C0	ZZE12#;CE121,NZE12#..SED BLACK,TRIM1#	08/2000 - 05/2001	1
73210-1A340C1	ZZE12#;CE121,NZE12#..SED BLACK,TRIM1#	05/2001 - 09/2002	1
73210-1A350C0	CE121,NZE12#,ZZE12# BLACK,TRIM1#	09/2002 - 04/2004	1
73219 - STOPPER, TONGUE PLATE
73219-33030	CE121,NZE12#,ZZE12# ﾍﾞｰｼﾞｭ	09/2002 - 04/2004	1
73219-33010	CE121,NZE12#,ZZE12# ﾌﾞﾗｯｸ	05/2001 - 09/2002	1
73219-33010	CE121,NZE12#,ZZE12# ﾌﾞﾗｯｸ	09/2002 - 04/2004	1
73219-33020	CE121,NZE12#,ZZE12# ｸﾞﾚｰ	05/2001 - 09/2002	1
73219-33030	NZE12#,ZZE12# ﾍﾞｰｼﾞｭ	04/2004 - 09/2006	1
73219-33030	CE121,NZE12#,ZZE12# ﾍﾞｰｼﾞｭ	05/2001 - 09/2002	1
73219-33020	CE121,NZE12#,ZZE12# ｸﾞﾚｰ	09/2002 - 04/2004	1
73219-33010	NZE12#,ZZE12# ﾌﾞﾗｯｸ	04/2004 - 09/2006	1
73219-33020	NZE12#,ZZE12# ｸﾞﾚｰ	04/2004 - 09/2006	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1A220A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
73220-1A120A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 05/2001	1
73220-1A210A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	05/2001 - 09/2002	1
73220-1A120C0	ZZE12#;CE121,NZE12#..SED BLACK,TRIM1#	08/2000 - 05/2001	1
73220-1A220A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
73220-1A220C0	CE121,NZE12#,ZZE12# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLACK,TRIM1#	09/2002 - 04/2004	1
73220-1A210C1	CE121,NZE12#,ZZE122,124..SED ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLACK,TRIM1#	05/2001 - 09/2002	1
73220-1A220C0	NZE12#,ZZE12# BLACK,TRIM1#	04/2004 - 09/2006	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-12670B0	ZZE12#;CE121,NZE12#..SED DK.GRAY,TRIM1#	08/2000 - 09/2002	1
73230-12670A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
73230-12690A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
73230-12750A0	NZE12# IVORY,TRIM0#	04/2004 - 09/2006	1
73230-12690B0	CE121,NZE12#,ZZE12# DK.GRAY,TRIM1#	09/2002 - 04/2004	1
73230-12750B0	NZE12#,ZZE12#..G,S,X,ZAER DK.GRAY,TRIM1#	04/2004 - 09/2006	1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010B8	ZZE12#;CE121,NZE12#..SED DK.GRAY,TRIM1#	08/2000 - 09/2002	2
73233-33010B8	CE121,NZE12#,ZZE12# DK.GRAY,TRIM1#	09/2002 - 04/2004	2
73233-33010A1	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	2
73233-33010A1	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	2
73233-33010B8	NZE12#,ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	2
73233-33010A1	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010B8	ZZE12#;CE121,NZE12#..SED DK.GRAY,TRIM1#	08/2000 - 09/2002	2
73233-33010B8	CE121,NZE12#,ZZE12# DK.GRAY,TRIM1#	09/2002 - 04/2004	2
73233-33010A1	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	2
73233-33010A1	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	2
73233-33010B8	NZE12#,ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	2
73233-33010A1	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-12681B0	ZZE12#;CE121,NZE12#..SED ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ),DK.GRAY,TRIM1#	08/2000 - 09/2002	1
73230-12681A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
73230-12700B0	CE121,NZE12#,ZZE12# ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
73230-12760A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
73230-12760B0	NZE12#,ZZE122,124 ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ),DK.GRAY,TRIM1#	04/2004 - 09/2006	1
73230-12700A0	CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ),IVORY,TRIM0#	09/2002 - 04/2004	1
Common parts
73214-75010
90105-11036
90109-11028
90109-11052
90179-11010
91511-B0614
91512-G1025

NZE124-AEPNK (2000)

ILLUST NO. 2 OF 2(0008- )SED

ILLUST NO. 1 OF 2(0008- )
