Toyota Corolla/fielder NZE124 REAR SEAT & SEAT TRACK

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0008- )SED

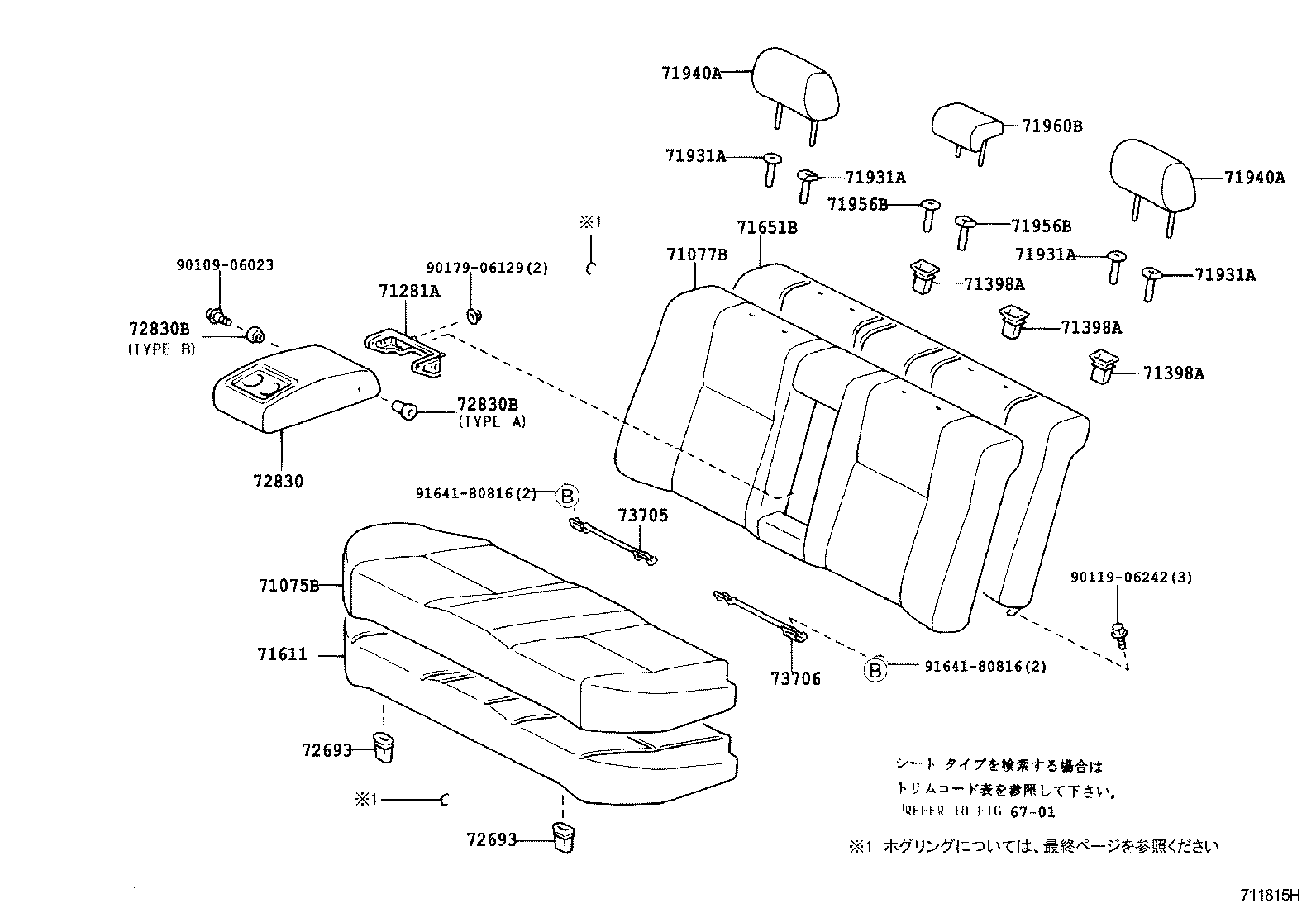

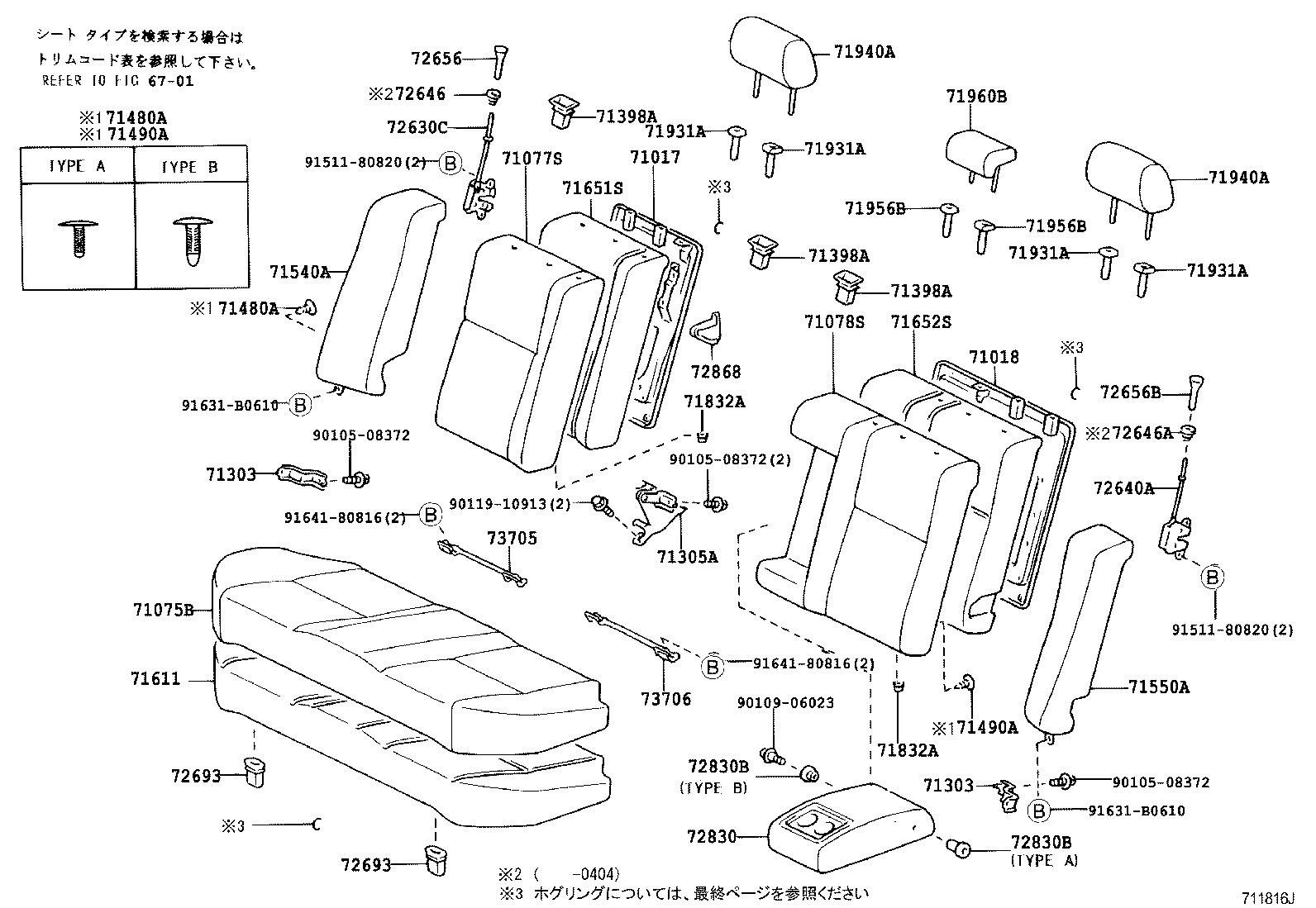

Click highlighted areas on diagram

ﾍﾞﾝﾁｼｰﾄﾀｲﾌﾟ

Part #	Description	Period	Qty
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1H100B3	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1#	08/2000 - 09/2002	1
71075-1H110B2	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1#	08/2000 - 09/2002	1
71075-1H110A1	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0#	08/2000 - 09/2002	1
71075-1H280B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71075-1H280A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
71075-12B50B1	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	04/2004 - 08/2004	1
71075-1H100B5	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71075-12B50A1	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	04/2004 - 09/2006	1
71075-12B50B2	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	08/2004 - 09/2006	1
71075-12B70B3	NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1#	08/2004 - 09/2006	1
71075-12B70B1	NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1#	04/2004 - 08/2004	1
71075-12B40B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1#	12/2005 - 09/2006	1
71075-12B40A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1N060B1	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71077-1N450A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
71077-1N160A1	CE121,NZE12#..SED..X IVORY,TRIM0#	08/2000 - 09/2002	1
71077-1N160B1	CE121,NZE12#..SED..X STONE,TRIM1#	08/2000 - 09/2002	1
71077-12C30A2	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	04/2004 - 09/2006	1
71077-1N450B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71077-1N060B0	CE121,NZE12#..SED..X ﾅｼ(ﾍﾂﾄﾞﾚｽﾄ),STONE,TRIM1#	08/2000 - 09/2002	1
71077-12C50B1	NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1#	04/2004 - 08/2004	1
71077-12C30B2	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	04/2004 - 08/2004	1
71077-12C10B1	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1#	12/2005 - 09/2006	1
71077-12C50B3	NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1#	08/2004 - 09/2006	1
71077-12C10A1	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	1
71077-12C30B3	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	08/2004 - 09/2006	1
71281A - HINGE, REAR SEAT CENTER ARMREST
71281-12040	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M)	12/2005 - 09/2006	1
71398A - HOLDER, REAR SEAT BACK
71398-33010	CE121,NZE12#..SED	09/2002 - 04/2004	3
71398-33010C0	NZE12#..SED BLACK	04/2004 - 09/2006	3
71398-33010	CE121,NZE12#..SED	08/2000 - 09/2002	3
71398A - HOLDER, REAR SEAT BACK
71398-33010	CE121,NZE12#..SED	09/2002 - 04/2004	3
71398-33010C0	NZE12#..SED BLACK	04/2004 - 09/2006	3
71398-33010	CE121,NZE12#..SED	08/2000 - 09/2002	3
71398A - HOLDER, REAR SEAT BACK
71398-33010	CE121,NZE12#..SED	09/2002 - 04/2004	3
71398-33010C0	NZE12#..SED BLACK	04/2004 - 09/2006	3
71398-33010	CE121,NZE12#..SED	08/2000 - 09/2002	3
71611 - PAD, REAR SEAT CUSHION
71503-12130	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
71503-12130	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
71503-12130	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-12220	CE121,NZE12#..SED..X ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	08/2000 - 09/2002	1
71507-12250	CE121,NZE12#..SED..X ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	09/2002 - 04/2004	1
71507-12170	NZE12#..SED..X	04/2004 - 09/2006	1
71507-12250	NZE12#..SED..X ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	04/2004 - 09/2006	1
71507-12260	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M)	12/2005 - 09/2006	1
71507-12170	CE121,NZE12#..SED..X	08/2000 - 09/2002	1
71931A - SUPPORT, REAR SEAT HEADREST
71956-47010B1	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010B1	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12# ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	2
71956-47010A0	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71956-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71970-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71956-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	2
71956-47010B2	NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71956-47010A0	CE121,NZE12# ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	2
71970-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	2
71970-47010B2	NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71931A - SUPPORT, REAR SEAT HEADREST
71956-47010B1	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010B1	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12# ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	2
71956-47010A0	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71956-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71970-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71956-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	2
71956-47010B2	NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71956-47010A0	CE121,NZE12# ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	2
71970-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	2
71970-47010B2	NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71931A - SUPPORT, REAR SEAT HEADREST
71956-47010B1	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010B1	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12# ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	2
71956-47010A0	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71956-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71970-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71956-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	2
71956-47010B2	NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71956-47010A0	CE121,NZE12# ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	2
71970-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	2
71970-47010B2	NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71931A - SUPPORT, REAR SEAT HEADREST
71956-47010B1	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010B1	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12# ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	2
71956-47010A0	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71956-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71970-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71956-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	2
71956-47010B2	NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71956-47010A0	CE121,NZE12# ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	2
71970-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	2
71970-47010B2	NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71940A - HEADREST ASSY, REAR SEAT
71940-12301B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1#	10/2001 - 09/2002	1
71940-12300A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0#	08/2000 - 10/2001	1
71940-12301A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0#	10/2001 - 09/2002	1
71940-12300B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1#	08/2000 - 10/2001	1
71940-13190B0	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	08/2000 - 10/2001	2
71940-12510B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71940-12510A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
71940-12680B0	NZE12#..SED..X MD.GRAY,TRIM1#	04/2004 - 09/2006	2
71940-12680A0	NZE12#..SED..X IVORY,TRIM0#	04/2004 - 09/2006	2
71940-12670B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1#	12/2005 - 09/2006	2
71940-12670A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	2
71940A - HEADREST ASSY, REAR SEAT
71940-12301B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1#	10/2001 - 09/2002	1
71940-12300A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0#	08/2000 - 10/2001	1
71940-12301A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0#	10/2001 - 09/2002	1
71940-12300B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1#	08/2000 - 10/2001	1
71940-13190B0	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	08/2000 - 10/2001	2
71940-12510B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71940-12510A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
71940-12680B0	NZE12#..SED..X MD.GRAY,TRIM1#	04/2004 - 09/2006	2
71940-12680A0	NZE12#..SED..X IVORY,TRIM0#	04/2004 - 09/2006	2
71940-12670B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1#	12/2005 - 09/2006	2
71940-12670A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	2
71956B - SUPPORT, REAR SEAT HEADREST
71956-47010B2	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
71956-47010A0	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	1
71970-47010A0	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	1
71970-47010B2	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
71956-47010B2	NZE12#,ZZE122,124..SED ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
71970-47010A0	NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	1
71970-47010B2	NZE12#,ZZE122,124..SED ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
71956-47010A0	NZE12#,ZZE122,124..SED ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	1
71956B - SUPPORT, REAR SEAT HEADREST
71956-47010B2	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
71956-47010A0	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	1
71970-47010A0	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	1
71970-47010B2	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
71956-47010B2	NZE12#,ZZE122,124..SED ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
71970-47010A0	NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	1
71970-47010B2	NZE12#,ZZE122,124..SED ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
71956-47010A0	NZE12#,ZZE122,124..SED ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	1
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-12120A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
71960-12120B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71960-12240B1	ZZE122,124..S ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
71960-12290B0	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	04/2004 - 09/2006	1
71960-12290A0	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	04/2004 - 09/2006	1
71960-12280B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1#	12/2005 - 09/2006	1
71960-12280A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
72693-12080	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
72693-12080	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
72693-12080	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
72693-12080	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-13040B1	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	06/2001 - 09/2002	1
72830-13040B0	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	08/2000 - 06/2001	1
72830-12360A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	1
72830-12360B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1#	12/2005 - 09/2006	1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06011	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
90386-08077	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
90386-08077	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/2005 - 09/2006	1
90386-08077	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
90386-08077	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90386-06011	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90386-06011	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
90386-06011	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	12/2005 - 09/2006	1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06011	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
90386-08077	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
90386-08077	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/2005 - 09/2006	1
90386-08077	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
90386-08077	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90386-06011	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90386-06011	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
90386-06011	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	12/2005 - 09/2006	1
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-12030	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
73705-12030	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
73705-12030	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-12030	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
73706-12030	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
73706-12030	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
Common parts
90109-06023
90119-06242
90179-06129
91641-80816
Linked diagrams
6701

(0008- )SED

Click highlighted areas on diagram

ｾﾊﾟﾚｰﾄｼｰﾄﾀｲﾌﾟ

Part #	Description	Period	Qty
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1H100B3	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1#	08/2000 - 09/2002	1
71075-1H110B2	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1#	08/2000 - 09/2002	1
71075-1H110A1	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0#	08/2000 - 09/2002	1
71075-1H280B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71075-1H280A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
71075-12B50B1	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	04/2004 - 08/2004	1
71075-1H100B5	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71075-12B50A1	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	04/2004 - 09/2006	1
71075-12B50B2	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	08/2004 - 09/2006	1
71075-12B70B3	NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1#	08/2004 - 09/2006	1
71075-12B70B1	NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1#	04/2004 - 08/2004	1
71075-12B40B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1#	12/2005 - 09/2006	1
71075-12B40A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1F400B2	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	06/2001 - 09/2002	1
71077-1F400B1	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	08/2000 - 06/2001	1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-13770B2	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	08/2000 - 06/2001	1
71078-13770B3	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	06/2001 - 09/2002	1
71398A - HOLDER, REAR SEAT BACK
71398-33010	CE121,NZE12#..SED	09/2002 - 04/2004	3
71398-33010C0	NZE12#..SED BLACK	04/2004 - 09/2006	3
71398-33010	CE121,NZE12#..SED	08/2000 - 09/2002	3
71398A - HOLDER, REAR SEAT BACK
71398-33010	CE121,NZE12#..SED	09/2002 - 04/2004	3
71398-33010C0	NZE12#..SED BLACK	04/2004 - 09/2006	3
71398-33010	CE121,NZE12#..SED	08/2000 - 09/2002	3
71398A - HOLDER, REAR SEAT BACK
71398-33010	CE121,NZE12#..SED	09/2002 - 04/2004	3
71398-33010C0	NZE12#..SED BLACK	04/2004 - 09/2006	3
71398-33010	CE121,NZE12#..SED	08/2000 - 09/2002	3
71540A - BACK ASSY, REAR SIDE SEAT, RH
71540-13130B1	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,STONE,TRIM1#	08/2000 - 06/2001	1
71540-13130B2	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	06/2001 - 09/2002	1
71550A - BACK ASSY, REAR SIDE SEAT, LH
71550-13130B1	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,STONE,TRIM1#	08/2000 - 06/2001	1
71550-13130B2	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	06/2001 - 09/2002	1
71611 - PAD, REAR SEAT CUSHION
71503-12130	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
71503-12130	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
71503-12130	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
71931A - SUPPORT, REAR SEAT HEADREST
71956-47010B1	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010B1	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12# ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	2
71956-47010A0	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71956-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71970-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71956-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	2
71956-47010B2	NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71956-47010A0	CE121,NZE12# ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	2
71970-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	2
71970-47010B2	NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71931A - SUPPORT, REAR SEAT HEADREST
71956-47010B1	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010B1	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12# ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	2
71956-47010A0	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71956-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71970-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71956-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	2
71956-47010B2	NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71956-47010A0	CE121,NZE12# ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	2
71970-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	2
71970-47010B2	NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71931A - SUPPORT, REAR SEAT HEADREST
71956-47010B1	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010B1	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12# ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	2
71956-47010A0	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71956-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71970-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71956-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	2
71956-47010B2	NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71956-47010A0	CE121,NZE12# ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	2
71970-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	2
71970-47010B2	NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71931A - SUPPORT, REAR SEAT HEADREST
71956-47010B1	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010B1	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),STONE,TRIM1#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12#..SED ﾛｯｸ付,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71970-47010A0	CE121,NZE12# ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	2
71956-47010A0	CE121,NZE12#..SED ﾛｯｸ無,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),IVORY,TRIM0#	08/2000 - 09/2002	1
71956-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71970-47010B2	CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	2
71956-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	2
71956-47010B2	NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71956-47010A0	CE121,NZE12# ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	2
71970-47010A0	NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	2
71970-47010B2	NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	2
71940A - HEADREST ASSY, REAR SEAT
71940-12301B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1#	10/2001 - 09/2002	1
71940-12300A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0#	08/2000 - 10/2001	1
71940-12301A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0#	10/2001 - 09/2002	1
71940-12300B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1#	08/2000 - 10/2001	1
71940-13190B0	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	08/2000 - 10/2001	2
71940-12510B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71940-12510A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
71940-12680B0	NZE12#..SED..X MD.GRAY,TRIM1#	04/2004 - 09/2006	2
71940-12680A0	NZE12#..SED..X IVORY,TRIM0#	04/2004 - 09/2006	2
71940-12670B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1#	12/2005 - 09/2006	2
71940-12670A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	2
71940A - HEADREST ASSY, REAR SEAT
71940-12301B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1#	10/2001 - 09/2002	1
71940-12300A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0#	08/2000 - 10/2001	1
71940-12301A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0#	10/2001 - 09/2002	1
71940-12300B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1#	08/2000 - 10/2001	1
71940-13190B0	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	08/2000 - 10/2001	2
71940-12510B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71940-12510A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
71940-12680B0	NZE12#..SED..X MD.GRAY,TRIM1#	04/2004 - 09/2006	2
71940-12680A0	NZE12#..SED..X IVORY,TRIM0#	04/2004 - 09/2006	2
71940-12670B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1#	12/2005 - 09/2006	2
71940-12670A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	2
71956B - SUPPORT, REAR SEAT HEADREST
71956-47010B2	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
71956-47010A0	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	1
71970-47010A0	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	1
71970-47010B2	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
71956-47010B2	NZE12#,ZZE122,124..SED ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
71970-47010A0	NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	1
71970-47010B2	NZE12#,ZZE122,124..SED ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
71956-47010A0	NZE12#,ZZE122,124..SED ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	1
71956B - SUPPORT, REAR SEAT HEADREST
71956-47010B2	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
71956-47010A0	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,IVORY,TRIM0#	09/2002 - 04/2004	1
71970-47010A0	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0#	09/2002 - 04/2004	1
71970-47010B2	CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
71956-47010B2	NZE12#,ZZE122,124..SED ﾛｯｸ無,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
71970-47010A0	NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0#	04/2004 - 09/2006	1
71970-47010B2	NZE12#,ZZE122,124..SED ﾛｯｸ付,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
71956-47010A0	NZE12#,ZZE122,124..SED ﾛｯｸ無,IVORY,TRIM0#	04/2004 - 09/2006	1
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-12120A0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
71960-12120B0	CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
71960-12240B1	ZZE122,124..S ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
71960-12290B0	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1#	04/2004 - 09/2006	1
71960-12290A0	NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	04/2004 - 09/2006	1
71960-12280B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1#	12/2005 - 09/2006	1
71960-12280A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
72693-12080	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
72693-12080	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
72693-12080	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
72693-12080	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-13040B1	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	06/2001 - 09/2002	1
72830-13040B0	ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1#	08/2000 - 06/2001	1
72830-12360A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	1
72830-12360B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1#	12/2005 - 09/2006	1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06011	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
90386-08077	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
90386-08077	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/2005 - 09/2006	1
90386-08077	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
90386-08077	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90386-06011	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90386-06011	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
90386-06011	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	12/2005 - 09/2006	1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06011	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
90386-08077	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
90386-08077	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/2005 - 09/2006	1
90386-08077	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
90386-08077	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90386-06011	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90386-06011	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
90386-06011	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	12/2005 - 09/2006	1
72868 - COVER, CENTER ARMREST HINGE, RH
72868-12010B1	ZZE122,124;CE121,NZE121,124,ZZE123..WG DK.GRAY,TRIM1#	09/2002 - 04/2004	1
72868-12010B1	ZZE122,124;NZE121,124,ZZE123..WG DK.GRAY,TRIM1#	04/2004 - 09/2006	1
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-12030	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
73705-12030	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
73705-12030	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-12030	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
73706-12030	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
73706-12030	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
Common parts
90105-08372
90109-06023
90119-10913
91511-80820
91631-B0610
91641-80816
Linked diagrams
6701

(0008- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

NZE124-AEPNK (2000)

(0008- )SED

(0008- )SED

(0008- )

Part Price Details
