NZE124-AEPNK (2000)
Toyota Corolla/Fielder

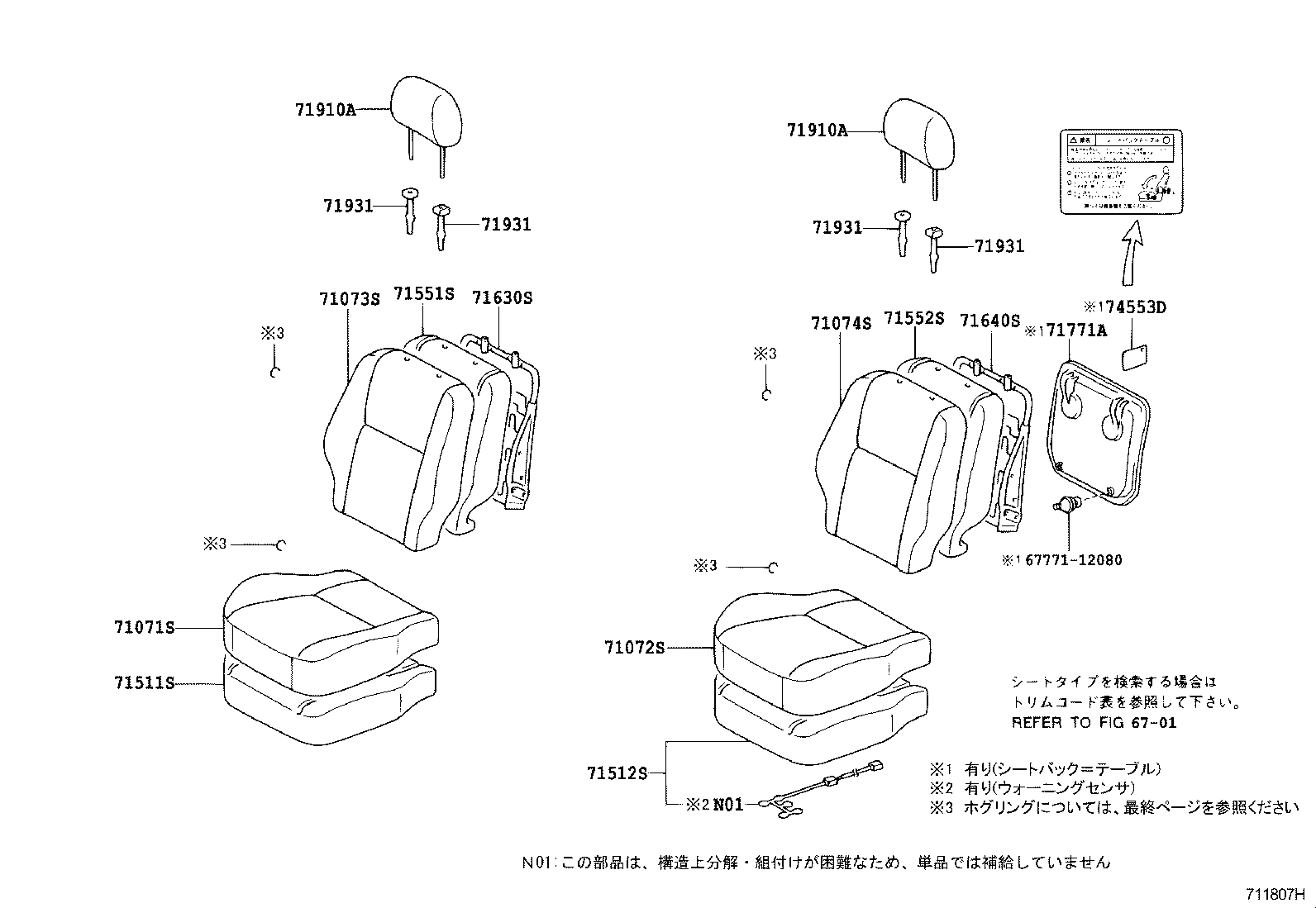

ILLUST NO. 1 OF 2(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1N230B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71071-1N410A2 |
NZE12#..SED..4FC..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71071-13630B1 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71071-1N270B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),STONE,TRIM1# |
1 | ||
| 71071-1N270A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71071-1N230B4 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
1 | ||
| 71071-1N410B2 |
NZE12#..SED..4FC..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71071-1N660A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71071-1N610B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71071-1N610A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-1N660B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71071-12C60B1 |
NZE12#..SED..X MD.GRAY,TRIM1# |
1 | ||
| 71071-12C60A1 |
NZE12#..X IVORY,TRIM0# |
1 | ||
| 71071-12D10B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71071-12D60B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71071-12D60A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71071-12C50B3 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
1 | ||
| 71071-12C60B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71071-12D50A1 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),IVORY,TRIM0# |
1 | ||
| 71071-12C50A1 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
1 | ||
| 71071-12D10B3 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71071-12D60B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71071-12D50B3 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-13710B1 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71072-1K040A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71072-1K040B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71072-1K070B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71072-1K460A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71072-1K070B5 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-1K410B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-1K410A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-12C00B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-12B80B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-1K460B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71072-12C60A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71072-12B80A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-12C60B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71072-12C00B3 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-12B80B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-12B70B2 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
1 | ||
| 71072-12C50A1 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),IVORY,TRIM0# |
1 | ||
| 71072-12C50B3 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71072-12C60B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71072-12B70A1 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1L850B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-1L860A0 |
CE121,NZE12#..SED..X IVORY,TRIM0# |
1 | ||
| 71073-13660B0 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71073-1L890A0 |
CE121,NZE12#..SED..X IVORY,TRIM0#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L890B0 |
CE121,NZE12#..SED..X STONE,TRIM1#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L851B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-13661B0 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71073-1L861B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71073-1L891B0 |
CE121,NZE12#..SED..X STONE,TRIM1#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L861A0 |
CE121,NZE12#..SED..X IVORY,TRIM0# |
1 | ||
| 71073-1L891A0 |
CE121,NZE12#..SED..X IVORY,TRIM0#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L851B3 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-1L860B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71073-1N460B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C30B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-1N500A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71073-1N460A0 |
NZE120,124..X;CE121..SED..X;NZE121..4FC..X;NZE121..SED..5F..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-12C10B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-1N500B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71073-12D00B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71073-12C10A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-12D00A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71073-12C10B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C30B3 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C90A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),IVORY,TRIM0# |
1 | ||
| 71073-12C00A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
1 | ||
| 71073-12D00B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104;ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ&ｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71073-12C00B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
1 | ||
| 71073-12C90B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1L850B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-1L860B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71073-1L860A0 |
CE121,NZE12#..SED..X IVORY,TRIM0# |
1 | ||
| 71073-1L890A0 |
CE121,NZE12#..SED..X IVORY,TRIM0#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71074-13570B0 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71073-1L851B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-1L890B0 |
CE121,NZE12#..SED..X STONE,TRIM1#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L861B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71074-13570B1 |
ZZE122,124..S DARK GRAY,TRIM1# |
1 | ||
| 71073-1L891A0 |
CE121,NZE12#..SED..X IVORY,TRIM0#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L861A0 |
CE121,NZE12#..SED..X IVORY,TRIM0# |
1 | ||
| 71073-1L851B3 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-1L891B0 |
CE121,NZE12#..SED..X STONE,TRIM1#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71074-1L030A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71073-1N460A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-1N460B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71074-12B60B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71074-1L030B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71073-12C30B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C10B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C10A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-12B60B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71074-12B60A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71073-12C00B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
1 | ||
| 71074-12B50B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71073-12C00A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
1 | ||
| 71073-12C30B3 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C10B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71074-12B50A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),IVORY,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-63010 |
CE121,NZE12#,ZZE122,124..SED |
1 | ||
| 71511-63010 |
NZE12#,ZZE122,124..G,S,X |
1 | ||
| 71511-63010 |
CE121,NZE12#,ZZE122,124 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-12020 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾖｳ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71502-63011 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾖｳ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71502-12020 |
NZE12#,ZZE122,124 ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾖｳ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71502-12020 |
CE121,NZE12#,ZZE122,124 ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾖｳ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-63012 |
CE121,NZE12#,ZZE122,124 ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71551-63010 |
CE121,NZE12#,ZZE122,124 ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71551-63012 |
NZE12#,ZZE122,124..G,S,X |
1 | ||
| 71551-63012 |
CE121,NZE12#,ZZE122,124 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-63010 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｼ-ﾄ = TYPE B-*104 |
1 | ||
| 71551-63012 |
NZE12#,ZZE122,124..G,LXL,X |
1 | ||
| 71551-63012 |
CE121,NZE12#,ZZE122,124..G,LXL,X |
1 | ||
| 71551-63012 |
CE121,NZE12#,ZZE122,124..G,LXL,X |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-63030 |
CE121,NZE12#,ZZE12# |
1 | ||
| 71630-47010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 71630-63030 |
NZE12#,ZZE12#..G,S,X,ZAER |
1 | ||
| 71630-63030 |
CE121,NZE12#,ZZE12# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-63030 |
CE121,NZE12#,ZZE12# |
1 | ||
| 71630-63030 |
CE121,NZE12#,ZZE12# |
1 | ||
| 71630-47010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 71630-63030 |
NZE12#,ZZE12# |
1 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71771-13010B0 |
ZZE122,124..S DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E200A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E200A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-13230B0 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
2 | ||
| 71910-1E190B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-1E200B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71910-13230B0 |
ZZE122,124..4FC..S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E191B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-1E201B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71910-13231B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E200B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
2 | ||
| 71910-1E201A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E201A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-1E201B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
2 | ||
| 71910-13231B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E290A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E290B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71910-1E290A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-1E191B3 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A60B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DK.GRAY,TRIM1# |
1 | ||
| 71910-1E290B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90A0 |
NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-12B10B0 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90B0 |
NZE121,124..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71910-12A90B0 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A80A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
2 | ||
| 71910-12A80B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90A0 |
NZE121,124..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E200A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E200A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-13230B0 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
2 | ||
| 71910-1E190B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-1E200B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71910-13230B0 |
ZZE122,124..4FC..S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E191B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-1E201B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71910-13231B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E200B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
2 | ||
| 71910-1E201A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E201A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-1E201B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
2 | ||
| 71910-13231B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E290A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E290B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71910-1E290A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-1E191B3 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A60B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DK.GRAY,TRIM1# |
1 | ||
| 71910-1E290B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90A0 |
NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-12B10B0 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90B0 |
NZE121,124..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71910-12A90B0 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A80A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
2 | ||
| 71910-12A80B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90A0 |
NZE121,124..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,STONE,TRIM1# |
2 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,STONE,TRIM1# |
2 | ||
| 71930-47010B1 |
NZE12#..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010B1 |
NZE12#..SED..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71931-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE121,124..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010A0 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
NZE12#,ZZE12#..S,X,ZAER ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE121,124,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010A0 |
NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,STONE,TRIM1# |
2 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,STONE,TRIM1# |
2 | ||
| 71930-47010B1 |
NZE12#..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010B1 |
NZE12#..SED..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71931-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE121,124..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010A0 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
NZE12#,ZZE12#..S,X,ZAER ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE121,124,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010A0 |
NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,STONE,TRIM1# |
2 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,STONE,TRIM1# |
2 | ||
| 71930-47010B1 |
NZE12#..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010B1 |
NZE12#..SED..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71931-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE121,124..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010A0 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
NZE12#,ZZE12#..S,X,ZAER ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE121,124,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010A0 |
NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,STONE,TRIM1# |
2 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,STONE,TRIM1# |
2 | ||
| 71930-47010B1 |
NZE12#..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010B1 |
NZE12#..SED..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71931-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE121,124..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010A0 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
NZE12#,ZZE12#..S,X,ZAER ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE121,124,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010A0 |
NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 67771-12080 | ||||
| Linked diagrams | ||||
| 6701 | ||||

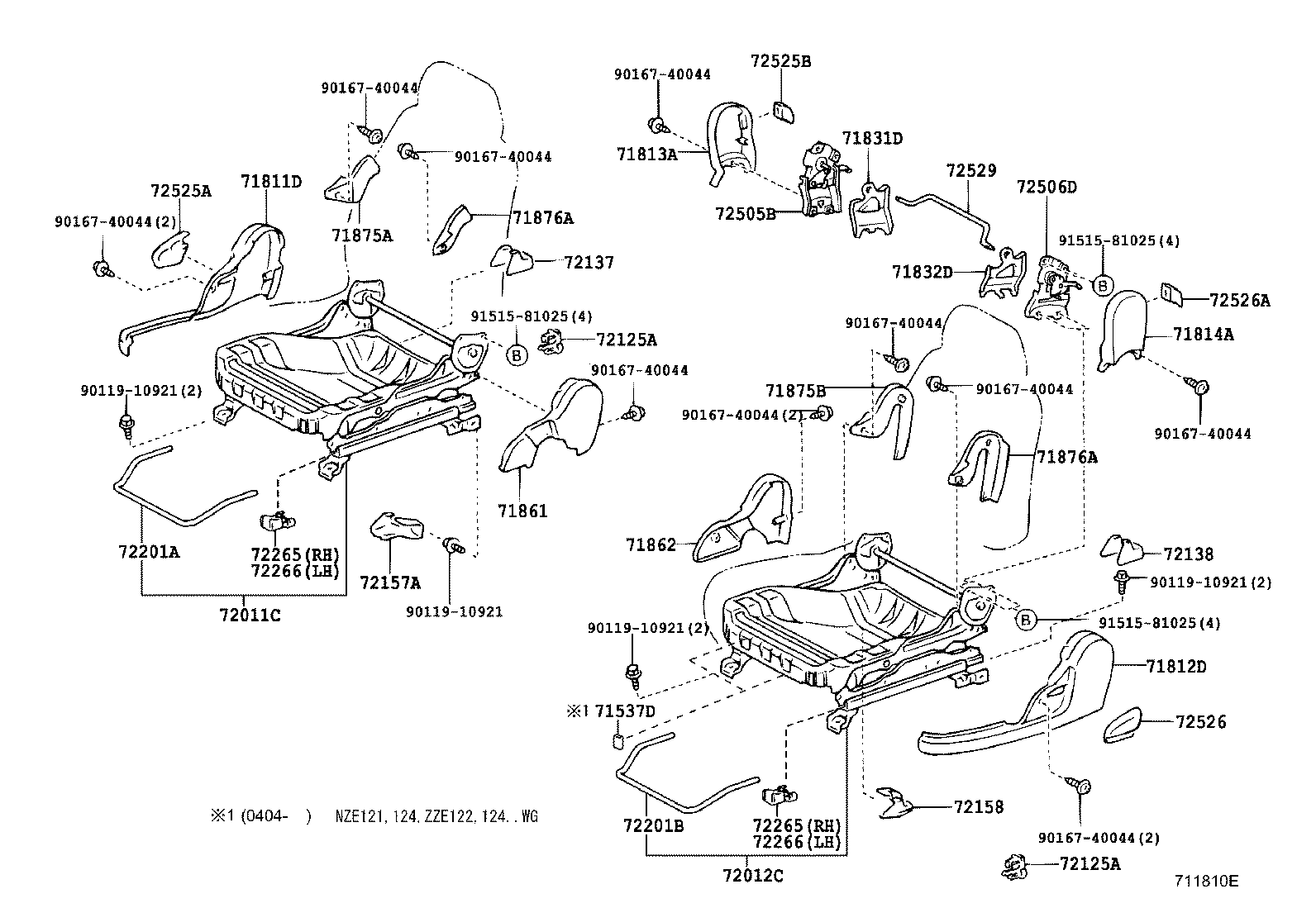

ILLUST NO. 2 OF 2(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12380A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-12370B1 |
CE121,NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71811-12380A0 |
NZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-12380B0 |
CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),STONE,TRIM1# |
1 | ||
| 71811-33120A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-33120B0 |
CE121,NZE12#,ZZE12# ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71811-33120A0 |
NZE12# ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-12370B1 |
NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71811-12370B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71811-12380A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-33120B0 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71811-12380B1 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71811-12380B1 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12360A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71812-12360B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71812-12360B1 |
NZE121,124,ZZE123;CE121,NZE120,ZZE122,124..SED DK.GRAY,TRIM1# |
1 | ||
| 71812-12360B1 |
NZE12#,ZZE12#..G,LXL,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 71812-13030B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 71812-12360A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71812-33130A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71812-33130B0 |
CE121,NZE12#,ZZE12# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71812-33130B0 |
NZE12#,ZZE12# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71812-12360A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71812-33130A0 |
NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12240B1 |
NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71861-12260B0 |
CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),STONE,TRIM1# |
1 | ||
| 71861-12240B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71861-12260A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71861-12240B1 |
CE121,NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71861-12260B1 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71861-12260A0 |
NZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71861-12260B1 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71861-12240A0 |
CE121,NZE12#..SED..X IVORY,TRIM0# |
1 | ||
| 71861-12260A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12230B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71862-12230B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71862-12230A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71862-12230A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71862-12230B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71862-12230A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71862-13030B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020A0 |
NZE12# IVORY,TRIM0# |
1 | ||
| 71875-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71875-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020B1 |
NZE12#,ZZE12#..G,S,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-13010B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 71875-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71875-47020B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-47020B1 |
NZE12#,ZZE12#..G,S,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
NZE12# IVORY,TRIM0# |
1 | ||
| 71876-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71876-47020B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-13010B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-12730 |
CE121,NZE12#..SED..X |
1 | ||
| 72010-12720 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72010-12730 |
NZE12#..SED..X |
1 | ||
| 72010-12730 |
CE121,NZE12#..SED..X |
1 | ||
| 72010-12720 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72010-12720 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-12670 |
ZZE122,124..S ｱﾘ(ｽﾎﾟ-ﾂ ｼ-ﾄ) |
1 | ||
| 72020-13060 |
ZZE122,124..S |
1 | ||
| 72020-12670 |
CE121,NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72020-12670 |
ZZE122,124..S ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 72020-13060 |
ZZE122,124..S |
1 | ||
| 72020-12670 |
ZZE122,124..S ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ&ｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸﾞ) |
1 | ||
| 72020-12670 |
CE121,NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72020-13060 |
ZZE122,124..S |
1 | ||
| 72020-12670 |
NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72125-13040 |
NZE121..5F..G;NZE121,124,ZZE122,124..4FC ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72125-13040 |
NZE121..5F..G;NZE121,124,ZZE122,124..4FC ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
NZE12#,ZZE12#..G,S,X,ZAER |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
NZE12#,ZZE12# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12100 |
ZZE122,124..4FC..S |
1 | ||
| 72157-12100 |
CE121,NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72157-12100 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72157-12100 |
NZE12#,ZZE12#..G,S,X,ZAER |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12100 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72158-12100 |
NZE12#,ZZE12# |
1 | ||
| 72158-12100 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72525-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 72525-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72525-47020A0 |
NZE12# IVORY,TRIM0# |
1 | ||
| 72525-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 72525-47020B1 |
NZE12#,ZZE12#..G,S,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72526-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72526-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 72526-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 72526-47020B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 72526-47020A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 91511-B0816 | ||||
| 91515-81025 | ||||
ILLUST NO. 2 OF 2(0008- )
ﾊﾞ-ﾁｶﾙ ｼ-ﾄﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12380A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-12370B1 |
CE121,NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71811-12380A0 |
NZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-12380B0 |
CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),STONE,TRIM1# |
1 | ||
| 71811-33120A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-33120B0 |
CE121,NZE12#,ZZE12# ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71811-33120A0 |
NZE12# ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-12370B1 |
NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71811-12370B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71811-12380A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-33120B0 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71811-12380B1 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71811-12380B1 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12360A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71812-12360B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71812-12360B1 |
NZE121,124,ZZE123;CE121,NZE120,ZZE122,124..SED DK.GRAY,TRIM1# |
1 | ||
| 71812-12360B1 |
NZE12#,ZZE12#..G,LXL,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 71812-13030B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 71812-12360A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71812-33130A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71812-33130B0 |
CE121,NZE12#,ZZE12# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71812-33130B0 |
NZE12#,ZZE12# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71812-12360A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71812-33130A0 |
NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12240B1 |
NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71861-12260B0 |
CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),STONE,TRIM1# |
1 | ||
| 71861-12240B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71861-12260A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71861-12240B1 |
CE121,NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71861-12260B1 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71861-12260A0 |
NZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71861-12260B1 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71861-12240A0 |
CE121,NZE12#..SED..X IVORY,TRIM0# |
1 | ||
| 71861-12260A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12230B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71862-12230B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71862-12230A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71862-12230A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71862-12230B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71862-12230A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71862-13030B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020A0 |
NZE12# IVORY,TRIM0# |
1 | ||
| 71875-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71875-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020B1 |
NZE12#,ZZE12#..G,S,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-13010B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 71875-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71875-47020B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-47020B1 |
NZE12#,ZZE12#..G,S,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
NZE12# IVORY,TRIM0# |
1 | ||
| 71876-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71876-47020B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-13010B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-12730 |
CE121,NZE12#..SED..X |
1 | ||
| 72010-12720 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72010-12730 |
NZE12#..SED..X |
1 | ||
| 72010-12730 |
CE121,NZE12#..SED..X |
1 | ||
| 72010-12720 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72010-12720 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-12670 |
ZZE122,124..S ｱﾘ(ｽﾎﾟ-ﾂ ｼ-ﾄ) |
1 | ||
| 72020-13060 |
ZZE122,124..S |
1 | ||
| 72020-12670 |
CE121,NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72020-12670 |
ZZE122,124..S ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 72020-13060 |
ZZE122,124..S |
1 | ||
| 72020-12670 |
ZZE122,124..S ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ&ｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸﾞ) |
1 | ||
| 72020-12670 |
CE121,NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72020-13060 |
ZZE122,124..S |
1 | ||
| 72020-12670 |
NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72125-13040 |
NZE121..5F..G;NZE121,124,ZZE122,124..4FC ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72125-13040 |
NZE121..5F..G;NZE121,124,ZZE122,124..4FC ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
NZE12#,ZZE12#..G,S,X,ZAER |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
NZE12#,ZZE12# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12100 |
ZZE122,124..4FC..S |
1 | ||
| 72157-12100 |
CE121,NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72157-12100 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72157-12100 |
NZE12#,ZZE12#..G,S,X,ZAER |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12100 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72158-12100 |
NZE12#,ZZE12# |
1 | ||
| 72158-12100 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12# |
2 | ||
| 72422A - ROD, FRONT SEAT ADJUSTER | ||||
| 72422-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-18010A1 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72457-18010S0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 72457-18010S1 |
NZE12#,ZZE12#..G,S,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 72457-18010A1 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72457-18010S1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 72457-18010A1 |
NZE12# IVORY,TRIM0# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72525-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 72525-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72525-47020A0 |
NZE12# IVORY,TRIM0# |
1 | ||
| 72525-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 72525-47020B1 |
NZE12#,ZZE12#..G,S,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72526-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72526-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 72526-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 72526-47020B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 72526-47020A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-B0816 | ||||
| 91515-81025 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
ILLUST NO. 2 OF 2(0008- )
ｼﾞｮｼｭｾｷｼ-ﾄﾊﾞｯｸ=ﾃ-ﾌﾞﾙﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12380A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-12370B1 |
CE121,NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71811-12380A0 |
NZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-12380B0 |
CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),STONE,TRIM1# |
1 | ||
| 71811-33120A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-33120B0 |
CE121,NZE12#,ZZE12# ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71811-33120A0 |
NZE12# ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-12370B1 |
NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71811-12370B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71811-12380A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71811-33120B0 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71811-12380B1 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71811-12380B1 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12360A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71812-12360B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71812-12360B1 |
NZE121,124,ZZE123;CE121,NZE120,ZZE122,124..SED DK.GRAY,TRIM1# |
1 | ||
| 71812-12360B1 |
NZE12#,ZZE12#..G,LXL,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 71812-13030B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 71812-12360A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71812-33130A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71812-33130B0 |
CE121,NZE12#,ZZE12# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71812-33130B0 |
NZE12#,ZZE12# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71812-12360A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71812-33130A0 |
NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-13010B0 |
ZZE122,124..S DK.GRAY,TRIM1# |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-13010B0 |
ZZE122,124..S DK.GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-13030B0 |
ZZE122,124..S DK.GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-13030B0 |
ZZE122,124..S DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12240B1 |
NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71861-12260B0 |
CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),STONE,TRIM1# |
1 | ||
| 71861-12240B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71861-12260A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71861-12240B1 |
CE121,NZE12#..SED..X DK.GRAY,TRIM1# |
1 | ||
| 71861-12260B1 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71861-12260A0 |
NZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71861-12260B1 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DK.GRAY,TRIM1# |
1 | ||
| 71861-12240A0 |
CE121,NZE12#..SED..X IVORY,TRIM0# |
1 | ||
| 71861-12260A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12230A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71862-12230B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71862-12230A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71862-12230A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71862-12230B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71862-12230B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71862-13030B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020A0 |
NZE12# IVORY,TRIM0# |
1 | ||
| 71875-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71875-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020B1 |
NZE12#,ZZE12#..G,S,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-13010B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 71875-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71875-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71875-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71875-47020B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71876-47020B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-13010B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 71876-47020B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 71876-47020A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 71876-13010B0 |
ZZE122,124..S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),DK.GRAY,TRIM1# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-12730 |
CE121,NZE12#..SED..X |
1 | ||
| 72010-12720 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72010-12730 |
NZE12#..SED..X |
1 | ||
| 72010-12730 |
CE121,NZE12#..SED..X |
1 | ||
| 72010-12720 |
CE121,NZE12#,ZZE12# ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72010-12720 |
NZE12#,ZZE12#..G,S,X,ZAER ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-12670 |
ZZE122,124..S ｱﾘ(ｽﾎﾟ-ﾂ ｼ-ﾄ) |
1 | ||
| 72020-13060 |
ZZE122,124..S |
1 | ||
| 72020-12670 |
CE121,NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72020-12670 |
ZZE122,124..S ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 72020-13060 |
ZZE122,124..S |
1 | ||
| 72020-12670 |
ZZE122,124..S ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ&ｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸﾞ) |
1 | ||
| 72020-12670 |
CE121,NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72020-13060 |
ZZE122,124..S |
1 | ||
| 72020-12670 |
NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72125-13040 |
NZE121..5F..G;NZE121,124,ZZE122,124..4FC ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
4 | ||
| 72125-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72125-13040 |
NZE121..5F..G;NZE121,124,ZZE122,124..4FC ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
NZE12#,ZZE12#..G,S,X,ZAER |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72137-52010 |
NZE12#,ZZE12# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12100 |
ZZE122,124..4FC..S |
1 | ||
| 72157-12100 |
CE121,NZE12#,ZZE12#..G,LXL,X,ZAER |
1 | ||
| 72157-12100 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72157-12100 |
NZE12#,ZZE12#..G,S,X,ZAER |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12100 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72158-12100 |
NZE12#,ZZE12# |
1 | ||
| 72158-12100 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
NZE12#,ZZE12# |
1 | ||
| 72201-12060 |
CE121,NZE12#,ZZE12# |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12#..G,S,X,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-13040 |
CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER |
2 | ||
| 72265-13040 |
CE121,NZE12#,ZZE12# |
2 | ||
| 72265-13040 |
NZE12#,ZZE12# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72525-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 72525-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72525-47020A0 |
NZE12# IVORY,TRIM0# |
1 | ||
| 72525-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 72525-47020B1 |
NZE12#,ZZE12#..G,S,X,ZAER DK.GRAY,TRIM1# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-13010B0 |
ZZE122,124..S DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72526-47020A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72526-47020B0 |
CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
1 | ||
| 72526-47020B1 |
CE121,NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 72526-47020B1 |
NZE12#,ZZE12# DK.GRAY,TRIM1# |
1 | ||
| 72526-47020A0 |
NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-13010B0 |
ZZE122,124..S DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 91515-81025 | ||||
ILLUST NO. 1 OF 2(0209- )
ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1N230B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71071-1N410A2 |
NZE12#..SED..4FC..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71071-13630B1 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71071-1N270B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),STONE,TRIM1# |
1 | ||
| 71071-1N270A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),IVORY,TRIM0# |
1 | ||
| 71071-1N230B4 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
1 | ||
| 71071-1N410B2 |
NZE12#..SED..4FC..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71071-1N660A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71071-1N610B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71071-1N610A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-1N660B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71071-12C60B1 |
NZE12#..SED..X MD.GRAY,TRIM1# |
1 | ||
| 71071-12C60A1 |
NZE12#..X IVORY,TRIM0# |
1 | ||
| 71071-12D10B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71071-12D60B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71071-12D60A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71071-12C50B3 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
1 | ||
| 71071-12C60B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71071-12D50A1 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),IVORY,TRIM0# |
1 | ||
| 71071-12C50A1 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
1 | ||
| 71071-12D10B3 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71071-12D60B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71071-12D50B3 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-12B80B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-13710B1 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71072-1K040A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71072-1K040B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71072-1K070B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71072-1K460A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71072-1K070B5 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-1K410B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-1K410A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-12C00B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-1K460B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71072-12C60A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71072-12B80A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-12C60B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71072-12C00B3 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-12B80B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71072-12B70B2 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
1 | ||
| 71072-12C50A1 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),IVORY,TRIM0# |
1 | ||
| 71072-12C50B3 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71072-12C60B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71072-12B70A1 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1L850B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-1L860A0 |
CE121,NZE12#..SED..X IVORY,TRIM0# |
1 | ||
| 71073-13660B0 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71073-1L890A0 |
CE121,NZE12#..SED..X IVORY,TRIM0#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L890B0 |
CE121,NZE12#..SED..X STONE,TRIM1#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L851B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-13661B0 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71073-1L861B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71073-1L891B0 |
CE121,NZE12#..SED..X STONE,TRIM1#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L861A0 |
CE121,NZE12#..SED..X IVORY,TRIM0# |
1 | ||
| 71073-1L891A0 |
CE121,NZE12#..SED..X IVORY,TRIM0#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L851B3 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-1L860B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71073-1N460B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C30B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-1N500A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71073-1N460A0 |
NZE120,124..X;CE121..SED..X;NZE121..4FC..X;NZE121..SED..5F..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-12C10B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-1N500B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71073-12D00B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71073-12C10A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-12D00A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71073-12C10B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C30B3 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C90A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),IVORY,TRIM0# |
1 | ||
| 71073-12C00A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
1 | ||
| 71073-12D00B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104;ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ&ｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71073-12C00B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
1 | ||
| 71073-12C90B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1L850B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-1L860B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71073-1L860A0 |
CE121,NZE12#..SED..X IVORY,TRIM0# |
1 | ||
| 71073-1L890A0 |
CE121,NZE12#..SED..X IVORY,TRIM0#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71074-13570B0 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71073-1L851B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-1L890B0 |
CE121,NZE12#..SED..X STONE,TRIM1#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L861B0 |
CE121,NZE12#..SED..X STONE,TRIM1# |
1 | ||
| 71074-13570B1 |
ZZE122,124..S DARK GRAY,TRIM1# |
1 | ||
| 71073-1L891A0 |
CE121,NZE12#..SED..X IVORY,TRIM0#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71073-1L861A0 |
CE121,NZE12#..SED..X IVORY,TRIM0# |
1 | ||
| 71073-1L851B3 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-1L891B0 |
CE121,NZE12#..SED..X STONE,TRIM1#,ﾊﾞｯｸﾎﾟｹｯﾄ有り |
1 | ||
| 71074-1L030A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71073-1N460A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-1N460B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71074-12B60B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71074-1L030B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71073-12C30B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C10B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C10A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-12B60B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71074-12B60A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71073-12C00B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
1 | ||
| 71074-12B50B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71073-12C00A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
1 | ||
| 71073-12C30B3 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 71073-12C10B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71074-12B50A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),IVORY,TRIM0# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1N010A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71430-1N010B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71430-12A80B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71430-12A80A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71430-12A60B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71430-12A80B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71430-12A60A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),IVORY,TRIM0# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1L580B3 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71440-12A90B1 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71440-1L580A2 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71440-12A90A1 |
NZE12#..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 71440-12A80B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71440-12A90B2 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.GRAY,TRIM1# |
1 | ||
| 71440-12A80A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞｯｸﾞ),IVORY,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-63010 |
CE121,NZE12#,ZZE122,124..SED |
1 | ||
| 71511-63010 |
NZE12#,ZZE122,124..G,S,X |
1 | ||
| 71511-63010 |
CE121,NZE12#,ZZE122,124 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-12020 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾖｳ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71502-63011 |
CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾖｳ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71502-12020 |
NZE12#,ZZE122,124 ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾖｳ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71502-12020 |
CE121,NZE12#,ZZE122,124 ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾖｳ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E200A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E200A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-13230B0 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
2 | ||
| 71910-1E190B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-1E200B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71910-13230B0 |
ZZE122,124..4FC..S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E191B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-1E201B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71910-13231B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E200B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
2 | ||
| 71910-1E201A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E201A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-1E201B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
2 | ||
| 71910-13231B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E290A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E290B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71910-1E290A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-1E191B3 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A60B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DK.GRAY,TRIM1# |
1 | ||
| 71910-1E290B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90A0 |
NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-12B10B0 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90B0 |
NZE121,124..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71910-12A90B0 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A80A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
2 | ||
| 71910-12A80B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90A0 |
NZE121,124..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E200A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E200A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-13230B0 |
ZZE122,124..S ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
2 | ||
| 71910-1E190B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-1E200B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71910-13230B0 |
ZZE122,124..4FC..S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E191B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-1E201B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71910-13231B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E200B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
2 | ||
| 71910-1E201A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E201A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-1E201B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE C-*104,STONE,TRIM1# |
2 | ||
| 71910-13231B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DARK GRAY,TRIM1# |
1 | ||
| 71910-1E290A0 |
NZE12#..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71910-1E290B0 |
NZE12#..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71910-1E290A0 |
CE121,NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-1E191B3 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE D-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A60B0 |
ZZE122,124..4FC..S ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE F-*104,DK.GRAY,TRIM1# |
1 | ||
| 71910-1E290B0 |
CE121,NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90A0 |
NZE12#..X ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-12B10B0 |
NZE12#..SED..X ｼ-ﾄ = TYPE A-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90B0 |
NZE121,124..SED..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
1 | ||
| 71910-12A90B0 |
NZE12#..SED..X ｼ-ﾄ = TYPE B-*104,MD.GRAY,TRIM1# |
2 | ||
| 71910-12A80A0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0# |
2 | ||
| 71910-12A80B0 |
NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM1# |
2 | ||
| 71910-12A90A0 |
NZE121,124..4FC..X ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,STONE,TRIM1# |
2 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,STONE,TRIM1# |
2 | ||
| 71930-47010B1 |
NZE12#..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010B1 |
NZE12#..SED..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71931-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE121,124..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010A0 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
NZE12#,ZZE12#..S,X,ZAER ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE121,124,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010A0 |
NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,STONE,TRIM1# |
2 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,STONE,TRIM1# |
2 | ||
| 71930-47010B1 |
NZE12#..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010B1 |
NZE12#..SED..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71931-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE121,124..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010A0 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
NZE12#,ZZE12#..S,X,ZAER ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE121,124,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010A0 |
NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,STONE,TRIM1# |
2 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,STONE,TRIM1# |
2 | ||
| 71930-47010B1 |
NZE12#..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010B1 |
NZE12#..SED..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71931-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE121,124..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010A0 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
NZE12#,ZZE12#..S,X,ZAER ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE121,124,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010A0 |
NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ無,STONE,TRIM1# |
2 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B1 |
CE121,NZE12#,ZZE122,124..SED ﾛｯｸ付,STONE,TRIM1# |
2 | ||
| 71930-47010B1 |
NZE12#..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71930-47010A0 |
NZE12#..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-47010B1 |
NZE12#..SED..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,STONE,TRIM1# |
1 | ||
| 71931-47010B2 |
ZZE122,124..4FC..S ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE121,124..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
CE121,NZE12#,ZZE12# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
CE121,NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B2 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE12#,ZZE12# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010A0 |
NZE12#..4FC ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010A0 |
NZE121,124..SED..4FC ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-47010B2 |
NZE12#,ZZE12#..S,X,ZAER ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE121,124,ZZE122,124..4FC..(G,S,X) ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010A0 |
NZE12#,ZZE122,124..G,LXL,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010A0 |
NZE12#,ZZE122,124..SED ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| Linked diagrams | ||||
| 6701 | ||||
(0008- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
