Toyota Corolla/fielder NZE124 LOCK CYLINDER SET

Part #	Description	Period	Qty
69503 - CYLINDER SET, LOCK
69005-1E150	CE121,NZE12#..SED..X	09/2002 - 09/2003	1
69005-1E151	CE121,NZE12#..SED..X	09/2003 - 04/2004	1
69005-12B00	NZE12#..SED..X	04/2004 - 09/2006	1
69005-1E150	CE121,NZE12#..SED..X	08/2000 - 09/2002	1
69503A - KEY, BLANK
90999-00186	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ﾏｽﾀｰｷｰ	08/2000 - 10/2001	2
90999-00186	CE121,NZE12#..SED..X ﾏｽﾀｰｷｰ	09/2002 - 04/2004	1
90999-00199	CE121,NZE12#..SED..X ﾏｽﾀｰｷｰ,*68付き	08/2000 - 09/2002	2
90999-00199	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ﾏｽﾀｰｷｰ,*68付き	04/2004 - 09/2006	2
90999-00199	CE121,NZE12#..SED..X ﾏｽﾀｰｷｰ,*68付き	09/2002 - 04/2004	1
90999-00199	NZE12#..SED..X ﾏｽﾀｰｷｰ,*68付き	04/2004 - 09/2006	1
90999-00186	CE121,NZE12#..SED..X ﾏｽﾀｰｷｰ	08/2000 - 09/2002	2
90999-00186	NZE12#..SED..X ﾏｽﾀｰｷｰ	04/2004 - 09/2006	1
69503A - KEY, BLANK
90999-00186	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ﾏｽﾀｰｷｰ	08/2000 - 10/2001	2
90999-00186	CE121,NZE12#..SED..X ﾏｽﾀｰｷｰ	09/2002 - 04/2004	1
90999-00199	CE121,NZE12#..SED..X ﾏｽﾀｰｷｰ,*68付き	08/2000 - 09/2002	2
90999-00199	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ﾏｽﾀｰｷｰ,*68付き	04/2004 - 09/2006	2
90999-00199	CE121,NZE12#..SED..X ﾏｽﾀｰｷｰ,*68付き	09/2002 - 04/2004	1
90999-00199	NZE12#..SED..X ﾏｽﾀｰｷｰ,*68付き	04/2004 - 09/2006	1
90999-00186	CE121,NZE12#..SED..X ﾏｽﾀｰｷｰ	08/2000 - 09/2002	2
90999-00186	NZE12#..SED..X ﾏｽﾀｰｷｰ	04/2004 - 09/2006	1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-12310	NZE12#,ZZE12#	04/2004 - 09/2006	1
69510-12310	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
69510-12310	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-12300	CE121,NZE12#..SED..X	08/2000 - 09/2002	1
69520-12300	NZE12#..SED..X	04/2004 - 09/2006	1
69520-12300	CE121,NZE12#..SED..X	09/2002 - 04/2004	1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-12630	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
69560-12720	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
69560-12630	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-12190	CE121,NZE12#,ZZE12# ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	09/2002 - 04/2004	1
69570-12180	CE121,NZE12#..SED..X	08/2000 - 09/2002	1
69570-12190	CE121,NZE12#,ZZE12# ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	08/2000 - 09/2002	1
69570-12180	NZE12#..SED..X	04/2004 - 09/2006	1
69570-12190	NZE12#,ZZE12# ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ OR ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ OR ｽﾏｰﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
69570-12180	CE121,NZE12#..SED..X	09/2002 - 04/2004	1

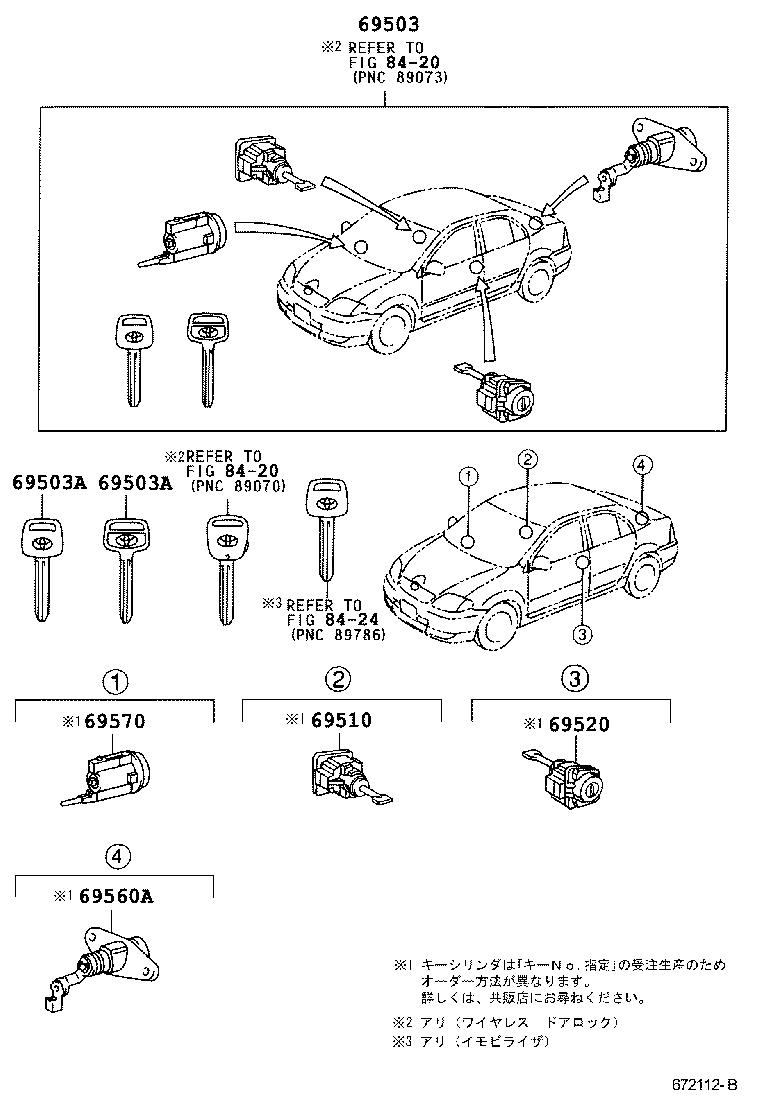

Linked diagrams
8420
8424

NZE124-AEPNK (2000)

(0008-0609)SED
