Toyota Corolla/fielder NZE124 REAR DOOR PANEL & GLASS

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
6705 - REAR DOOR PANEL & GLASS

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

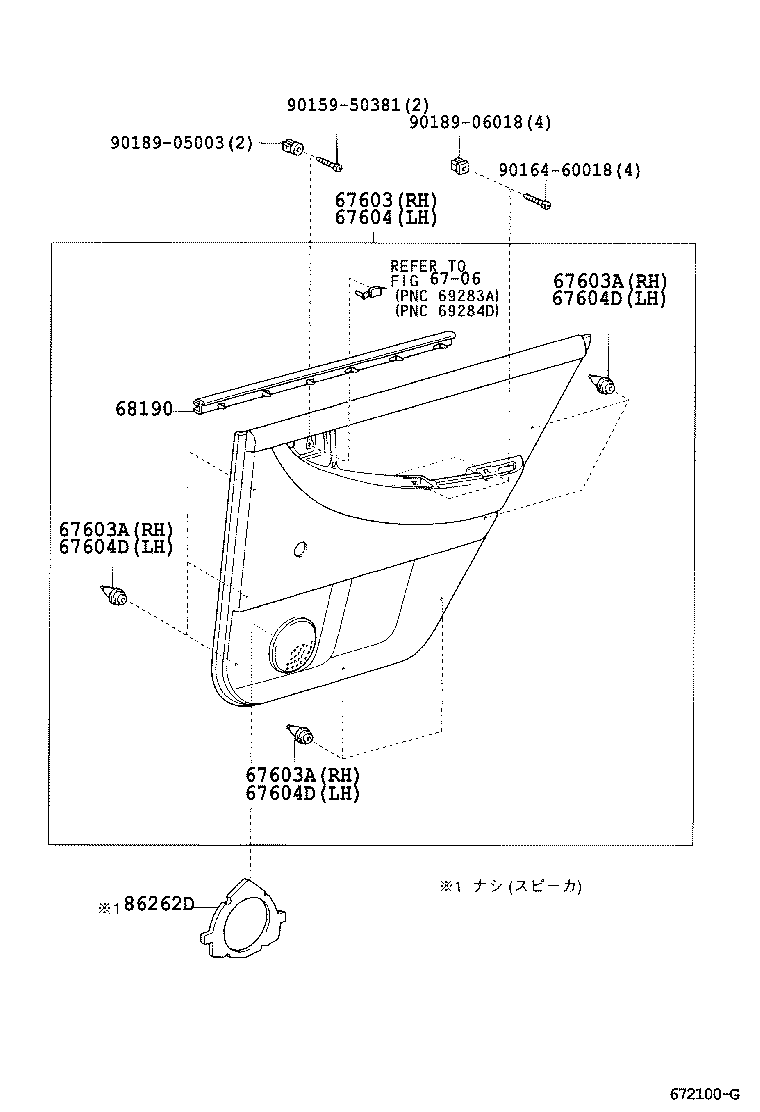

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1K090B2	ZZE122,124..S ﾄﾘﾑ = TYPE F-*104,DARK GRAY,TRIM1#	08/2000 - 09/2002	1
67630-1K100B4	CE121,NZE12#..SED..X ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ﾄﾘﾑ = TYPE D-*104,STONE,TRIM1#	08/2000 - 09/2002	1
67630-1K110B0	CE121,NZE12#..SED..X ﾄﾘﾑ = TYPE D-*104,STONE,TRIM1#	08/2000 - 09/2002	1
67630-1K510B0	CE121,NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67630-1K120A1	CE121,NZE12#..X ﾄﾘﾑ = TYPE C-*104,IVORY,TRIM0#	08/2000 - 09/2002	1
67630-1K500B0	CE121,NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67630-12B50A0	NZE12#..X ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0#	04/2004 - 09/2006	1
67630-12B50B0	NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE B-*104,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
67630-1K520A0	CE121,NZE12#..X ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
67630-12B70B1	NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104,MD.GRAY,TRIM1#	04/2004 - 12/2004	1
67630-1K520B0	CE121,NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67630-12B60B1	NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.GRAY,TRIM1#	04/2004 - 12/2004	1
67630-12B60B0	NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.GRAY,TRIM1#	12/2004 - 09/2006	1
67630-12B70B0	NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104,MD.GRAY,TRIM1#	12/2004 - 09/2006	1
67630-12F20A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	1
67630-12F20B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM14	12/2005 - 09/2006	1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	7
67771-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	7
67771-12050	NZE12#,ZZE12#	04/2004 - 09/2006	7
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	7
67771-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	7
67771-12050	NZE12#,ZZE12#	04/2004 - 09/2006	7
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	7
67771-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	7
67771-12050	NZE12#,ZZE12#	04/2004 - 09/2006	7
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1K090B2	ZZE122,124..S ﾄﾘﾑ = TYPE F-*104,DARK GRAY,TRIM1#	08/2000 - 09/2002	1
67640-1K110B0	CE121,NZE12#..SED..X ﾄﾘﾑ = TYPE D-*104,STONE,TRIM1#	08/2000 - 09/2002	1
67640-1K120A1	CE121,NZE12#..X ﾄﾘﾑ = TYPE C-*104,IVORY,TRIM0#	08/2000 - 09/2002	1
67640-1K520B0	CE121,NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67640-1K510B0	CE121,NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67640-1K100B4	CE121,NZE12#..SED..X ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ﾄﾘﾑ = TYPE D-*104,STONE,TRIM1#	08/2000 - 09/2002	1
67640-1K500B0	CE121,NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67640-12B50B1	NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.GRAY,TRIM1#	04/2004 - 12/2004	1
67640-1K520A0	CE121,NZE12#..X ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
67640-12B40B0	NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE B-*104,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
67640-12B60B1	NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104,MD.GRAY,TRIM1#	04/2004 - 12/2004	1
67640-12B40A0	NZE12#..X ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0#	04/2004 - 09/2006	1
67640-12F10B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM14	12/2005 - 09/2006	1
67640-12B60B0	NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104,MD.GRAY,TRIM1#	12/2004 - 09/2006	1
67640-12F10A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	1
67640-12B50B0	NZE12#..SED..X ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.GRAY,TRIM1#	12/2004 - 09/2006	1
67604D - RETAINER, REAR DOOR TRIM, LH
67771-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	7
67771-12050	NZE12#,ZZE12#	04/2004 - 09/2006	7
67771-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	7
67604D - RETAINER, REAR DOOR TRIM, LH
67771-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	7
67771-12050	NZE12#,ZZE12#	04/2004 - 09/2006	7
67771-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	7
67604D - RETAINER, REAR DOOR TRIM, LH
67771-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	7
67771-12050	NZE12#,ZZE12#	04/2004 - 09/2006	7
67771-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	7
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68173-12270	CE121,NZE12#,ZZE12# 右側	08/2000 - 07/2002	1
68174-12150	CE121,NZE12#,ZZE12# 左側	07/2002 - 09/2002	1
68174-12150	CE121,NZE12#,ZZE12# 左側	09/2002 - 04/2004	1
68174-12150	NZE12#,ZZE12# 左側	04/2004 - 09/2006	1
68173-12290	CE121,NZE12#,ZZE12# 右側	09/2002 - 04/2004	1
68174-12130	CE121,NZE12#,ZZE12# 左側	08/2000 - 07/2002	1
68173-12290	CE121,NZE12#,ZZE12# 右側	07/2002 - 09/2002	1
68173-12290	NZE12#,ZZE12# 右側	04/2004 - 09/2006	1
86262D - COVER, REAR DOOR SPEAKER
86262-12010	CE121,NZE12#..X	08/2000 - 09/2002	2
86262-12010	CE121,NZE12#..X	09/2002 - 04/2004	2
86262-12010	NZE12#..X	04/2004 - 09/2006	2
Common parts
90159-50381
90164-60018
90189-05003
90189-06018
Linked diagrams
6706

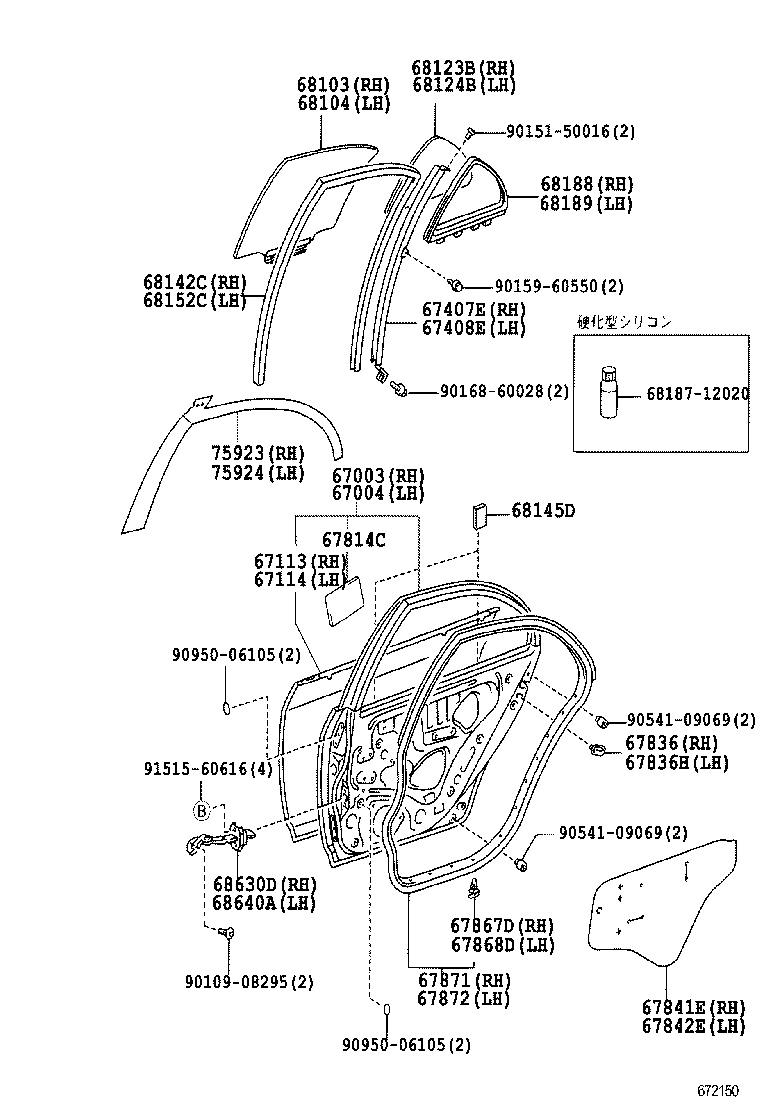

ILLUST NO. 2 OF 2(0008- )SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-12850	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
67003-12850	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
67003-12840	CE121,NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	08/2000 - 09/2002	1
67003-12840	NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	04/2004 - 09/2006	1
67003-12850	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
67003-12840	CE121,NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	09/2002 - 04/2004	1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-12840	NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	04/2004 - 09/2006	1
67004-12840	CE121,NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	09/2002 - 04/2004	1
67004-12850	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
67004-12840	CE121,NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	08/2000 - 09/2002	1
67004-12850	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
67004-12850	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-12260	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
67407-12260	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
67407-12260	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-12260	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
67408-12260	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
67408-12260	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
67814C - PACKING, DOOR PROTECTOR
67817-47010	NZE12#,ZZE12#	04/2004 - 09/2006	2
67817-47010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
67836-12040	NZE12#,ZZE12#	04/2004 - 09/2006	1
67836-12040	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-12040	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
67836-12040	NZE12#,ZZE12#	04/2004 - 09/2006	1
67836-12040	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-12310	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
67841-12310	NZE12#,ZZE12#	04/2004 - 09/2006	1
67841-12310	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67841-12310	NZE12#,ZZE12#	04/2004 - 09/2006	1
67841-12310	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
67841-12310	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	16
67867-12150	NZE12#,ZZE12#	04/2004 - 09/2006	16
67867-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	16
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	16
67867-12150	NZE12#,ZZE12#	04/2004 - 09/2006	16
67867-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	16
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-12500	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
67871-12500	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
67871-12500	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-12500	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
67872-12500	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
67872-12500	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-12690	CE121,NZE12#..SED..X *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	12/2001 - 09/2002	1
68113-12740	NZE121,124,ZZE122,124..SED *TT,厚さ=3.1,ｸｰﾙｸﾞﾘｰﾝ	04/2004 - 09/2006	1
68113-12690	CE121,NZE12#,ZZE122,124..SED *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	09/2002 - 04/2004	1
68113-12690	NZE12#,ZZE122,124..SED *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	04/2004 - 09/2006	1
68113-12680	CE121,NZE12#..SED..X *TT,厚さ=3.1,ｸﾞﾘｰﾝ	08/2000 - 09/2002	1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-12680	CE121,NZE12#..SED..X *TT,厚さ=3.1,ｸﾞﾘｰﾝ	08/2000 - 09/2002	1
68114-12740	NZE121,124,ZZE122,124..SED *TT,厚さ=3.1,ｸｰﾙｸﾞﾘｰﾝ	04/2004 - 09/2006	1
68114-12690	NZE12#,ZZE122,124..SED *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	04/2004 - 09/2006	1
68114-12690	CE121,NZE12#,ZZE122,124..SED *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	09/2002 - 04/2004	1
68114-12690	CE121,NZE12#..SED..X *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	12/2001 - 09/2002	1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-12720	CE121,NZE12#..SED..X *TT,厚さ=3.1,ｸﾞﾘｰﾝ	08/2000 - 09/2002	1
68123-12770	NZE121,124,ZZE122,124..SED *TT,厚さ=3.1,ｸｰﾙｸﾞﾘｰﾝ	04/2004 - 09/2006	1
68123-12730	CE121,NZE12#..SED..X *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	12/2001 - 09/2002	1
68123-12730	CE121,NZE12#,ZZE122,124..SED *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	09/2002 - 04/2004	1
68123-12730	NZE12#,ZZE122,124..SED *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	04/2004 - 09/2006	1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-12730	CE121,NZE12#..SED..X *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	12/2001 - 09/2002	1
68124-12730	CE121,NZE12#,ZZE122,124..SED *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	09/2002 - 04/2004	1
68124-12720	CE121,NZE12#..SED..X *TT,厚さ=3.1,ｸﾞﾘｰﾝ	08/2000 - 09/2002	1
68124-12770	NZE121,124,ZZE122,124..SED *TT,厚さ=3.1,ｸｰﾙｸﾞﾘｰﾝ	04/2004 - 09/2006	1
68124-12730	NZE12#,ZZE122,124..SED *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ	04/2004 - 09/2006	1
68142C - RUN, REAR DOOR GLASS, RH
68142-12240	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
68142-12240	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
68142-12240	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
68145D - CUSHION, REAR DOOR WINDOW
69759-12110	CE121,NZE12#,ZZE12#	12/2000 - 09/2002	4
69759-12110	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
69759-12110	NZE12#,ZZE12#	04/2004 - 09/2006	4
69759-12060	CE121,NZE12#,ZZE12#	08/2000 - 12/2000	4
68152C - RUN, REAR DOOR GLASS, LH
68152-12150	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
68152-12150	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
68152-12150	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-12280	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
68188-12280	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
68188-12280	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-12280	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
68189-12280	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
68189-12280	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
68630D - CHECK ASSY, REAR DOOR, RH
68630-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
68630-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
68630-12071	NZE12#,ZZE12#	04/2004 - 09/2006	1
68640A - CHECK ASSY, REAR DOOR, LH
68640-12040	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
68640-12040	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
68640-12041	NZE12#,ZZE12#	04/2004 - 09/2006	1
75923 - TAPE, BLACK OUT, NO.2 RH
75923-12012	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
75923-12011	CE121,NZE12#,ZZE122,124..SED	11/2001 - 09/2002	1
75923-12011	CE121,NZE12#,ZZE122,124..SED	09/2002 - 05/2003	1
75923-12010	CE121,NZE12#,ZZE122,124..SED	08/2000 - 11/2001	1
75923-12012	CE121,NZE12#,ZZE122,124..SED	05/2003 - 04/2004	1
75924 - TAPE, BLACK OUT, NO.2 LH
75924-12012	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
75924-12011	CE121,NZE12#,ZZE122,124..SED	11/2001 - 09/2002	1
75924-12010	CE121,NZE12#,ZZE122,124..SED	08/2000 - 11/2001	1
75924-12012	CE121,NZE12#,ZZE122,124..SED	05/2003 - 04/2004	1
75924-12011	CE121,NZE12#,ZZE122,124..SED	09/2002 - 05/2003	1
Common parts
68187-12020
90109-08295
90151-50016
90159-60550
90168-60028
90541-09069
90950-06105
91515-60616

NZE124-AEPNK (2000)

ILLUST NO. 1 OF 2(0008- )

ILLUST NO. 2 OF 2(0008- )SED

Part Price Details
