Toyota Corolla/fielder NZE124 INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
6401 - INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0008-0209)SED

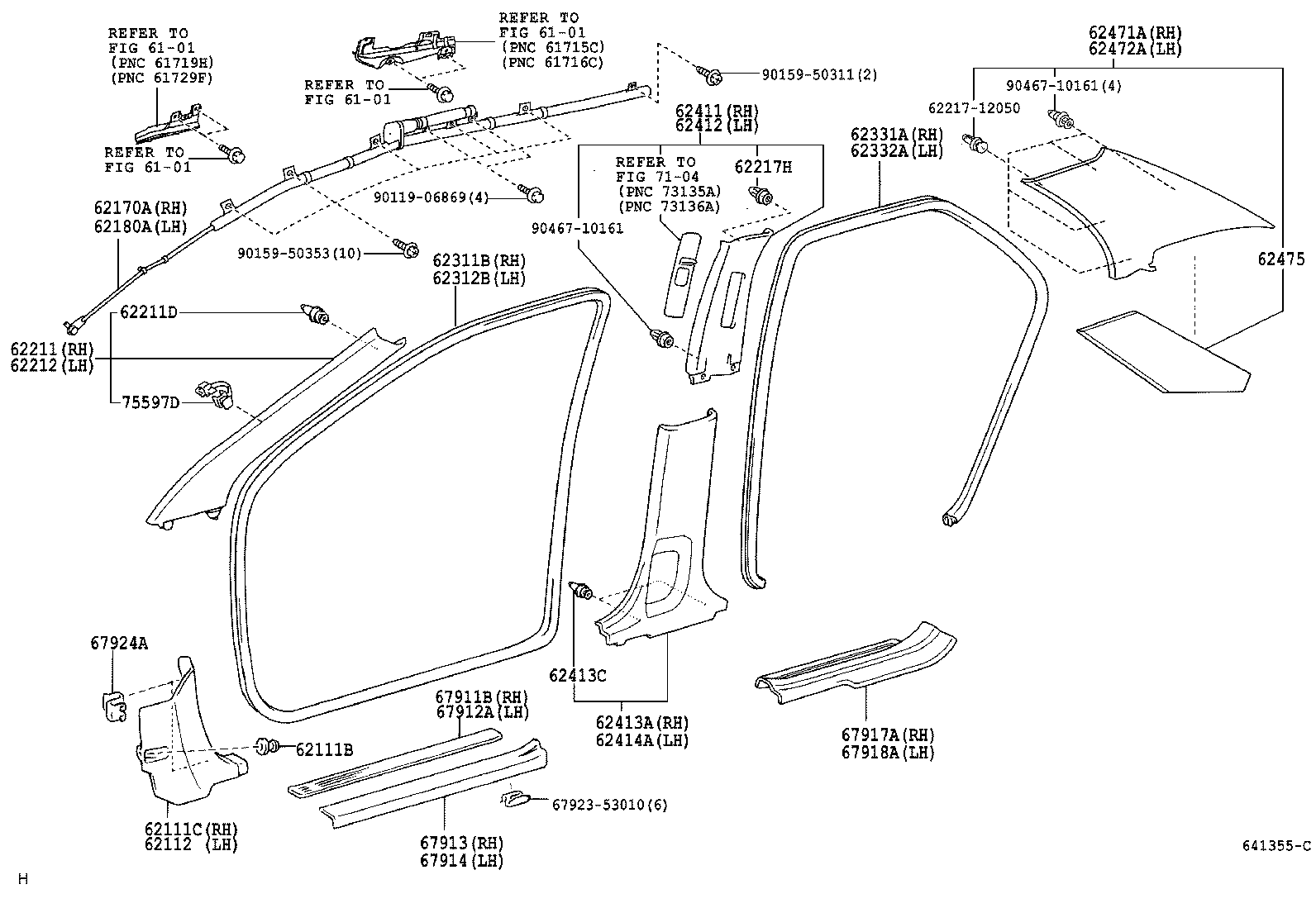

Click highlighted areas on diagram

Part #	Description	Period	Qty
62111B - CLIP(FOR COWL SIDE TRIM)
90467-06120	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90467-06120	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90467-06120	NZE12#,ZZE12#	04/2004 - 09/2006	2
62111C - BOARD, COWL SIDE TRIM, RH
62111-12270B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62111-13070A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62111-12270A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62111-13070B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62111-13070A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62111-13070B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62112 - BOARD, COWL SIDE TRIM, LH
62112-13100B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62112-12300B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62112-13100A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62112-12300A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62112-13100A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62112-13100B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62211 - GARNISH, FRONT PILLAR, RH
62211-12320B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62211-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62211-12320B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62211-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62211-12320B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62211-12360A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62211-12320A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62211-12360B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10188	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90467-10188	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90467-10188	NZE12#,ZZE12#	04/2004 - 09/2006	2
90467-10161	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	2
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-10192	NZE12#,ZZE12#	04/2004 - 09/2006	2
90467-10192	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90467-10192	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
62212 - GARNISH, FRONT PILLAR, LH
62212-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62212-12320B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62212-12360A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62212-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62212-12320A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62212-12320B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62212-12360B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62212-12320B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-12140B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 03/2003	1
62311-12141A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	03/2003 - 04/2004	1
62311-12141B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	03/2003 - 04/2004	1
62311-12090A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62311-12140A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 03/2003	1
62311-12141B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62311-12141A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62311-12090B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-12090A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62312-12090B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62312-12141A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	03/2003 - 04/2004	1
62312-12140B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 03/2003	1
62312-12141B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62312-12141A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62312-12141B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	03/2003 - 04/2004	1
62312-12140A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 03/2003	1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-12050A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 01/2001	1
62331-12050B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 01/2001	1
62331-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	01/2001 - 09/2002	1
62331-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 09/2003	1
62331-12051B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 09/2003	1
62331-12052A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2003 - 04/2004	1
62331-12052B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62331-12052A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62331-12052B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2003 - 04/2004	1
62331-12051B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	01/2001 - 09/2002	1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-12050A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 01/2001	1
62332-12051B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	01/2001 - 09/2002	1
62332-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	01/2001 - 09/2002	1
62332-12052A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2003 - 04/2004	1
62332-12051B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 09/2003	1
62332-12052B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62332-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 09/2003	1
62332-12050B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 01/2001	1
62332-12052A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62332-12052B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2003 - 04/2004	1
62411 - GARNISH, CENTER PILLAR, RH
62411-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62411-12510B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62411-12510A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62410-12030B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62411-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62411-12510B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62410-12030A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62411-12510B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62412 - GARNISH, CENTER PILLAR, LH
62412-12510B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62412-12510B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62412-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62412-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62420-12030A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62420-12030B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62412-12510B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62412-12510A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-12230A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 05/2001	1
62413-12230B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 05/2001	1
62413-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	05/2001 - 09/2002	1
62413-12231B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	05/2001 - 09/2002	1
62413-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62413-12231A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62413-12231B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62413-12231B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-09215	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
90467-09215	NZE12#,ZZE12#	04/2004 - 09/2006	4
90467-09215	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-12230B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 05/2001	1
62414-12231B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	05/2001 - 09/2002	1
62414-12230A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 05/2001	1
62414-12231A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62414-12231B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62414-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	05/2001 - 09/2002	1
62414-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62414-12231B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
62471-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
62471-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62471-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62471-12810A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62471-12870B0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62471-12810B0	NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62471-12870A0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
62472-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
62472-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62472-12870B0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62472-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62472-12810A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62472-12810B0	NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62472-12870A0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62475 - PAD, ROOF SIDE INNER GARNISH
62475-12140	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
62475-12140	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
62475-12140	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
62475-12150	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	2
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-12270B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67913-12270A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
67913-13040B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67913-13040A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
67913-13040B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67913-13040A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-12230A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
67914-13040B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67914-13040A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
67914-12230B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67914-13040B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67914-13040A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-12120B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67917-12120B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67917-12120A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
67917-12120B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67917-12120A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
67917-12120A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-12110B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67918-12110A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
67918-12110B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67918-12110A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
67918-12110A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
67918-12110B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
Common parts
90467-09215
90468-05112

(0209-0609)SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
62111B - CLIP(FOR COWL SIDE TRIM)
90467-06120	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90467-06120	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90467-06120	NZE12#,ZZE12#	04/2004 - 09/2006	2
62111C - BOARD, COWL SIDE TRIM, RH
62111-12270B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62111-13070A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62111-12270A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62111-13070B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62111-13070A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62111-13070B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62112 - BOARD, COWL SIDE TRIM, LH
62112-13100B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62112-12300B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62112-13100A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62112-12300A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62112-13100A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62112-13100B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62211 - GARNISH, FRONT PILLAR, RH
62211-12320B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62211-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62211-12320B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62211-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62211-12320B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62211-12360A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62211-12320A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62211-12360B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10188	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90467-10188	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90467-10188	NZE12#,ZZE12#	04/2004 - 09/2006	2
90467-10161	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	2
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-10192	NZE12#,ZZE12#	04/2004 - 09/2006	2
90467-10192	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90467-10192	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
62212 - GARNISH, FRONT PILLAR, LH
62212-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62212-12320B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62212-12360A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62212-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62212-12320A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62212-12320B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62212-12360B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62212-12320B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-12140B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 03/2003	1
62311-12141A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	03/2003 - 04/2004	1
62311-12141B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	03/2003 - 04/2004	1
62311-12090A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62311-12140A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 03/2003	1
62311-12141B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62311-12141A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62311-12090B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-12090A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62312-12090B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62312-12141A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	03/2003 - 04/2004	1
62312-12140B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 03/2003	1
62312-12141B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62312-12141A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62312-12141B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	03/2003 - 04/2004	1
62312-12140A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 03/2003	1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-12050A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 01/2001	1
62331-12050B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 01/2001	1
62331-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	01/2001 - 09/2002	1
62331-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 09/2003	1
62331-12051B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 09/2003	1
62331-12052A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2003 - 04/2004	1
62331-12052B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62331-12052A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62331-12052B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2003 - 04/2004	1
62331-12051B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	01/2001 - 09/2002	1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-12050A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 01/2001	1
62332-12051B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	01/2001 - 09/2002	1
62332-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	01/2001 - 09/2002	1
62332-12052A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2003 - 04/2004	1
62332-12051B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 09/2003	1
62332-12052B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62332-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 09/2003	1
62332-12050B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 01/2001	1
62332-12052A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62332-12052B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2003 - 04/2004	1
62411 - GARNISH, CENTER PILLAR, RH
62411-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62411-12510B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62411-12510A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62410-12030B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62411-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62411-12510B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62410-12030A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62411-12510B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62412 - GARNISH, CENTER PILLAR, LH
62412-12510B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62412-12510B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62412-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62412-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62420-12030A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62420-12030B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62412-12510B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62412-12510A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-12230A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 05/2001	1
62413-12230B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 05/2001	1
62413-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	05/2001 - 09/2002	1
62413-12231B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	05/2001 - 09/2002	1
62413-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62413-12231A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62413-12231B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62413-12231B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-09215	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
90467-09215	NZE12#,ZZE12#	04/2004 - 09/2006	4
90467-09215	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-12230B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 05/2001	1
62414-12231B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	05/2001 - 09/2002	1
62414-12230A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 05/2001	1
62414-12231A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62414-12231B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62414-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	05/2001 - 09/2002	1
62414-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62414-12231B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
62471-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
62471-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62471-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62471-12810A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62471-12870B0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62471-12810B0	NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62471-12870A0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
62472-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
62472-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62472-12870B0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62472-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62472-12810A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62472-12810B0	NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62472-12870A0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62475 - PAD, ROOF SIDE INNER GARNISH
62475-12140	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
62475-12140	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
62475-12140	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
62475-12150	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	2
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-13010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
67911-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67912-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
67912-13010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-12270B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67913-12270A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
67913-13040B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67913-13040A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
67913-13040B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67913-13040A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-12230A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
67914-13040B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67914-13040A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
67914-12230B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67914-13040B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67914-13040A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-12120B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67917-12120B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67917-12120A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
67917-12120B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67917-12120A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
67917-12120A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-12110B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67918-12110A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
67918-12110B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67918-12110A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
67918-12110A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
67918-12110B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67924A - CLAMP, DOOR SCUFF PLATE, NO.2
67924-46010	NZE12#,ZZE12#	04/2004 - 09/2006	4
67924-46010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
Common parts
67923-53010
90467-09215

(0404-0609)SED

Click highlighted areas on diagram

ｱﾘ(SRS ｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸﾞ)

Part #	Description	Period	Qty
62111B - CLIP(FOR COWL SIDE TRIM)
90467-06120	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90467-06120	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90467-06120	NZE12#,ZZE12#	04/2004 - 09/2006	2
62111C - BOARD, COWL SIDE TRIM, RH
62111-12270B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62111-13070A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62111-12270A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62111-13070B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62111-13070A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62111-13070B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62112 - BOARD, COWL SIDE TRIM, LH
62112-13100B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62112-12300B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62112-13100A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62112-12300A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62112-13100A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62112-13100B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-12010	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-12010	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
62211 - GARNISH, FRONT PILLAR, RH
62211-12320B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62211-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62211-12320B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62211-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62211-12320B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62211-12360A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62211-12320A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62211-12360B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10188	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90467-10188	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90467-10188	NZE12#,ZZE12#	04/2004 - 09/2006	2
90467-10161	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	2
62212 - GARNISH, FRONT PILLAR, LH
62212-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62212-12320B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62212-12360A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62212-12320A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62212-12320A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62212-12320B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62212-12360B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62212-12320B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62217H - CLIP, CENTER PILLER GARNISH
62217-13010	NZE12#,ZZE12#	04/2004 - 09/2006	2
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-12140B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 03/2003	1
62311-12141A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	03/2003 - 04/2004	1
62311-12141B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	03/2003 - 04/2004	1
62311-12090A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62311-12140A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 03/2003	1
62311-12141B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62311-12141A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62311-12090B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-12090A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62312-12090B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
62312-12141A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	03/2003 - 04/2004	1
62312-12140B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 03/2003	1
62312-12141B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62312-12141A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62312-12141B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	03/2003 - 04/2004	1
62312-12140A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 03/2003	1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-12050A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 01/2001	1
62331-12050B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 01/2001	1
62331-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	01/2001 - 09/2002	1
62331-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 09/2003	1
62331-12051B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 09/2003	1
62331-12052A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2003 - 04/2004	1
62331-12052B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62331-12052A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62331-12052B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2003 - 04/2004	1
62331-12051B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	01/2001 - 09/2002	1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-12050A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 01/2001	1
62332-12051B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	01/2001 - 09/2002	1
62332-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	01/2001 - 09/2002	1
62332-12052A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2003 - 04/2004	1
62332-12051B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 09/2003	1
62332-12052B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62332-12051A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 09/2003	1
62332-12050B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 01/2001	1
62332-12052A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62332-12052B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2003 - 04/2004	1
62411 - GARNISH, CENTER PILLAR, RH
62411-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62411-12510B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62411-12510A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62410-12030B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62411-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62411-12510B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62410-12030A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62411-12510B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62412 - GARNISH, CENTER PILLAR, LH
62412-12510B0	ZZE12#;CE121,NZE12#..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62412-12510B0	CE121,NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62412-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
62412-12510A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62420-12030A0	NZE12#,ZZE122,124..G,LXL,X ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62420-12030B0	NZE12#,ZZE12# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62412-12510B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62412-12510A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-12230A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 05/2001	1
62413-12230B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 05/2001	1
62413-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	05/2001 - 09/2002	1
62413-12231B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	05/2001 - 09/2002	1
62413-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62413-12231A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62413-12231B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62413-12231B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-09215	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
90467-09215	NZE12#,ZZE12#	04/2004 - 09/2006	4
90467-09215	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-12230B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 05/2001	1
62414-12231B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	05/2001 - 09/2002	1
62414-12230A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 05/2001	1
62414-12231A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
62414-12231B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
62414-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	05/2001 - 09/2002	1
62414-12231A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
62414-12231B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
62471-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
62471-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62471-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62471-12810A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62471-12870B0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62471-12810B0	NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62471-12870A0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
62472-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	08/2000 - 09/2002	1
62472-12810A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
62472-12870B0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62472-12810B0	CE121,NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	09/2002 - 04/2004	1
62472-12810A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
62472-12810B0	NZE12#,ZZE122,124..SED LT.GRAY,TRIM1#	04/2004 - 09/2006	1
62472-12870A0	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0#	04/2004 - 09/2006	1
62475 - PAD, ROOF SIDE INNER GARNISH
62475-12140	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
62475-12140	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
62475-12140	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
62475-12150	NZE12#,ZZE122,124..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	2
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-13010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
67911-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67912-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
67912-13010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-12270B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67913-12270A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
67913-13040B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67913-13040A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
67913-13040B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67913-13040A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-12230A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
67914-13040B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67914-13040A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
67914-12230B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67914-13040B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67914-13040A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-12120B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67917-12120B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67917-12120A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
67917-12120B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67917-12120A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
67917-12120A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-12110B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
67918-12110A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	08/2000 - 09/2002	1
67918-12110B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
67918-12110A0	NZE12#,ZZE122,124..SED IVORY,TRIM0#	04/2004 - 09/2006	1
67918-12110A0	CE121,NZE12#,ZZE122,124..SED IVORY,TRIM0#	09/2002 - 04/2004	1
67918-12110B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67924A - CLAMP, DOOR SCUFF PLATE, NO.2
67924-46010	NZE12#,ZZE12#	04/2004 - 09/2006	4
67924-46010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
75597D - CLIP, ROOF SIDE GARNISH
75597-05010	NZE12#,ZZE12#	04/2004 - 07/2004	2
75597-05010	NZE12#,ZZE12#	08/2004 - 09/2006	2
Common parts
62217-12050
67923-53010
90119-06869
90159-50311
90159-50353
90467-10161
Linked diagrams
6101
7104

NZE124-AEPNK (2000)

(0008-0209)SED

(0209-0609)SED

(0404-0609)SED

Part Price Details
