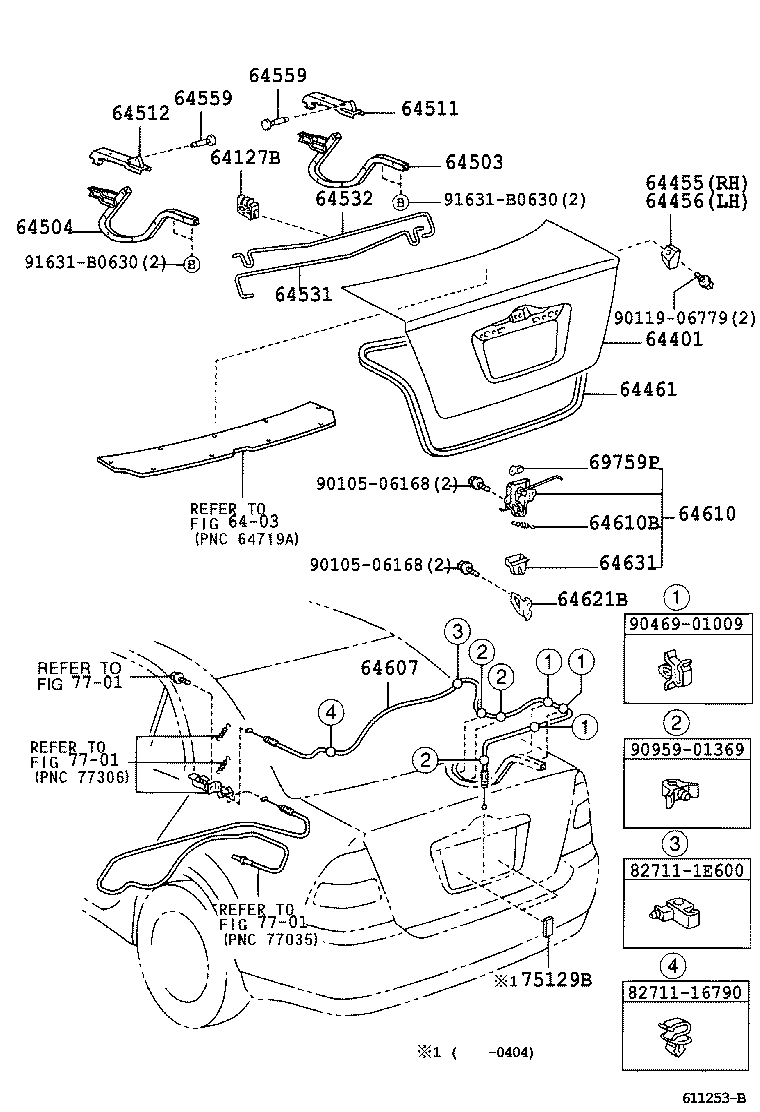

Toyota Corolla/fielder NZE124 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-33041	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64127-33041	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64127-33041	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-1A800	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64401-1E050	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64401-12A30	NZE12#,ZZE122,124..SED ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-)	04/2004 - 09/2006	1
64401-12A10	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64455 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64455-12010	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64455-12010	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64455-12010	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64456 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64456-12010	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64456-12010	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64456-12010	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-12540	CE121,NZE12#,ZZE122,124..SED	08/2000 - 05/2001	1
64461-12542	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
64461-12541	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
64461-12541	CE121,NZE12#,ZZE122,124..SED	05/2001 - 09/2002	1
64461-12542	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-12150	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64503-12150	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64503-12150	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-12150	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64503-12150	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64503-12150	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-12270	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64511-12270	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64511-12270	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511-12270	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64511-12270	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64511-12270	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-12750	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64531-12660	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64531-12660	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-12670	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64532-12650	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64532-12650	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
64559-12040	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
64559-12040	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
64559-12040	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
64559-12040	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-12790	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64607-12790	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64607-12790	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-12320	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64610-12320	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64610-12380	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64610B - SPRING, TENSION(FOR LOCK)
90506-06010	CE121,NZE12#,ZZE122,124..SED 線径=0.55,ｺｲﾙ巻数=16.75	08/2000 - 09/2002	1
90506-06010	CE121,NZE12#,ZZE122,124..SED 線径=0.55,ｺｲﾙ巻数=16.75	09/2002 - 04/2004	1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-12070	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64621-12070	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64621-12070	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64631 - PROTECTOR, LUGGAGE DOOR LOCK
64631-12050	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64631-12050	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64631-12050	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-24050	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
69759-24050	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
69759-24050	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
75129B - CUSHION, REAR LICENCE PLATE
75129-13020	CE121,NZE12#,ZZE122,124..SED	04/2002 - 09/2002	2
75129-13020	CE121,NZE12#,ZZE122,124..SED	08/2000 - 04/2002	2
75129-13020	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
Common parts
82711-16790
82711-1E600
90105-06168
90119-06779
90469-01009
90959-01369
91631-B0630
Linked diagrams
6403
7701

NZE124-AEPNK (2000)

(0008-0609)SED
