Toyota Corolla/fielder NZE124 ROOF PANEL & BACK WINDOW GLASS

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
6104 - ROOF PANEL & BACK WINDOW GLASS

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

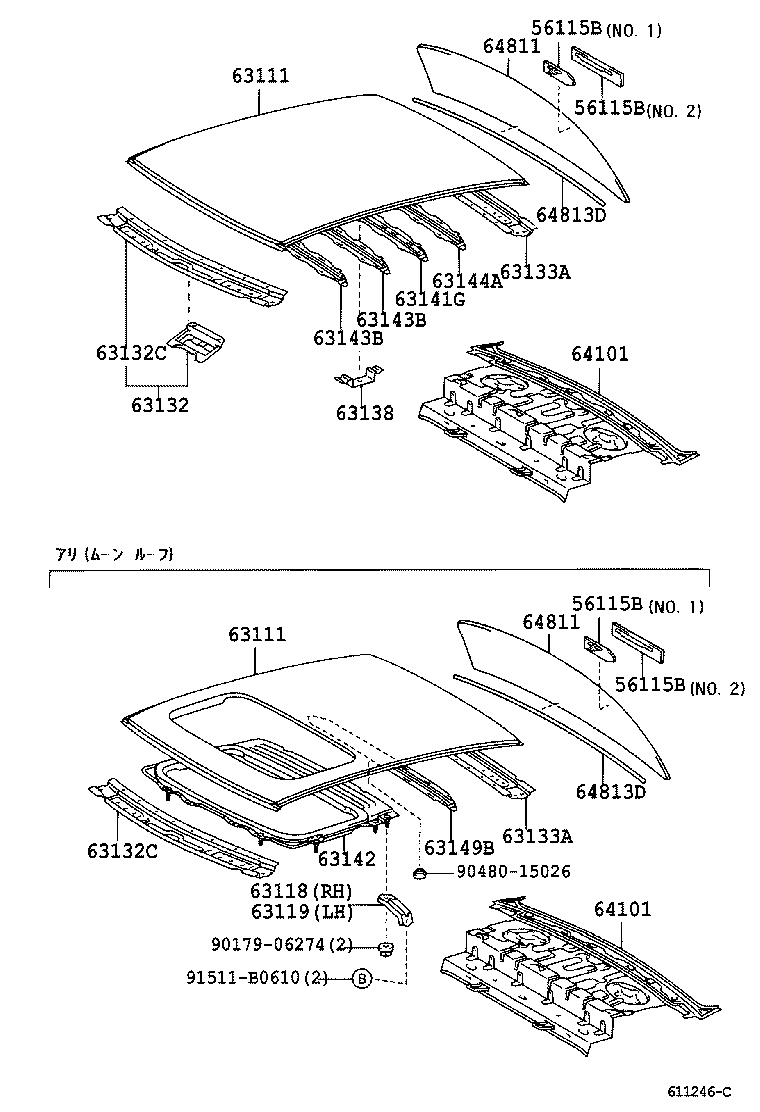

ILLUST NO. 1 OF 2(0008- )SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30100	CE121,NZE12#,ZZE122,124..SED NO.1:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	2
56116-22050	NZE12#,ZZE122,124..SED NO.2	04/2004 - 09/2006	2
56116-22050	CE121,NZE12#,ZZE122,124..SED NO.2:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	2
56116-22050	CE121,NZE12#..SED..X NO.2:ｲﾗｽﾄ参照	08/2000 - 09/2002	2
56115-30100	CE121,NZE12#,ZZE122,124..SED NO.1:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	2
56115-30100	CE121,NZE12#..SED..X NO.1:ｲﾗｽﾄ参照	08/2000 - 09/2002	2
56116-22050	CE121,NZE12#,ZZE122,124..SED NO.2:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	2
56115-30100	NZE12#,ZZE122,124..SED NO.1	04/2004 - 09/2006	2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30100	CE121,NZE12#,ZZE122,124..SED NO.1:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	2
56116-22050	NZE12#,ZZE122,124..SED NO.2	04/2004 - 09/2006	2
56116-22050	CE121,NZE12#,ZZE122,124..SED NO.2:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	2
56116-22050	CE121,NZE12#..SED..X NO.2:ｲﾗｽﾄ参照	08/2000 - 09/2002	2
56115-30100	CE121,NZE12#,ZZE122,124..SED NO.1:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	2
56115-30100	CE121,NZE12#..SED..X NO.1:ｲﾗｽﾄ参照	08/2000 - 09/2002	2
56116-22050	CE121,NZE12#,ZZE122,124..SED NO.2:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	2
56115-30100	NZE12#,ZZE122,124..SED NO.1	04/2004 - 09/2006	2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30100	CE121,NZE12#,ZZE122,124..SED NO.1:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	2
56116-22050	NZE12#,ZZE122,124..SED NO.2	04/2004 - 09/2006	2
56116-22050	CE121,NZE12#,ZZE122,124..SED NO.2:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	2
56116-22050	CE121,NZE12#..SED..X NO.2:ｲﾗｽﾄ参照	08/2000 - 09/2002	2
56115-30100	CE121,NZE12#,ZZE122,124..SED NO.1:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	2
56115-30100	CE121,NZE12#..SED..X NO.1:ｲﾗｽﾄ参照	08/2000 - 09/2002	2
56116-22050	CE121,NZE12#,ZZE122,124..SED NO.2:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	2
56115-30100	NZE12#,ZZE122,124..SED NO.1	04/2004 - 09/2006	2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30100	CE121,NZE12#,ZZE122,124..SED NO.1:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	2
56116-22050	NZE12#,ZZE122,124..SED NO.2	04/2004 - 09/2006	2
56116-22050	CE121,NZE12#,ZZE122,124..SED NO.2:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	2
56116-22050	CE121,NZE12#..SED..X NO.2:ｲﾗｽﾄ参照	08/2000 - 09/2002	2
56115-30100	CE121,NZE12#,ZZE122,124..SED NO.1:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	2
56115-30100	CE121,NZE12#..SED..X NO.1:ｲﾗｽﾄ参照	08/2000 - 09/2002	2
56116-22050	CE121,NZE12#,ZZE122,124..SED NO.2:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	2
56115-30100	NZE12#,ZZE122,124..SED NO.1	04/2004 - 09/2006	2
63111 - PANEL, ROOF
63111-12760	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
63111-12760	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
63111-12760	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
63111 - PANEL, ROOF
63111-12760	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
63111-12760	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
63111-12760	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
63118 - SUPPORT, ROOF PANEL, RH
63118-12100	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	08/2000 - 09/2002	1
63118-12100	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
63118-12100	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
63119 - SUPPORT, ROOF PANEL, LH
63118-12100	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
63118-12100	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	08/2000 - 09/2002	1
63118-12100	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-13100	NZE12#,ZZE12# ｱﾘ(ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	1
63102-12150	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
63102-12150	ZZE122,124;CE121,NZE121,124,ZZE123..WG	09/2002 - 04/2004	1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
63132-12240	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
63132-12240	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
63132-12240	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
63132-12240	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
63133A - FRAME, BACK WINDOW, UPPER
63133-12260	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
63133-12260	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
63133-12260	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
63133A - FRAME, BACK WINDOW, UPPER
63133-12260	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
63133-12260	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
63133-12260	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
63138 - BRACKET, DOME LAMP, NO.2
63138-12011	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
63138-12011	CE121,NZE12#,ZZE122,124..SED	03/2001 - 09/2002	2
63138-12010	CE121,NZE12#,ZZE122,124..SED	08/2000 - 03/2001	2
63138-12011	NZE12#,ZZE12#	04/2004 - 09/2006	2
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-12260	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
63141-12260	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
63141-12260	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-12100	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
63142-12100	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	08/2000 - 09/2002	1
63142-12100	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
63143-12100	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
63143-12100	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
63143-12100	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
63143-12100	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	2
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-12080	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
63144-12080	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
63144-12080	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12690	CE121,NZE12#..SED ｱﾘ(ｺﾃｲｼｷﾘﾔｼ-ﾄ )	09/2002 - 04/2004	1
64101-12690	CE121,NZE12#..SED ｱﾘ(ｺﾃｲｼｷﾘﾔｼ-ﾄ )	08/2000 - 09/2002	1
64101-12690	NZE12#..SED	04/2004 - 09/2006	1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12690	CE121,NZE12#..SED ｱﾘ(ｺﾃｲｼｷﾘﾔｼ-ﾄ )	09/2002 - 04/2004	1
64101-12690	CE121,NZE12#..SED ｱﾘ(ｺﾃｲｼｷﾘﾔｼ-ﾄ )	08/2000 - 09/2002	1
64101-12690	NZE12#..SED	04/2004 - 09/2006	1
64811 - GLASS, BACK WINDOW
64811-1E320	CE121,NZE12#..SED..X *EHT,厚さ=3.1,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞｱﾝﾃﾅ)	08/2000 - 09/2002	1
64811-1E290	CE121,NZE12#..SED..X *EHT,厚さ=3.1,ｸﾞﾘｰﾝ	08/2000 - 09/2002	1
64811-1E330	CE121,NZE12#..SED *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞｱﾝﾃﾅ)	09/2002 - 11/2002	1
64811-1E341	CE121,NZE12#..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ	11/2002 - 04/2004	1
64811-1E340	CE121,NZE12#..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ	12/2001 - 09/2002	1
64811-1E340	CE121,NZE12#..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ	09/2002 - 11/2002	1
64811-1E390	NZE12#..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ	04/2004 - 09/2006	1
64811-1E330	CE121,NZE12#..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞｱﾝﾃﾅ)	12/2001 - 09/2002	1
64811-1E331	CE121,NZE120..SED;NZE121,124..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞｱﾝﾃﾅ)	11/2002 - 09/2003	1
64811-1E400	NZE121,124..SED..X *EHT,厚さ=3.1,ｸｰﾙｸﾞﾘｰﾝ	04/2004 - 09/2006	1
64811 - GLASS, BACK WINDOW
64811-1E320	CE121,NZE12#..SED..X *EHT,厚さ=3.1,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞｱﾝﾃﾅ)	08/2000 - 09/2002	1
64811-1E290	CE121,NZE12#..SED..X *EHT,厚さ=3.1,ｸﾞﾘｰﾝ	08/2000 - 09/2002	1
64811-1E330	CE121,NZE12#..SED *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞｱﾝﾃﾅ)	09/2002 - 11/2002	1
64811-1E341	CE121,NZE12#..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ	11/2002 - 04/2004	1
64811-1E340	CE121,NZE12#..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ	12/2001 - 09/2002	1
64811-1E340	CE121,NZE12#..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ	09/2002 - 11/2002	1
64811-1E390	NZE12#..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ	04/2004 - 09/2006	1
64811-1E330	CE121,NZE12#..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞｱﾝﾃﾅ)	12/2001 - 09/2002	1
64811-1E331	CE121,NZE120..SED;NZE121,124..SED..X *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞｱﾝﾃﾅ)	11/2002 - 09/2003	1
64811-1E400	NZE121,124..SED..X *EHT,厚さ=3.1,ｸｰﾙｸﾞﾘｰﾝ	04/2004 - 09/2006	1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-47010	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
56117-12240	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
56117-12240	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-47010	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
56117-12240	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
56117-12240	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
Common parts
90179-06274
90480-15026
91511-B0610

ILLUST NO. 2 OF 2(0008- )SED

Click highlighted areas on diagram

ﾑ-ﾝﾙ-ﾌ

Part #	Description	Period	Qty
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-12261	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER *TT,厚さ=4.0,ｸﾞﾚｰ	11/2002 - 09/2003	1
63201-12260	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER *TT,厚さ=4.0,ｸﾞﾚｰ	09/2002 - 11/2002	1
63201-12260	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER *TT,厚さ=4.0,ｸﾞﾚｰ	08/2000 - 09/2002	1
63201-12262	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER *TT,厚さ=4.0,ｸﾞﾚｰ	09/2003 - 04/2004	1
63201-12262	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER *TT,厚さ=4.0,ｸﾞﾚｰ	04/2004 - 09/2006	1
63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE
63205-12150	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
63205-12150	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	08/2000 - 09/2002	1
63205-12150	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
63218H - HOSE, SLIDING ROOF DRAIN
63249-12330	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ﾌﾛﾝﾄ	04/2004 - 03/2005	2
63249-12330	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ﾌﾛﾝﾄ	08/2000 - 09/2002	2
63249-12330	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ﾌﾛﾝﾄ	09/2002 - 04/2004	2
63249-12331	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ﾌﾛﾝﾄ	04/2005 - 09/2006	2
63218H - HOSE, SLIDING ROOF DRAIN
63249-12330	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ﾌﾛﾝﾄ	04/2004 - 03/2005	2
63249-12330	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ﾌﾛﾝﾄ	08/2000 - 09/2002	2
63249-12330	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ﾌﾛﾝﾄ	09/2002 - 04/2004	2
63249-12331	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER ﾌﾛﾝﾄ	04/2005 - 09/2006	2
63239 - STOPPER, SLIDING ROOF PANEL
63239-12030	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	08/2000 - 09/2002	2
63239-12030	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	2
63239-12030	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	2
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-12110	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	4
63241-12110	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	4
63241-12110	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	08/2000 - 09/2002	4
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-12110	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	4
63241-12110	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	4
63241-12110	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	08/2000 - 09/2002	4
63251H - WEATHERSTRIP, SLIDING ROOF
63251-12160	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 11/2002	1
63251-12160	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	08/2000 - 09/2002	1
63251-12160	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	11/2002 - 09/2003	1
63251-12161	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2003 - 04/2004	1
63251-12161	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-12110	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	08/2000 - 09/2002	1
63260-12110	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
Common parts
82711-3H630
90119-06357
90148-60021
90159-50336
90168-40027
90179-06083
90179-06274
90467-14001
90480-26026
90959-01566
91511-G0614

NZE124-AEPNK (2000)

ILLUST NO. 1 OF 2(0008- )SED

ILLUST NO. 2 OF 2(0008- )SED

Part Price Details
