Toyota Corolla/fielder NZE124 SIDE MEMBER

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

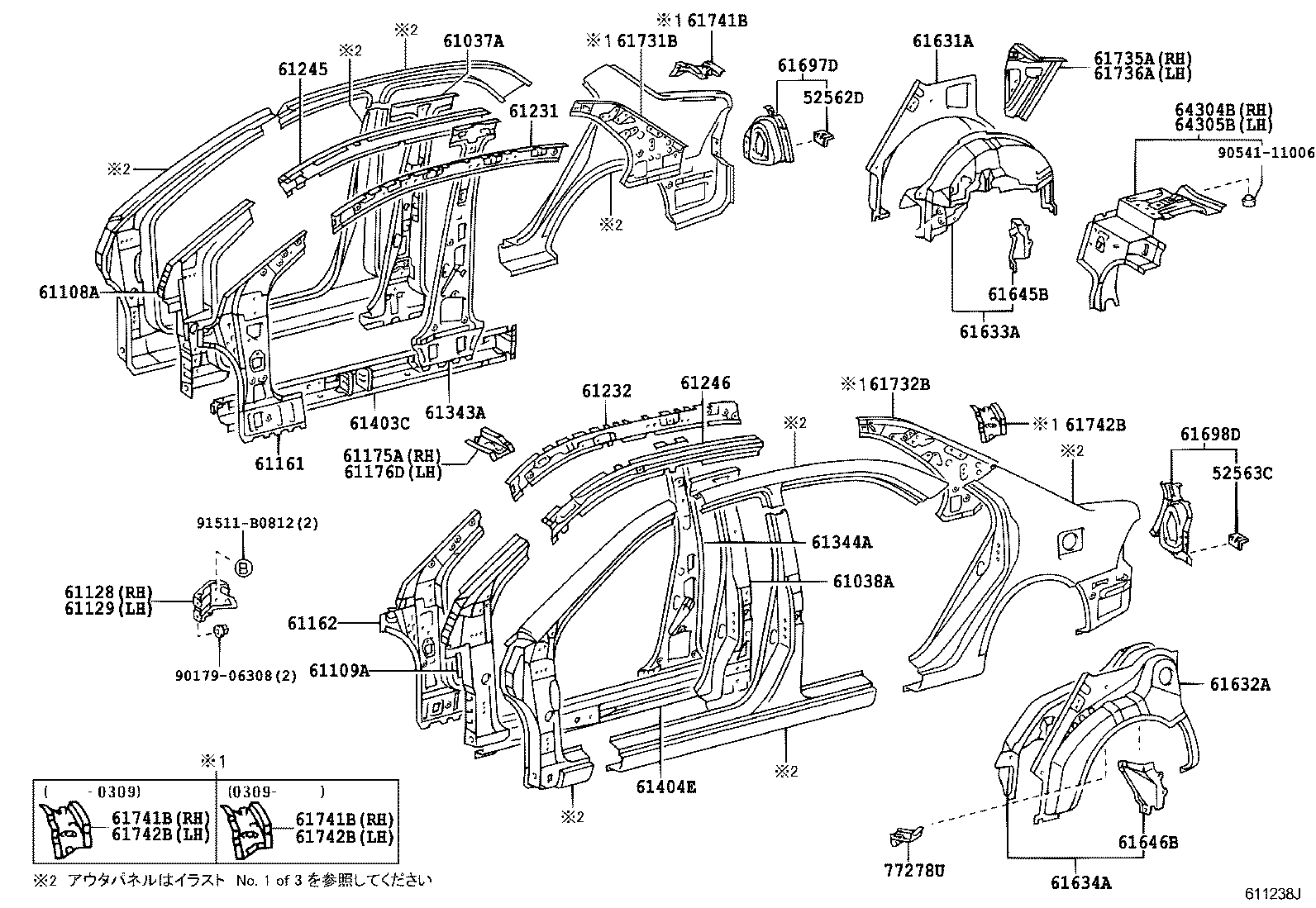

ILLUST NO. 2 OF 3(0008-0404)SED

Click highlighted areas on diagram

ｲﾝﾅﾊﾟﾈﾙ

Part #	Description	Period	Qty
52562D - RETAINER, REAR BUMPER, UPPER SIDE, RH
52562-12070	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
52562-12070	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
52563C - RETAINER, REAR BUMPER, UPPER SIDE, LH
52562-12070	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
52562-12070	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-12903	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61037-12903	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61037-12903	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-12903	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61038-12903	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61038-12903	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-12230	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61108-12230	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61108-12230	NZE12#,ZZE12#	04/2004 - 09/2006	1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-12220	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61109-12220	NZE12#,ZZE12#	04/2004 - 09/2006	1
61109-12220	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61128 - REINFORCEMENT, COWL SIDE PANEL, RH
61103-12200	NZE12#,ZZE12#	04/2004 - 09/2006	1
61103-12190	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61103-12190	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61129 - REINFORCEMENT, COWL SIDE PANEL, LH
61104-12230	NZE12#,ZZE12#	04/2004 - 09/2006	1
61104-12220	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61104-12220	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61023-12350	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61023-12320	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61023-12350	NZE12#,ZZE12#	04/2004 - 09/2006	1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61024-12350	NZE12#,ZZE12#	04/2004 - 09/2006	1
61024-12350	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61024-12320	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61175-12140	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61175-12200	NZE12#,ZZE12# ｱﾘ(ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	1
61175-12140	NZE12#,ZZE12#	04/2004 - 09/2006	1
61175-12140	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH
61176-12201	NZE12#,ZZE12# ｱﾘ(ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	1
61176-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
61176-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61176-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61231 - RAIL, ROOF SIDE, INNER RH
61231-1A140	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61231-1A100	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61231-1A140	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61232 - RAIL, ROOF SIDE, INNER LH
61232-1A020	CE121,NZE12#,ZZE122,124..SED	11/2002 - 04/2004	1
61232-12870	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61232-1A020	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61245-12060	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61245-12060	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61245-12060	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61246-12060	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61246-12060	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61246-12060	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61343A - PILLAR, CENTER BODY, INNER RH
61343-12240	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61343-12240	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61343-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
61344A - PILLAR, CENTER BODY, INNER LH
61344-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
61344-12240	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61344-12240	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-12010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61403-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
61403-12010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-12011	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61404-12011	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61404-12011	NZE12#,ZZE12#	04/2004 - 09/2006	1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-12410	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61631-12410	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61631-12410	NZE12#,ZZE12#	04/2004 - 09/2006	1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-12430	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61632-12430	NZE12#,ZZE12#	04/2004 - 09/2006	1
61632-12430	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-12926	NZE124,ZZE124..G,S,X ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ)	08/2000 - 09/2002	1
61607-12945	NZE124..SED ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ)	04/2004 - 09/2006	1
61607-12926	NZE124,ZZE124..G,S,X ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ)	09/2002 - 04/2004	1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-12924	NZE124,ZZE124..G,S,X ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ)	08/2000 - 09/2002	1
61608-12924	NZE124,ZZE124..G,S,X ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ)	09/2002 - 04/2004	1
61608-12943	NZE124,ZZE124..G,S,X ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ & ABS)	04/2004 - 09/2006	1
61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61645-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
61645-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-12140	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61646-12140	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61646-12140	NZE12#,ZZE12#	04/2004 - 09/2006	1
61697D - HOUSING, QUARTER PANEL END, RH
61697-12900	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61697-12900	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61697-12905	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61698D - HOUSING, QUARTER PANEL END, LH
61698-12900	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61698-12905	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61698-12900	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61731B - PANEL, ROOF SIDE, INNER RH
61731-12770	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61731-12680	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61731-12680	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61731-12760	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61732B - PANEL, ROOF SIDE, INNER LH
61732-12640	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61732-12710	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61732-12640	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61732-12720	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-12380	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61735-12380	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61735-12380	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-12370	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61736-12370	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61736-12370	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61741B - REINFORCEMENT, BACK WINDOW OPENING, RH
61741-12120	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61741-12121	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61741-12121	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61741-12120	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61741B - REINFORCEMENT, BACK WINDOW OPENING, RH
61741-12120	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61741-12121	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61741-12121	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61741-12120	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61741B - REINFORCEMENT, BACK WINDOW OPENING, RH
61741-12120	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61741-12121	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61741-12121	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61741-12120	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61742B - REINFORCEMENT, BACK WINDOW OPENING, LH
61742-12091	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61742-12091	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61742-12090	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61742-12090	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61742B - REINFORCEMENT, BACK WINDOW OPENING, LH
61742-12091	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61742-12091	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61742-12090	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61742-12090	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61742B - REINFORCEMENT, BACK WINDOW OPENING, LH
61742-12091	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61742-12091	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61742-12090	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61742-12090	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
64304-12030	NZE124,ZZE124..SED	04/2004 - 09/2006	1
64304-12030	NZE124,ZZE124..SED	09/2002 - 04/2004	1
64304-12030	NZE124,ZZE124..SED	08/2000 - 09/2002	1
64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH
64305-12030	NZE124,ZZE124..SED	08/2000 - 09/2002	1
64305-12030	NZE124,ZZE124..SED	09/2002 - 04/2004	1
64305-12030	NZE124,ZZE124..SED	04/2004 - 09/2006	1
77278U - BRACKET, FUEL TANK FILLER PIPE PROTECTOR
77278-32050	NZE124,ZZE124;CE121,NZE121,ZZE122,123..WG	08/2000 - 09/2002	1
77278-32050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77278-32050	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90179-06308
90541-11006
91511-B0812

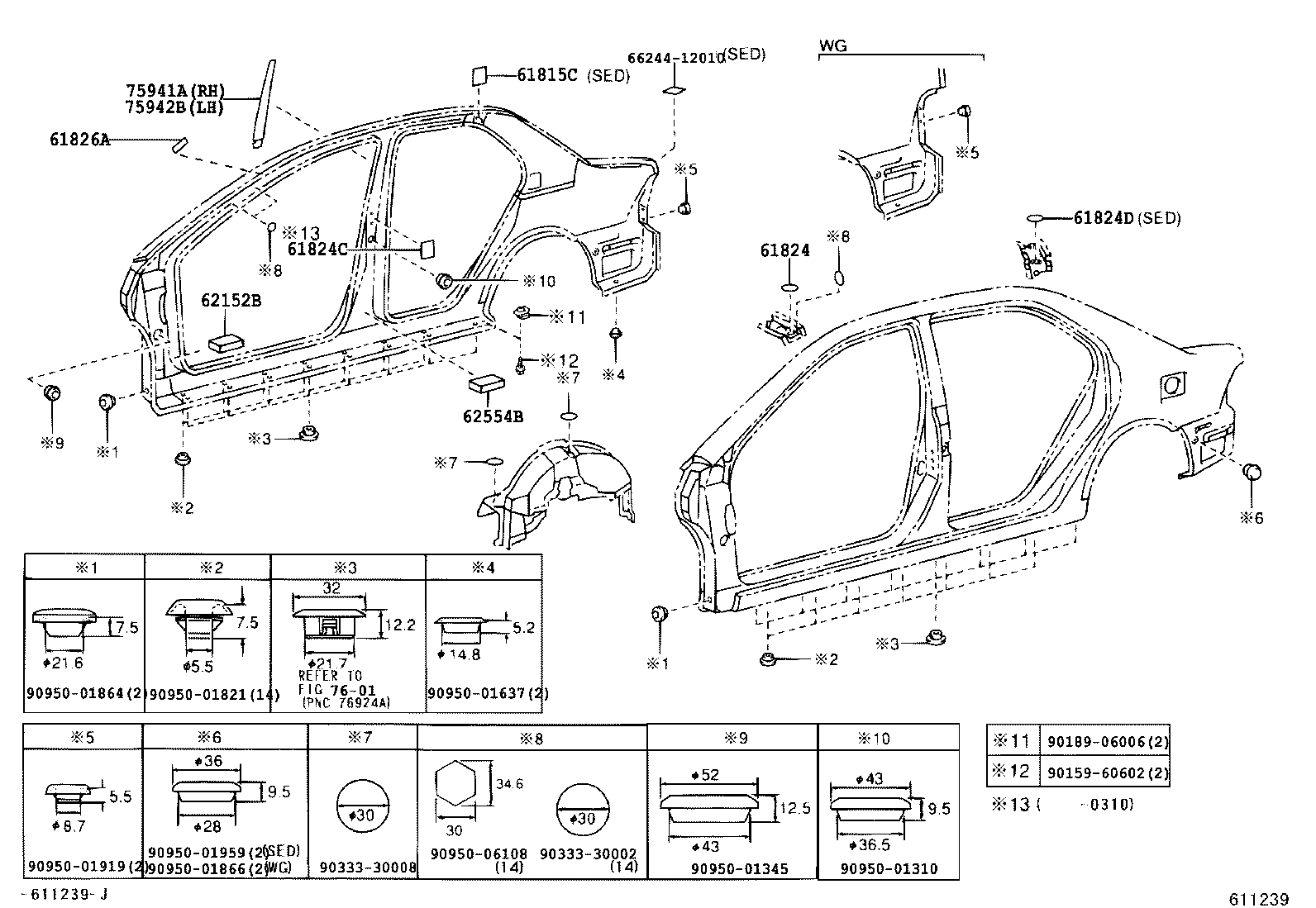

ILLUST NO. 3 OF 3(0008- )

Click highlighted areas on diagram

ﾌﾟﾗｸﾞﾎ-ﾙ

Part #	Description	Period	Qty
61815C - COVER, ROOF SIDE, INNER UPPER
61815-32020	CE121,NZE12#,ZZE122,124..SED	09/2002 - 11/2003	2
61815-32020	CE121,NZE12#,ZZE122,124..SED	03/2001 - 09/2002	2
61815-32020	CE121,NZE12#,ZZE122,124..SED	08/2000 - 03/2001	2
61815-28010	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
61815-28010	CE121,NZE12#,ZZE122,124..SED	11/2003 - 04/2004	2
61824 - PLATE, NOISE CONTROL, NO.1
61824-12040	CE121,NZE12#,ZZE122,124..SED	09/2002 - 11/2003	4
61824-12040	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
61824-12060	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
61824-12060	CE121,NZE12#,ZZE122,124..SED	11/2003 - 04/2004	4
61824C - PAD, NOISE SHUTTER, NO.1
61824-52040	CE121,NZE12#,ZZE122,124..SED	07/2003 - 10/2003	2
61824-50020	CE121,NZE12#,ZZE122,124..SED	09/2002 - 07/2003	2
61824-50020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
61824D - PLATE, NOISE CONTROL, NO.1
61824-12040	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	2
61824-12060	CE121,NZE12#,ZZE122,124..SED	11/2003 - 04/2004	2
61824-12060	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
61824-12040	CE121,NZE12#,ZZE122,124..SED	09/2002 - 11/2003	2
61826A - PLATE, NOISE CONTROL, NO.3
61826-12020	CE121,NZE12#,ZZE122,124..SED	09/2002 - 07/2003	2
61826-52020	CE121,NZE12#,ZZE122,124..SED	07/2003 - 04/2004	2
61826-52020	NZE12#,ZZE12#	04/2004 - 09/2006	2
62152B - PAD, COWL SIDE SILENCER, NO.2
62152-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
62152-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
62152-12050	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
62554B - PAD, PILLAR, NO.4
62554-12180	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	2
62554-12180	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
62554-12180	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
75941A - STRIPE, CENTER PILLAR, RH
75941-12010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
75941-12011	CE121,NZE12#,ZZE122,124..SED	05/2003 - 04/2004	1
75941-12011	NZE12#,ZZE12#	04/2004 - 09/2006	1
75941-12010	CE121,NZE12#,ZZE122,124..SED	09/2002 - 05/2003	1
75942B - STRIPE, CENTER PILLAR, LH
75942-12010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
75942-12010	CE121,NZE12#,ZZE122,124..SED	09/2002 - 05/2003	1
75942-12011	NZE12#,ZZE12#	04/2004 - 09/2006	1
75942-12011	CE121,NZE12#,ZZE122,124..SED	05/2003 - 04/2004	1
Common parts
66244-12010
90159-60602
90189-06006
90333-30002
90333-30008
90950-01310
90950-01345
90950-01637
90950-01821
90950-01864
90950-01866
90950-01919
90950-01959
90950-06108
Linked diagrams
7601

ILLUST NO. 2 OF 3(0404- )SED

Click highlighted areas on diagram

ｲﾝﾅﾊﾟﾈﾙ

Part #	Description	Period	Qty
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-12903	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61037-12903	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61037-12903	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-12903	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61038-12903	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61038-12903	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-12230	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61108-12230	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61108-12230	NZE12#,ZZE12#	04/2004 - 09/2006	1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-12220	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61109-12220	NZE12#,ZZE12#	04/2004 - 09/2006	1
61109-12220	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61128 - REINFORCEMENT, COWL SIDE PANEL, RH
61103-12200	NZE12#,ZZE12#	04/2004 - 09/2006	1
61103-12190	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61103-12190	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61129 - REINFORCEMENT, COWL SIDE PANEL, LH
61104-12230	NZE12#,ZZE12#	04/2004 - 09/2006	1
61104-12220	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61104-12220	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61023-12350	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61023-12320	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61023-12350	NZE12#,ZZE12#	04/2004 - 09/2006	1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61024-12350	NZE12#,ZZE12#	04/2004 - 09/2006	1
61024-12350	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61024-12320	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61175-12140	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61175-12200	NZE12#,ZZE12# ｱﾘ(ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	1
61175-12140	NZE12#,ZZE12#	04/2004 - 09/2006	1
61175-12140	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH
61176-12201	NZE12#,ZZE12# ｱﾘ(ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	1
61176-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
61176-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61176-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61231 - RAIL, ROOF SIDE, INNER RH
61231-1A140	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61231-1A100	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61231-1A140	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61232 - RAIL, ROOF SIDE, INNER LH
61232-1A020	CE121,NZE12#,ZZE122,124..SED	11/2002 - 04/2004	1
61232-12870	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61232-1A020	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61245-12060	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61245-12060	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61245-12060	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61246-12060	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61246-12060	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61246-12060	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61343A - PILLAR, CENTER BODY, INNER RH
61343-12240	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61343-12240	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61343-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
61344A - PILLAR, CENTER BODY, INNER LH
61344-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
61344-12240	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61344-12240	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-12010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61403-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
61403-12010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-12011	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61404-12011	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61404-12011	NZE12#,ZZE12#	04/2004 - 09/2006	1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-12410	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61631-12410	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61631-12410	NZE12#,ZZE12#	04/2004 - 09/2006	1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-12430	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61632-12430	NZE12#,ZZE12#	04/2004 - 09/2006	1
61632-12430	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-12926	NZE124,ZZE124..G,S,X ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ)	08/2000 - 09/2002	1
61607-12945	NZE124..SED ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ)	04/2004 - 09/2006	1
61607-12926	NZE124,ZZE124..G,S,X ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ)	09/2002 - 04/2004	1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-12924	NZE124,ZZE124..G,S,X ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ)	08/2000 - 09/2002	1
61608-12924	NZE124,ZZE124..G,S,X ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ)	09/2002 - 04/2004	1
61608-12943	NZE124,ZZE124..G,S,X ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ & ABS)	04/2004 - 09/2006	1
61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61645-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
61645-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-12140	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61646-12140	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61646-12140	NZE12#,ZZE12#	04/2004 - 09/2006	1
61697D - HOUSING, QUARTER PANEL END, RH
61697-12900	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61697-12900	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61697-12905	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61698D - HOUSING, QUARTER PANEL END, LH
61698-12900	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61698-12905	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61698-12900	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61715C - BRACKET, ROOF SIDE, RH
61715-12090	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61716C - BRACKET, ROOF SIDE, LH
61716-12100	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61719H - BRACKET SUB-ASSY, ROOF SIDE RAIL, RH
61707-12040	NZE12#,ZZE12#	04/2004 - 09/2006	1
61729F - BRACKET SUB-ASSY, ROOF SIDE RAIL, LH
61708-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
61731B - PANEL, ROOF SIDE, INNER RH
61731-12770	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61731-12680	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61731-12680	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61731-12760	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61732B - PANEL, ROOF SIDE, INNER LH
61732-12640	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61732-12710	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61732-12640	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61732-12720	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-12380	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61735-12380	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61735-12380	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-12370	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61736-12370	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61736-12370	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61741B - REINFORCEMENT, BACK WINDOW OPENING, RH
61741-12120	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61741-12121	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61741-12121	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61741-12120	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61742B - REINFORCEMENT, BACK WINDOW OPENING, LH
61742-12091	CE121,NZE12#,ZZE122,124..SED	09/2003 - 04/2004	1
61742-12091	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
61742-12090	CE121,NZE12#,ZZE122,124..SED	09/2002 - 09/2003	1
61742-12090	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
64304-12030	NZE124,ZZE124..SED	04/2004 - 09/2006	1
64304-12030	NZE124,ZZE124..SED	09/2002 - 04/2004	1
64304-12030	NZE124,ZZE124..SED	08/2000 - 09/2002	1
64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH
64305-12030	NZE124,ZZE124..SED	08/2000 - 09/2002	1
64305-12030	NZE124,ZZE124..SED	09/2002 - 04/2004	1
64305-12030	NZE124,ZZE124..SED	04/2004 - 09/2006	1
77278U - BRACKET, FUEL TANK FILLER PIPE PROTECTOR
77278-32050	NZE124,ZZE124;CE121,NZE121,ZZE122,123..WG	08/2000 - 09/2002	1
77278-32050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
77278-32050	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90119-06869
90179-06308
90541-11006
91511-B0812

ILLUST NO. 1 OF 3(0008- )SED

Click highlighted areas on diagram

ｱｳﾀﾊﾟﾈﾙ

Part #	Description	Period	Qty
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-12600	CE121,NZE12#..SED..X	09/2002 - 09/2003	1
61131-12590	CE121,NZE121..SED..X;NZE120,124,ZZE124..S,X ｱﾘ(ｱﾝﾃﾅｱﾅ)	08/2000 - 09/2002	1
61131-12600	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61131-12600	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
61131-12590	NZE12#..SED..X ｱﾘ(ｱﾝﾃﾅｱﾅ)	04/2004 - 09/2006	1
61131-12590	CE121,NZE12#..SED..X ｱﾘ(ｱﾝﾃﾅｱﾅ)	09/2002 - 04/2004	1
61131-12600	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-12610	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61132-12610	NZE12#,ZZE12#	04/2004 - 09/2006	1
61132-12610	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-12410	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61211-12410	NZE12#,ZZE122,124..SED	04/2004 - 02/2005	1
61211-12410	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61211-12411	NZE12#,ZZE122,124..SED	03/2005 - 09/2006	1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-12411	NZE12#,ZZE122,124..SED	03/2005 - 09/2006	1
61212-12410	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61212-12410	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61212-12410	NZE12#,ZZE122,124..SED	04/2004 - 02/2005	1
61311B - PILLAR, CENTER BODY, OUTER RH
61311-12330	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61311-12330	NZE12#,ZZE12#	04/2004 - 09/2006	1
61311-12330	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61312B - PILLAR, CENTER BODY, OUTER LH
61312-12370	NZE12#,ZZE12#	04/2004 - 09/2006	1
61312-12370	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
61312-12370	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
61611 - PANEL, QUARTER, RH
61601-1H130	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61601-1H130	NZE12#,ZZE122,124..SED	04/2004 - 02/2005	1
61601-1H130	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61601-1H131	NZE12#,ZZE122,124..SED	03/2005 - 09/2006	1
61612 - PANEL, QUARTER, LH
61602-1E860	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
61602-1E861	NZE12#,ZZE122,124..SED	03/2005 - 09/2006	1
61602-1E860	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
61602-1E860	NZE12#,ZZE122,124..SED	04/2004 - 02/2005	1

NZE124-AEPNK (2000)

ILLUST NO. 2 OF 3(0008-0404)SED

ILLUST NO. 3 OF 3(0008- )

ILLUST NO. 2 OF 3(0404- )SED

ILLUST NO. 1 OF 3(0008- )SED

Part Price Details
