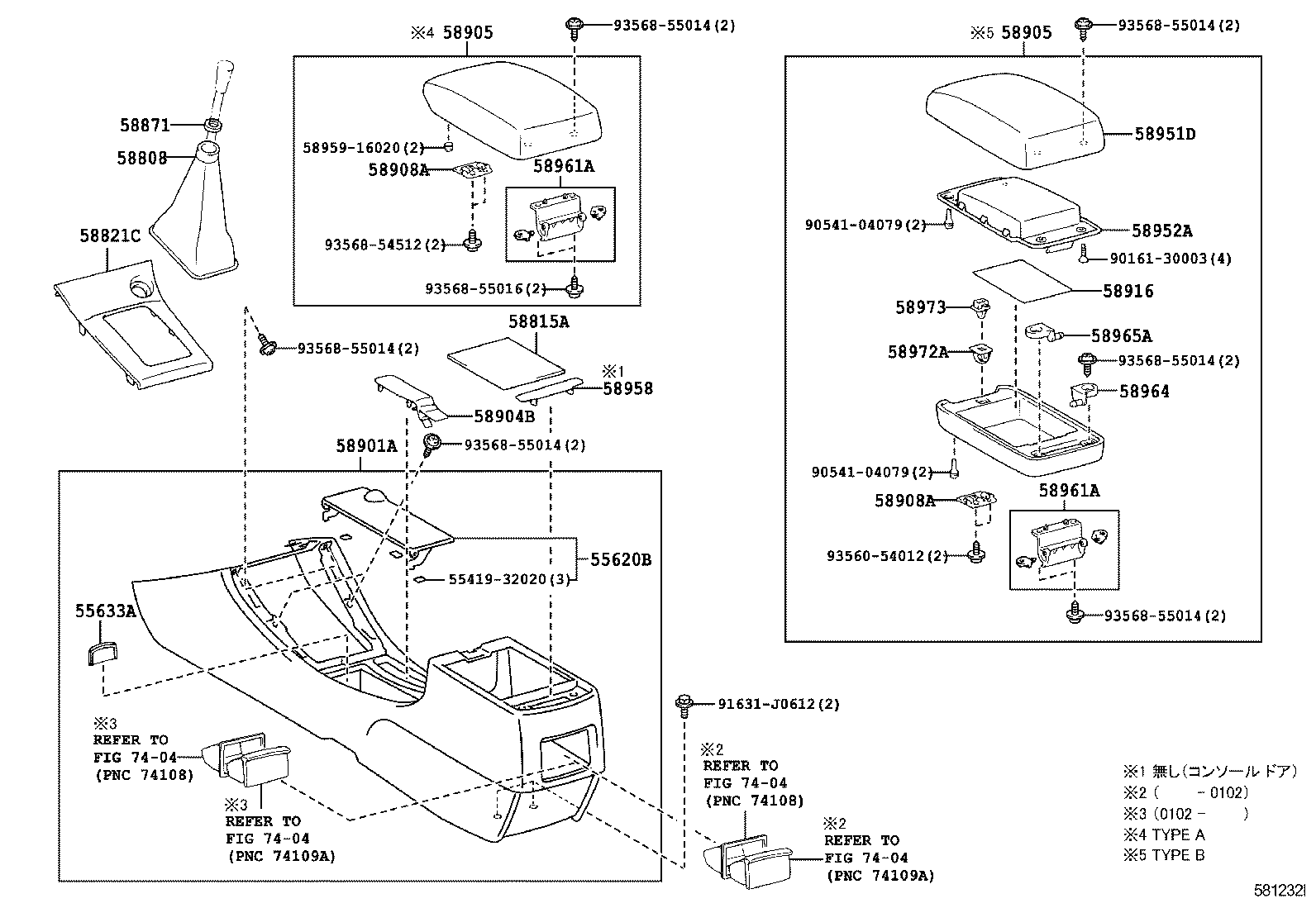

Toyota Corolla/fielder NZE124 CONSOLE BOX & BRACKET

Part #	Description	Period	Qty
55620B - HOLDER, INSTRUMENT PANEL CUP
55620-12090B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
55620-12090A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
55620-12090B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
55620-12090B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
55620-12090A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
55620-12090A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
55633-12090B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	3
55633-12090A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	3
55633-12090A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	3
55633-12090B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	3
55633-12090A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	3
55633-12090B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	3
58815A - CARPET, CONSOLE BOX
58815-12060	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
58815-12060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
58815-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
58821C - PANEL, CONSOLE, UPPER
58821-12110A0	CE121,NZE12#,ZZE122,124..SED ﾓｸﾒ,IVORY,TRIM0#,1#	08/2000 - 09/2002	1
58821-12100B0	ZZE122,124..S DARK GRAY,TRIM1#	08/2000 - 09/2002	1
58821-12100C0	NZE12#..SED..X METALLIC BLACK,TRIM14	04/2004 - 09/2006	1
58821-12110A0	CE121,NZE12#,ZZE122,124..SED ﾓｸﾒ,IVORY,TRIM0#,1#	09/2002 - 04/2004	1
58821-12100C0	NZE12#..X;CE121..SED..X METALLIC BLACK,TRIM0#,1#	09/2002 - 04/2004	1
58821-12100B0	CE121,NZE12#..SED DARK GRAY,TRIM0#,1#	08/2000 - 09/2002	1
58821-12110E4	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),LT.BROWN,TRIM0#	12/2005 - 09/2006	1
58821-12110B3	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),GRAY,TRIM14	12/2005 - 09/2006	1
58821-12100B3	NZE12#..SED..X ﾄｿｳｱﾘ(ｼﾙﾊﾞ-),21SV26,TRIM0#,14	04/2004 - 09/2006	1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-12420A0	CE121,NZE12#,ZZE122,124..G,LXL,X ｶﾝﾚｲﾁｼﾖｳ,IVORY,TRIM0#	08/2000 - 02/2001	1
58901-12440A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 02/2001	1
58901-12440B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 02/2001	1
58901-12420B0	CE121,NZE12#,ZZE122,124..SED ｶﾝﾚｲﾁｼﾖｳ,STONE,TRIM1#	08/2000 - 02/2001	1
58901-12421B0	CE121,NZE12#,ZZE122,124..SED ｶﾝﾚｲﾁｼﾖｳ,STONE,TRIM1#	02/2001 - 09/2002	1
58901-12441A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	02/2001 - 09/2002	1
58901-12490A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
58901-12500B1	CE121,NZE12#,ZZE122,124..SED ｶﾝﾚｲﾁｼﾖｳ,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
58901-12490A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
58901-12490B1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
58901-12421A0	CE121,NZE12#,ZZE122,124..G,LXL,X ｶﾝﾚｲﾁｼﾖｳ,IVORY,TRIM0#	02/2001 - 09/2002	1
58901-12500A0	NZE12#,ZZE122,124..G,LXL,X ｶﾝﾚｲﾁｼﾖｳ,IVORY,TRIM0#	04/2004 - 09/2006	1
58901-12441B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	02/2001 - 09/2002	1
58901-12500A0	CE121,NZE12#,ZZE122,124..G,LXL,X ｶﾝﾚｲﾁｼﾖｳ,IVORY,TRIM0#	09/2002 - 04/2004	1
58901-12490B1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
58901-12500B1	NZE12#,ZZE122,124..SED ｶﾝﾚｲﾁｼﾖｳ,MD.GRAY,TRIM1#	04/2004 - 09/2006	1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-12050B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
58904-12050A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
58904-12050B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
58904-12050B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
58904-12050A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
58904-12050A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12410B1	CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,STONE,TRIM1#	08/2000 - 09/2002	1
58905-12410A1	CE121,NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,IVORY,TRIM0#	08/2000 - 09/2002	1
58905-12390B2	ZZE122,124..S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾄﾘﾑ = TYPE E-*104,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
58905-12400B0	ZZE122,124..S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾄﾘﾑ = TYPE F-*104,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
58905-12410B4	CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
58905-12410B4	NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.GRAY,TRIM1#	04/2004 - 09/2006	1
58905-12410A1	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,IVORY,TRIM0#	04/2004 - 09/2006	1
58905-12410A1	CE121,NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,IVORY,TRIM0#	09/2002 - 04/2004	1
58905-12500B0	ZZE122,124..S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾄﾘﾑ = TYPE I-*104,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
58905-12500B1	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.GRAY,TRIM14	12/2005 - 09/2006	1
58905-12500A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,IVORY,TRIM0#	12/2005 - 09/2006	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12410B1	CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,STONE,TRIM1#	08/2000 - 09/2002	1
58905-12410A1	CE121,NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,IVORY,TRIM0#	08/2000 - 09/2002	1
58905-12390B2	ZZE122,124..S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾄﾘﾑ = TYPE E-*104,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
58905-12400B0	ZZE122,124..S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾄﾘﾑ = TYPE F-*104,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
58905-12410B4	CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
58905-12410B4	NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.GRAY,TRIM1#	04/2004 - 09/2006	1
58905-12410A1	NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,IVORY,TRIM0#	04/2004 - 09/2006	1
58905-12410A1	CE121,NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,IVORY,TRIM0#	09/2002 - 04/2004	1
58905-12500B0	ZZE122,124..S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾄﾘﾑ = TYPE I-*104,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
58905-12500B1	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.GRAY,TRIM14	12/2005 - 09/2006	1
58905-12500A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M) & TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,IVORY,TRIM0#	12/2005 - 09/2006	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
58908-33030	NZE12#,ZZE12#	04/2004 - 09/2006	1
58908-33030	CE121,NZE12#,ZZE12#..LXL,S,X,ZAER	08/2000 - 09/2002	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
58908-33030	NZE12#,ZZE12#	04/2004 - 09/2006	1
58908-33030	CE121,NZE12#,ZZE12#..LXL,S,X,ZAER	08/2000 - 09/2002	1
58916 - MAT, BOX BOTTOM
58916-12080	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
58916-12080	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
58916-12080	NZE121,124..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M)	12/2005 - 09/2006	1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-12240B2	ZZE122,124..S ﾄﾘﾑ = TYPE E-*104,DARK GRAY,TRIM1#	08/2000 - 09/2002	1
58951-12250B0	ZZE122,124..S ﾄﾞｱﾄﾘﾑ=TYPE F-*104,DARK GRAY,TRIM1#	08/2000 - 09/2002	1
58951-12370B0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM14	12/2005 - 09/2006	1
58951-12370B1	ZZE122,124..S DK.GRAY,TRIM1#	04/2004 - 09/2006	1
58951-12370A0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	1
58952A - DOOR, CONSOLE COMPARTMENT, INNER
58952-12060B9	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),MD.GRAY,TRIM14	12/2005 - 09/2006	1
58952-12060A3	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),IVORY,TRIM0#	12/2005 - 09/2006	1
58958 - COVER, CONSOLE COMPARTMENT DOOR MOULDING
58958-12020B0	CE121,NZE12#..SED..X STONE,TRIM1#	08/2000 - 10/2001	1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58907-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
58907-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
58907-12050	CE121,NZE12#,ZZE12#..LXL,S,X,ZAER	08/2000 - 09/2002	1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58907-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
58907-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
58907-12050	CE121,NZE12#,ZZE12#..LXL,S,X,ZAER	08/2000 - 09/2002	1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20040	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
58964-20040	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
58964-20040	NZE121,124..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M)	12/2005 - 09/2006	1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20050	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
58965-20050	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
58965-20050	NZE121,124..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M)	12/2005 - 09/2006	1
58972A - BASE, CONSOLE COMPARTMENT DOOR LOCK
58972-34010	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
58972-34010	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
58972-34010	NZE121,124..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M)	12/2005 - 09/2006	1
58973 - PIN, CONSOLE COMPARTMENT DOOR LOCK
58973-34010	NZE121,124..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M)	12/2005 - 09/2006	1
58973-34010	NZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER	04/2004 - 09/2006	1
58973-34010	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER	09/2002 - 04/2004	1
Common parts
55419-32020
58959-16020
90161-30003
90541-04079
91631-J0612
93560-54012
93568-54512
93568-55014
93568-55016
Linked diagrams
7404

NZE124-AEPNK (2000)

(0008-0609)
