Toyota Corolla/fielder NZE124 INSTRUMENT PANEL & GLOVE COMPARTMENT

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
5501 - INSTRUMENT PANEL & GLOVE COMPARTMENT

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

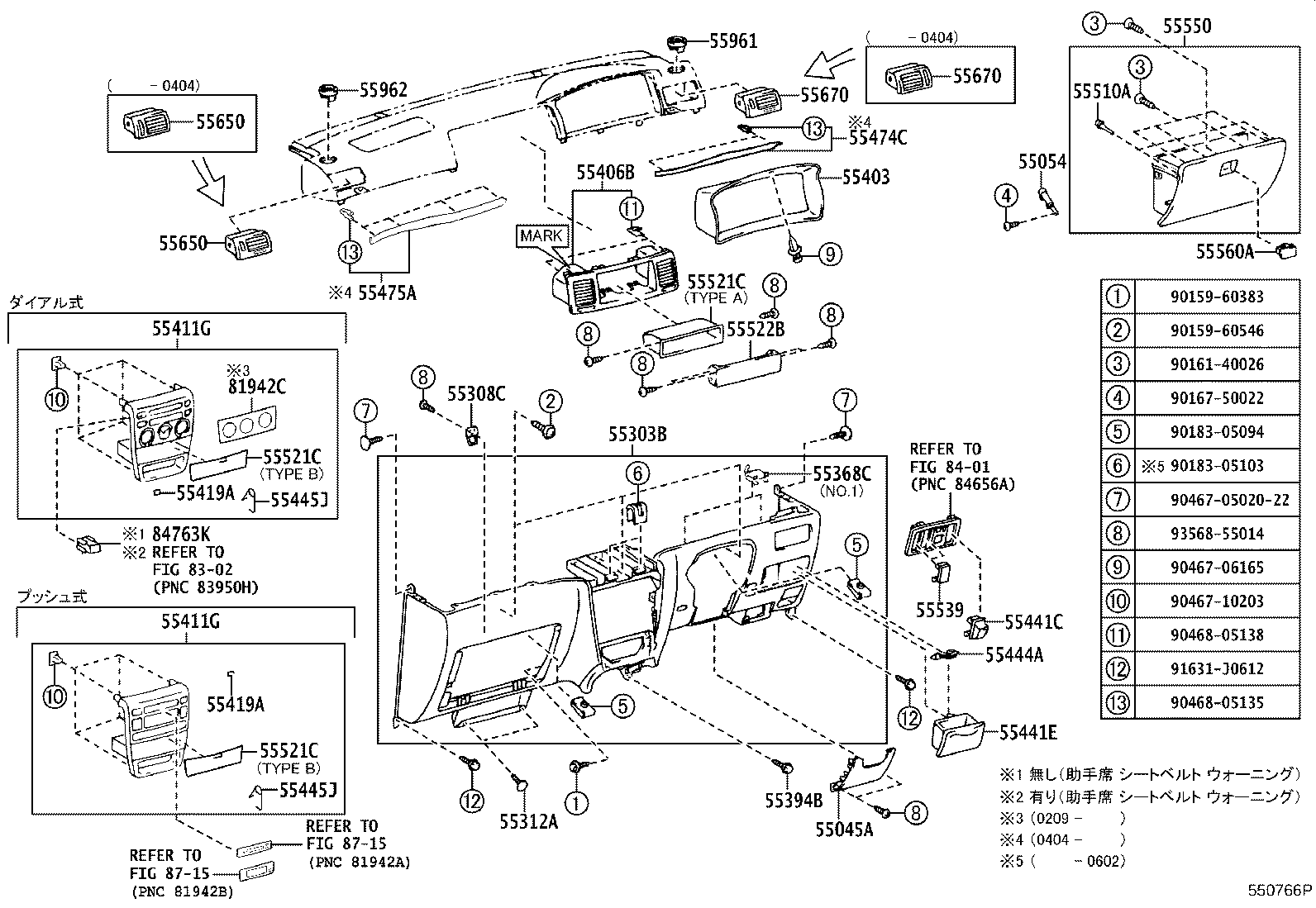

ILLUST NO. 2 OF 2(0008-0609)

Click highlighted areas on diagram

Part #	Description	Period	Qty
55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH
55045-12270B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
55045-12270A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
55045-12270B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
55045-12270A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
55045-12270A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
55045-12270B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-12010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55054-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
55054-12010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-12240B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 02/2001	1
55303-12241A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
55303-12241B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
55303-12241A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	02/2001 - 09/2002	1
55303-12242A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	02/2006 - 09/2006	1
55303-12240A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 02/2001	1
55303-12241A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 02/2006	1
55303-12241B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	02/2001 - 09/2002	1
55303-12241B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 02/2006	1
55303-12242B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	02/2006 - 09/2006	1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-12280	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55308-12280	NZE12#,ZZE12#	04/2004 - 09/2006	1
55308-12280	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55312A - CLIP, INSTRUMENT PANEL
90467-06089C0	CE121,NZE12#,ZZE122,124..SED BLACK,TRIM0#,1#	08/2000 - 09/2002	2
90467-06089C0	NZE12#,ZZE12# BLACK	04/2004 - 09/2006	2
90467-06089C0	CE121,NZE12#,ZZE122,124..SED BLACK,TRIM0#,1#	09/2002 - 04/2004	2
55368C - BRACKET, METER MOUNTING
55362-12050	NZE12#,ZZE12# NO.1	02/2006 - 09/2006	2
55362-12050	CE121,NZE12#,ZZE12# NO.1	08/2000 - 09/2002	2
55368-12090	CE121,NZE12#,ZZE12# NO.2	09/2002 - 04/2004	1
55368-12090	CE121,NZE12#,ZZE12# NO.2	08/2000 - 09/2002	1
55362-12050	CE121,NZE12#,ZZE12# NO.1	09/2002 - 04/2004	2
55368-12100	NZE12#,ZZE12# NO.2	04/2004 - 09/2006	1
55362-12050	NZE12#,ZZE12# NO.1	04/2004 - 01/2006	2
55394B - BOLT, INSTRUMENT PANEL
55394-12010	CE121,NZE12#,ZZE12# 外径=6	08/2000 - 09/2002	1
55394-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55394-12020	CE121,NZE12#,ZZE12# 外径=7	08/2000 - 09/2002	1
55394-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
55403 - HOOD SUB-ASSY, METER
55403-12030	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55403-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55403-12040	NZE12#,ZZE12#	04/2004 - 09/2006	1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-12320B0	CE121,NZE12#..SED..X ﾏ-ｸ = LO,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55406-12330B0	CE121,NZE12#..SED..X ﾏ-ｸ = HI,DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55406-12330E0	CE121,NZE12#..X ﾏ-ｸ = HI,SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
55406-12330E0	CE121,NZE12#..X ﾏ-ｸ = HI,SANDAL WOOD,TRIM0#	09/2002 - 09/2003	1
55406-12320E0	CE121,NZE12#..X ﾏ-ｸ = LO,SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
55406-12360B0	CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ﾏ-ｸ = LO & ｱﾘ(ﾉﾌﾞ = ﾒﾂｷ),DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55406-12370B0	CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ﾏ-ｸ = HI & ｱﾘ(ﾉﾌﾞ = ﾒﾂｷ),DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55406-12360B0	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ﾏ-ｸ = LO & ｱﾘ(ﾉﾌﾞ = ﾒﾂｷ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55406-12400B0	NZE12#,ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	1
55406-12330B0	NZE12#..X;CE121..SED..X ﾏ-ｸ = HI,DK.GRAY,TRIM1#	09/2002 - 09/2003	1
55406-12320B0	NZE12#..X;CE121..SED..X ﾏ-ｸ = LO,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55406-12320E0	CE121,NZE12#..X ﾏ-ｸ = LO,SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
55406-12400E0	NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55420-12200B0	ZZE122,124..S ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),DARK GRAY,TRIM1#	08/2000 - 10/2001	1
55420-12230B1	CE121,NZE12#..X ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),DARK GRAY,TRIM0#,1#	10/2001 - 09/2002	1
55420-12170B0	ZZE122,124..S ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾌﾟﾂｼﾕｼｷ),DARK GRAY,TRIM1#	08/2000 - 09/2002	1
55420-12260C0	NZE12#..X;CE121..SED..X ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),METALLIC BLACK,TRIM0#,1#	09/2002 - 04/2004	1
55420-12200B0	CE121,NZE12#..SED..X ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),DARK GRAY,TRIM0#,1#	08/2000 - 10/2001	1
55420-12230B1	ZZE122,124..S ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),DARK GRAY,TRIM1#	10/2001 - 09/2002	1
55420-12360B0	NZE12#..X ｱﾘ(ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾀﾞｲｱﾙｼｷ) & ﾄｿｳｱﾘ(ｼﾙﾊﾞｰ),SILVER,TRIM0#,1#	04/2004 - 09/2006	1
55420-12150E4	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),LT.BROWN,TRIM0#	12/2005 - 09/2006	1
55420-12150B5	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),GRAY,TRIM14	12/2005 - 09/2006	1
55420-12170B3	NZE121,124..X HIDｾﾚｸｼﾖﾝ (K);HIDｽﾎﾟｰﾂｾﾚｸｼﾖﾝ (K),SILVER,TRIM05,1#	09/2004 - 11/2004	1
55420-12170B3	NZE121,124..SED..X ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾌﾟﾂｼﾕｼｷ),GRAY,TRIM0#,1#	12/2004 - 09/2006	1
55420-12260C0	NZE12#..SED..X ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),METALLIC BLACK,TRIM14	04/2004 - 09/2006	1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55420-12200B0	ZZE122,124..S ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),DARK GRAY,TRIM1#	08/2000 - 10/2001	1
55420-12230B1	CE121,NZE12#..X ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),DARK GRAY,TRIM0#,1#	10/2001 - 09/2002	1
55420-12170B0	ZZE122,124..S ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾌﾟﾂｼﾕｼｷ),DARK GRAY,TRIM1#	08/2000 - 09/2002	1
55420-12260C0	NZE12#..X;CE121..SED..X ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),METALLIC BLACK,TRIM0#,1#	09/2002 - 04/2004	1
55420-12200B0	CE121,NZE12#..SED..X ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),DARK GRAY,TRIM0#,1#	08/2000 - 10/2001	1
55420-12230B1	ZZE122,124..S ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),DARK GRAY,TRIM1#	10/2001 - 09/2002	1
55420-12360B0	NZE12#..X ｱﾘ(ﾋｰﾀｺﾝﾄﾛｰﾙ---ﾀﾞｲｱﾙｼｷ) & ﾄｿｳｱﾘ(ｼﾙﾊﾞｰ),SILVER,TRIM0#,1#	04/2004 - 09/2006	1
55420-12150E4	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),LT.BROWN,TRIM0#	12/2005 - 09/2006	1
55420-12150B5	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),GRAY,TRIM14	12/2005 - 09/2006	1
55420-12170B3	NZE121,124..X HIDｾﾚｸｼﾖﾝ (K);HIDｽﾎﾟｰﾂｾﾚｸｼﾖﾝ (K),SILVER,TRIM05,1#	09/2004 - 11/2004	1
55420-12170B3	NZE121,124..SED..X ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾌﾟﾂｼﾕｼｷ),GRAY,TRIM0#,1#	12/2004 - 09/2006	1
55420-12260C0	NZE12#..SED..X ｱﾘ(ﾋ-ﾀｺﾝﾄﾛ-ﾙ---ﾀﾞｲﾔﾙｼｷ),METALLIC BLACK,TRIM14	04/2004 - 09/2006	1
55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL
55419-32020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	3
55419-32020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	3
55419-32020	NZE12#,ZZE12#	04/2004 - 09/2006	3
55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL
55419-32020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	3
55419-32020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	3
55419-32020	NZE12#,ZZE12#	04/2004 - 09/2006	3
55441C - BOX, INSTRUMENT PANEL COIN
55441-02110A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#,(L)	05/2001 - 10/2001	1
55441-20140B9	CE121..5F..X;CE121..SED..4FC;NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 06/2001	1
55441-20140B9	CE121..5F..X;NZE12#..SED..X;CE121..SED..4FC STONE,TRIM1#	06/2001 - 09/2002	1
55441-20140A0	CE121..4FC;CE121..5F..X;NZE12#..SED..X IVORY,TRIM0#	06/2001 - 09/2002	1
55441-02110B0	ZZE12#;CE121,NZE12#..SED STONE,TRIM1#,(L)	05/2001 - 10/2001	1
55441-20140B7	ZZE122,124..S DK.GRAY,TRIM1#	06/2001 - 09/2002	1
55441-20140P1	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
55441-20140A0	CE121..4FC;CE121..5F..X;NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 06/2001	1
55441-20140A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
55441-20140A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
55441-20140P1	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
55441E - BOX, INSTRUMENT PANEL
55441-12150B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
55441-12150B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
55441-12150A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
55441-12150B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
55441-12150A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
55441-12150A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
55444A - SPRING, INSTRUMENT PANEL BOX
55444-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55444-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55444-12080	NZE12#,ZZE12#	04/2004 - 09/2006	1
55445J - SPRING, INSTRUMENT PANEL BOX
55445-12110	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55445-12110	NZE12#,ZZE12#	04/2004 - 09/2006	1
55445-12110	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55445J - SPRING, INSTRUMENT PANEL BOX
55445-12110	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55445-12110	NZE12#,ZZE12#	04/2004 - 09/2006	1
55445-12110	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55474-12190B0	NZE121,124..X HIDﾘﾐﾃﾂﾄﾞ *(J),GRAY,TRIM14,16	05/2005 - 09/2006	1
55474-12190E0	NZE121,124..X HIDﾘﾐﾃﾂﾄﾞ *(J),LT.BROWN,TRIM05	05/2005 - 09/2006	1
55474-12150B0	NZE12#..X ﾄｿｳｱﾘ(ｼﾙﾊﾞ-),SILVER,TRIM0#,1#	04/2004 - 09/2006	1
55474-12190B0	NZE121,124..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),GRAY,TRIM14,16	12/2005 - 09/2006	1
55474-12190E0	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),LT.BROWN,TRIM0#	12/2005 - 09/2006	1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55475-12030B0	NZE12#..X ﾄｿｳｱﾘ(ｼﾙﾊﾞ-),SILVER,TRIM0#,1#	04/2004 - 09/2006	1
55475-12070B0	NZE121,124..X HIDﾘﾐﾃﾂﾄﾞ *(J),GRAY,TRIM14,16	05/2005 - 09/2006	1
55475-12070B0	NZE121,124..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),GRAY,TRIM14,16	12/2005 - 09/2006	1
55475-12070E0	NZE121,124..X HIDﾘﾐﾃﾂﾄﾞ *(J),LT.BROWN,TRIM05	05/2005 - 09/2006	1
55475-12070E0	NZE121,124..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),LT.BROWN,TRIM0#	12/2005 - 09/2006	1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-04002	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90541-04002	CE121,NZE12#,ZZE12#	10/2001 - 09/2002	2
90541-04002	NZE12#,ZZE12#	04/2004 - 09/2006	2
90541-05020	CE121,NZE12#,ZZE12#	08/2000 - 10/2001	2
55521C - COVER, STEREO OPENING
55520-12040B1	ZZE122,124..S SILVER,TRIM1#,TYPE B:ｲﾗｽﾄ参照	10/2001 - 09/2002	1
55521-16030	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
55520-12040B0	CE121,NZE121,124 DARK GRAY,TRIM0#,1#,TYPE B:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
55521-16030	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
55520-12050B5	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),GRAY,TRIM14	12/2005 - 09/2006	1
55520-12040B0	ZZE122,124..S DARK GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照	08/2000 - 10/2001	1
55520-12040C0	NZE121,124;CE121,NZE120..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,METALLIC BLACK,TRIM0#,1#	09/2002 - 04/2004	1
55520-12040C0	NZE12#..SED..X ﾄﾘﾑｺｰﾄﾞ = FC**;TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,METALLIC BLACK,TRIM1#	04/2004 - 09/2006	1
55520-12040B3	NZE12#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ;ﾄﾘﾑｺｰﾄﾞ = FA,LA,YX**,SILVER,TRIM0#,1#	04/2004 - 09/2006	1
55520-12050E4	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),LT.BROWN,TRIM0#	12/2005 - 09/2006	1
55521-16030	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
55521C - COVER, STEREO OPENING
55520-12040B1	ZZE122,124..S SILVER,TRIM1#,TYPE B:ｲﾗｽﾄ参照	10/2001 - 09/2002	1
55521-16030	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
55520-12040B0	CE121,NZE121,124 DARK GRAY,TRIM0#,1#,TYPE B:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
55521-16030	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
55520-12050B5	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),GRAY,TRIM14	12/2005 - 09/2006	1
55520-12040B0	ZZE122,124..S DARK GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照	08/2000 - 10/2001	1
55520-12040C0	NZE121,124;CE121,NZE120..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,METALLIC BLACK,TRIM0#,1#	09/2002 - 04/2004	1
55520-12040C0	NZE12#..SED..X ﾄﾘﾑｺｰﾄﾞ = FC**;TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,METALLIC BLACK,TRIM1#	04/2004 - 09/2006	1
55520-12040B3	NZE12#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ;ﾄﾘﾑｺｰﾄﾞ = FA,LA,YX**,SILVER,TRIM0#,1#	04/2004 - 09/2006	1
55520-12050E4	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),LT.BROWN,TRIM0#	12/2005 - 09/2006	1
55521-16030	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
55521C - COVER, STEREO OPENING
55520-12040B1	ZZE122,124..S SILVER,TRIM1#,TYPE B:ｲﾗｽﾄ参照	10/2001 - 09/2002	1
55521-16030	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2000 - 09/2002	1
55520-12040B0	CE121,NZE121,124 DARK GRAY,TRIM0#,1#,TYPE B:ｲﾗｽﾄ参照	08/2000 - 09/2002	1
55521-16030	CE121,NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
55520-12050B5	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),GRAY,TRIM14	12/2005 - 09/2006	1
55520-12040B0	ZZE122,124..S DARK GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照	08/2000 - 10/2001	1
55520-12040C0	NZE121,124;CE121,NZE120..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,METALLIC BLACK,TRIM0#,1#	09/2002 - 04/2004	1
55520-12040C0	NZE12#..SED..X ﾄﾘﾑｺｰﾄﾞ = FC**;TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,METALLIC BLACK,TRIM1#	04/2004 - 09/2006	1
55520-12040B3	NZE12#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ;ﾄﾘﾑｺｰﾄﾞ = FA,LA,YX**,SILVER,TRIM0#,1#	04/2004 - 09/2006	1
55520-12050E4	NZE121,124..SED..X HID 40TH ANNIVERSARY ﾘﾐﾃｯﾄﾞ *(M),LT.BROWN,TRIM0#	12/2005 - 09/2006	1
55521-16030	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
55522B - COVER, RADIO TUNER OPENING
55522-12180	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55522-12180	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55522-12180	NZE12#,ZZE12#	04/2004 - 09/2006	1
55539 - COVER, SPARE SWITCH HOLE
55539-32010A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
55539-32010A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
55539-32010P1	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
55539-32010P5	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
55539-32010A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
55539-32010P5	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-12390B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 02/2001	1
55550-12390A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 02/2001	1
55550-12391A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	02/2001 - 09/2002	1
55550-12391A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
55550-12391B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	02/2001 - 09/2002	1
55550-12391B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
55550-12391A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
55550-12391B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-12120A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	08/2000 - 09/2002	1
55560-12120A0	CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	09/2002 - 04/2004	1
55560-12120B0	CE121,NZE12#,ZZE122,124..SED STONE,TRIM1#	08/2000 - 09/2002	1
55560-12120A0	NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0#	04/2004 - 09/2006	1
55560-12120B2	CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	09/2002 - 04/2004	1
55560-12120B2	NZE12#,ZZE122,124..SED MD.GRAY,TRIM1#	04/2004 - 09/2006	1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-12270B0	CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55650-12260B0	CE121,NZE12#..SED..X DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55650-12260E0	CE121,NZE12#..X SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
55650-12260B0	NZE12#..X;CE121..SED..X DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55660-12350B0	NZE12#,ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	1
55650-12270B0	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55660-12350E0	NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
55650-12260E0	CE121,NZE12#..X SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-12270B0	CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55650-12260B0	CE121,NZE12#..SED..X DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55650-12260E0	CE121,NZE12#..X SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
55650-12260B0	NZE12#..X;CE121..SED..X DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55660-12350B0	NZE12#,ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	1
55650-12270B0	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55660-12350E0	NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
55650-12260E0	CE121,NZE12#..X SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-12290B0	CE121,NZE12#..SED..X DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55670-12300B0	CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55670-12290E0	CE121,NZE12#..X SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
55670-12290E0	CE121,NZE12#..X SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
55670-12300B0	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55670-12290B0	NZE12#..X;CE121..SED..X DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55650-12280E0	NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
55650-12280B0	NZE12#,ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-12290B0	CE121,NZE12#..SED..X DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55670-12300B0	CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55670-12290E0	CE121,NZE12#..X SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
55670-12290E0	CE121,NZE12#..X SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
55670-12300B0	CE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55670-12290B0	NZE12#..X;CE121..SED..X DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55650-12280E0	NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
55650-12280B0	NZE12#,ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-12220E0	CE121,NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
55961-12220E0	CE121,NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
55961-12220B0	ZZE12#;CE121,NZE12#..SED DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55961-12220E0	NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
55961-12220B0	CE121,NZE12#,ZZE12# DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55961-12220B0	NZE12#,ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55961-12220E0	CE121,NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
55961-12220E0	CE121,NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
55961-12220E0	NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
55961-12220B0	ZZE12#;CE121,NZE12#..SED DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55961-12220B0	NZE12#,ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	1
55961-12220B0	CE121,NZE12#,ZZE12# DK.GRAY,TRIM1#	09/2002 - 04/2004	1
81942C - SHEET, HEATER CONTROL NAME
81942-12750	NZE12#..SED..X	04/2004 - 09/2006	1
81942-12750	CE121,NZE12#..X	09/2002 - 04/2004	1
Common parts
90159-60383
90159-60546
90161-40026
90167-50022
90183-05094
90183-05103
90467-0502022
90467-06165
90467-10203
90468-05135
90468-05138
91631-J0612
93568-55014
Linked diagrams
8302
8401
8715

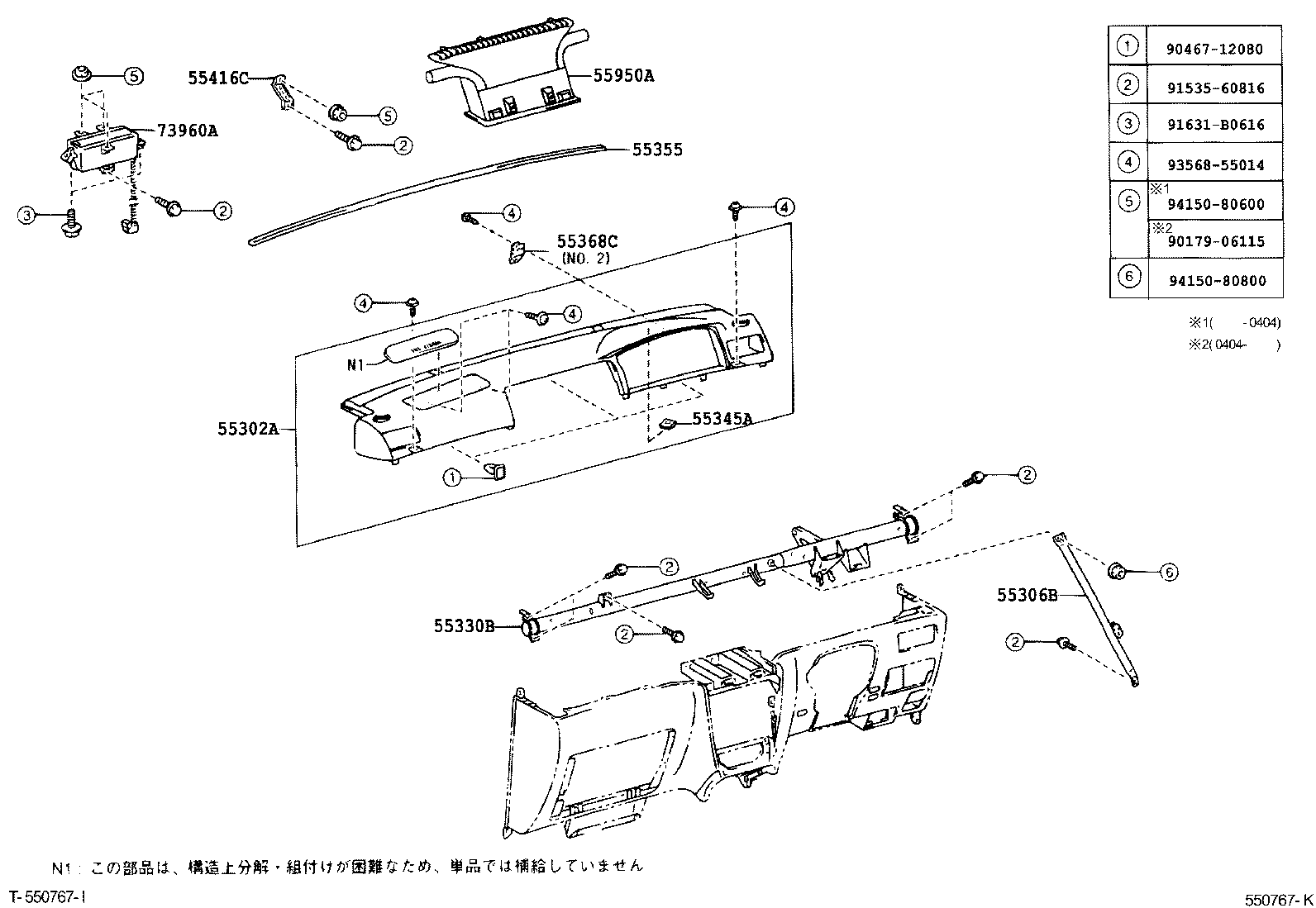

ILLUST NO. 1 OF 2(0008-0609)

Click highlighted areas on diagram

Part #	Description	Period	Qty
55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER
55302-12010B0	CE121,NZE12#,ZZE12# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),DK.GRAY,TRIM1#	08/2000 - 09/2002	1
55302-12010E0	CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
55302-12060E0	NZE12#,ZZE122,124..G,LXL,X SANDAL WOOD,TRIM0#	04/2004 - 09/2006	1
55302-12010E0	CE121,NZE12#,ZZE122,124..G,LXL,X ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
55302-12010B0	CE121,NZE12#,ZZE12# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55302-12060B0	NZE12#,ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	1
55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL
55306-12270	NZE12#,ZZE12#	04/2004 - 09/2006	1
55306-12270	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55306-12270	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-12490	ZZE122..5F;NZE124,ZZE123,124	04/2004 - 02/2006	1
55330-12490	ZZE122..5F;CE121,NZE124,ZZE123,124	09/2002 - 04/2004	1
55330-12490	CE121,NZE124,ZZE12#	11/2001 - 07/2002	1
55330-12740	ZZE122..5F;NZE124,ZZE123,124	02/2006 - 09/2006	1
55330-12390	CE121,NZE124,ZZE12#	08/2000 - 11/2001	1
55345A - CLIP, INSTRUMENT PANEL, NO.1
55345-12060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55345-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
55345-12060	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-52012	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55355-52012	NZE12#,ZZE12#	04/2004 - 09/2006	1
55355-52012	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55368C - BRACKET, METER MOUNTING
55362-12050	NZE12#,ZZE12# NO.1	02/2006 - 09/2006	2
55362-12050	CE121,NZE12#,ZZE12# NO.1	08/2000 - 09/2002	2
55368-12090	CE121,NZE12#,ZZE12# NO.2	09/2002 - 04/2004	1
55368-12090	CE121,NZE12#,ZZE12# NO.2	08/2000 - 09/2002	1
55362-12050	CE121,NZE12#,ZZE12# NO.1	09/2002 - 04/2004	2
55368-12100	NZE12#,ZZE12# NO.2	04/2004 - 09/2006	1
55362-12050	NZE12#,ZZE12# NO.1	04/2004 - 01/2006	2
55950A - NOZZLE ASSY, DEFROSTER
55950-12240	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55950-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
55950-12240	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-12110	NZE12#,ZZE12#	04/2004 - 09/2006	1
73960-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
73960-12030	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
Common parts
90179-06115
90467-12080
91535-60816
91631-B0616
93568-55014
94150-80600
94150-80800

NZE124-AEPNK (2000)

ILLUST NO. 2 OF 2(0008-0609)

ILLUST NO. 1 OF 2(0008-0609)

Part Price Details
