Toyota Corolla/fielder NZE124 FRONT FENDER APRON & DASH PANEL

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
5304 - FRONT FENDER APRON & DASH PANEL

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0008-0209)

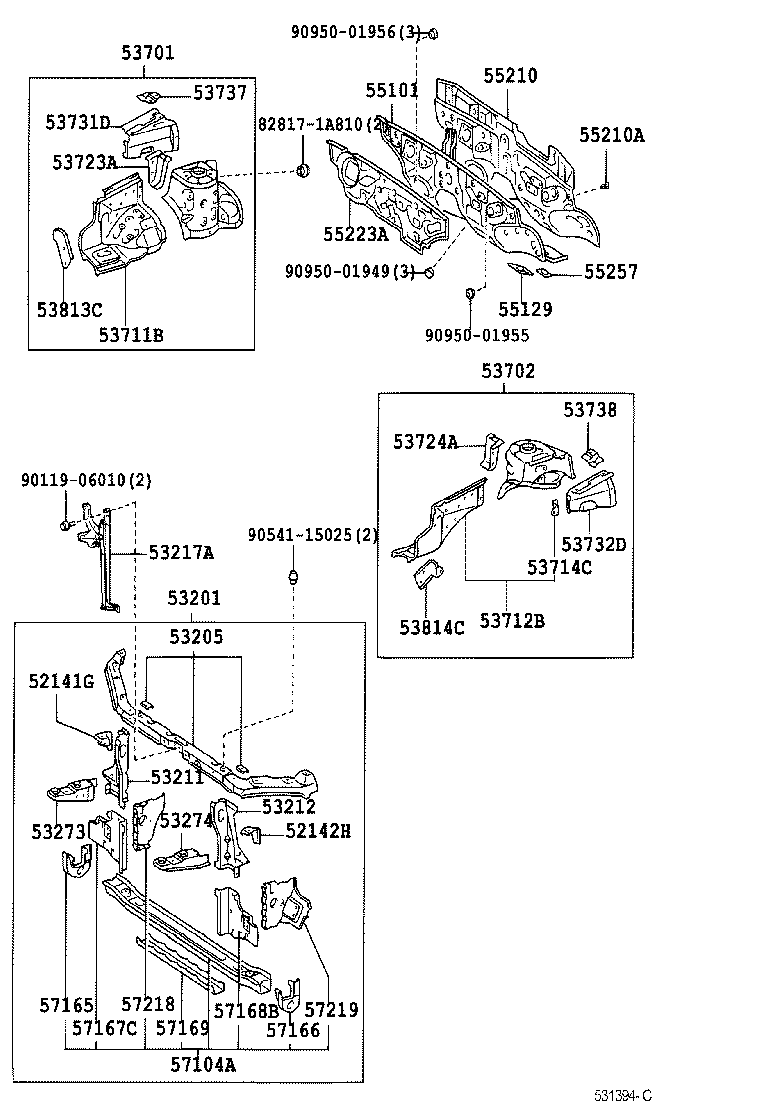

Click highlighted areas on diagram

Part #	Description	Period	Qty
52141G - STAY, FRONT BUMPER, RH
52141-12480	NZE12#,ZZE12#	04/2004 - 09/2006	1
52141-12500	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52141-12500	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52142H - STAY, FRONT BUMPER, LH
52142-12430	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52142-12430	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52142-12410	NZE12#,ZZE12#	04/2004 - 09/2006	1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-1A320	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53201-12A60	NZE12#,ZZE12#	04/2004 - 09/2006	1
53201-1A320	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-12270	NZE12#,ZZE12#	04/2004 - 09/2006	1
53205-12200	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53205-12200	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53211 - SUPPORT, RADIATOR, RH
53211-12410	NZE12#,ZZE12#	04/2004 - 09/2006	1
53211-12410	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53211-12410	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53212 - SUPPORT, RADIATOR, LH
53212-12350	NZE12#,ZZE12#	04/2004 - 09/2006	1
53212-12350	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53212-12350	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53213C - SUPPORT, RADIATOR, UPPER FRONT
53213-12110	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
53213C - SUPPORT, RADIATOR, UPPER FRONT
53213-12110	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
53217A - BRACE, HOOD LOCK SUPPORT
53208-12450	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53208-12450	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53208-12520	NZE12#,ZZE12#	04/2004 - 09/2006	1
53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53273-12030	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53273-12100	NZE12#,ZZE12#	04/2004 - 09/2006	1
53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-12030	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53274-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53274-12100	NZE12#,ZZE12#	04/2004 - 09/2006	1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-1A090	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53701-1A090	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53701-1A090	NZE12#,ZZE12#	04/2004 - 09/2006	1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-1A060	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53702-1A060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53702-1A060	NZE12#,ZZE12#	04/2004 - 09/2006	1
53711B - APRON, FRONT FENDER, FRONT RH
53711-12905	CE121,NZE12#,ZZE12#	08/2000 - 05/2002	1
53711-12905	CE121,NZE12#,ZZE12#	05/2002 - 09/2002	1
53711-12910	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53711-12910	NZE12#,ZZE12#	04/2004 - 09/2006	1
53712B - APRON, FRONT FENDER, FRONT LH
53712-02912	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53712-12904	CE121,NZE12#,ZZE12#	05/2002 - 09/2002	1
53712-12902	CE121,NZE12#,ZZE12#	08/2000 - 05/2002	1
53712-02912	NZE12#,ZZE12#	04/2004 - 09/2006	1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-12150	CE121,NZE12#,ZZE12#	08/2000 - 04/2002	1
53714-13020	CE121,NZE12#,ZZE12#	05/2002 - 09/2002	1
53714-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
53714-13020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH
53723-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53723-12080	CE121,NZE12#,ZZE12#	10/2001 - 09/2002	1
53723-12080	NZE12#,ZZE12#	04/2004 - 09/2006	1
53723-12080	CE121,NZE12#,ZZE12#	08/2000 - 10/2001	1
53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH
53724-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
53724-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53724-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-12160	CE121,NZE12#,ZZE12#	10/2001 - 09/2002	1
53731-12160	NZE12#,ZZE12#	04/2004 - 09/2006	1
53731-12160	CE121,NZE12#,ZZE12#	08/2000 - 10/2001	1
53731-12160	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-12140	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53732-12140	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53732-12140	NZE12#,ZZE12#	04/2004 - 09/2006	1
53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-12060	CE121,NZE12#,ZZE12#	10/2001 - 09/2002	1
53737-12060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53737-12060	CE121,NZE12#,ZZE12#	08/2000 - 10/2001	1
53737-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-12030	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53738-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53738-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
53813C - EXTENSION, FRONT FENDER, RH
53813-12060	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53813-12060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53813-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
53814C - EXTENSION, FRONT FENDER, LH
53814-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53814-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
53814-12020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55101 - PANEL SUB-ASSY, DASH
55101-19065	NZE124,ZZE124..G,LXL,S	08/2000 - 09/2002	1
55101-19055	NZE124..X	08/2000 - 09/2002	1
55101-19065	NZE124,ZZE124	09/2002 - 04/2004	1
55101-19065	NZE124,ZZE124	04/2004 - 09/2006	1
55129 - COVER, DASH PANEL HOLE
55129-32030	CE121,NZE12#,ZZE12# 右側	09/2002 - 04/2004	1
55129-32030	CE121,NZE12#,ZZE12# 右側	08/2000 - 09/2002	1
55139-32010	NZE12#,ZZE12# 左側	04/2004 - 09/2006	1
55139-32010	CE121,NZE12#,ZZE12# 左側	09/2002 - 04/2004	1
55129-32030	NZE12#,ZZE12# 右側	04/2004 - 09/2006	1
55139-32010	CE121,NZE12#,ZZE12# 左側	08/2000 - 09/2002	1
55210 - INSULATOR ASSY, DASH PANEL
55210-12490	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
55210-12491	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55210-12491	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
55210-12491	NZE12#,ZZE12#	04/2004 - 09/2006	1
55210A - CLIP
90467-10005B0	CE121,NZE12#,ZZE122,124..SED MD.CHARCOAL,TRIM0#,1#	08/2000 - 09/2001	4
90467-10005C0	CE121,NZE12#,ZZE122,124..G,LXL,X BLACK,TRIM0#,1#	09/2002 - 04/2004	4
90467-10005C0	NZE12#,ZZE12# BLACK	04/2004 - 09/2006	4
90467-10005C0	CE121,NZE12#,ZZE122,124..SED BLACK,TRIM0#,1#	09/2001 - 09/2002	4
55223A - INSULATOR, DASH PANEL, OUTER
55223-12090	NZE121..4FC;CE121,NZE124,ZZE12#	09/2002 - 04/2004	1
55223-12090	NZE121..4FC;CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
55223-12090	NZE121,124..4FC	04/2004 - 09/2006	1
55257 - COVER, DASH PANEL OPENING
55257-32010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
55257-32010	NZE12#,ZZE12#	04/2004 - 09/2006	2
55257-32010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-12250	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57104-12170	CE121,NZE12#,ZZE12#	10/2001 - 11/2001	1
57104-12250	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57104-12250	NZE12#,ZZE12#	04/2004 - 09/2006	1
57104-12110	CE121,NZE12#,ZZE12#	08/2000 - 10/2001	1
57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57165-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
57165-12070	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57165-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57165-12070	CE121,NZE12#,ZZE12#	08/2000 - 11/2001	1
57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57166-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
57166-12020	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57166-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57166-12020	CE121,NZE12#,ZZE12#	08/2000 - 11/2001	1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-12110	CE121,NZE12#,ZZE12#	08/2000 - 11/2001	1
57167-12110	NZE12#,ZZE12#	04/2004 - 09/2006	1
57167-12110	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57167-12110	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH
57168-12110	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57168-12110	NZE12#,ZZE12#	04/2004 - 09/2006	1
57168-12110	CE121,NZE12#,ZZE12#	08/2000 - 11/2001	1
57168-12110	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57169 - MEMBER, FRONT FLOOR, FRONT RH
57169-12020	CE121,NZE12#,ZZE12#	08/2000 - 11/2001	1
57169-12020	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57169-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
57169-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57218 - GUSSET, FRONT SIDE MEMBER, NO.1
57218-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
57218-12030	CE121,NZE12#,ZZE12#	08/2002 - 09/2002	1
57218-12010	CE121,NZE12#,ZZE12#	08/2000 - 10/2001	1
57218-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57218-12020	CE121,NZE12#,ZZE12#	10/2001 - 07/2002	1
57219 - GUSSET, FRONT SIDE MEMBER, NO.2
57219-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57219-12010	CE121,NZE12#,ZZE12#	08/2000 - 08/2002	1
57219-12030	CE121,NZE12#,ZZE12#	08/2002 - 09/2002	1
57219-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
82817-1A810
90119-06010
90541-15025
90950-01949
90950-01955
90950-01956

(0209-0609)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52141G - STAY, FRONT BUMPER, RH
52141-12480	NZE12#,ZZE12#	04/2004 - 09/2006	1
52141-12500	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52141-12500	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52142H - STAY, FRONT BUMPER, LH
52142-12430	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52142-12430	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52142-12410	NZE12#,ZZE12#	04/2004 - 09/2006	1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-1A320	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53201-12A60	NZE12#,ZZE12#	04/2004 - 09/2006	1
53201-1A320	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-12270	NZE12#,ZZE12#	04/2004 - 09/2006	1
53205-12200	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53205-12200	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53211 - SUPPORT, RADIATOR, RH
53211-12410	NZE12#,ZZE12#	04/2004 - 09/2006	1
53211-12410	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53211-12410	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53212 - SUPPORT, RADIATOR, LH
53212-12350	NZE12#,ZZE12#	04/2004 - 09/2006	1
53212-12350	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53212-12350	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53217A - BRACE, HOOD LOCK SUPPORT
53208-12450	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53208-12450	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53208-12520	NZE12#,ZZE12#	04/2004 - 09/2006	1
53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53273-12030	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53273-12100	NZE12#,ZZE12#	04/2004 - 09/2006	1
53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-12030	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53274-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53274-12100	NZE12#,ZZE12#	04/2004 - 09/2006	1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-1A090	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53701-1A090	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53701-1A090	NZE12#,ZZE12#	04/2004 - 09/2006	1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-1A060	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53702-1A060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53702-1A060	NZE12#,ZZE12#	04/2004 - 09/2006	1
53711B - APRON, FRONT FENDER, FRONT RH
53711-12905	CE121,NZE12#,ZZE12#	08/2000 - 05/2002	1
53711-12905	CE121,NZE12#,ZZE12#	05/2002 - 09/2002	1
53711-12910	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53711-12910	NZE12#,ZZE12#	04/2004 - 09/2006	1
53712B - APRON, FRONT FENDER, FRONT LH
53712-02912	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53712-12904	CE121,NZE12#,ZZE12#	05/2002 - 09/2002	1
53712-12902	CE121,NZE12#,ZZE12#	08/2000 - 05/2002	1
53712-02912	NZE12#,ZZE12#	04/2004 - 09/2006	1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-12150	CE121,NZE12#,ZZE12#	08/2000 - 04/2002	1
53714-13020	CE121,NZE12#,ZZE12#	05/2002 - 09/2002	1
53714-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
53714-13020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH
53723-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53723-12080	CE121,NZE12#,ZZE12#	10/2001 - 09/2002	1
53723-12080	NZE12#,ZZE12#	04/2004 - 09/2006	1
53723-12080	CE121,NZE12#,ZZE12#	08/2000 - 10/2001	1
53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH
53724-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
53724-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53724-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-12160	CE121,NZE12#,ZZE12#	10/2001 - 09/2002	1
53731-12160	NZE12#,ZZE12#	04/2004 - 09/2006	1
53731-12160	CE121,NZE12#,ZZE12#	08/2000 - 10/2001	1
53731-12160	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-12140	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53732-12140	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53732-12140	NZE12#,ZZE12#	04/2004 - 09/2006	1
53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-12060	CE121,NZE12#,ZZE12#	10/2001 - 09/2002	1
53737-12060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53737-12060	CE121,NZE12#,ZZE12#	08/2000 - 10/2001	1
53737-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-12030	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53738-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53738-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
53813C - EXTENSION, FRONT FENDER, RH
53813-12060	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
53813-12060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53813-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
53814C - EXTENSION, FRONT FENDER, LH
53814-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
53814-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
53814-12020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
55101 - PANEL SUB-ASSY, DASH
55101-19065	NZE124,ZZE124..G,LXL,S	08/2000 - 09/2002	1
55101-19055	NZE124..X	08/2000 - 09/2002	1
55101-19065	NZE124,ZZE124	09/2002 - 04/2004	1
55101-19065	NZE124,ZZE124	04/2004 - 09/2006	1
55129 - COVER, DASH PANEL HOLE
55129-32030	CE121,NZE12#,ZZE12# 右側	09/2002 - 04/2004	1
55129-32030	CE121,NZE12#,ZZE12# 右側	08/2000 - 09/2002	1
55139-32010	NZE12#,ZZE12# 左側	04/2004 - 09/2006	1
55139-32010	CE121,NZE12#,ZZE12# 左側	09/2002 - 04/2004	1
55129-32030	NZE12#,ZZE12# 右側	04/2004 - 09/2006	1
55139-32010	CE121,NZE12#,ZZE12# 左側	08/2000 - 09/2002	1
55210 - INSULATOR ASSY, DASH PANEL
55210-12490	CE121,NZE12#,ZZE12#	08/2000 - 05/2001	1
55210-12491	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
55210-12491	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
55210-12491	NZE12#,ZZE12#	04/2004 - 09/2006	1
55210A - CLIP
90467-10005B0	CE121,NZE12#,ZZE122,124..SED MD.CHARCOAL,TRIM0#,1#	08/2000 - 09/2001	4
90467-10005C0	CE121,NZE12#,ZZE122,124..G,LXL,X BLACK,TRIM0#,1#	09/2002 - 04/2004	4
90467-10005C0	NZE12#,ZZE12# BLACK	04/2004 - 09/2006	4
90467-10005C0	CE121,NZE12#,ZZE122,124..SED BLACK,TRIM0#,1#	09/2001 - 09/2002	4
55223A - INSULATOR, DASH PANEL, OUTER
55223-12090	NZE121..4FC;CE121,NZE124,ZZE12#	09/2002 - 04/2004	1
55223-12090	NZE121..4FC;CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
55223-12090	NZE121,124..4FC	04/2004 - 09/2006	1
55257 - COVER, DASH PANEL OPENING
55257-32010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
55257-32010	NZE12#,ZZE12#	04/2004 - 09/2006	2
55257-32010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-12250	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57104-12170	CE121,NZE12#,ZZE12#	10/2001 - 11/2001	1
57104-12250	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57104-12250	NZE12#,ZZE12#	04/2004 - 09/2006	1
57104-12110	CE121,NZE12#,ZZE12#	08/2000 - 10/2001	1
57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57165-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
57165-12070	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57165-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57165-12070	CE121,NZE12#,ZZE12#	08/2000 - 11/2001	1
57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57166-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
57166-12020	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57166-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57166-12020	CE121,NZE12#,ZZE12#	08/2000 - 11/2001	1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-12110	CE121,NZE12#,ZZE12#	08/2000 - 11/2001	1
57167-12110	NZE12#,ZZE12#	04/2004 - 09/2006	1
57167-12110	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57167-12110	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH
57168-12110	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57168-12110	NZE12#,ZZE12#	04/2004 - 09/2006	1
57168-12110	CE121,NZE12#,ZZE12#	08/2000 - 11/2001	1
57168-12110	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57169 - MEMBER, FRONT FLOOR, FRONT RH
57169-12020	CE121,NZE12#,ZZE12#	08/2000 - 11/2001	1
57169-12020	CE121,NZE12#,ZZE12#	11/2001 - 09/2002	1
57169-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
57169-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57218 - GUSSET, FRONT SIDE MEMBER, NO.1
57218-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
57218-12030	CE121,NZE12#,ZZE12#	08/2002 - 09/2002	1
57218-12010	CE121,NZE12#,ZZE12#	08/2000 - 10/2001	1
57218-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57218-12020	CE121,NZE12#,ZZE12#	10/2001 - 07/2002	1
57219 - GUSSET, FRONT SIDE MEMBER, NO.2
57219-12030	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
57219-12010	CE121,NZE12#,ZZE12#	08/2000 - 08/2002	1
57219-12030	CE121,NZE12#,ZZE12#	08/2002 - 09/2002	1
57219-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
82817-1A810
90119-06010
90541-15025
90950-01949
90950-01955
90950-01956

NZE124-AEPNK (2000)

(0008-0209)

(0209-0609)

Part Price Details
