Toyota Corolla/fielder NZE124 RADIATOR GRILLE

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

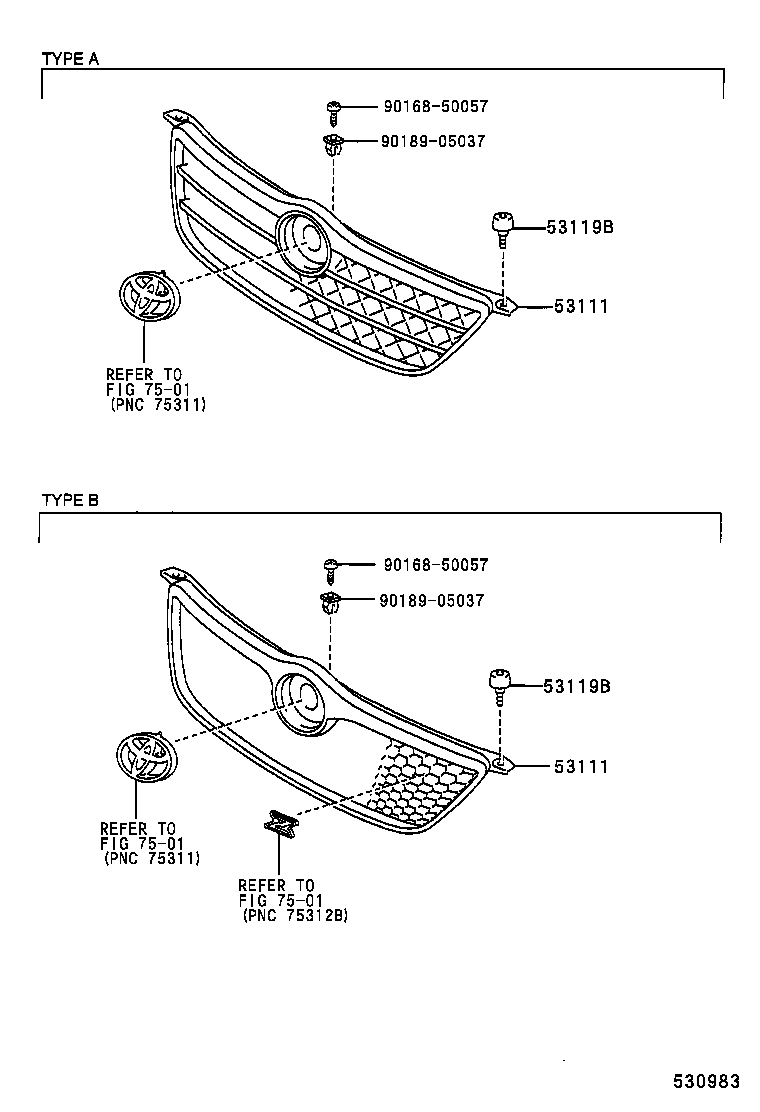

(0008-0209)

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	08/2000 - 09/2002	1
53111-12A30	NZE12#..SED	04/2004 - 09/2006	1
53111-12A20	NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	04/2004 - 09/2006	1
53111-1A450	CE121,NZE12#,ZZE122,124..G,LXL,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ﾒﾂｷ	08/2000 - 09/2002	1
53111-1A500	CE121,NZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	09/2002 - 04/2004	1
53111 - GRILLE, RADIATOR
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	08/2000 - 09/2002	1
53111-12A30	NZE12#..SED	04/2004 - 09/2006	1
53111-12A20	NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	04/2004 - 09/2006	1
53111-1A450	CE121,NZE12#,ZZE122,124..G,LXL,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ﾒﾂｷ	08/2000 - 09/2002	1
53111-1A500	CE121,NZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	09/2002 - 04/2004	1
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150	NZE12#,ZZE12#	04/2004 - 09/2006	2
53119-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
53119-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150	NZE12#,ZZE12#	04/2004 - 09/2006	2
53119-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
53119-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
Common parts
90168-50057
90189-05037
Linked diagrams
7501

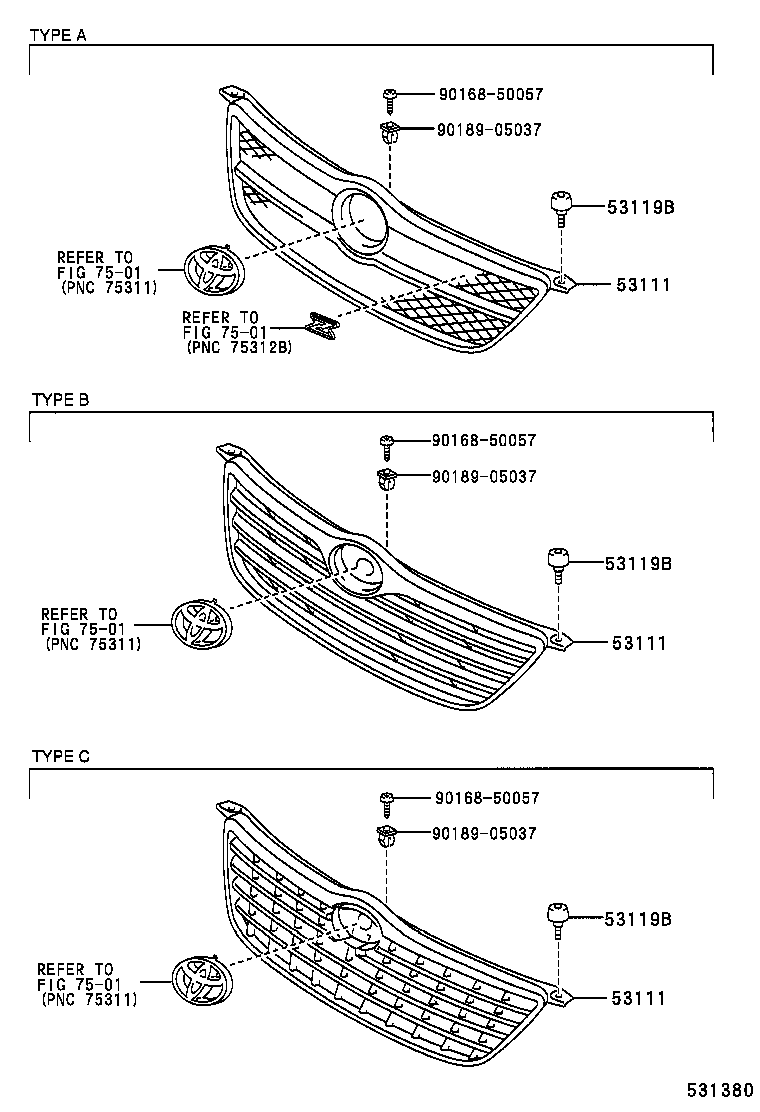

(0209-0404)

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	08/2000 - 09/2002	1
53111-12A30	NZE12#..SED	04/2004 - 09/2006	1
53111-12A20	NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	04/2004 - 09/2006	1
53111-1A450	CE121,NZE12#,ZZE122,124..G,LXL,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ﾒﾂｷ	08/2000 - 09/2002	1
53111-1A500	CE121,NZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	09/2002 - 04/2004	1
53111 - GRILLE, RADIATOR
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	08/2000 - 09/2002	1
53111-12A30	NZE12#..SED	04/2004 - 09/2006	1
53111-12A20	NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	04/2004 - 09/2006	1
53111-1A450	CE121,NZE12#,ZZE122,124..G,LXL,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ﾒﾂｷ	08/2000 - 09/2002	1
53111-1A500	CE121,NZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	09/2002 - 04/2004	1
53111 - GRILLE, RADIATOR
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	08/2000 - 09/2002	1
53111-12A30	NZE12#..SED	04/2004 - 09/2006	1
53111-12A20	NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	04/2004 - 09/2006	1
53111-1A450	CE121,NZE12#,ZZE122,124..G,LXL,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ﾒﾂｷ	08/2000 - 09/2002	1
53111-1A500	CE121,NZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	09/2002 - 04/2004	1
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150	NZE12#,ZZE12#	04/2004 - 09/2006	2
53119-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
53119-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150	NZE12#,ZZE12#	04/2004 - 09/2006	2
53119-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
53119-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150	NZE12#,ZZE12#	04/2004 - 09/2006	2
53119-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
53119-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
Common parts
90168-50057
90189-05037
Linked diagrams
7501

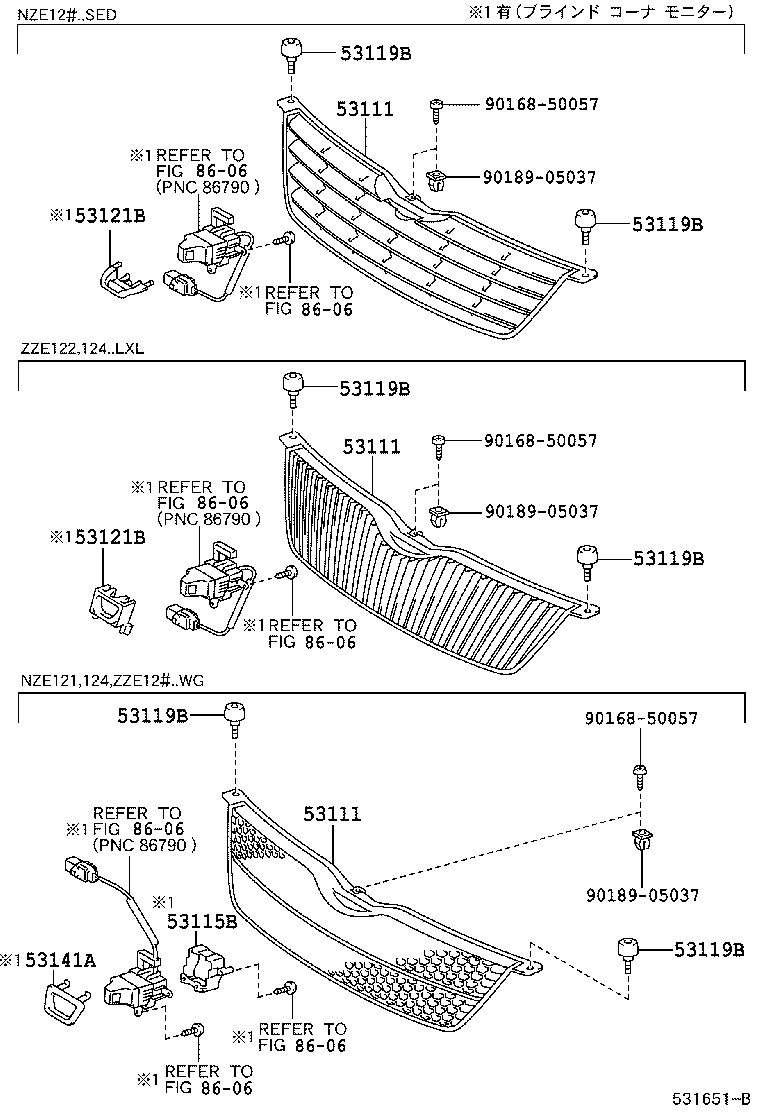

(0404- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	08/2000 - 09/2002	1
53111-12A30	NZE12#..SED	04/2004 - 09/2006	1
53111-12A20	NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	04/2004 - 09/2006	1
53111-1A450	CE121,NZE12#,ZZE122,124..G,LXL,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ﾒﾂｷ	08/2000 - 09/2002	1
53111-1A500	CE121,NZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	09/2002 - 04/2004	1
53111 - GRILLE, RADIATOR
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	08/2000 - 09/2002	1
53111-12A30	NZE12#..SED	04/2004 - 09/2006	1
53111-12A20	NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	04/2004 - 09/2006	1
53111-1A450	CE121,NZE12#,ZZE122,124..G,LXL,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ﾒﾂｷ	08/2000 - 09/2002	1
53111-1A500	CE121,NZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	09/2002 - 04/2004	1
53111 - GRILLE, RADIATOR
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	08/2000 - 09/2002	1
53111-12A30	NZE12#..SED	04/2004 - 09/2006	1
53111-12A20	NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	04/2004 - 09/2006	1
53111-1A450	CE121,NZE12#,ZZE122,124..G,LXL,X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ﾒﾂｷ	08/2000 - 09/2002	1
53111-1A500	CE121,NZE12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
53111-1A390	CE121,NZE12#..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A)	09/2002 - 04/2004	1
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150	NZE12#,ZZE12#	04/2004 - 09/2006	2
53119-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
53119-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150	NZE12#,ZZE12#	04/2004 - 09/2006	2
53119-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
53119-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150	NZE12#,ZZE12#	04/2004 - 09/2006	2
53119-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
53119-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150	NZE12#,ZZE12#	04/2004 - 09/2006	2
53119-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
53119-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150	NZE12#,ZZE12#	04/2004 - 09/2006	2
53119-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
53119-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150	NZE12#,ZZE12#	04/2004 - 09/2006	2
53119-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
53119-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
Common parts
90168-50057
90189-05037
Linked diagrams
8606

NZE124-AEPNK (2000)

(0008-0209)

(0209-0404)

(0404- )
