Toyota Corolla/fielder NZE124 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
5202 - REAR BUMPER & BUMPER STAY

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

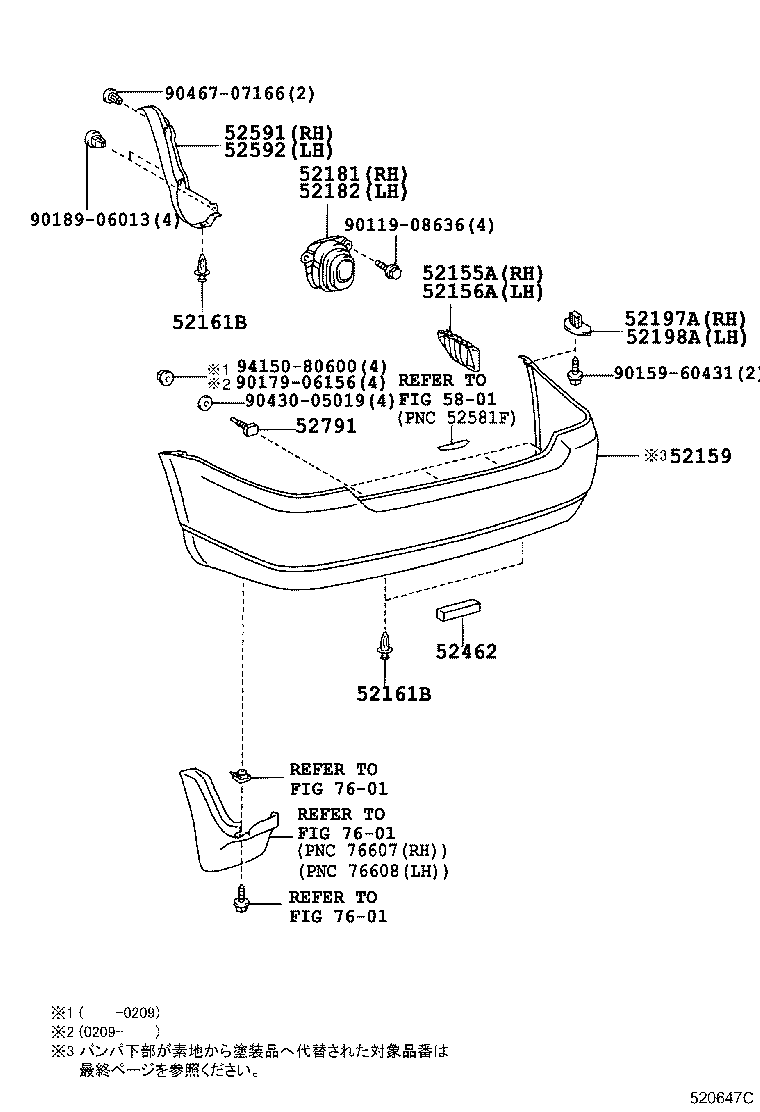

ILLUST NO. 1 OF 2(0008-0404)SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-12290	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
52155-12290	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
52155-12290	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-12270	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
52156-12270	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
52156-12270	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
52159 - COVER, REAR BUMPER
52159-1A850B2	CE121,NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9	08/2000 - 09/2002	1
52159-1A850H0	CE121,NZE12#,ZZE122,124..SED TURQUOISE M.M.,769	08/2000 - 09/2002	1
52159-1A850B1	CE121,NZE12#,ZZE122,124..SED SILVER ME.,199	08/2000 - 09/2002	1
52159-1A850C0	CE121,NZE12#,ZZE122,124..SED BLACK ME,205	08/2000 - 10/2001	1
52159-1A850J0	CE121,NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
52159-1A850A1	CE121,NZE12#,ZZE122,124..SED SUPER WHITE 2,040	08/2000 - 09/2002	1
52159-1A850C1	CE121,NZE12#,ZZE122,124..SED BLACK MC.,209	10/2001 - 09/2002	1
52159-1A850A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
52159-1A850B4	CE121,NZE12#,ZZE122,124..SED SILVER M.M.,1E7	09/2002 - 04/2004	1
52159-1A850B2	CE121,NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9	09/2002 - 04/2004	1
52159-1A850G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
52159-12A10B1	NZE12#,ZZE122,124..SED SILVER M.M.,1E7	04/2004 - 09/2006	1
52159-12A10B0	NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9	04/2004 - 09/2006	1
52159-12A10A1	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
52159-12A10C0	NZE12#,ZZE122,124..SED BLACK MC.,209	04/2004 - 09/2006	1
52159-12A10A0	NZE12#,ZZE122,124..SED SUPER WHITE 2,040	04/2004 - 09/2006	1
52159-1A850A1	CE121,NZE12#,ZZE122,124..SED SUPER WHITE 2,040	09/2002 - 04/2004	1
52159-1A850D2	CE121,NZE12#,ZZE122,124..SED BORDEAUX MC.,3P2	09/2002 - 04/2004	1
52159-12A10J1	NZE12#,ZZE122,124..SED LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52159-12A10J0	NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
52159-1A850A3	CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
52159-1A850C1	CE121,NZE12#,ZZE122,124..SED BLACK MC.,209	09/2002 - 04/2004	1
52159-12A10E0	NZE121,124..SED..X HIDﾘﾐﾃﾂﾄﾞ *(J),BEIGE ME.,4M9	05/2005 - 12/2999	1
52161B - PIECE, REAR BUMPER
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	4
52161-16010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
90467-09093	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	4
52161B - PIECE, REAR BUMPER
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	4
52161-16010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
90467-09093	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	4
52181 - ARM, REAR BUMPER, RH
52181-12440	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
52181-12490	NZE12#,ZZE12#	04/2004 - 09/2006	1
52181-12440	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52182 - ARM, REAR BUMPER, LH
52181-12440	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
52181-12440	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52181-12490	NZE12#,ZZE12#	04/2004 - 09/2006	1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52197-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52197-12080	NZE12#,ZZE12#	04/2004 - 09/2006	1
52198A - BRACKET, REAR BUMPER SEAL, LH
52198-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52198-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52198-12080	NZE12#,ZZE12#	04/2004 - 09/2006	1
52462 - PAD, REAR BUMPER, RH
52462-12070	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
52462-12070	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
52462-12070	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
52591-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52591-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52592-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
52592-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	4
52791-12040	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	4
52791-12040	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	4
Common parts
90119-08636
90159-60431
90179-06156
90189-06013
90430-05019
90467-07166
94150-80600
Linked diagrams
5801
7601

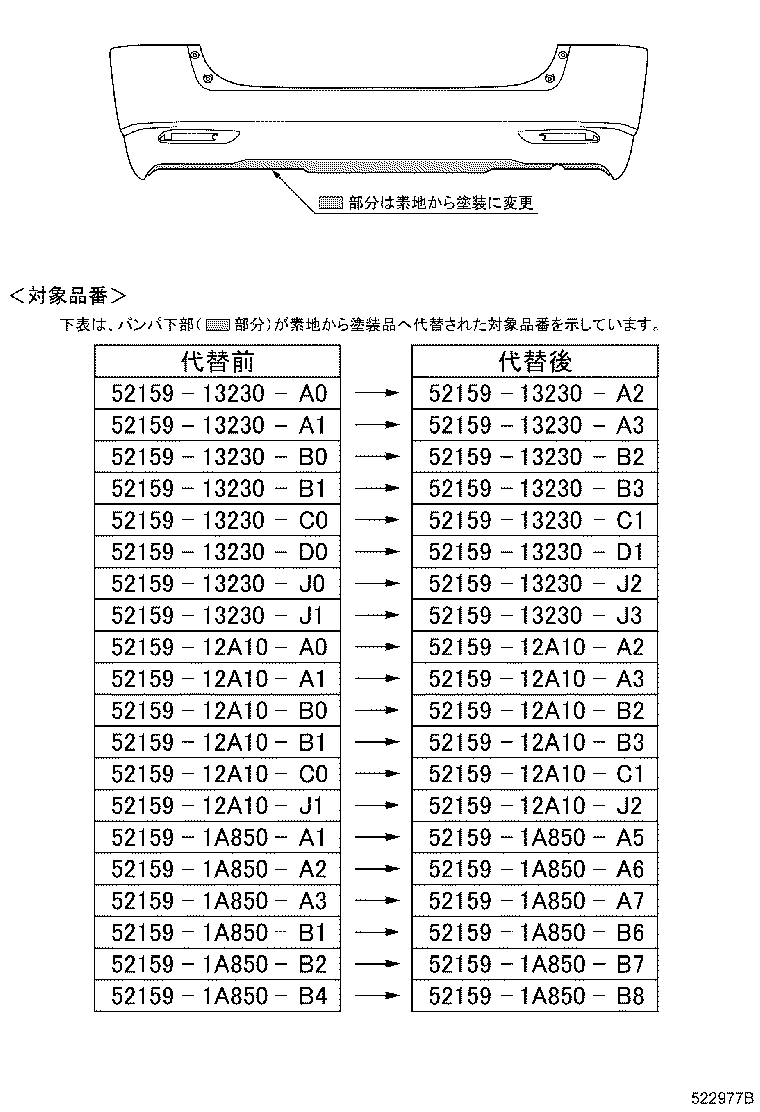

ILLUST NO. 1 OF 2(0404- )SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-12290	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
52155-12290	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
52155-12290	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-12270	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
52156-12270	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
52156-12270	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
52159 - COVER, REAR BUMPER
52159-1A850B2	CE121,NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9	08/2000 - 09/2002	1
52159-1A850H0	CE121,NZE12#,ZZE122,124..SED TURQUOISE M.M.,769	08/2000 - 09/2002	1
52159-1A850B1	CE121,NZE12#,ZZE122,124..SED SILVER ME.,199	08/2000 - 09/2002	1
52159-1A850C0	CE121,NZE12#,ZZE122,124..SED BLACK ME,205	08/2000 - 10/2001	1
52159-1A850J0	CE121,NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
52159-1A850A1	CE121,NZE12#,ZZE122,124..SED SUPER WHITE 2,040	08/2000 - 09/2002	1
52159-1A850C1	CE121,NZE12#,ZZE122,124..SED BLACK MC.,209	10/2001 - 09/2002	1
52159-1A850A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
52159-1A850B4	CE121,NZE12#,ZZE122,124..SED SILVER M.M.,1E7	09/2002 - 04/2004	1
52159-1A850B2	CE121,NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9	09/2002 - 04/2004	1
52159-1A850G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
52159-12A10B1	NZE12#,ZZE122,124..SED SILVER M.M.,1E7	04/2004 - 09/2006	1
52159-12A10B0	NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9	04/2004 - 09/2006	1
52159-12A10A1	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
52159-12A10C0	NZE12#,ZZE122,124..SED BLACK MC.,209	04/2004 - 09/2006	1
52159-12A10A0	NZE12#,ZZE122,124..SED SUPER WHITE 2,040	04/2004 - 09/2006	1
52159-1A850A1	CE121,NZE12#,ZZE122,124..SED SUPER WHITE 2,040	09/2002 - 04/2004	1
52159-1A850D2	CE121,NZE12#,ZZE122,124..SED BORDEAUX MC.,3P2	09/2002 - 04/2004	1
52159-12A10J1	NZE12#,ZZE122,124..SED LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52159-12A10J0	NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
52159-1A850A3	CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
52159-1A850C1	CE121,NZE12#,ZZE122,124..SED BLACK MC.,209	09/2002 - 04/2004	1
52159-12A10E0	NZE121,124..SED..X HIDﾘﾐﾃﾂﾄﾞ *(J),BEIGE ME.,4M9	05/2005 - 12/2999	1
52161B - PIECE, REAR BUMPER
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	4
52161-16010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
90467-09093	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	4
52161B - PIECE, REAR BUMPER
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	4
52161-16010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
90467-09093	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	4
52161B - PIECE, REAR BUMPER
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	4
52161-16010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
90467-09093	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	4
52181 - ARM, REAR BUMPER, RH
52181-12440	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
52181-12490	NZE12#,ZZE12#	04/2004 - 09/2006	1
52181-12440	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52182 - ARM, REAR BUMPER, LH
52181-12440	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
52181-12440	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52181-12490	NZE12#,ZZE12#	04/2004 - 09/2006	1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52197-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52197-12080	NZE12#,ZZE12#	04/2004 - 09/2006	1
52198A - BRACKET, REAR BUMPER SEAL, LH
52198-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52198-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52198-12080	NZE12#,ZZE12#	04/2004 - 09/2006	1
52462 - PAD, REAR BUMPER, RH
52462-12070	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	1
52462-12070	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	1
52462-12070	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
52591-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52591-12150	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-12070	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52592-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
52592-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040	CE121,NZE12#,ZZE122,124..SED	09/2002 - 04/2004	4
52791-12040	CE121,NZE12#,ZZE122,124..SED	08/2000 - 09/2002	4
52791-12040	NZE12#,ZZE122,124..SED	04/2004 - 09/2006	4
Common parts
90119-08636
90159-60431
90179-06156
90189-06013
90430-05019
90467-07166
94150-80600
Linked diagrams
5801
7601
8115

ILLUST NO. 2 OF 2(0008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
