Toyota Corolla/fielder NZE124 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
5201 - FRONT BUMPER & BUMPER STAY

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

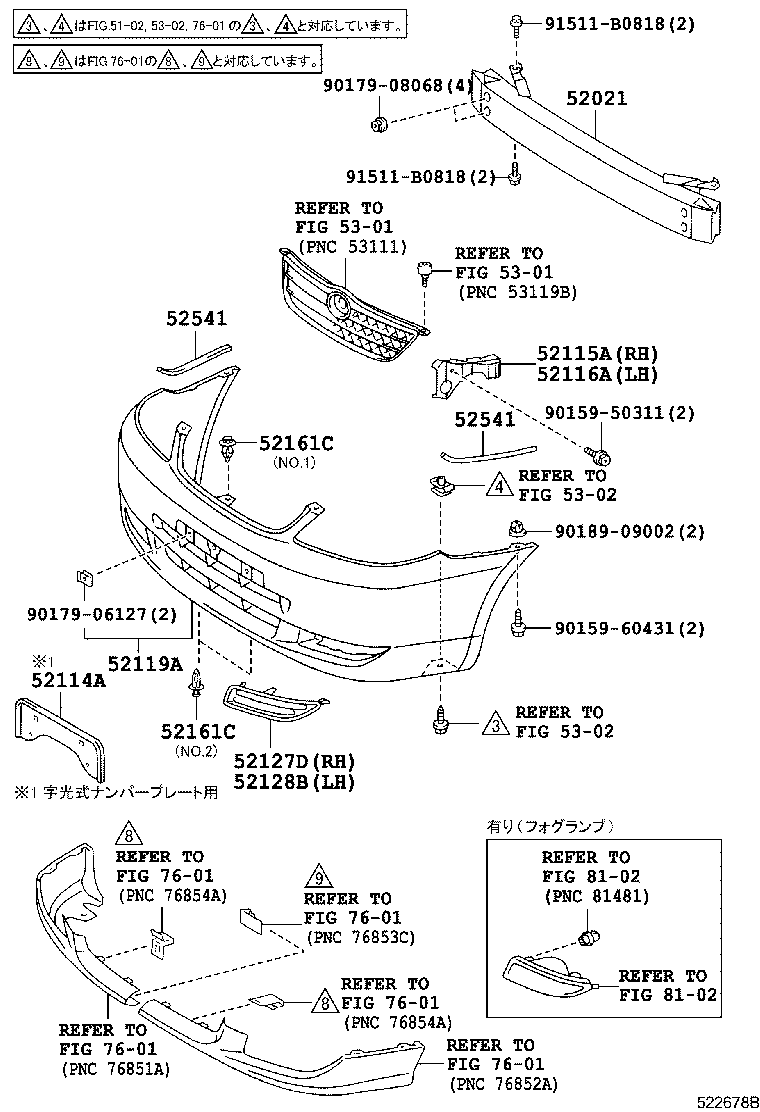

(0209-0404)SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12200	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52021-12220	NZE12#,ZZE12#	04/2004 - 09/2006	1
52021-12220	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-12100	CE121,NZE12#..SED	09/2002 - 04/2004	1
52114-12100	CE121,NZE12#,ZZE12#	10/2001 - 09/2002	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12380	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52115-12380	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52115-12420	NZE12#,ZZE12#	04/2004 - 09/2006	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12380	NZE12#,ZZE12#	04/2004 - 09/2006	1
52116-12340	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52116-12340	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52119A - COVER, FRONT BUMPER
52119-1E750J0	CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
52119-1E750H0	CE121,NZE12#,ZZE12# TURQUOISE M.M.,769	08/2000 - 09/2002	1
52119-1E750B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	08/2000 - 09/2002	1
52119-1E750C0	CE121,NZE12#,ZZE12# BLACK ME,205	08/2000 - 10/2001	1
52119-1E750G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
52119-1E750A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	08/2000 - 09/2002	1
52119-1E750B1	CE121,NZE12#,ZZE12# SILVER ME.,199	08/2000 - 09/2002	1
52119-1E750C1	CE121,NZE12#,ZZE12# BLACK MC.,209	10/2001 - 09/2002	1
52119-1E800D2	CE121,NZE12#..SED BORDEAUX MC.,3P2	09/2002 - 04/2004	1
52119-1E800A0	CE121,NZE12#..SED SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-1E800A1	CE121,NZE12#..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
52119-1E750A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
52119-1E800B2	CE121,NZE12#..SED SILVER ME.GR.,1D9	09/2002 - 04/2004	1
52119-1E810C0	ZZE122,124;CE121,NZE121,124,ZZE123..WG BLACK MC.,209	09/2002 - 04/2004	1
52119-1E800C0	CE121,NZE12#..SED BLACK MC.,209	09/2002 - 04/2004	1
52119-1E800B3	CE121,NZE12#..SED SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-1E810B1	ZZE122,124;CE121,NZE121,124,ZZE123..WG SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-1E810D1	ZZE122,124;CE121,NZE121,124,ZZE123..WG BORDEAUX MC.,3P2	09/2002 - 04/2004	1
52119-12A30C0	NZE12#,ZZE122,124..SED BLACK MC.,209	04/2004 - 09/2006	1
52119-12A30A1	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-12A30B1	NZE12#,ZZE122,124..SED SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-1E810A0	ZZE122,124;CE121,NZE121,124,ZZE123..WG SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-12A30J0	NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
52119-12A30B0	NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9	04/2004 - 09/2006	1
52119-12A30J1	NZE12#,ZZE122,124..SED LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-12A30A0	NZE12#,ZZE122,124..SED SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-12A30E1	NZE121,124..SED..X HIDﾘﾐﾃﾂﾄﾞ *(J),BEIGE ME.,4M9	05/2005 - 12/2999	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-12170	CE121,NZE12#..SED	09/2002 - 04/2004	1
52127-12170	CE121,NZE12#,ZZE12#..G,S,X,ZAER	08/2000 - 09/2002	1
52127-12210	NZE12#,ZZE12#..G,S,X,ZAER	04/2004 - 09/2006	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12070	CE121,NZE12#..SED	09/2002 - 04/2004	1
52128-12130	NZE12#,ZZE12#..G,S,X,ZAER	04/2004 - 09/2006	1
52128-12070	CE121,NZE12#,ZZE12#..G,S,X,ZAER	08/2000 - 09/2002	1
52161C - PIECE, FRONT BUMPER
52161-16010	CE121,NZE12#,ZZE12# NO.2	08/2000 - 09/2002	2
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	1
90467-09093	CE121,NZE12#,ZZE12# NO.1	08/2000 - 09/2002	1
52161-16010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
52541-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
52541-12020	NZE12#,ZZE12#	04/2004 - 09/2006	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
52541-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
52541-12020	NZE12#,ZZE12#	04/2004 - 09/2006	2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12170	NZE12#,ZZE12#	04/2004 - 09/2006	1
52611-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
Common parts
90159-50311
90159-60431
90178-08006
90179-06127
90189-09002
91511-B0818
Linked diagrams
5102
5301
5302
8102

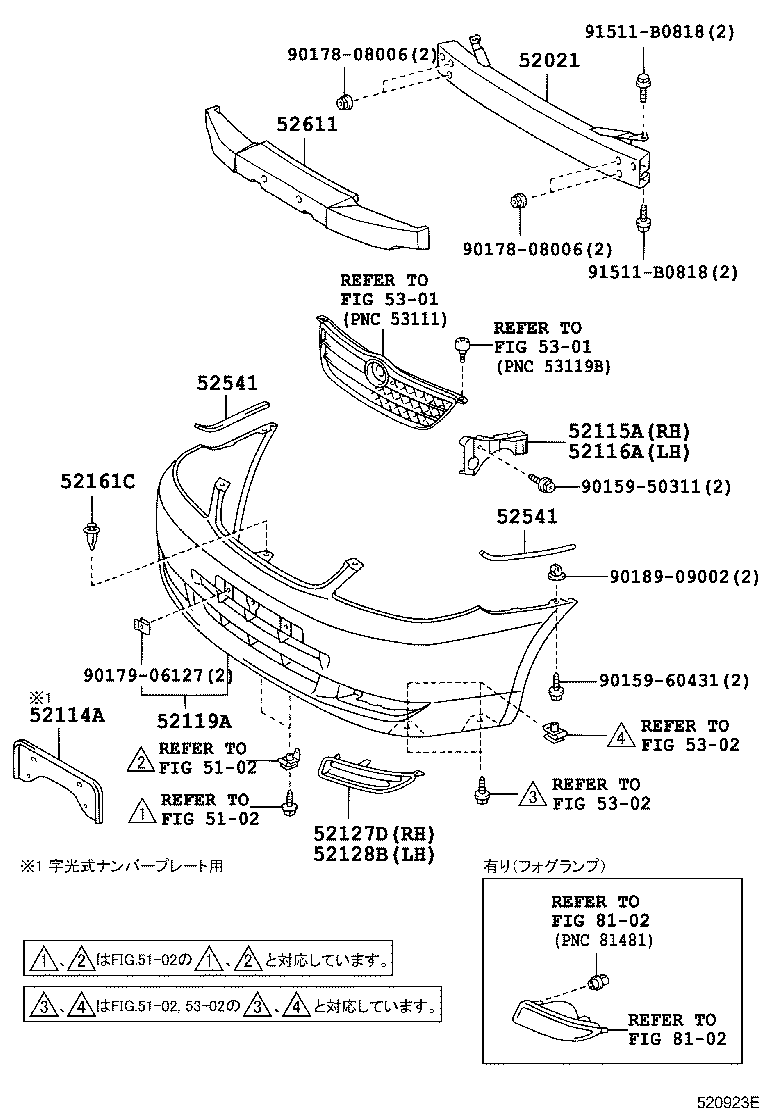

(0404- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12200	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52021-12220	NZE12#,ZZE12#	04/2004 - 09/2006	1
52021-12220	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12380	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52115-12380	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52115-12420	NZE12#,ZZE12#	04/2004 - 09/2006	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12380	NZE12#,ZZE12#	04/2004 - 09/2006	1
52116-12340	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52116-12340	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52119A - COVER, FRONT BUMPER
52119-1E750J0	CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
52119-1E750H0	CE121,NZE12#,ZZE12# TURQUOISE M.M.,769	08/2000 - 09/2002	1
52119-1E750B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	08/2000 - 09/2002	1
52119-1E750C0	CE121,NZE12#,ZZE12# BLACK ME,205	08/2000 - 10/2001	1
52119-1E750G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
52119-1E750A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	08/2000 - 09/2002	1
52119-1E750B1	CE121,NZE12#,ZZE12# SILVER ME.,199	08/2000 - 09/2002	1
52119-1E750C1	CE121,NZE12#,ZZE12# BLACK MC.,209	10/2001 - 09/2002	1
52119-1E800D2	CE121,NZE12#..SED BORDEAUX MC.,3P2	09/2002 - 04/2004	1
52119-1E800A0	CE121,NZE12#..SED SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-1E800A1	CE121,NZE12#..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
52119-1E750A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
52119-1E800B2	CE121,NZE12#..SED SILVER ME.GR.,1D9	09/2002 - 04/2004	1
52119-1E810C0	ZZE122,124;CE121,NZE121,124,ZZE123..WG BLACK MC.,209	09/2002 - 04/2004	1
52119-1E800C0	CE121,NZE12#..SED BLACK MC.,209	09/2002 - 04/2004	1
52119-1E800B3	CE121,NZE12#..SED SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-1E810B1	ZZE122,124;CE121,NZE121,124,ZZE123..WG SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-1E810D1	ZZE122,124;CE121,NZE121,124,ZZE123..WG BORDEAUX MC.,3P2	09/2002 - 04/2004	1
52119-12A30C0	NZE12#,ZZE122,124..SED BLACK MC.,209	04/2004 - 09/2006	1
52119-12A30A1	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-12A30B1	NZE12#,ZZE122,124..SED SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-1E810A0	ZZE122,124;CE121,NZE121,124,ZZE123..WG SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-12A30J0	NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
52119-12A30B0	NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9	04/2004 - 09/2006	1
52119-12A30J1	NZE12#,ZZE122,124..SED LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-12A30A0	NZE12#,ZZE122,124..SED SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-12A30E1	NZE121,124..SED..X HIDﾘﾐﾃﾂﾄﾞ *(J),BEIGE ME.,4M9	05/2005 - 12/2999	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-12170	CE121,NZE12#..SED	09/2002 - 04/2004	1
52127-12170	CE121,NZE12#,ZZE12#..G,S,X,ZAER	08/2000 - 09/2002	1
52127-12210	NZE12#,ZZE12#..G,S,X,ZAER	04/2004 - 09/2006	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12070	CE121,NZE12#..SED	09/2002 - 04/2004	1
52128-12130	NZE12#,ZZE12#..G,S,X,ZAER	04/2004 - 09/2006	1
52128-12070	CE121,NZE12#,ZZE12#..G,S,X,ZAER	08/2000 - 09/2002	1
52161C - PIECE, FRONT BUMPER
90467-09093	CE121,NZE12#,ZZE12# NO.1	08/2000 - 09/2002	1
52161-16010	CE121,NZE12#,ZZE12# NO.2	08/2000 - 09/2002	2
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	1
52161-16010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
52541-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
52541-12020	NZE12#,ZZE12#	04/2004 - 09/2006	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
52541-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
52541-12020	NZE12#,ZZE12#	04/2004 - 09/2006	2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12170	NZE12#,ZZE12#	04/2004 - 09/2006	1
52611-12150	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
Common parts
90105-06277
90159-50311
90159-60431
90178-08006
90179-06127
90189-09002
91511-B0818
Linked diagrams
5102
5301
5302
7601
8102

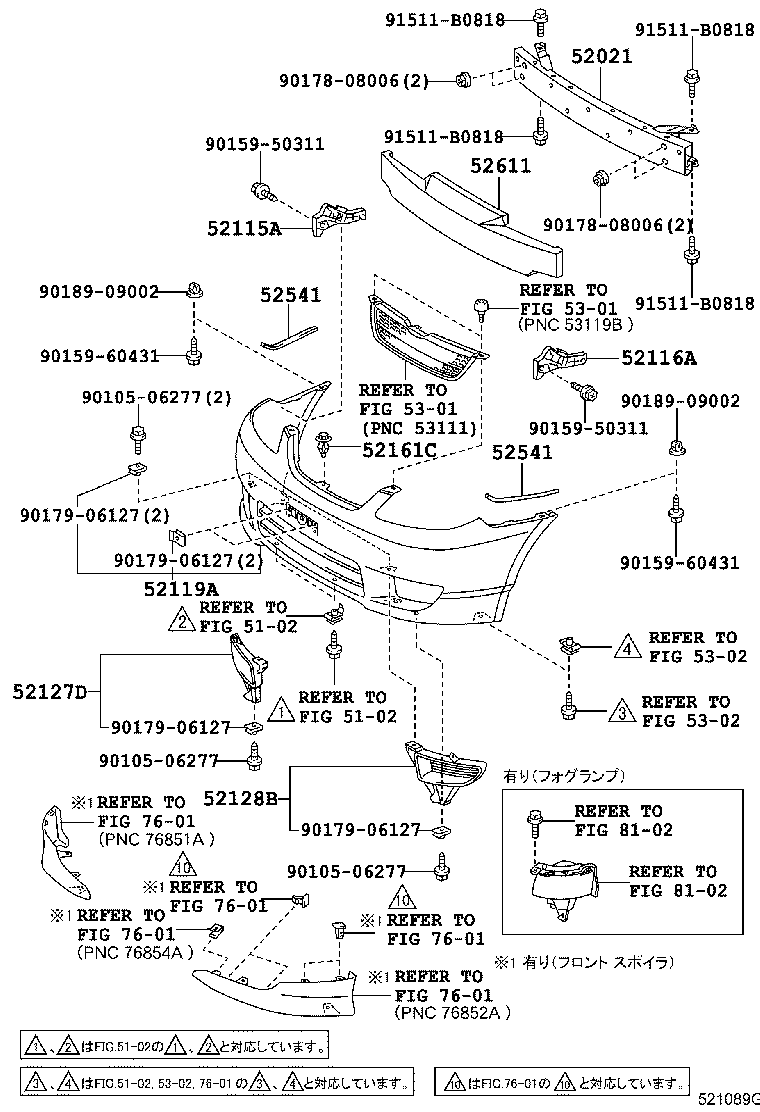

(0008-0209)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12200	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52021-12220	NZE12#,ZZE12#	04/2004 - 09/2006	1
52021-12220	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-12100	CE121,NZE12#..SED	09/2002 - 04/2004	1
52114-12100	CE121,NZE12#,ZZE12#	10/2001 - 09/2002	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12380	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52115-12380	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52115-12420	NZE12#,ZZE12#	04/2004 - 09/2006	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12380	NZE12#,ZZE12#	04/2004 - 09/2006	1
52116-12340	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
52116-12340	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52119A - COVER, FRONT BUMPER
52119-1E750J0	CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4	08/2000 - 09/2002	1
52119-1E750H0	CE121,NZE12#,ZZE12# TURQUOISE M.M.,769	08/2000 - 09/2002	1
52119-1E750B2	CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9	08/2000 - 09/2002	1
52119-1E750C0	CE121,NZE12#,ZZE12# BLACK ME,205	08/2000 - 10/2001	1
52119-1E750G1	CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9	10/2001 - 09/2002	1
52119-1E750A1	CE121,NZE12#,ZZE12# SUPER WHITE 2,040	08/2000 - 09/2002	1
52119-1E750B1	CE121,NZE12#,ZZE12# SILVER ME.,199	08/2000 - 09/2002	1
52119-1E750C1	CE121,NZE12#,ZZE12# BLACK MC.,209	10/2001 - 09/2002	1
52119-1E800D2	CE121,NZE12#..SED BORDEAUX MC.,3P2	09/2002 - 04/2004	1
52119-1E800A0	CE121,NZE12#..SED SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-1E800A1	CE121,NZE12#..SED WHITE PEARL CS.,065	09/2002 - 04/2004	1
52119-1E750A2	CE121,NZE12#..SED..X WHITE PM.,057	12/2001 - 09/2002	1
52119-1E800B2	CE121,NZE12#..SED SILVER ME.GR.,1D9	09/2002 - 04/2004	1
52119-1E810C0	ZZE122,124;CE121,NZE121,124,ZZE123..WG BLACK MC.,209	09/2002 - 04/2004	1
52119-1E800C0	CE121,NZE12#..SED BLACK MC.,209	09/2002 - 04/2004	1
52119-1E800B3	CE121,NZE12#..SED SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-1E810B1	ZZE122,124;CE121,NZE121,124,ZZE123..WG SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-1E810D1	ZZE122,124;CE121,NZE121,124,ZZE123..WG BORDEAUX MC.,3P2	09/2002 - 04/2004	1
52119-12A30C0	NZE12#,ZZE122,124..SED BLACK MC.,209	04/2004 - 09/2006	1
52119-12A30A1	NZE12#,ZZE122,124..SED WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-12A30B1	NZE12#,ZZE122,124..SED SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-1E810A0	ZZE122,124;CE121,NZE121,124,ZZE123..WG SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-12A30J0	NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4	04/2004 - 09/2006	1
52119-12A30B0	NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9	04/2004 - 09/2006	1
52119-12A30J1	NZE12#,ZZE122,124..SED LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-12A30A0	NZE12#,ZZE122,124..SED SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-12A30E1	NZE121,124..SED..X HIDﾘﾐﾃﾂﾄﾞ *(J),BEIGE ME.,4M9	05/2005 - 12/2999	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-12170	CE121,NZE12#..SED	09/2002 - 04/2004	1
52127-12170	CE121,NZE12#,ZZE12#..G,S,X,ZAER	08/2000 - 09/2002	1
52127-12210	NZE12#,ZZE12#..G,S,X,ZAER	04/2004 - 09/2006	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12070	CE121,NZE12#..SED	09/2002 - 04/2004	1
52128-12130	NZE12#,ZZE12#..G,S,X,ZAER	04/2004 - 09/2006	1
52128-12070	CE121,NZE12#,ZZE12#..G,S,X,ZAER	08/2000 - 09/2002	1
52161C - PIECE, FRONT BUMPER
52161-16010	CE121,NZE12#,ZZE12# NO.2	08/2000 - 09/2002	2
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	1
90467-09093	CE121,NZE12#,ZZE12# NO.1	08/2000 - 09/2002	1
52161-16010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52161C - PIECE, FRONT BUMPER
52161-16010	CE121,NZE12#,ZZE12# NO.2	08/2000 - 09/2002	2
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	1
90467-09093	CE121,NZE12#,ZZE12# NO.1	08/2000 - 09/2002	1
52161-16010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
52541-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
52541-12020	NZE12#,ZZE12#	04/2004 - 09/2006	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
52541-12020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
52541-12020	NZE12#,ZZE12#	04/2004 - 09/2006	2
Common parts
90159-50311
90159-60431
90179-06127
90179-08068
90189-09002
91511-B0818
Linked diagrams
5301
5302
7601
8102

NZE124-AEPNK (2000)

(0209-0404)SED

(0404- )

(0008-0209)

Part Price Details
