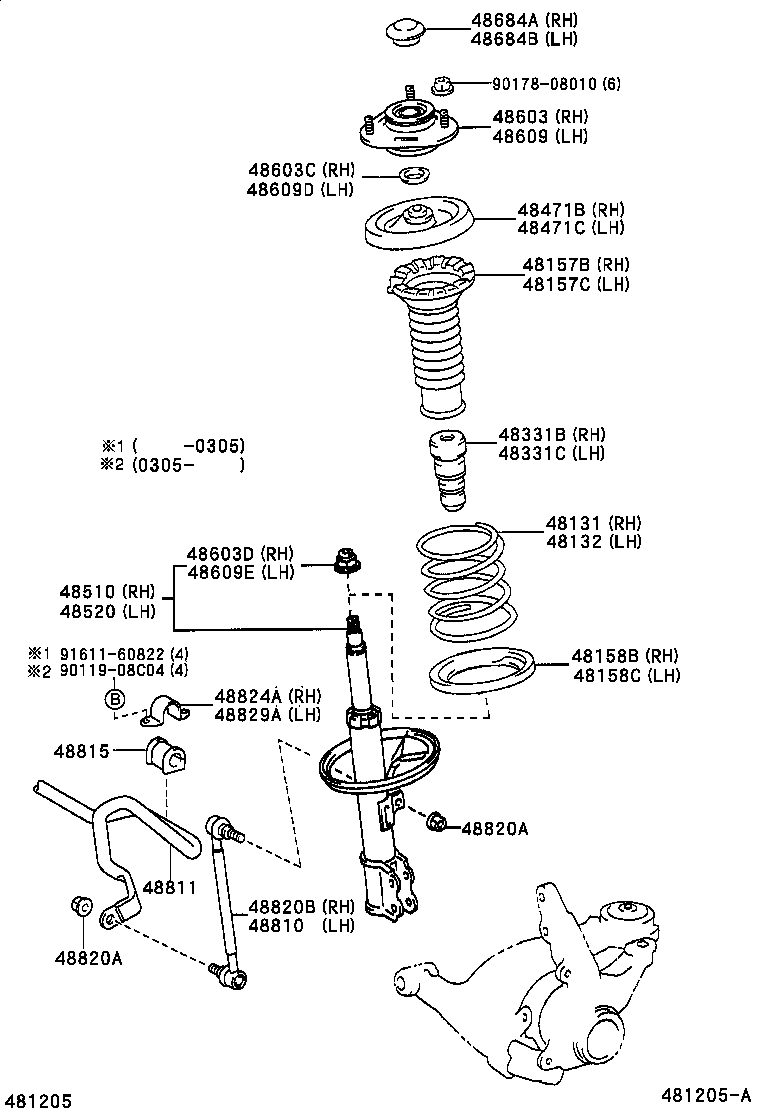

Toyota Corolla/fielder NZE124 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48131 - SPRING, FRONT COIL, RH
48131-1N510	NZE124	08/2000 - 09/2002	1
48131-1N540	CE121..5F;ZZE123,124..4FC	08/2000 - 09/2002	1
48131-1N530	NZE124	09/2002 - 04/2004	1
48131-1N530	NZE124	04/2004 - 09/2006	1
48132 - SPRING, FRONT COIL, LH
48131-1N510	NZE124	08/2000 - 09/2002	1
48131-1N540	CE121..5F;ZZE123,124..4FC	08/2000 - 09/2002	1
48131-1N530	NZE124	04/2004 - 09/2006	1
48131-1N530	NZE124	09/2002 - 04/2004	1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48157-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48157-12080	NZE12#,ZZE12#	04/2004 - 09/2006	1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-12080	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48157-12080	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48157-12080	NZE12#,ZZE12#	04/2004 - 09/2006	1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-47010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48158-47010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48158-47010	NZE12#,ZZE12#	04/2004 - 09/2006	1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-47010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48158-47010	NZE12#,ZZE12#	04/2004 - 09/2006	1
48158-47010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48331B - BUMPER, FRONT SPRING, RH
48331-12210	CE121,NZE124,ZZE12#	09/2002 - 04/2004	1
48331-12210	CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
48331-12210	NZE124,ZZE12#	04/2004 - 09/2006	1
48331C - BUMPER, FRONT SPRING, LH
48331-12210	CE121,NZE124,ZZE12#	08/2000 - 09/2002	1
48331-12210	CE121,NZE124,ZZE12#	09/2002 - 04/2004	1
48331-12210	NZE124,ZZE12#	04/2004 - 09/2006	1
48471B - SEAT, FRONT COIL SPRING, UPPER RH
48044-12100	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48044-12100	NZE12#,ZZE12#	04/2004 - 09/2006	1
48044-12100	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48471C - SEAT, FRONT COIL SPRING, UPPER LH
48044-12100	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48044-12100	NZE12#,ZZE12#	04/2004 - 09/2006	1
48044-12100	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80175	NZE124 ﾏｰｸ 48510−12A40	04/2004 - 09/2006	1
48510-80018	NZE124,ZZE124 ﾏｰｸ 48510−1A340	08/2000 - 09/2002	1
48510-80094	NZE124 ﾏｰｸ 48510−1A520	09/2002 - 04/2004	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-19696	NZE124,ZZE124	08/2000 - 09/2002	1
48520-80022	NZE124 ﾏｰｸ 48520−1A360	04/2004 - 09/2006	1
48520-80001	NZE124 ﾏｰｸ 48520−1A520	09/2002 - 04/2004	1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-13010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48609-12420	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48609-13010	NZE12#,ZZE122,124	04/2004 - 09/2006	1
48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
90303-22049	CE121,NZE12#,ZZE12#	08/2000 - 04/2001	1
90303-22002	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
90303-22002	NZE12#,ZZE12#	04/2004 - 09/2006	1
90303-22002	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90179-14015	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
90179-14015	NZE12#,ZZE12#	04/2004 - 09/2006	1
90179-14015	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-12420	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48609-13010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48609-13010	NZE12#,ZZE122,124	04/2004 - 09/2006	1
48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
90303-22002	CE121,NZE12#,ZZE12#	05/2001 - 09/2002	1
90303-22002	NZE12#,ZZE12#	04/2004 - 09/2006	1
90303-22002	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
90303-22049	CE121,NZE12#,ZZE12#	08/2000 - 04/2001	1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90179-14015	NZE12#,ZZE12#	04/2004 - 09/2006	1
90179-14015	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
90179-14015	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-52010	NZE12#,ZZE12#	04/2004 - 09/2006	1
48684-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48684-52010	CE121,NZE12#,ZZE12#	12/2002 - 04/2004	1
48684-12070	CE121,NZE12#,ZZE12#	09/2002 - 11/2002	1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-12070	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48684-52010	CE121,NZE12#,ZZE12#	12/2002 - 04/2004	1
48684-52010	NZE12#,ZZE12#	04/2004 - 09/2006	1
48684-12070	CE121,NZE12#,ZZE12#	09/2002 - 11/2002	1
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-47010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48820-47010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48820-47010	NZE12#,ZZE12#	04/2004 - 09/2006	1
48811 - BAR, STABILIZER, FRONT
48811-1A220	NZE124,ZZE124	09/2002 - 04/2004	1
48811-1A200	NZE124,ZZE124..SED	08/2000 - 09/2002	1
48811-1A220	NZE124,ZZE124	04/2004 - 09/2006	1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-13040	NZE124,ZZE124	09/2002 - 04/2004	2
48815-12330	NZE124,ZZE124..SED	08/2000 - 09/2002	2
48815-13040	NZE124,ZZE124	04/2004 - 09/2006	2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12151	NZE12#,ZZE12#	04/2004 - 09/2006	4
90179-12151	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
90179-12151	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12151	NZE12#,ZZE12#	04/2004 - 09/2006	4
90179-12151	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	4
90179-12151	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-47010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48820-47010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48820-47010	NZE12#,ZZE12#	04/2004 - 09/2006	1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-26210	NZE12#,ZZE12#	04/2004 - 09/2006	1
48824-26210	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48824-26210	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-26210	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
48824-26210	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
48824-26210	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90119-08C04
90178-08010
91611-60822

NZE124-AEPNK (2000)

(0008-0404) ; (0404- )NZE12#,ZZE122,124
