Toyota Corolla/fielder NZE124 BRAKE TUBE & CLAMP

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

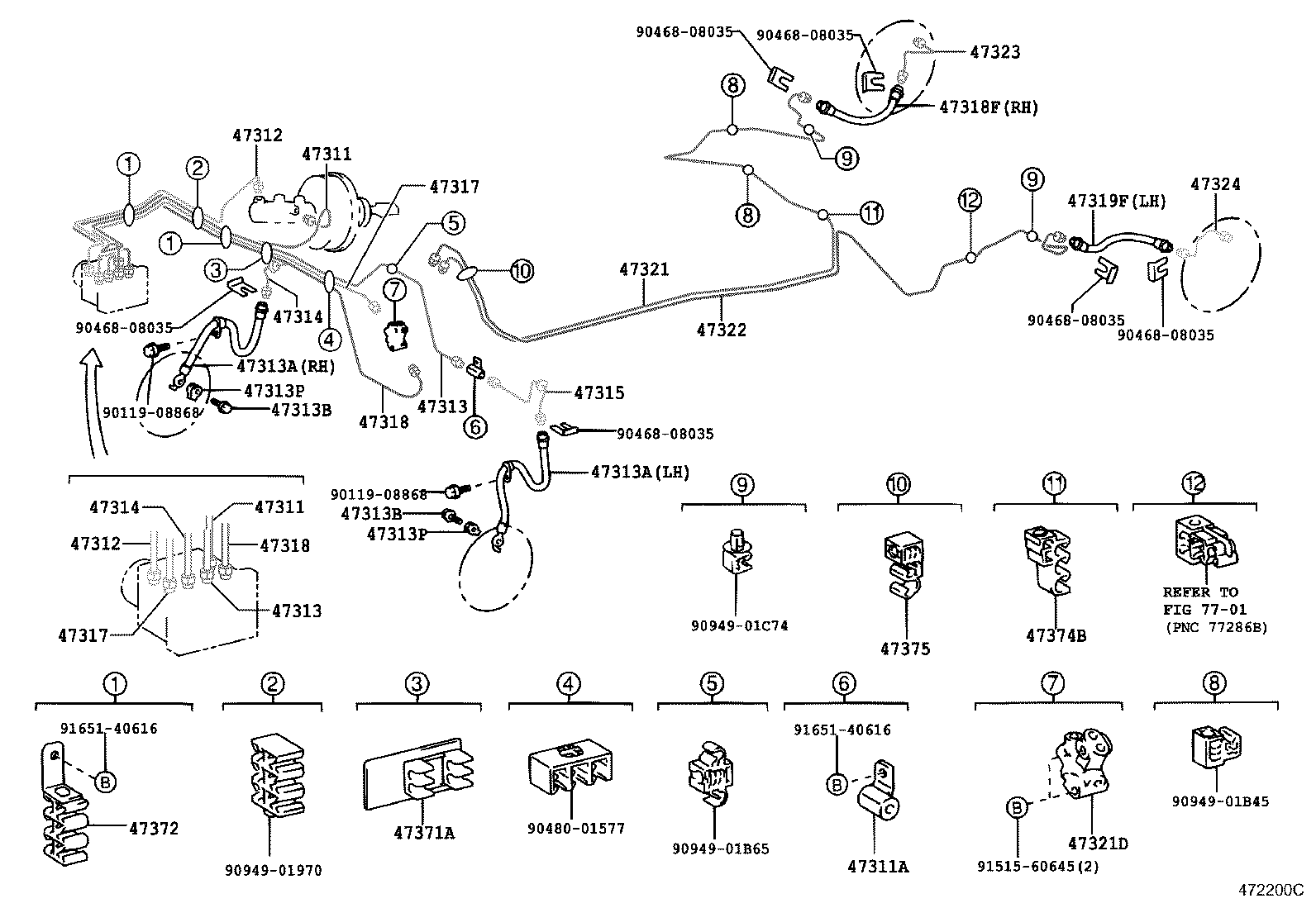

ILLUST NO. 1 OF 2(0008- )NZE124,ZZE124

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-12680	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47311-12680	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47311-12680	NZE12#,ZZE12#	04/2004 - 09/2006	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-12680	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47311-12680	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47311-12680	NZE12#,ZZE12#	04/2004 - 09/2006	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10167	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
90412-10167	NZE12#,ZZE12#	04/2004 - 09/2006	1
90412-10167	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-12410	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47312-12410	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47312-12410	NZE12#,ZZE12#	04/2004 - 09/2006	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-12410	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47312-12410	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47312-12410	NZE12#,ZZE12#	04/2004 - 09/2006	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12480	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47313-12480	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47313-12480	NZE12#,ZZE12#	04/2004 - 09/2006	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12480	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47313-12480	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47313-12480	NZE12#,ZZE12#	04/2004 - 09/2006	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C47	CE121,NZE12#,ZZE12# 右側	09/2002 - 04/2004	1
90947-02C48	NZE12#,ZZE12# 左側	04/2004 - 09/2006	1
90947-02C47	CE121,NZE12#,ZZE12# 右側	08/2000 - 09/2002	1
90947-02C48	CE121,NZE12#,ZZE12# 左側	09/2002 - 04/2004	1
90947-02C48	CE121,NZE12#,ZZE12# 左側	08/2000 - 09/2002	1
90947-02C47	NZE12#,ZZE12# 右側	04/2004 - 09/2006	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C47	CE121,NZE12#,ZZE12# 右側	09/2002 - 04/2004	1
90947-02C48	NZE12#,ZZE12# 左側	04/2004 - 09/2006	1
90947-02C47	CE121,NZE12#,ZZE12# 右側	08/2000 - 09/2002	1
90947-02C48	CE121,NZE12#,ZZE12# 左側	09/2002 - 04/2004	1
90947-02C48	CE121,NZE12#,ZZE12# 左側	08/2000 - 09/2002	1
90947-02C47	NZE12#,ZZE12# 右側	04/2004 - 09/2006	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90401-10058	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90401-10058	NZE12#,ZZE12#	04/2004 - 09/2006	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
90401-10058	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
90401-10058	NZE12#,ZZE12#	04/2004 - 09/2006	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
47389-50020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
47389-50020	NZE12#,ZZE12#	04/2004 - 09/2006	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
47389-50020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
47389-50020	NZE12#,ZZE12#	04/2004 - 09/2006	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-12420	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47314-12420	NZE12#,ZZE12#	04/2004 - 09/2006	1
47314-12420	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-12420	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47314-12420	NZE12#,ZZE12#	04/2004 - 09/2006	1
47314-12420	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-12490	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47315-12490	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47315-12490	NZE12#,ZZE12#	04/2004 - 09/2006	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-12190	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47317-12190	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47317-12190	NZE12#,ZZE12#	04/2004 - 09/2006	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-12190	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47317-12190	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47317-12190	NZE12#,ZZE12#	04/2004 - 09/2006	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-12330	NZE12#,ZZE12#	04/2004 - 09/2006	1
47318-12330	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47318-12330	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-12330	NZE12#,ZZE12#	04/2004 - 09/2006	1
47318-12330	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47318-12330	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02C25	NZE124,ZZE124	08/2000 - 09/2002	1
90947-02C25	NZE124,ZZE124	04/2004 - 09/2006	1
90947-02C25	NZE124,ZZE124	09/2002 - 04/2004	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02C25	NZE124,ZZE124	08/2000 - 09/2002	1
90947-02C25	NZE124,ZZE124	04/2004 - 09/2006	1
90947-02C25	NZE124,ZZE124	09/2002 - 04/2004	1
47321 - TUBE, REAR BRAKE, NO.1
47321-12300	NZE124,ZZE124	09/2002 - 04/2004	1
47321-12300	NZE124,ZZE124	08/2000 - 09/2002	1
47321-12300	NZE124,ZZE124	04/2004 - 09/2006	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90904-12088	NZE12#,ZZE12#	04/2004 - 09/2006	1
90904-12088	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
90904-12088	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47322 - TUBE, REAR BRAKE, NO.2
47322-12430	NZE124,ZZE124	08/2000 - 09/2002	1
47322-12430	NZE124,ZZE124	09/2002 - 04/2004	1
47322-12430	NZE124,ZZE124	04/2004 - 09/2006	1
47323 - TUBE, REAR BRAKE, NO.3
47323-20210	NZE124,ZZE124	04/2004 - 09/2006	1
47323-20210	NZE124,ZZE124	09/2002 - 04/2004	1
47323-20210	NZE124,ZZE124	08/2000 - 09/2002	1
47324 - TUBE, REAR BRAKE, NO.4
47324-20210	NZE124,ZZE124	04/2004 - 09/2006	1
47324-20210	NZE124,ZZE124	09/2002 - 04/2004	1
47324-20210	NZE124,ZZE124	08/2000 - 09/2002	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-12230	NZE12#,ZZE12#	04/2004 - 09/2006	1
47371-12230	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47371-12230	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47372 - CLAMP, BRAKE TUBE, NO.2
47374-12050	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	2
47374-12050	NZE12#,ZZE12#	04/2004 - 09/2006	2
47374-12050	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	2
47374B - CLAMP, BRAKE TUBE, NO.4
77286-12060	NZE124,ZZE124	08/2000 - 09/2002	1
77286-12060	NZE124,ZZE124	04/2004 - 09/2006	1
77286-12060	NZE124,ZZE124	09/2002 - 04/2004	1
47375 - CLAMP, BRAKE TUBE, NO.5
77299-32030	NZE124,ZZE124	04/2004 - 09/2006	1
77299-32030	NZE124,ZZE124	09/2002 - 04/2004	1
77299-32030	NZE124,ZZE124	08/2000 - 09/2002	1
Common parts
90119-08868
90468-08035
90480-01577
90949-01970
90949-01B45
90949-01B65
90949-01C74
91515-60645
91651-40616
Linked diagrams
7701

ILLUST NO. 2 OF 2(0008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
31478R - CAP, BLEEDER PLUG(FOR BRAKE ACTUATOR)
31478-30010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
31478-30010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
31478-30010	NZE12#,ZZE12#	04/2004 - 09/2006	1
44510 - ACTUATOR ASSY, BRAKE
44050-12172	NZE124,ZZE124	08/2000 - 05/2001	1
44050-12172	NZE124,ZZE124	09/2001 - 09/2002	1
44050-12171	NZE124,ZZE124	05/2001 - 09/2001	1
44050-12173	NZE124,ZZE124	04/2004 - 09/2006	1
44050-12173	NZE124,ZZE124	10/2003 - 04/2004	1
44050-12172	NZE124,ZZE124	09/2002 - 10/2003	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	NZE12#,ZZE12#	04/2004 - 09/2006	3
44546-12100	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	3
44546-12100	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	NZE12#,ZZE12#	04/2004 - 09/2006	3
44546-12100	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	3
44546-12100	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	NZE12#,ZZE12#	04/2004 - 09/2006	3
44546-12100	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	3
44546-12100	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-12060	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
44590-12060	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
44590-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
47547M - PLUG, BLEEDER(FOR BRAKE ACTUATOR)
47547-22020	NZE12#,ZZE12#	04/2004 - 09/2006	1
47547-22020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47547-22020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
Common parts
90119-06844
90119-08C24
90179-08189
90561-06013
