Toyota Corolla/fielder NZE124 BRAKE BOOSTER & VACUUM TUBE

Manufacturers Home
Toyota
JP
COROLLA/FIELDER
NZE124-AEPNK (2000)
4703 - BRAKE BOOSTER & VACUUM TUBE

NZE124-AEPNK (2000)

Toyota Corolla/Fielder

Production Aug 2000 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

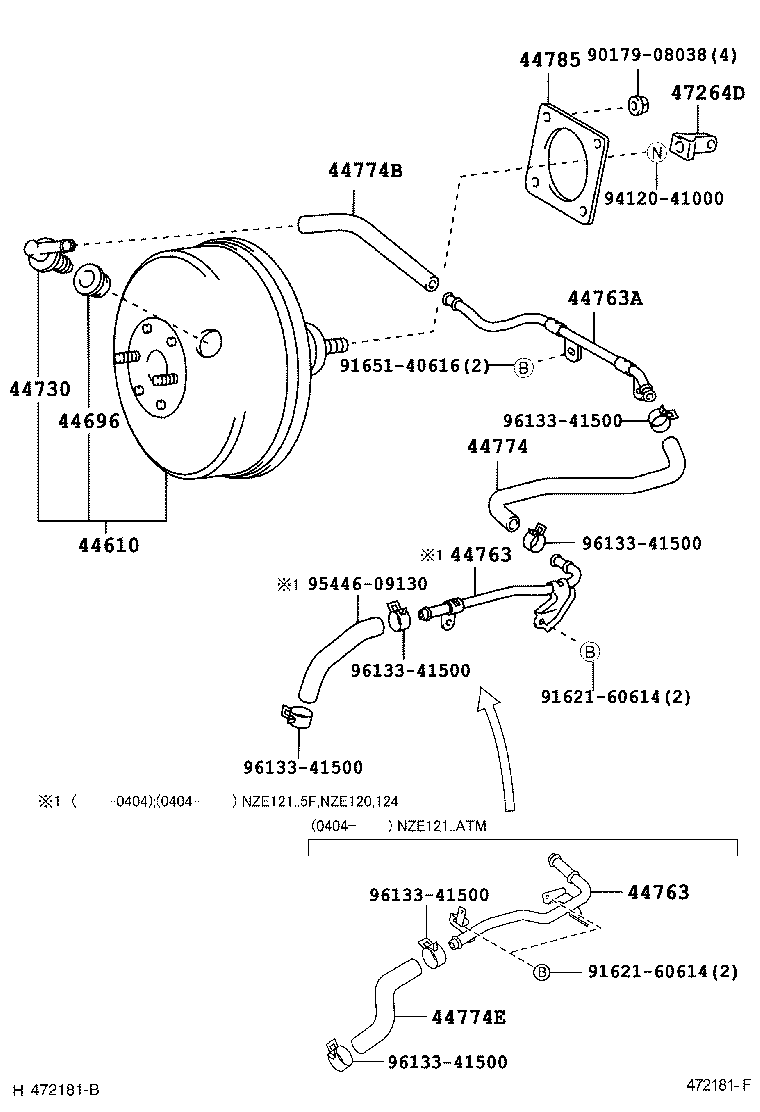

(0008- )NZE12#

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-1E470	NZE12#,ZZE122,124	09/2002 - 04/2004	1
44610-1E470	NZE12#,ZZE122,124	04/2004 - 09/2006	1
44610-1E470	NZE12#,ZZE122,124	08/2000 - 09/2002	1
44696 - GROMMET, CHECK VALVE
90480-24439	NZE12#,ZZE12#	04/2004 - 09/2006	1
90480-24439	NZE12#,ZZE12#	08/2000 - 09/2002	1
90480-24439	NZE12#,ZZE12#	09/2002 - 04/2004	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12070	NZE12#,ZZE12#	08/2000 - 09/2002	1
44730-14050	NZE12#,ZZE12#	04/2004 - 09/2006	1
44730-12070	NZE12#,ZZE12#	09/2002 - 04/2004	1
44763 - TUBE, BOOSTER VACUUM
44763-52010	NZE12#	08/2000 - 09/2002	1
44763-52010	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
44763-52010	NZE12#	09/2002 - 04/2004	1
44763 - TUBE, BOOSTER VACUUM
44763-52010	NZE12#	08/2000 - 09/2002	1
44763-52010	NZE120,124;NZE121..5F	04/2004 - 09/2006	1
44763-52010	NZE12#	09/2002 - 04/2004	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12340	NZE12#,ZZE12#	09/2002 - 04/2004	1
44763-12340	NZE12#,ZZE12#	08/2000 - 09/2002	1
44763-12340	NZE12#,ZZE12#	04/2004 - 09/2006	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12410	NZE12#	08/2000 - 09/2002	1
44774-12420	ZZE122,124	08/2000 - 09/2002	1
44774-12420	ZZE122,124	09/2002 - 04/2004	1
44774-12410	NZE12#	09/2002 - 04/2004	1
44774-12420	ZZE122,124	04/2004 - 09/2006	1
44774-12410	NZE12#	04/2004 - 09/2006	1
44774B - HOSE, UNION TO CONNECTOR TUBE
95446-09180	NZE12#,ZZE12#	04/2004 - 09/2006	1
95446-09180	NZE12#,ZZE12#	08/2000 - 09/2002	1
95446-09180	NZE12#,ZZE12#	09/2002 - 04/2004	1
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-20310	ZZE122,124	08/2000 - 09/2002	1
44774-20310	ZZE122,124	09/2002 - 04/2004	1
44774-20310	ZZE122,124	04/2004 - 09/2006	1
44785 - GASKET, BRAKE BOOSTER
44785-20020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
44785-20020	NZE12#,ZZE12#	04/2004 - 09/2006	1
44785-20020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63010	NZE12#,ZZE12#..4FC,5F	04/2004 - 09/2006	1
47264-63010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47264-63010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
Common parts
90179-08038
91621-60614
91651-40616
94120-41000
95446-09130
96133-41500

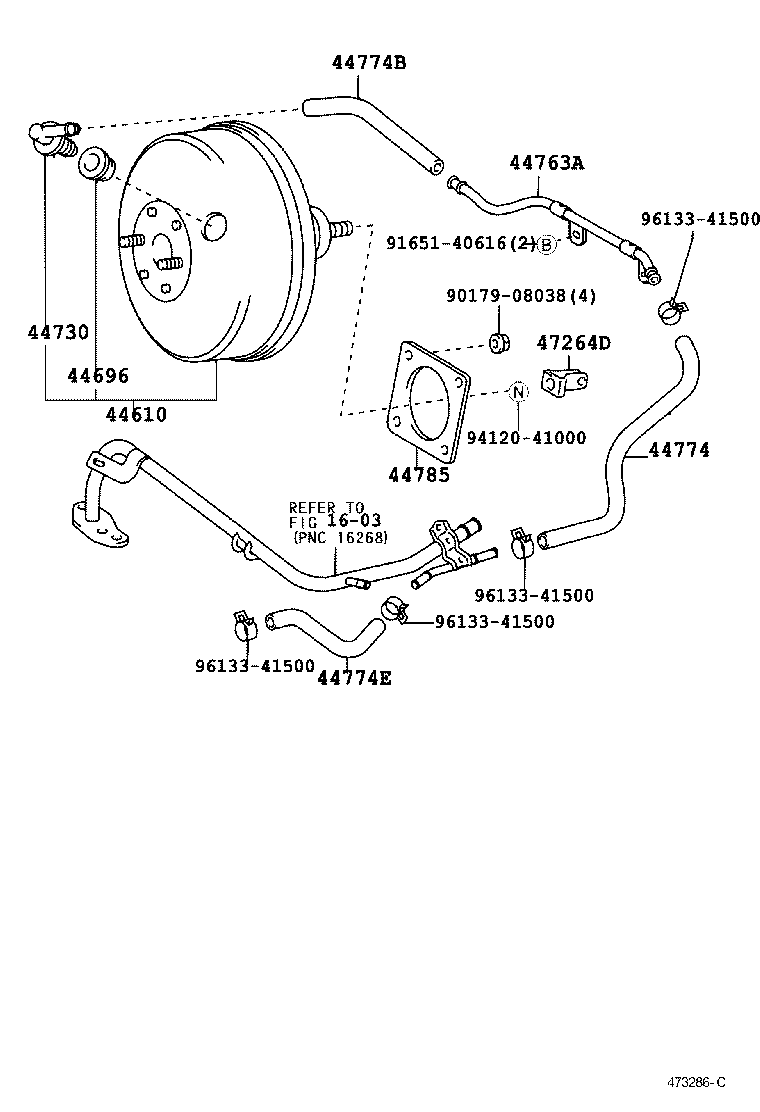

(0008- )ZZE122,124

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-1E470	NZE12#,ZZE122,124	09/2002 - 04/2004	1
44610-1E470	NZE12#,ZZE122,124	04/2004 - 09/2006	1
44610-1E470	NZE12#,ZZE122,124	08/2000 - 09/2002	1
44696 - GROMMET, CHECK VALVE
90480-24439	NZE12#,ZZE12#	04/2004 - 09/2006	1
90480-24439	NZE12#,ZZE12#	08/2000 - 09/2002	1
90480-24439	NZE12#,ZZE12#	09/2002 - 04/2004	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12070	NZE12#,ZZE12#	08/2000 - 09/2002	1
44730-14050	NZE12#,ZZE12#	04/2004 - 09/2006	1
44730-12070	NZE12#,ZZE12#	09/2002 - 04/2004	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12340	NZE12#,ZZE12#	09/2002 - 04/2004	1
44763-12340	NZE12#,ZZE12#	08/2000 - 09/2002	1
44763-12340	NZE12#,ZZE12#	04/2004 - 09/2006	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12410	NZE12#	08/2000 - 09/2002	1
44774-12420	ZZE122,124	08/2000 - 09/2002	1
44774-12420	ZZE122,124	09/2002 - 04/2004	1
44774-12410	NZE12#	09/2002 - 04/2004	1
44774-12420	ZZE122,124	04/2004 - 09/2006	1
44774-12410	NZE12#	04/2004 - 09/2006	1
44774B - HOSE, UNION TO CONNECTOR TUBE
95446-09180	NZE12#,ZZE12#	04/2004 - 09/2006	1
95446-09180	NZE12#,ZZE12#	08/2000 - 09/2002	1
95446-09180	NZE12#,ZZE12#	09/2002 - 04/2004	1
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-20310	ZZE122,124	08/2000 - 09/2002	1
44774-20310	ZZE122,124	09/2002 - 04/2004	1
44774-20310	ZZE122,124	04/2004 - 09/2006	1
44785 - GASKET, BRAKE BOOSTER
44785-20020	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
44785-20020	NZE12#,ZZE12#	04/2004 - 09/2006	1
44785-20020	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63010	NZE12#,ZZE12#..4FC,5F	04/2004 - 09/2006	1
47264-63010	CE121,NZE12#,ZZE12#	09/2002 - 04/2004	1
47264-63010	CE121,NZE12#,ZZE12#	08/2000 - 09/2002	1
Common parts
90179-08038
91651-40616
94120-41000
96133-41500
Linked diagrams
1603

NZE124-AEPNK (2000)

(0008- )NZE12#

(0008- )ZZE122,124
